Buy Symmetry trimming biaxial mechanical structure 3D model

Name: Symmetry trimming biaxial mechanical structure 3D model
Brand: forestlsls
SKU: 18298
Price: 8.00 USD
Availability: InStock

License: Royalty Free

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

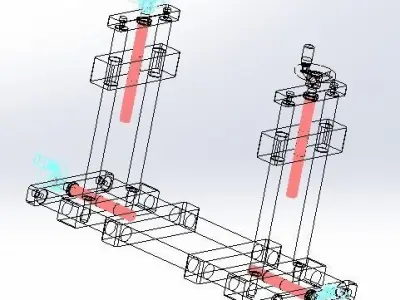

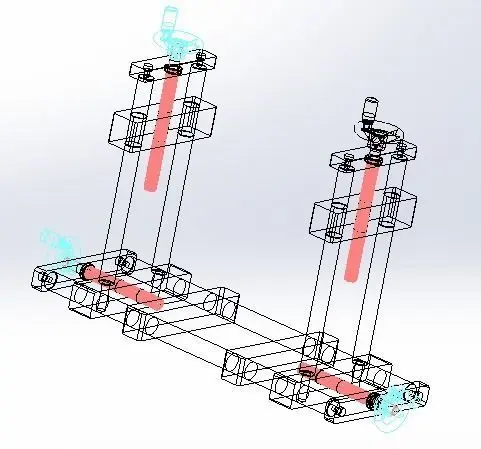

Symmetry trimming biaxial mechanical structure, the mechanism through the lead screw and guide rail combination principle, the mechanism symmetric fine-tuning, z axis and fine-tuning, can be used as an inspection agencies, feeding mechanism of fine-tuning mechanism to use.Themechanism includes:

Fine tuning mechanism
Symmetric screw structure.
Guide rail transfer mechanism.Symmetrical adjustment of screw guide.

Files format contains-solidworks 2017-step-iges-stl-obj-3ds

and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 130000
Vertices: 258608
Geometry: No N-gons | No faceted geometry | Manifold geometry |
