Description

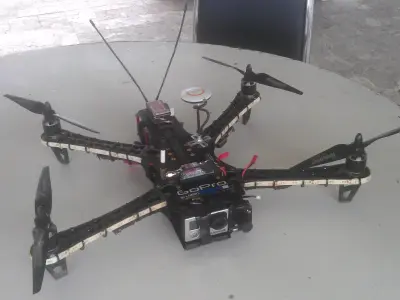

This is an Frame Plate based on Team Black Sheep (TBS) discovery quadcopter FPV. http://team-blacksheep.com/shop/cat:discovery
The TBS DISCOVERY quadcopter is a durable and crash resistant multirotor optimized for dynamic FPV flight. By implementing the wiring into the frame, the copter is easy to build and outperforms similar quads in terms of FPV range and video link quality. The DJI Flamewheel arms as predetermined breaking point protect your electronics and are easily replaceable in the field.The TBS DISCOVERY comes as two main boards (top and bottom) and optional flamewheel arms with accessories. It transforms the popular F450 (Flamewheel) into a spider quadrotor. The GoPro and FPV camera mount is placed ideally for "no prop in view" pictures.
It will fit with Ardupilot Mega 2.5 and u-Blox GPS also with the Open Pilot CC3D

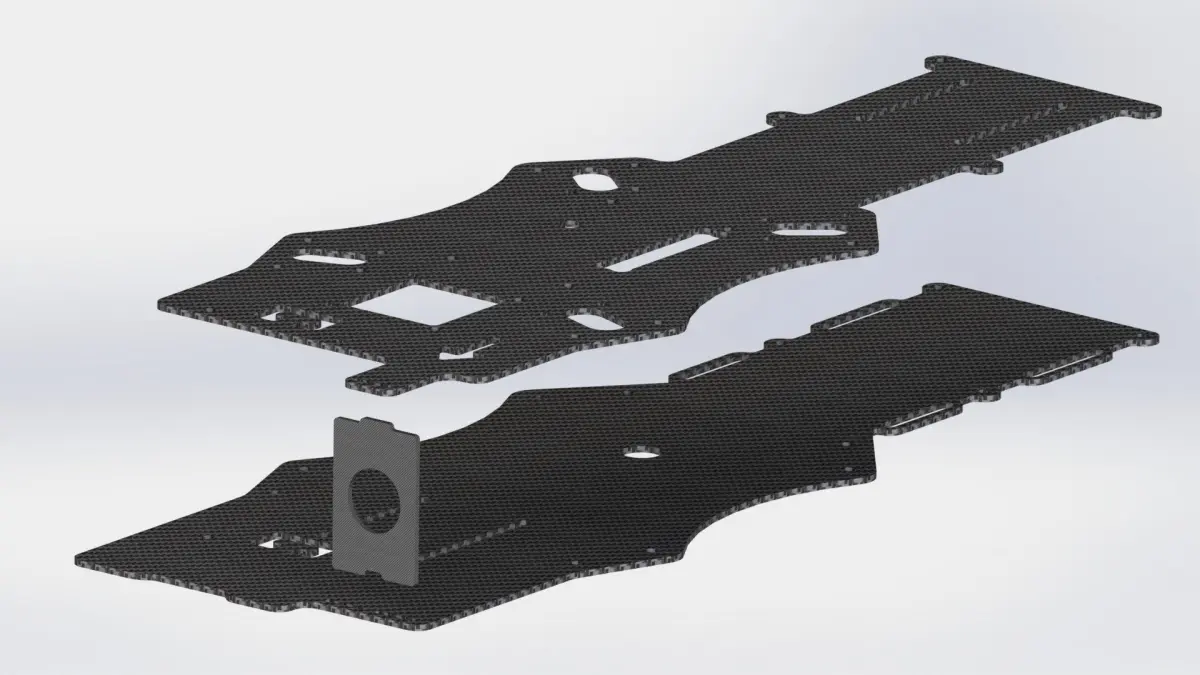

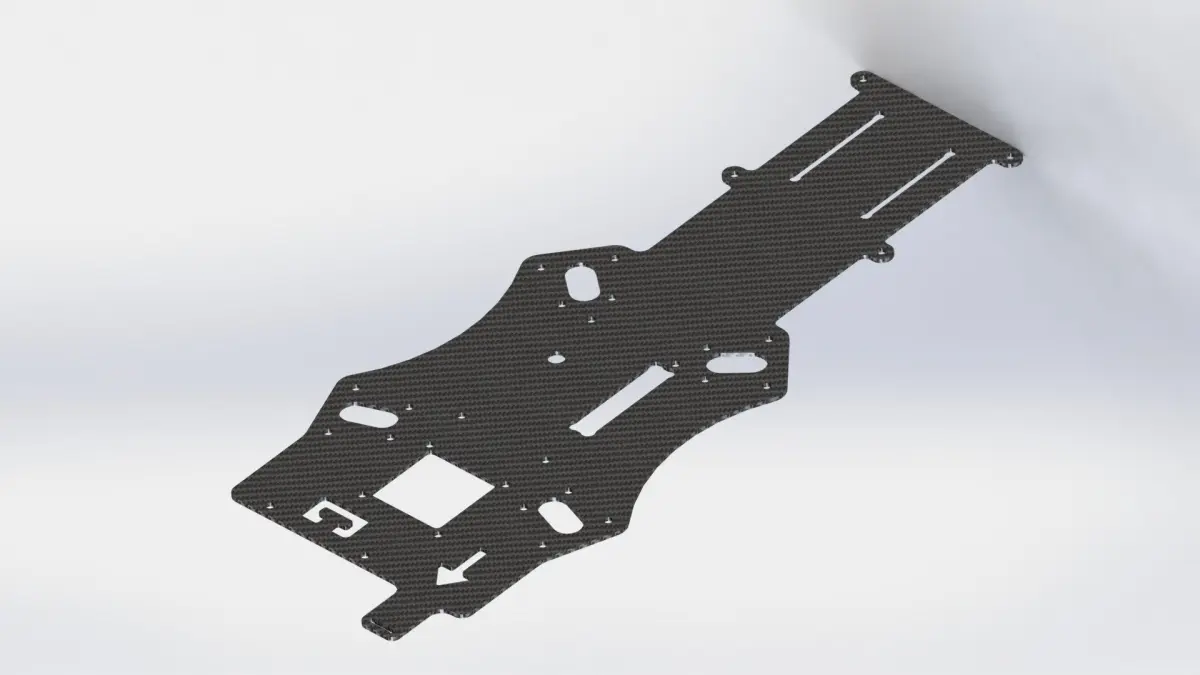

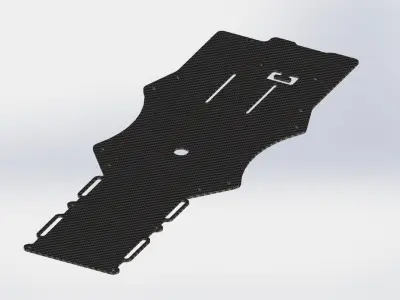

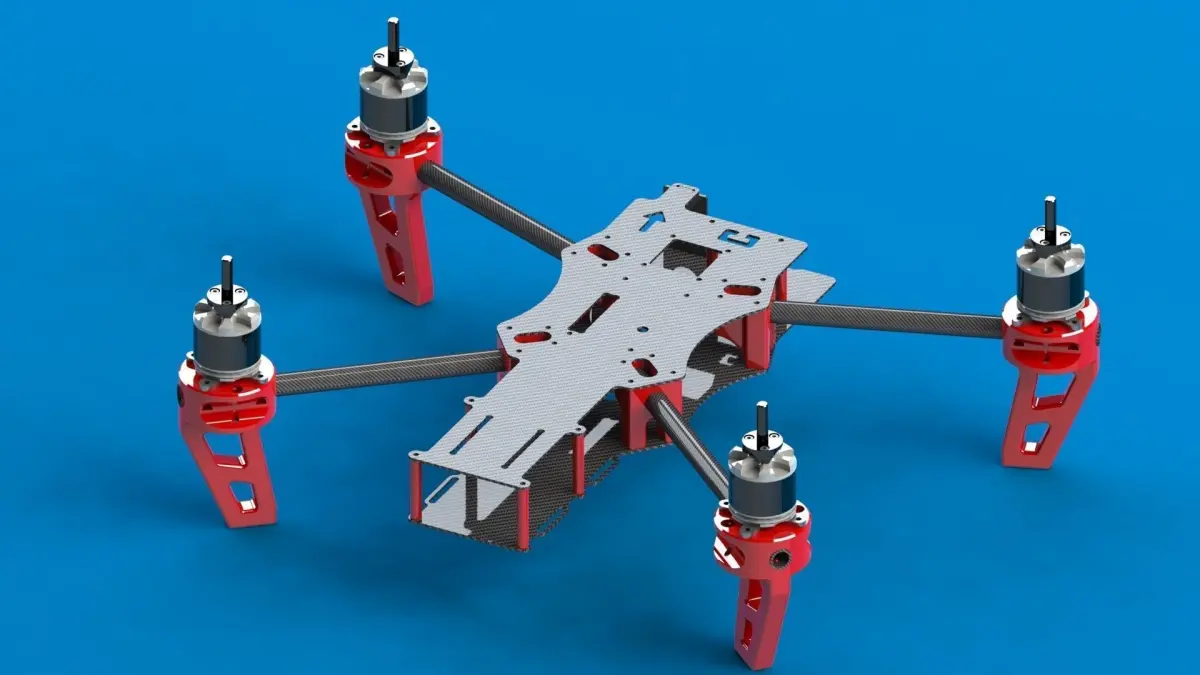

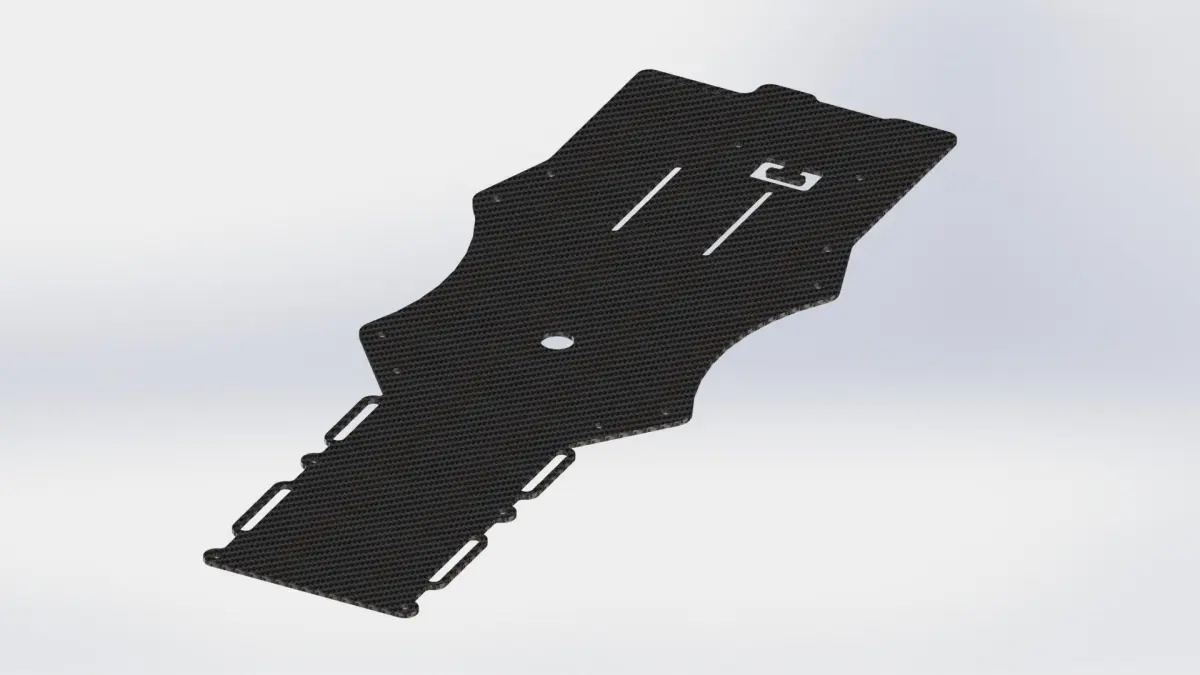

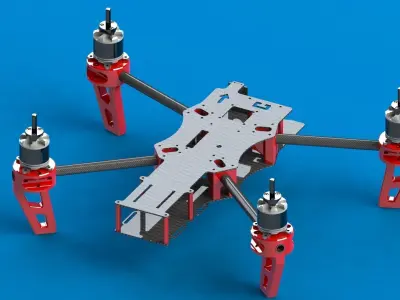

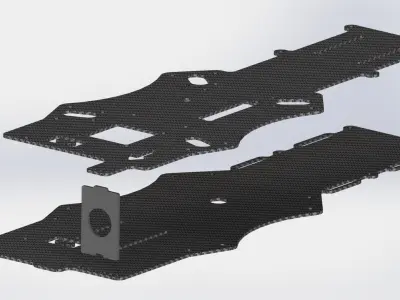

files are :1. upper plate1. lower plate1. plate for fpv camera1. STEP for full part with dji arms1. STEP for full part with CF tube arms
material:Carbon Fiber 1.5mm
Full credit to Max Levine at http://diydrones.com/profiles/blogs/arducopter-tbs-discovery-style
I just make some different point there. The arms can use with original DJI arms or with CF tube 12mm Outer Diameter.
Look more at : http://wiki.openpilot.org/display/Doc/Spyder+sQuad+with+CC3D
The files format are IGES for MasterCAMJust make the Gcode for CNC work.
Parts from grabcad.comFMVU-03MTM/C Point Grey Firefly MV Camera (USB)3DR GPS uBlox LEA-6Tiger MT2814GoPro Hero 3 HD Camera with the Frame9x4.7 Propellerhttp://grabcad.com/library/fpv-project-with-apm-2-5/files
Enjoy it
http://forums.openpilot.org/blog/153/entry-290-team-blacksheep-discovery-with-cc3d/
