Buy The cams mechanism 3D model

Name: The cams mechanism 3D model
Brand: forestlsls
SKU: 18835
Price: 9.00 USD
Availability: InStock

License: Royalty Free

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

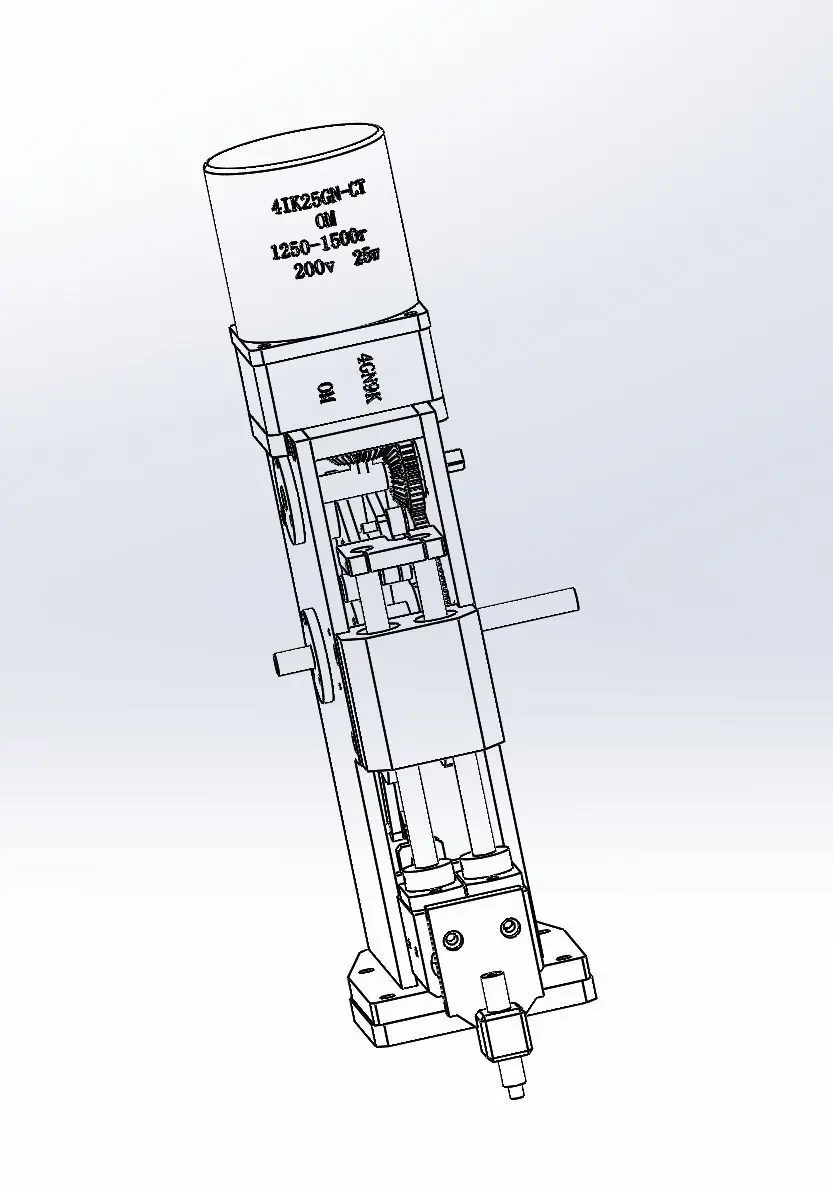

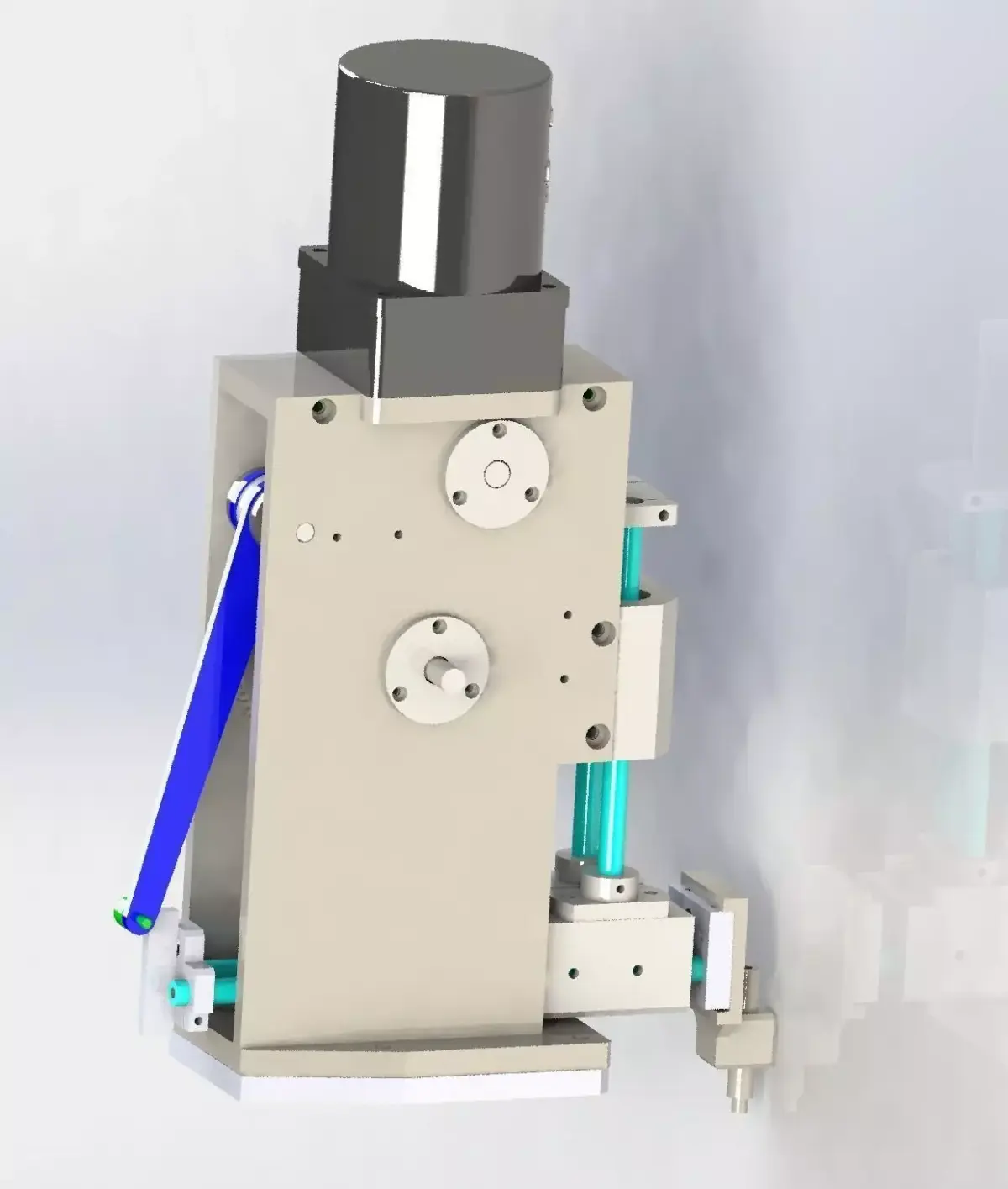

The cams mechanism, the mechanism through a set of motor through multiple sets of CAM structure, both x and z axis fine tuning, after due to the movement, do different shape of the CAM mechanism can solve the problem of common application group action, a way is very clever application in mechanismThe mechanism includes:

Gear meshing mechanism.
CAM mechanism
Z-axis fine tuning structure.
X axis fine tuning mechanism.************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds

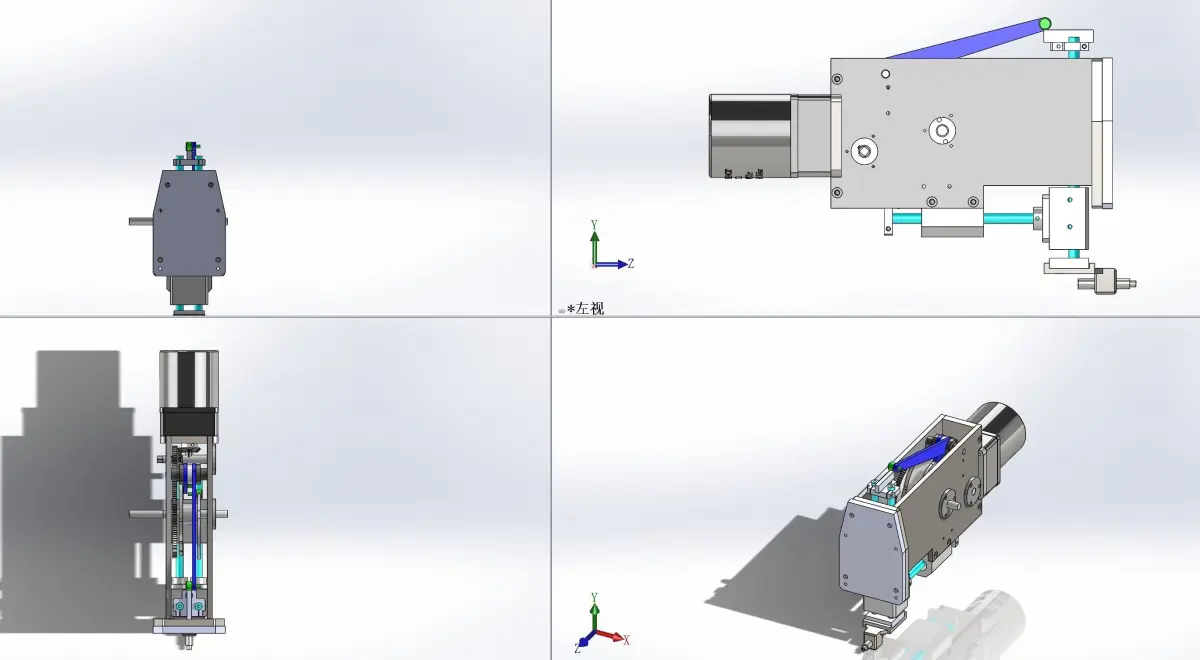

and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 50135
Vertices: 100722
Geometry: Polygon mesh

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Cam Gears Fine Tuning Industrial machine – Download & Buy Industrial part – Download & Buy Industrial factory
