Buy The gantry loading and unloading mechanism 3D model

Name: The gantry loading and unloading mechanism 3D model
Brand: forestlsls
SKU: 18796
Price: 9.00 USD
Availability: InStock

License: Royalty Free

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

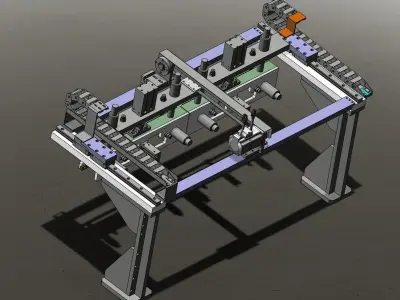

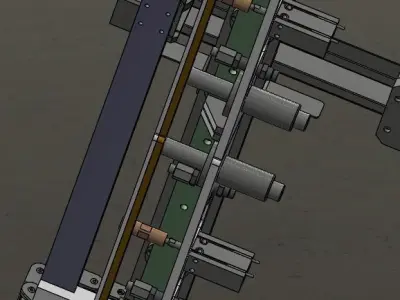

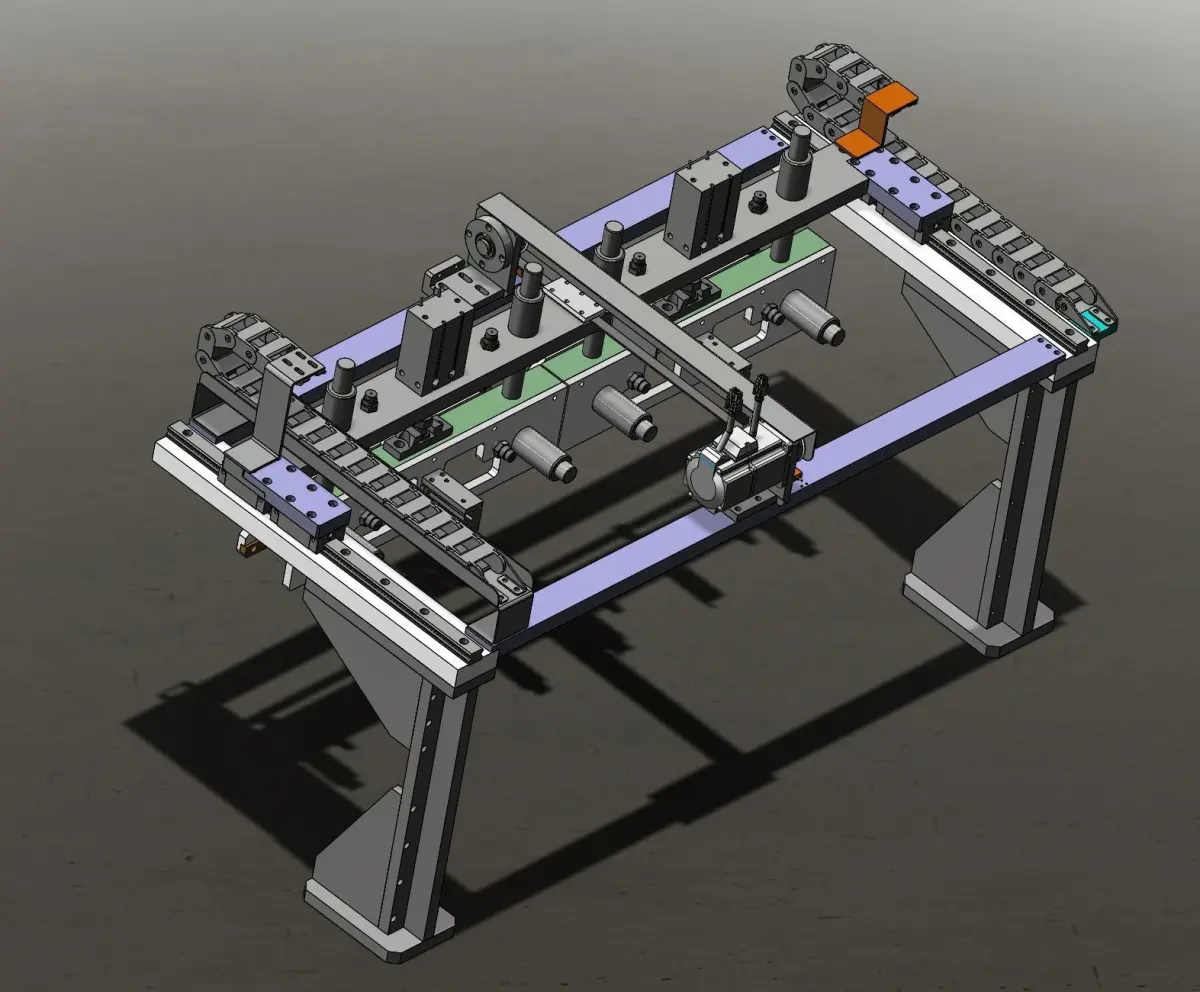

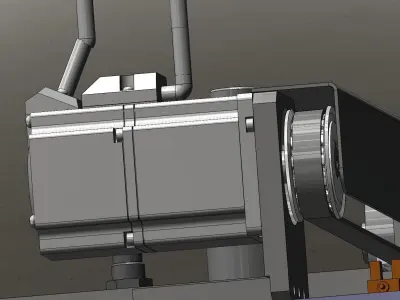

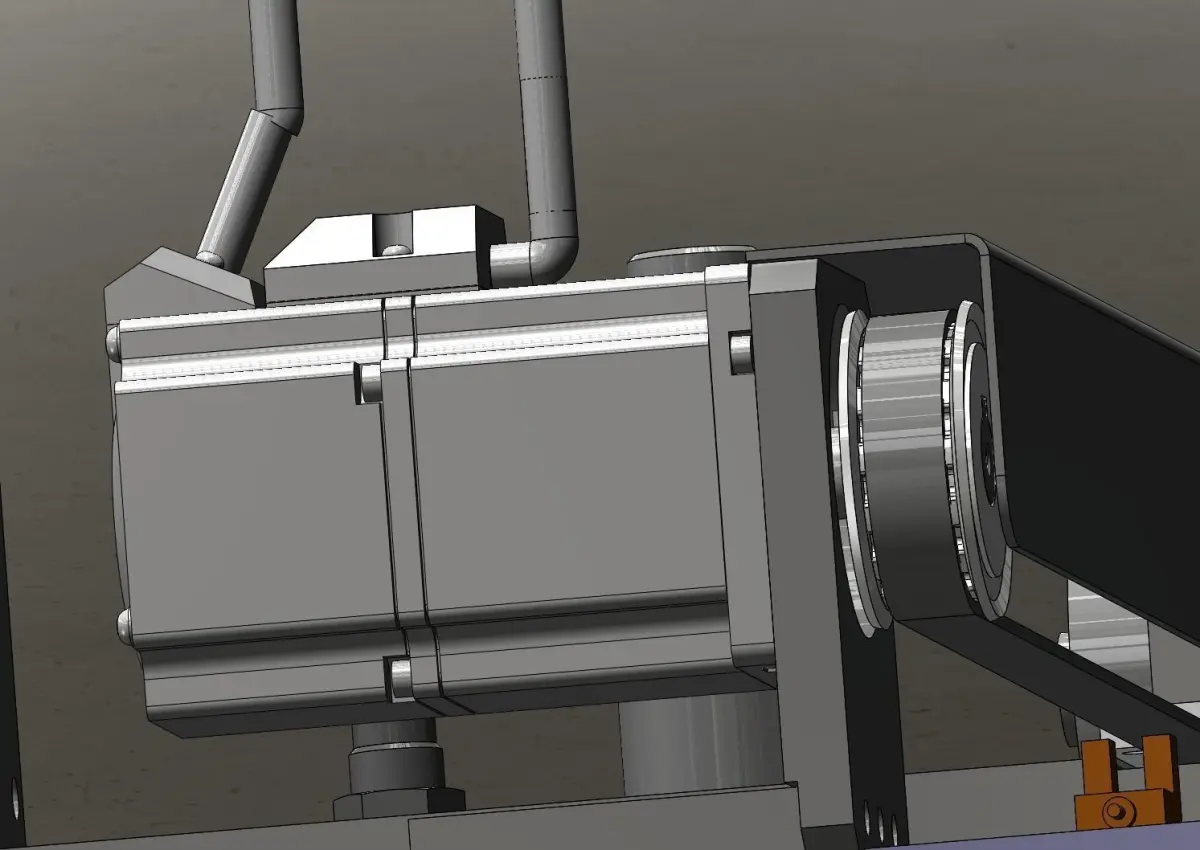

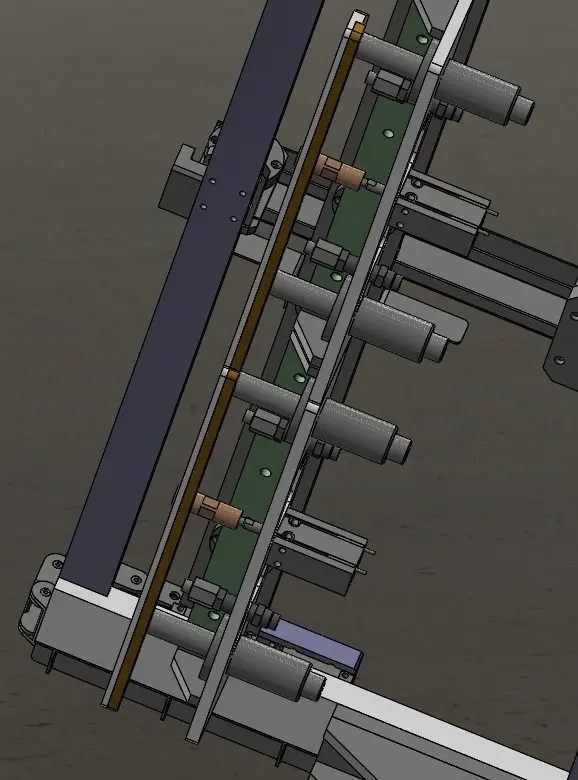

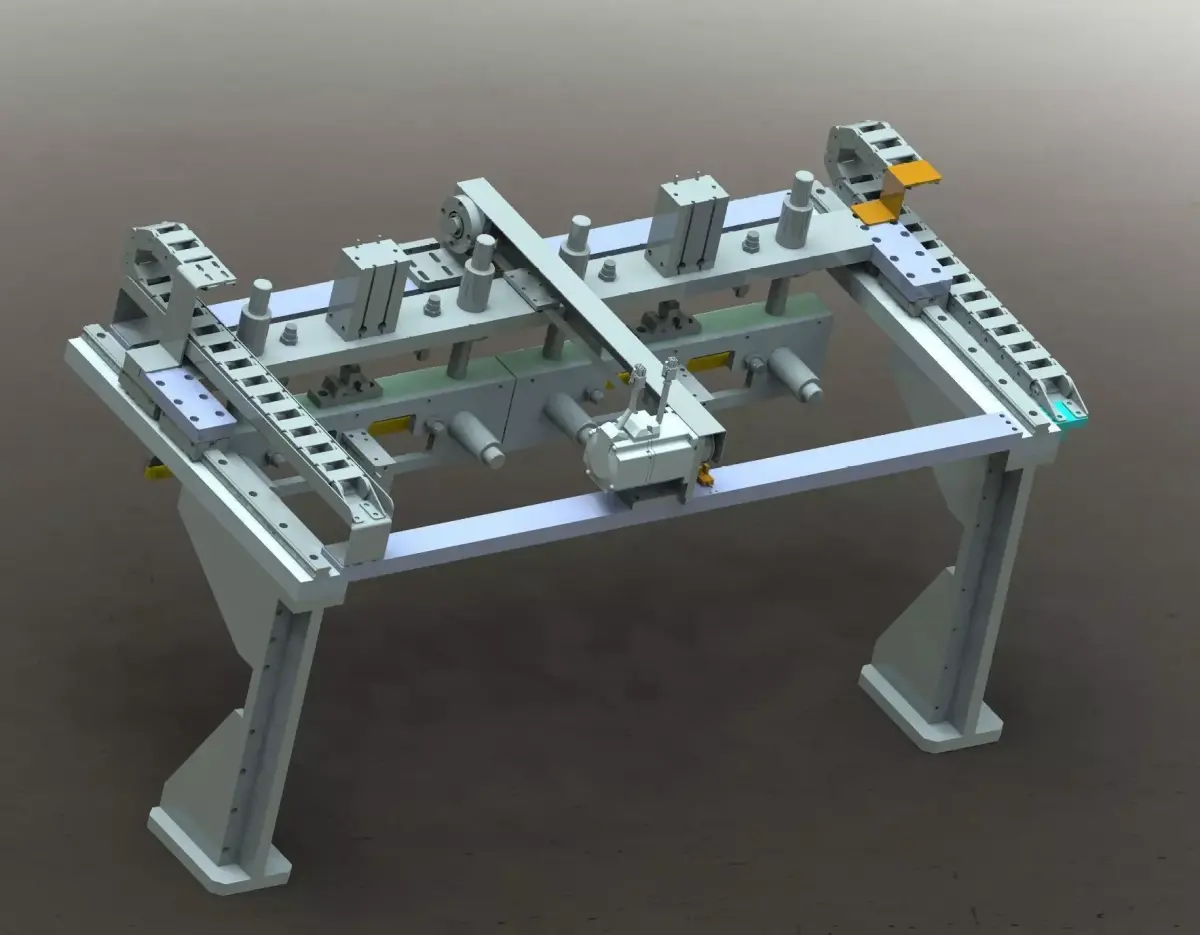

The gantry loading and unloading mechanism, which drives the overall Y-axis horizontal motion through a stepping motor shaft and drives up the X-axis and z-axis through the cylinder module to form a three-axis feeding mechanism, which is simple, effective and very classic feeding moduleInstitutions include

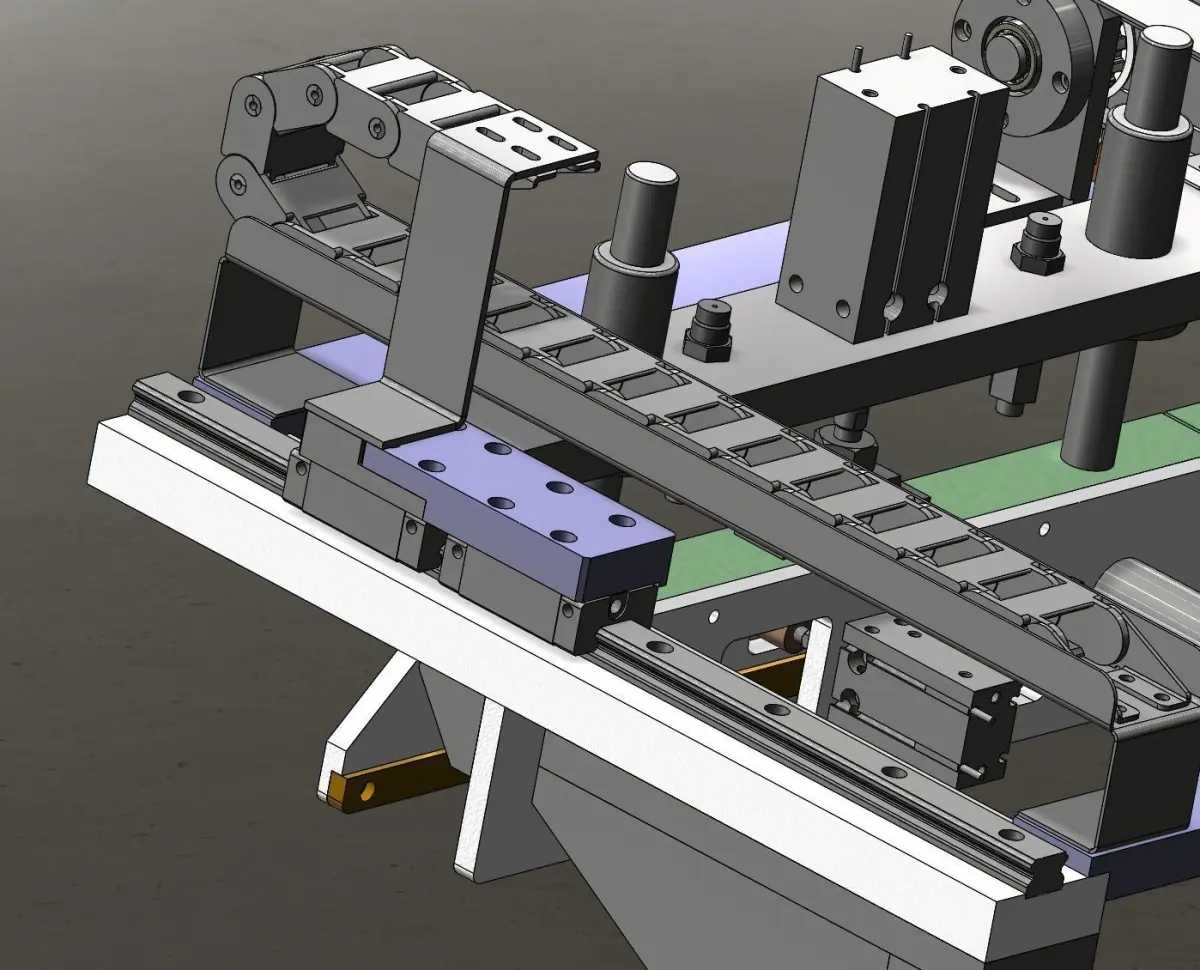

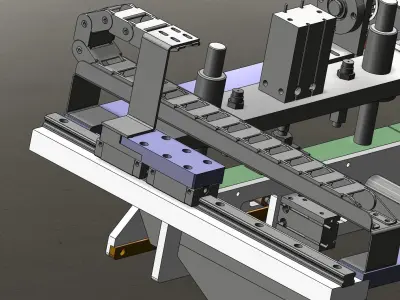

Gantry structure
Synchronous belt feeding mechanism
Cylinder driving structure************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax
and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 192276
Vertices: 385944
Geometry: Polygon mesh

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Step Cylinder Feeding Gantry Loading Unloading Industrial machine – Download & Buy Industrial part – Download & Buy Industrial factory
