The gantry rotating equipment 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

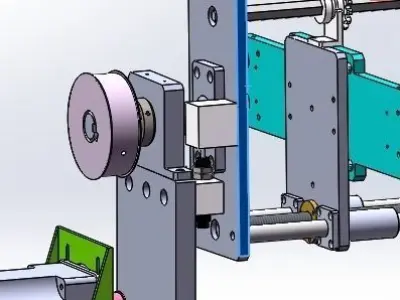

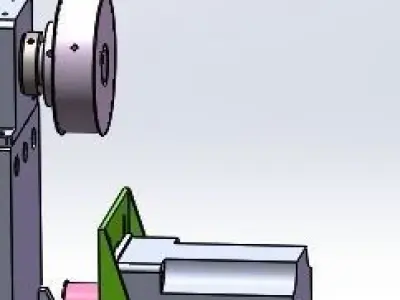

The gantry rotating mechanism, the whole structure of the gantry frame, through the synchronous belt drive the composition of the rotating mechanism.The core is the axis of symmetry, which needs to be installed on the same axis to flip smoothly.It also includes an X-axis adjustment module, which USES the screw and chrome shaft to slide the guide bar to adjust the work platform.It is a typical design model for the mechanism to use a number of rollover platforms, to set up the gantry in case of size interference, and to fine-tune the work pieces.
