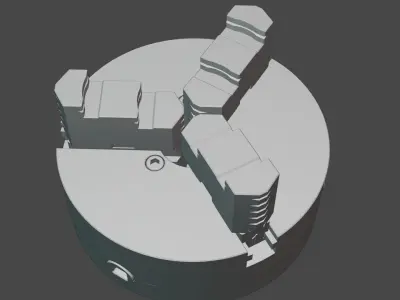

Three jaw chuck Free 3D print model
Home Catalog Engineering Three jaw chuck Free 3D print model
Three jaw chuck Free 3D print model
Three jaw chuck Free 3D print model
Three jaw chuck Free 3D print model
Three jaw chuck Free 3D print model
Three jaw chuck Free 3D print model

Publication date: 2022-10-21

Three jaw chuck Free 3D print model

free

License: Royalty Free No Ai License

author:

sabian91

Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats
Description

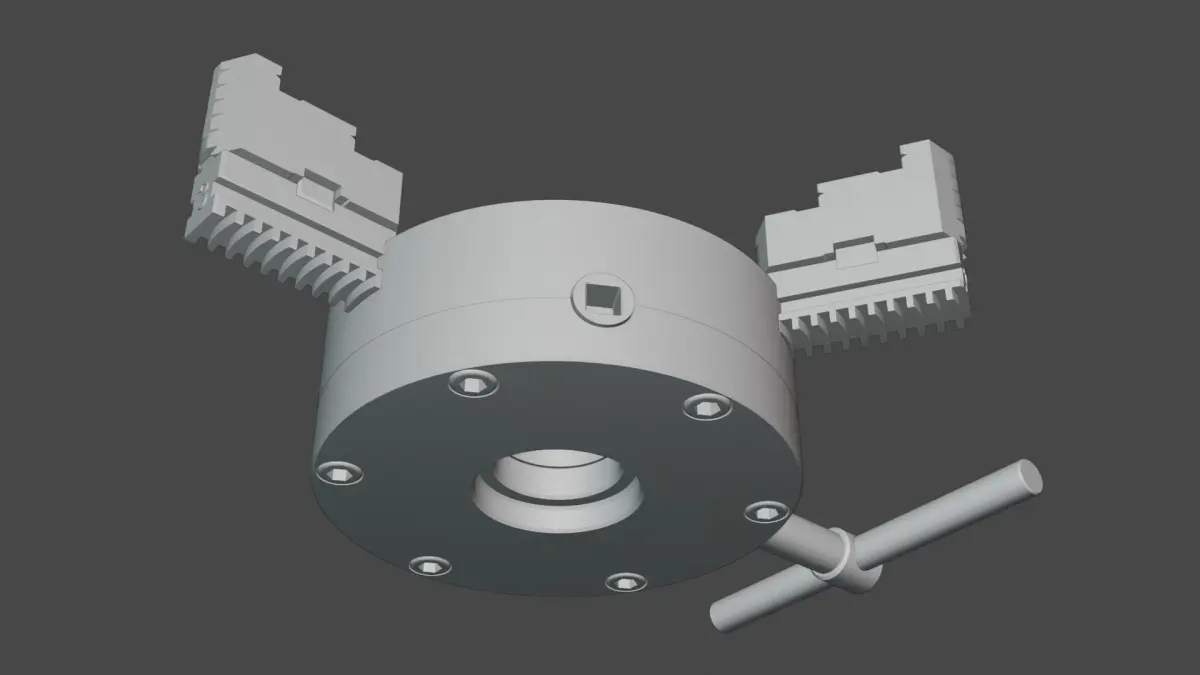

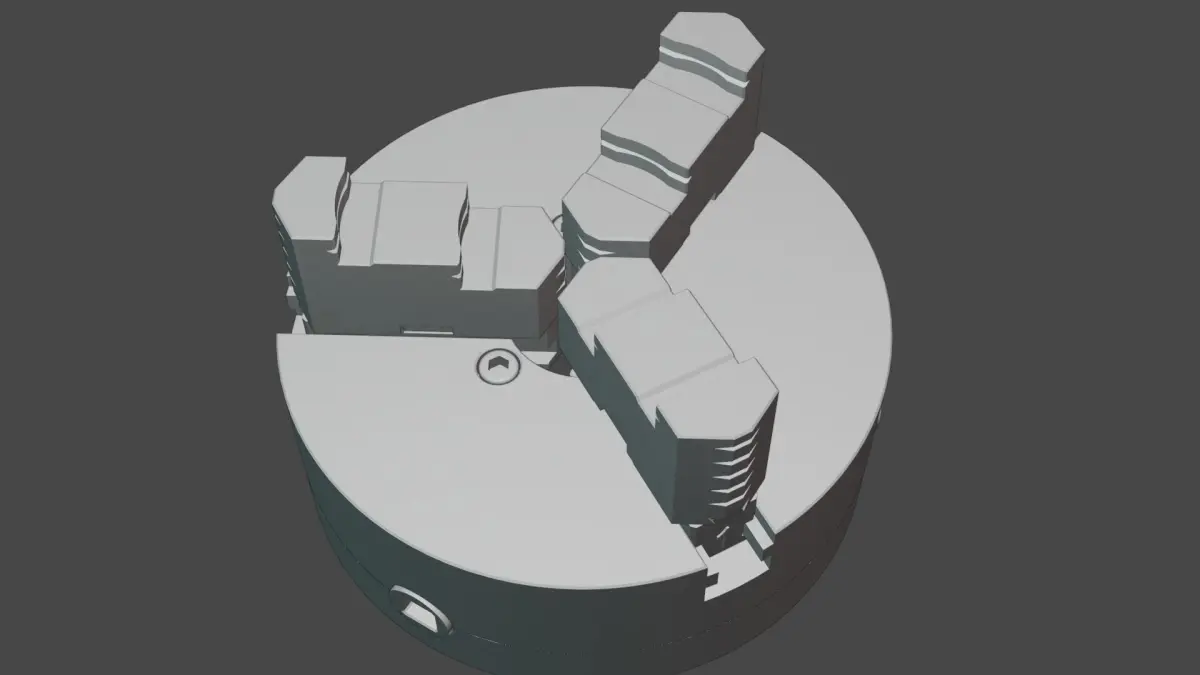

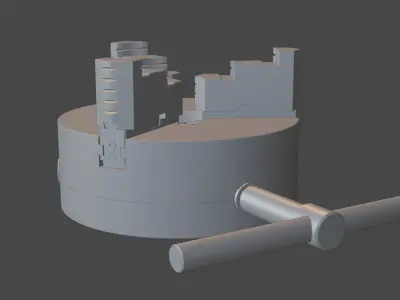

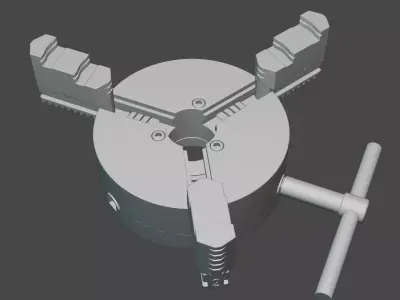

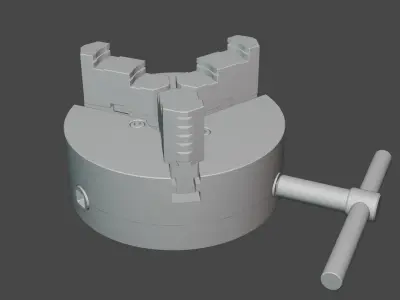

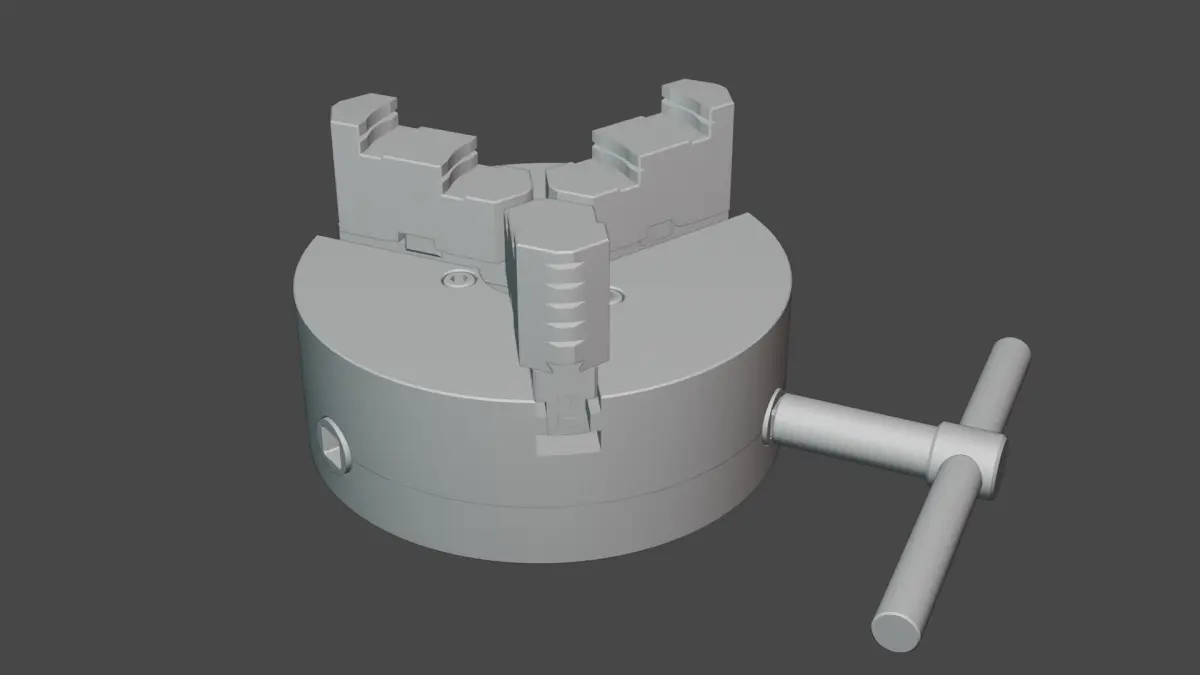

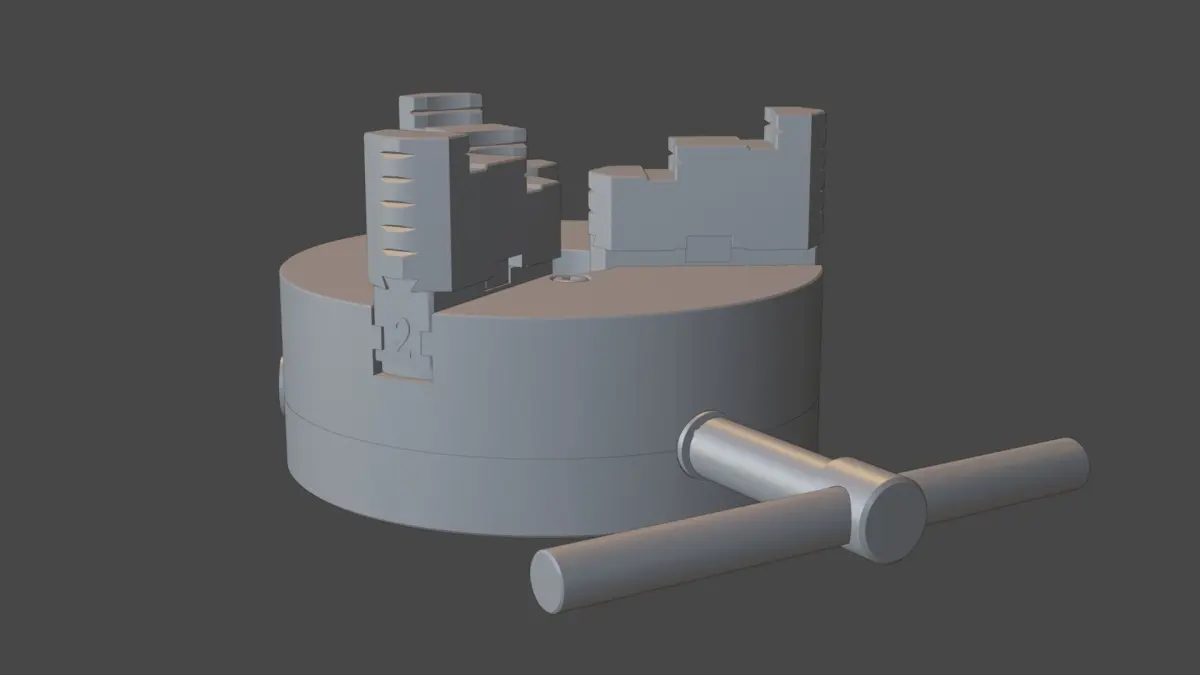

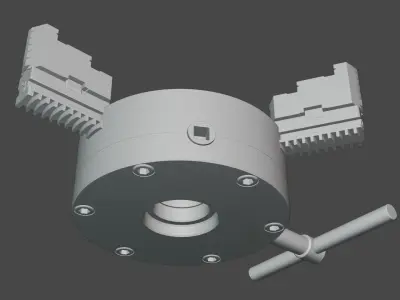

Model contains: chuck housing, scroll plate, bottom plate, jaw base, hard top jaw, pinion, lock ring, chuck key, screws M6,M8(steel can be used).

The lathe chuck corresponds to its factory version

Dimensions:Diameter 155mmChuck height without jaws 57mmChuck height with jaws 100mmMinimum clamping diameter 5mmMaximum clamping diameter 195mmYou can also scale the model to the required size.

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: Unknown
  • Vertices: Unknown

Tags

Chuck Three Jaw Industrial Lathe Mechanics Tool Workshop Part Machine Mechanical Diy Engineering Hobby Hobby diy Industrial machine Mechanical parts Parts Technology
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «sabian91». CGhub does not claim copyright ownership over the content used.
  • SolidWorks 2020 ()8.94 MB
  • Blender 3.3.0 ()2.91 MBVersion: 3.3.0Renderer: Default
  • Stereolithography ()2.92 MB
