Download Three per pipe joint casting plate feeding Free 3D model

Name: Three per pipe joint casting plate feeding Free 3D model
Brand: bozao
SKU: 862595
Availability: InStock

free

License: Royalty Free No Ai

author:

bozao

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «bozao». CGhub does not claim copyright ownership over the content used.

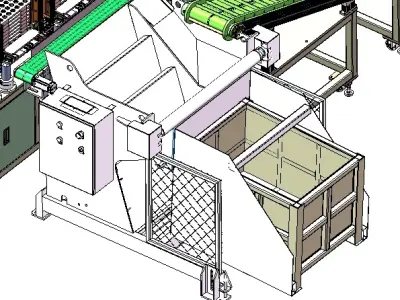

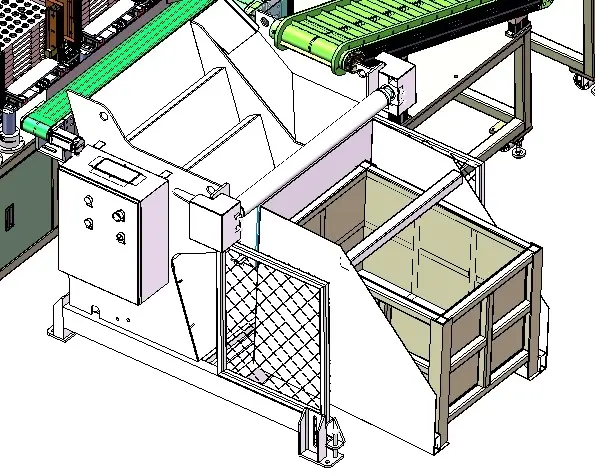

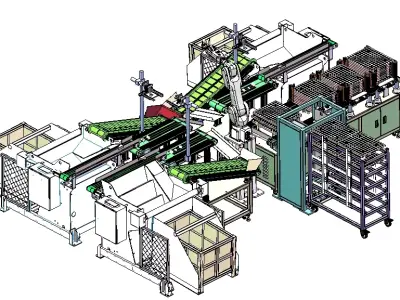

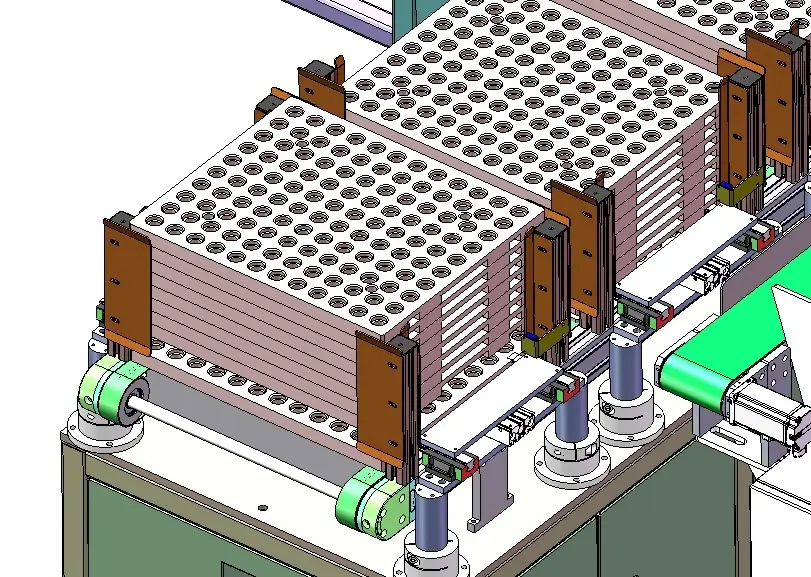

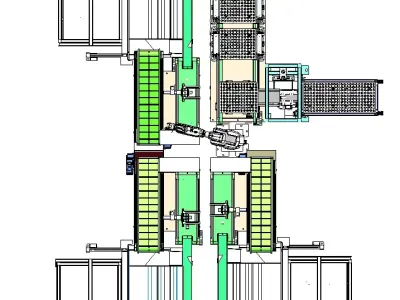

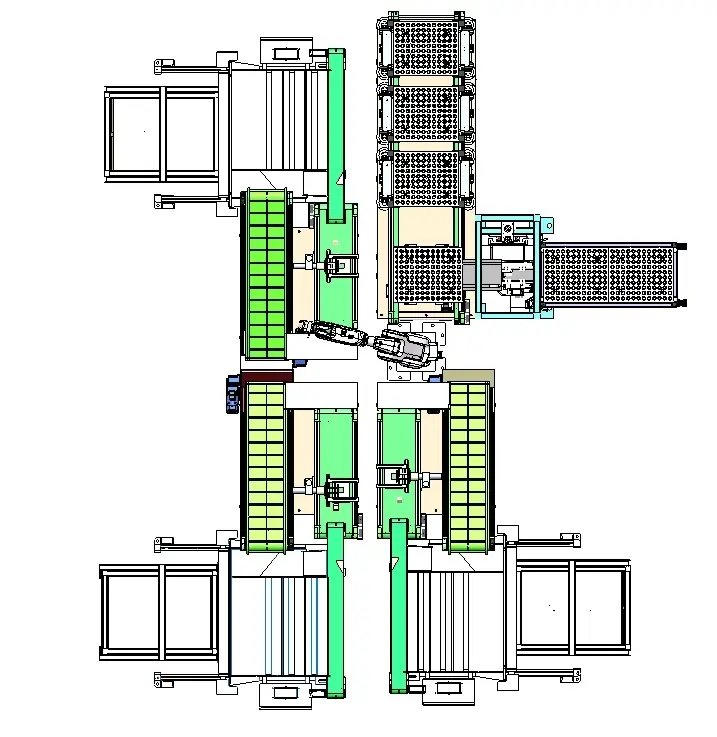

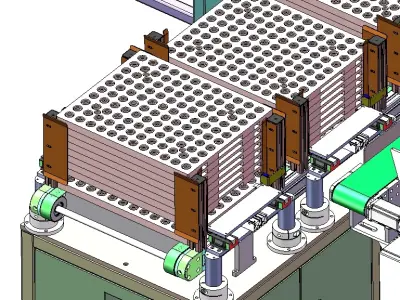

Parts feeding is supplied by a plate pusher, and each plate pusher is compatible with a certain number of parts 2. The plate pusher separates the materials one by one, without distinguishing the positive and negative parts, flows into the vision to take the picture, determines the position and direction of the incoming material, and the six-axis robot grabs the material and places the plate 3. If the arrival material is not the set direction, the material will flow to the reflux conveying line and fall into the push machine again 4. The whole machine meets the online operation of three kinds of materials at the same time, and three push machines and three Train tray levels are designed 5. After the completion of the material swing, the two-way fork swing is used to the cart 6. The six-axis robot loads 10 kg with a working radius of 1.1 meters. Single swing beat CT: within 5 seconds
