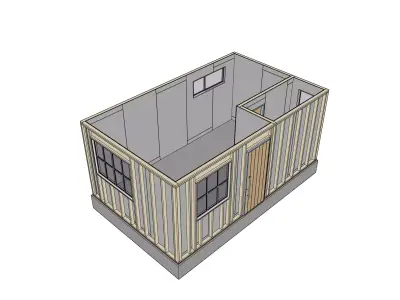

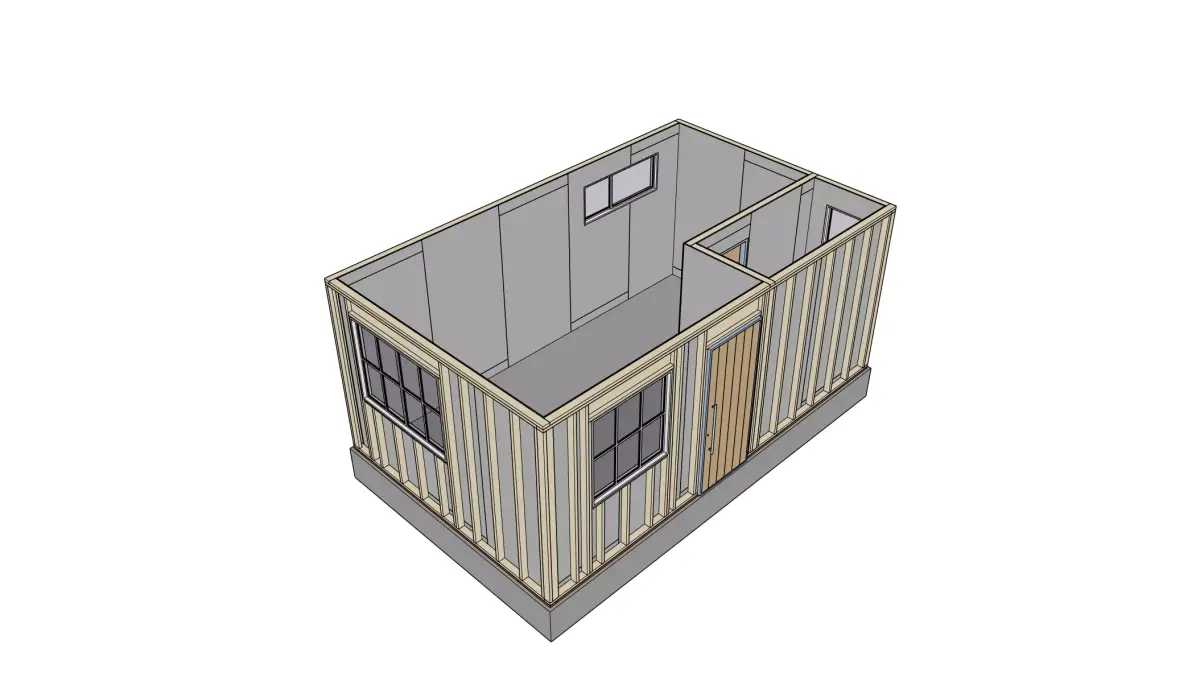

Project Description: This is a highly detailed 3D model of a Tiny House wood framing structure (approx. 10m² / 100 sq ft). Designed by an architecture major, this model strictly follows standard 2x4 light-frame wood construction methods. It is perfect for architectural students, construction visualization, DIY planners, and educational purposes.
Unlike simple shell models, this asset includes a complete internal structural system, from the foundation mudsill to the roof rafters.
Key Features:Real-World Scale: Modeled with precise dimensions based on standard lumber sizes (2x4 Studs, 2x8 Rafters, etc.).Structural Detail: Includes essential framing components such as Headers, Top/Bottom Plates, Lookouts, Blocking, and Birdsmouth cuts on rafters.Organized Layers (Tags): All elements are neatly organized by Tags (e.g., Structure_Wall, Structure_Roof, Sheathing_OSB, Finish_Siding, Drywall) for easy visibility control.Material Accuracy: Differentiates between Structural Lumber, Pressure Treated Lumber (Mudsill), OSB Sheathing, and Gypsum Board (Drywall).Clean Geometry: No stray lines or messy groups. Optimized for efficient rendering.

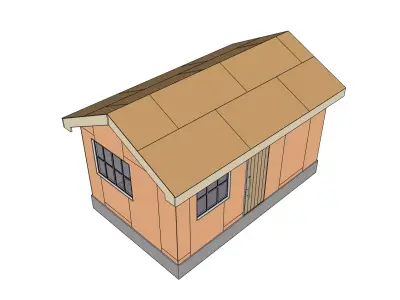

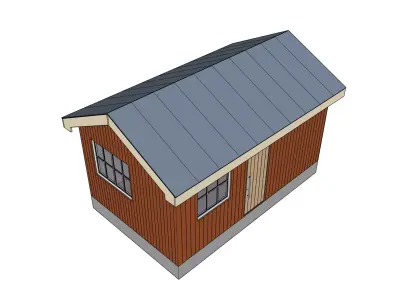

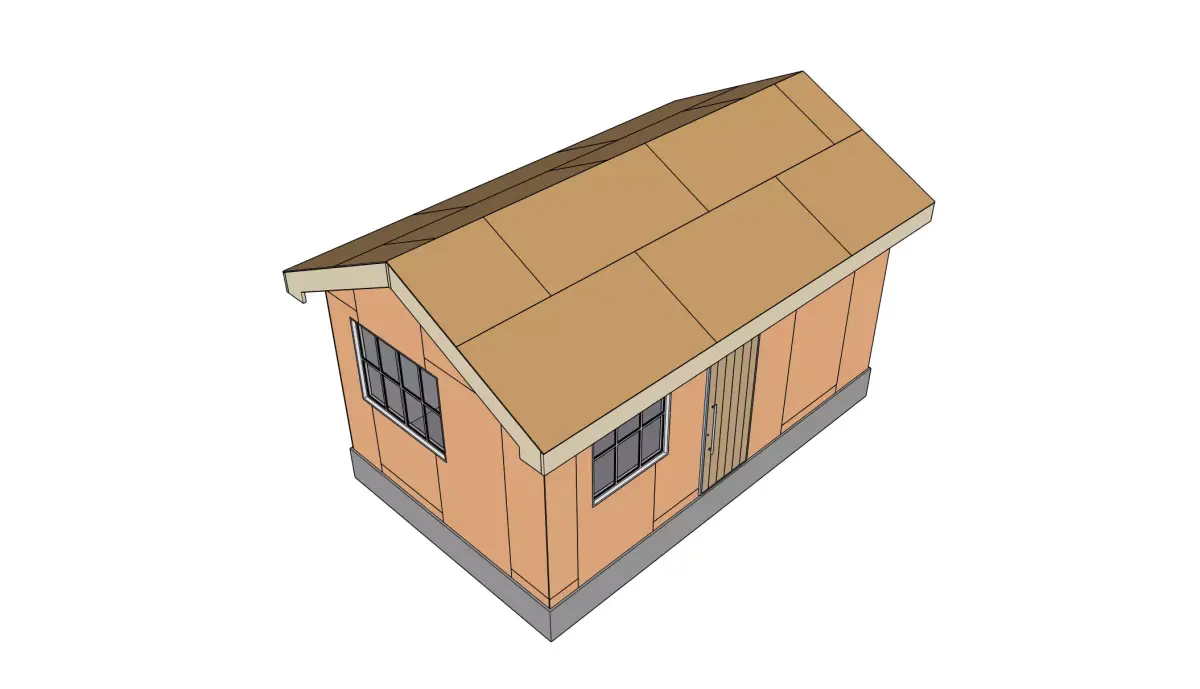

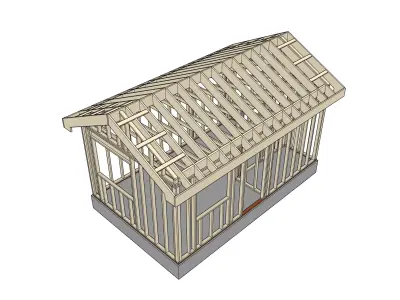

Model Components:Foundation: Concrete slab with Pressure Treated Mudsills.Wall Framing: 2x4 Studs (16" O.C. spacing), Double Top Plates, Window/Door Headers.Roof Framing: 2x8 Rafters, Ridge Board, Collar ties/Ceiling joists, Sub-fascia.Sheathing: OSB Plywood (Staggered layout) + Tyvek House Wrap layer.Finish: Exterior Siding (Vertical Wood/Metal style) & Interior Drywall.
File Formats:Native: SketchUp (.skp) - Saved in 2024 version(obj, fbx)

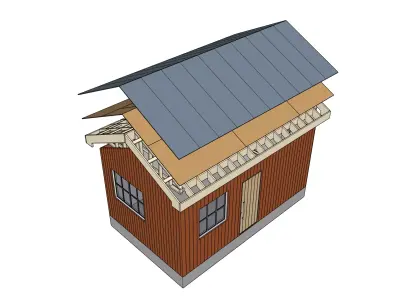

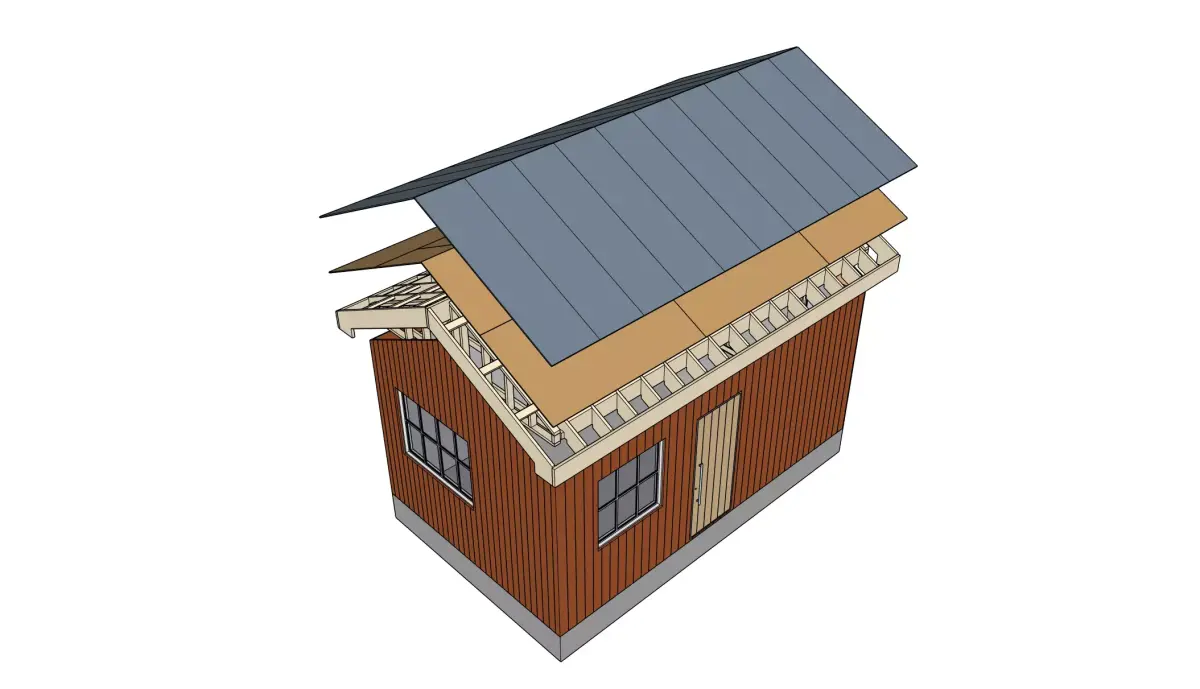

Notes:The measurement unit used in the model is Millimeters (mm), but follows standard Inch-based lumber sizes (e.g., 2x4 = 38x89mm).This model is ready for exploded view rendering.
SKP (Sketchup, filesize: 9.87 MB), OBJ (OBJ, filesize: 276 KB), FBX (Autodesk FBX, filesize: 5.74 MB)
