Tray loading and unloading machine 3D model

$120

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

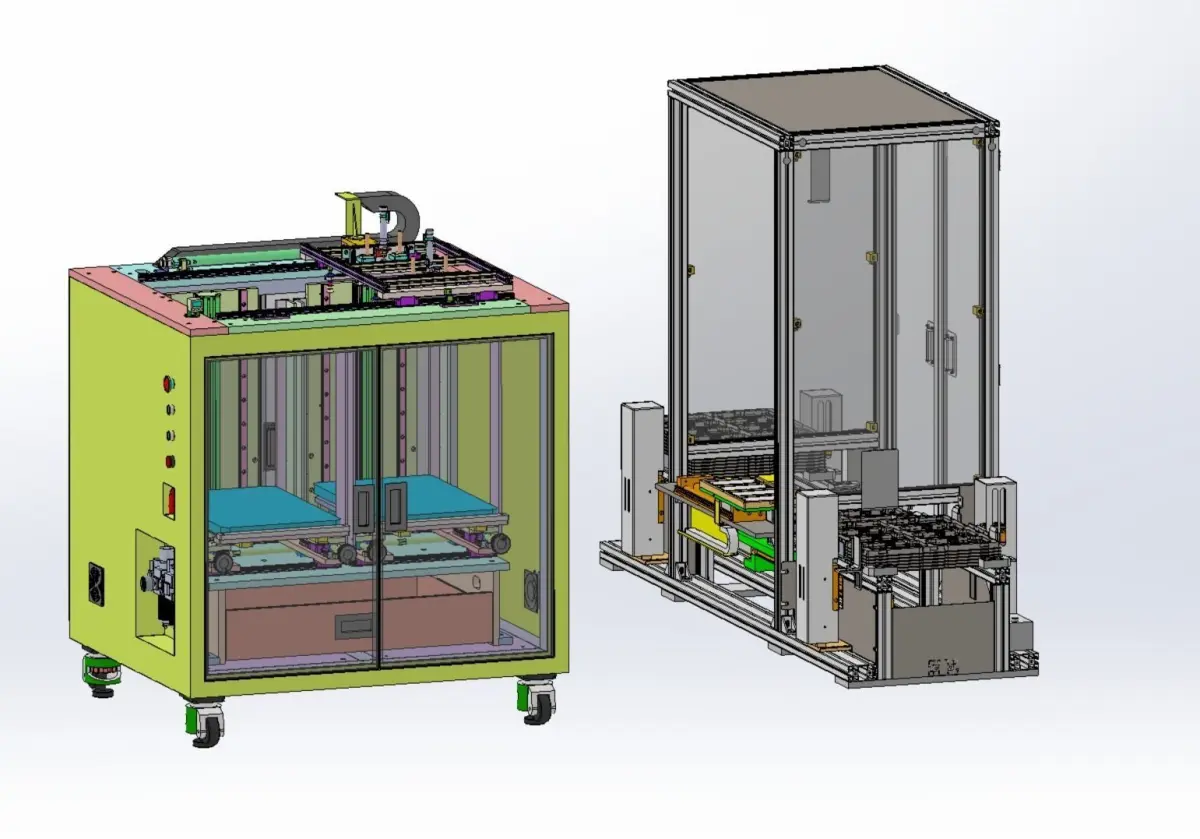

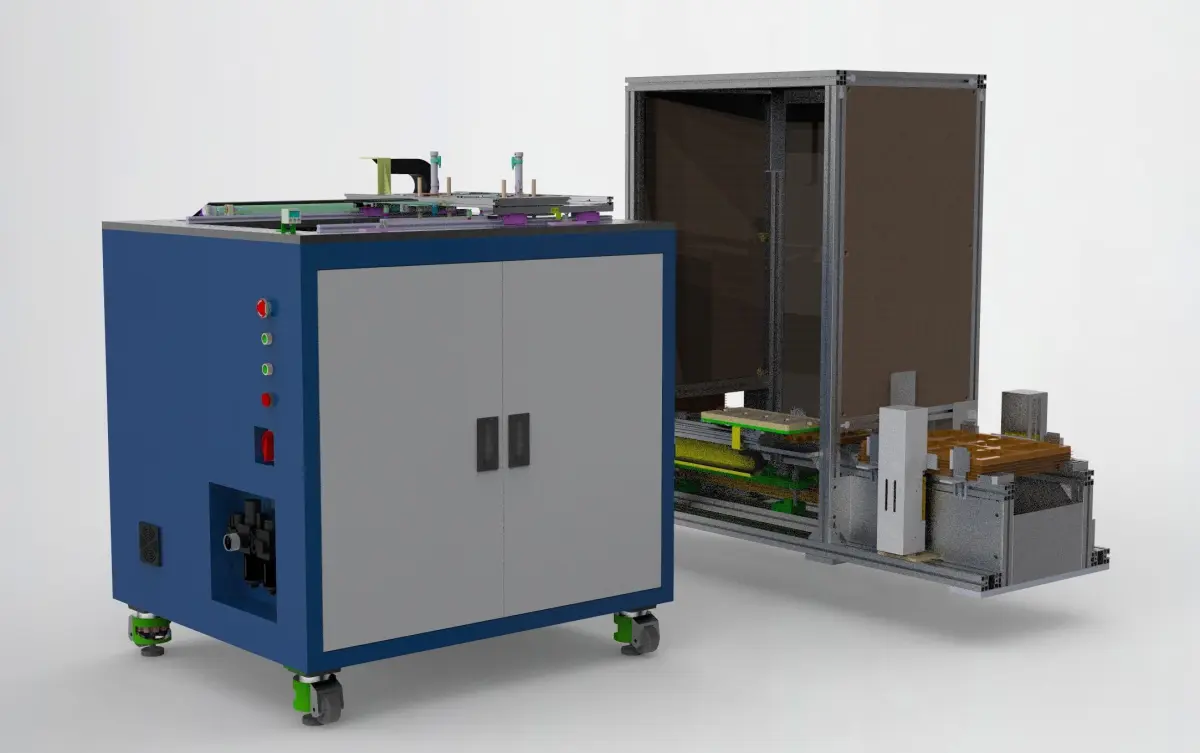

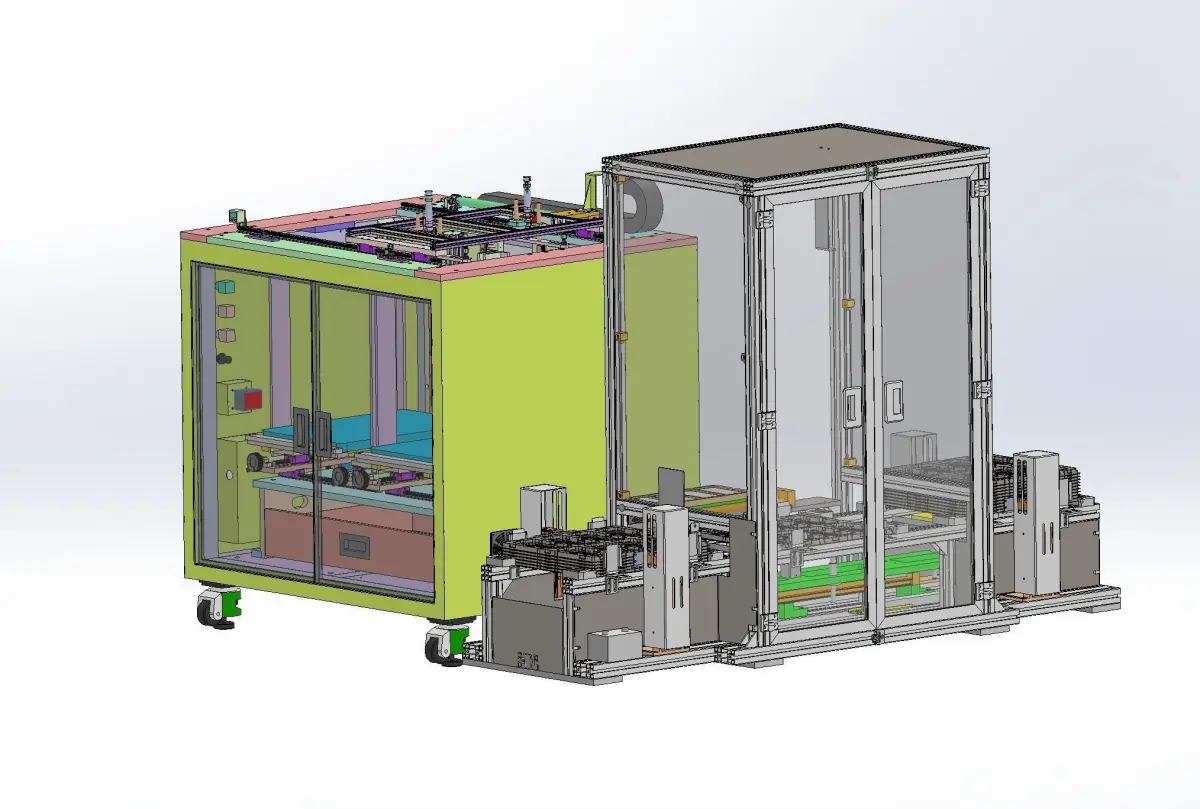

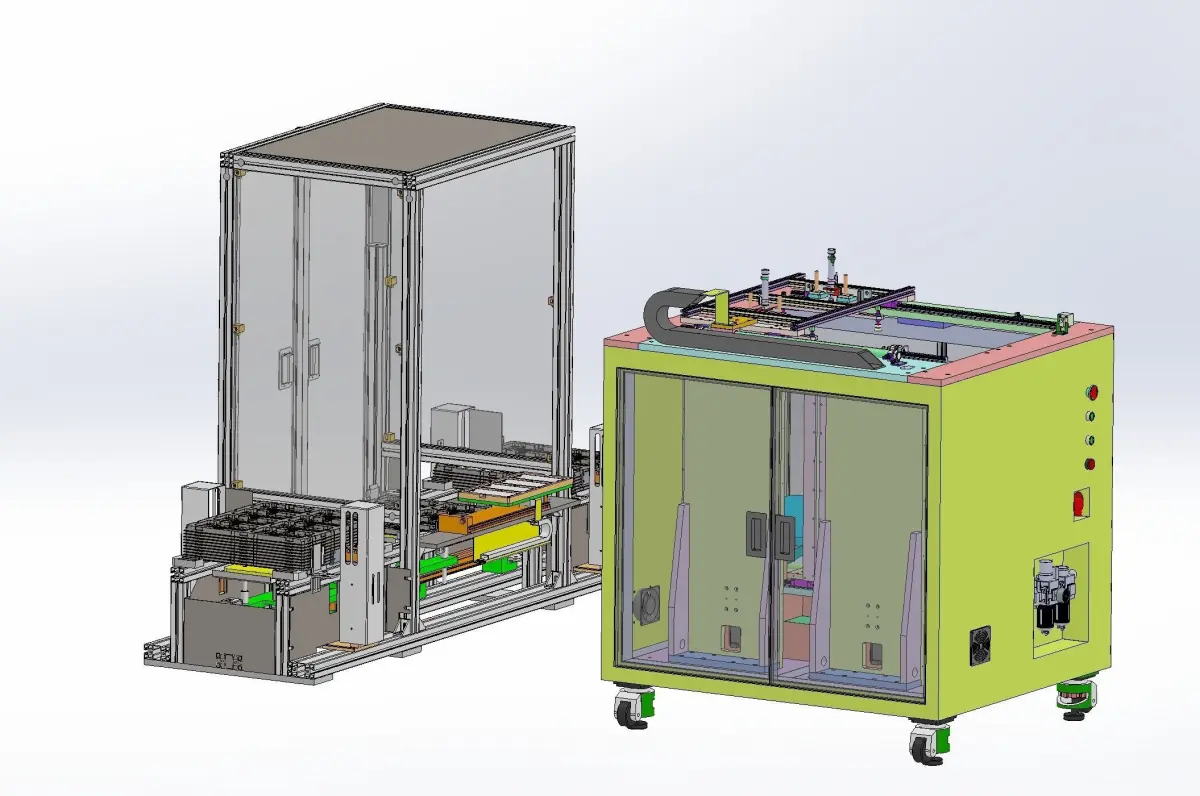

Tray loading and unloading machine

The device is a stacking feeding mechanism, through the multi-layer stacking, material, material forming an automatic feeding and unloading mechanism workflow

The whole stack of tray tray is placed in the working area -- the lead screw drives the tray tray up -- the suction claw moves to absorb the tray -- and moves it to the working position
The whole stack of tray tray is placed at the working position -- cylinder separation mechanism separates the bottom tray -- the lower mobile module is connected with the lower tray and moved to the working position -- loading and unloading material -- the lower mobile module is connected with the empty tray to the next working station -- cylinder separation mechanism collects and stacks the empty tray

polygons: 5830509

Vertice: 11546332

Files format contains-solidworks 2017-step-iges-3ds-Fbx-3dmax

and other formats************************************** If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot
