Buy Tray Plate Loading Module 3D model

Name: Tray Plate Loading Module 3D model
Brand: Lovano
SKU: 37486
Price: 39.00 USD
Availability: InStock

$39

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

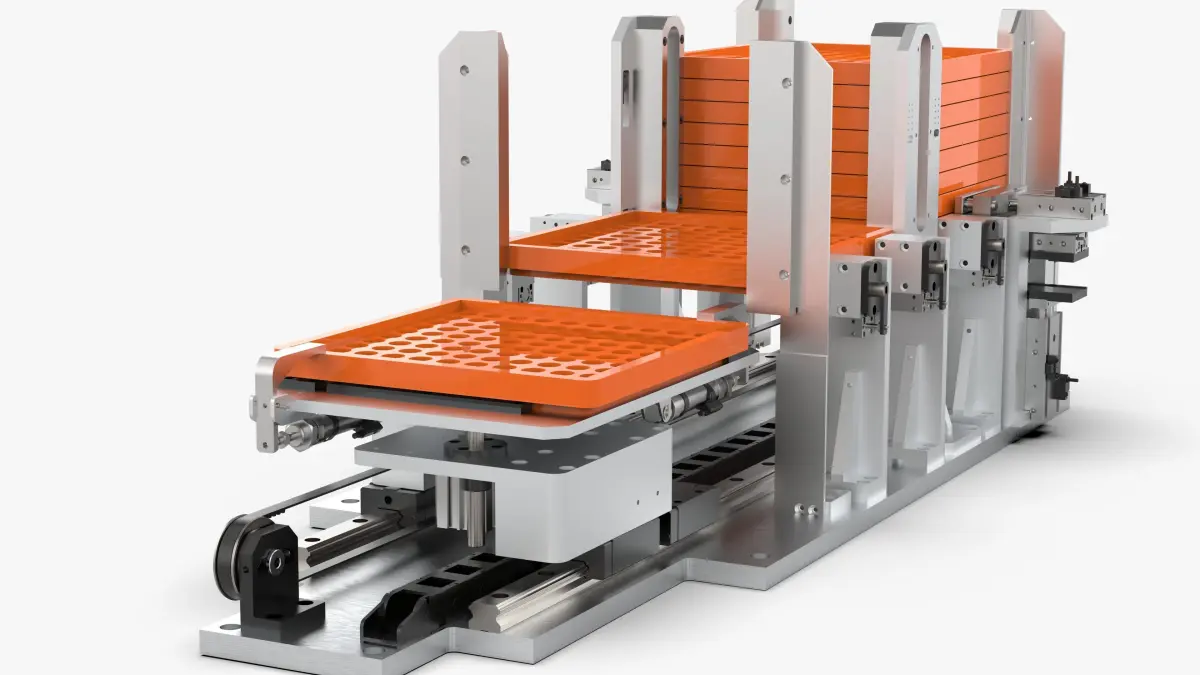

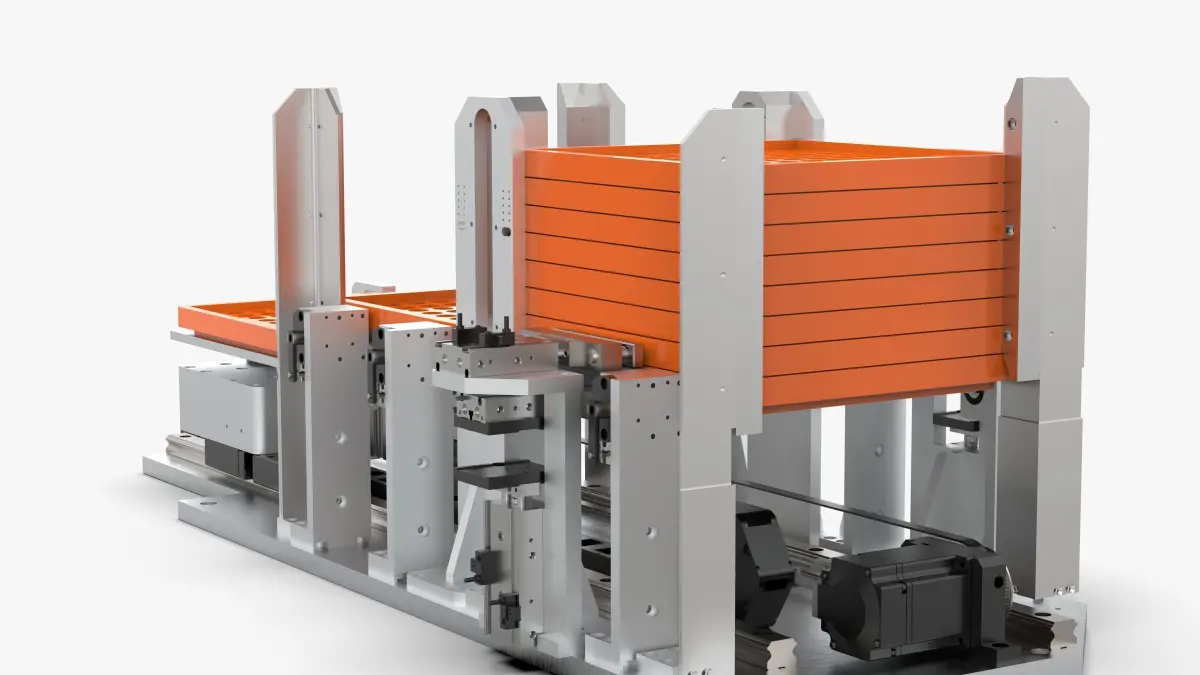

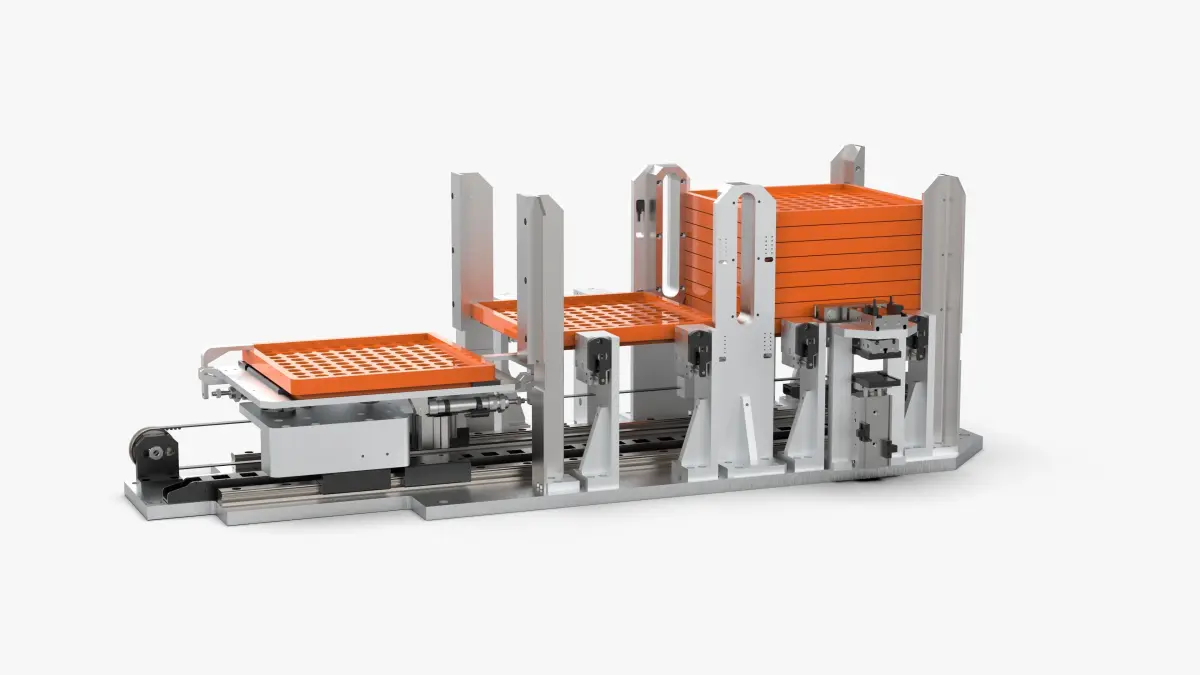

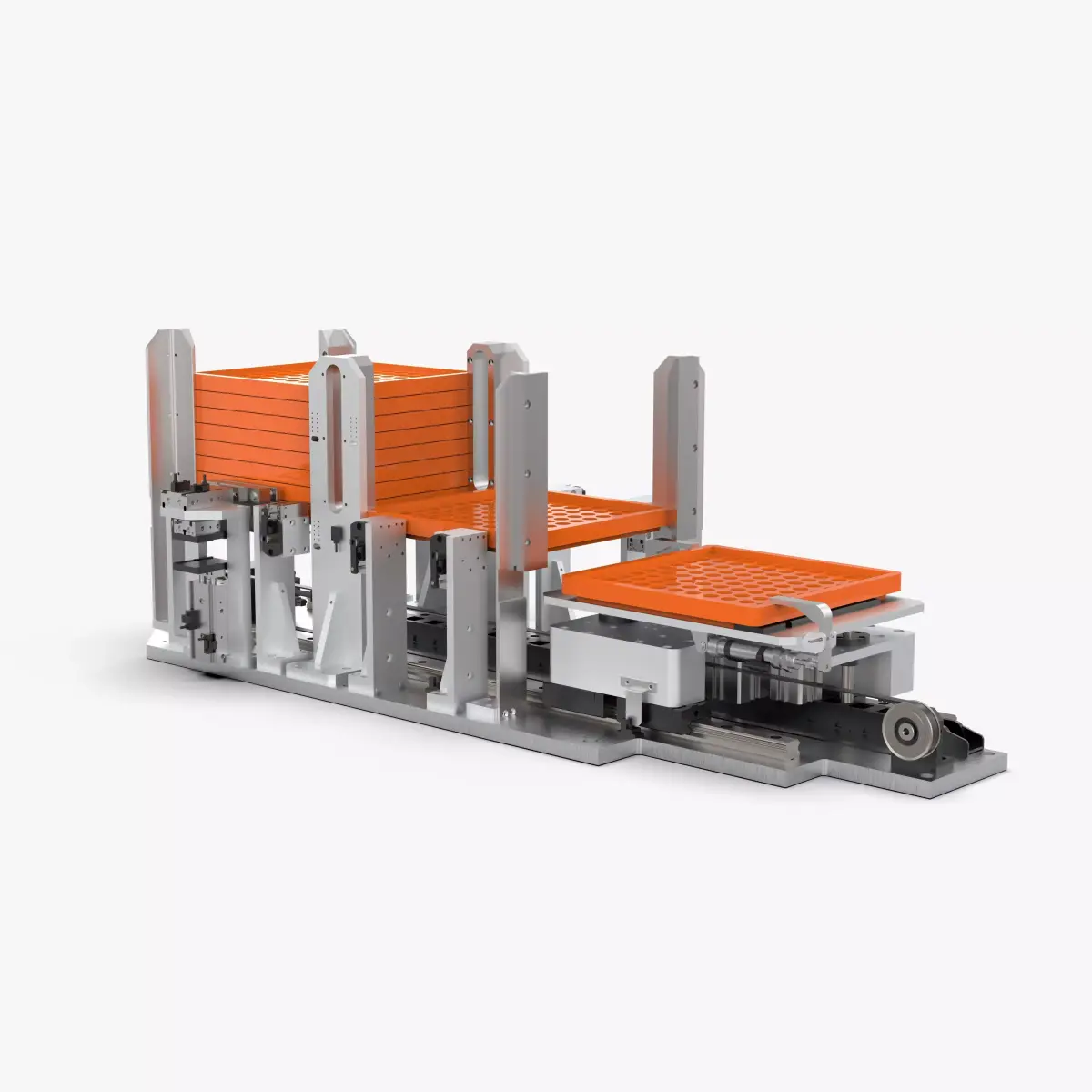

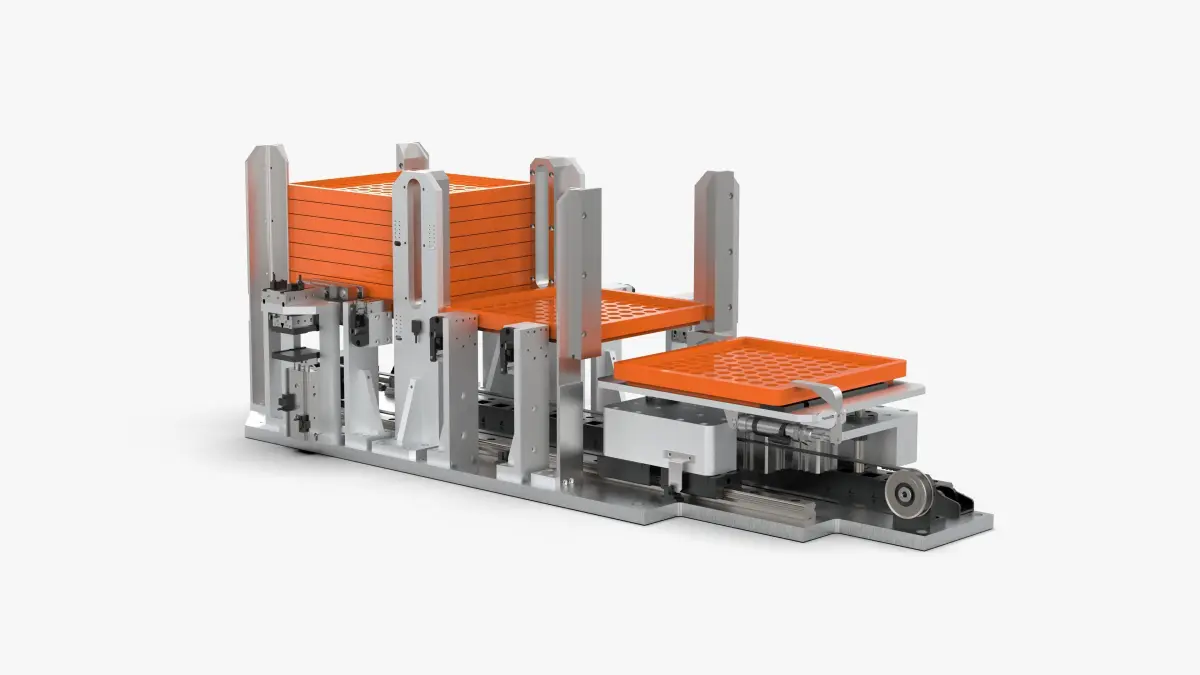

Tray Plate Loading Module

Introduction

The utility model relates to a tray hoist structure, which is mainly used for lifting and transferring trays. A stack of full Tray trays is put into the feeding position, automatically lifted, empty Tray trays are moved horizontally for recovery, automatically lowered, and taken out from the discharge port. Including synchronous wheel, synchronous belt, stepper motor, ball screw, cylinder, linear slide rail, linear bearing, sensor and other components.

File Formats

STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 808,504
Vertice: 2,425,512

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 808504
Vertices: 2425512
Plugins used
Geometry: Polygon mesh

Tags

Tray Plate Loading Module Industrial Machine Solidwork Design Assembly Modeling Automatic Automation Machinery Part Mechanism Line Production Robot Manufacture Industrial machine – Download & Buy
