Turbine Rotor CAD Model Generic 3D print model

$6.99

License: Royalty Free No Ai Html

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.

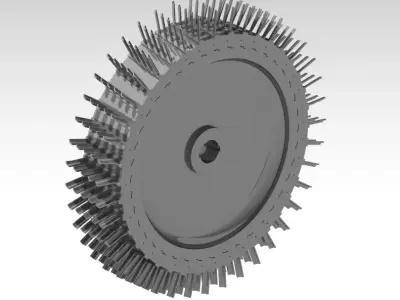

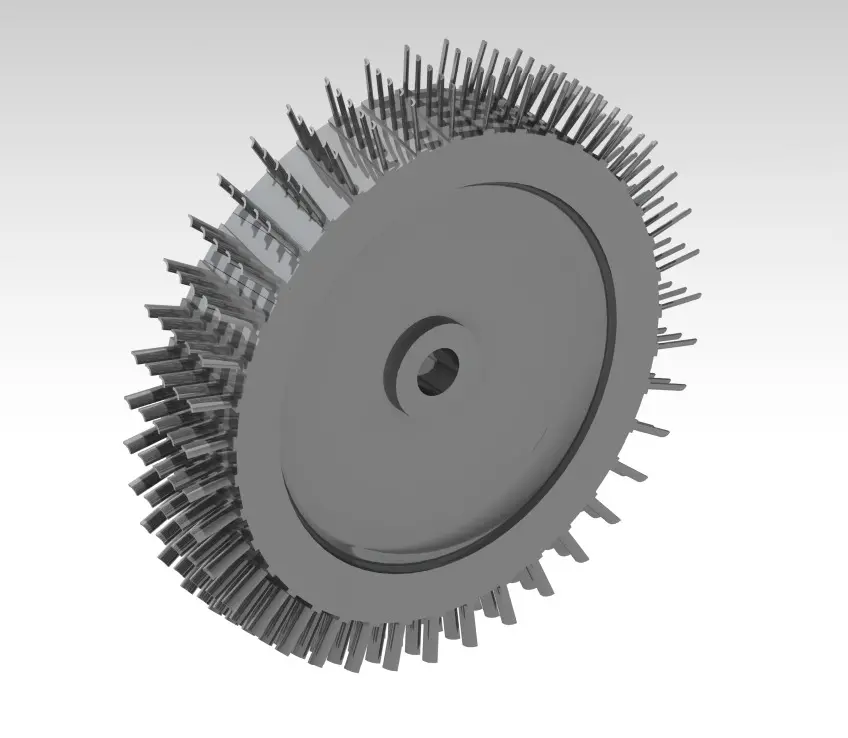

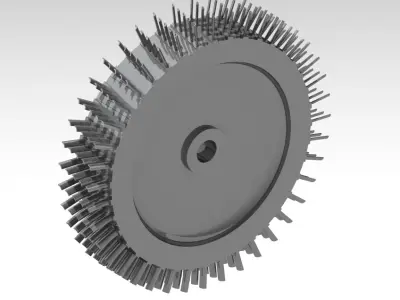

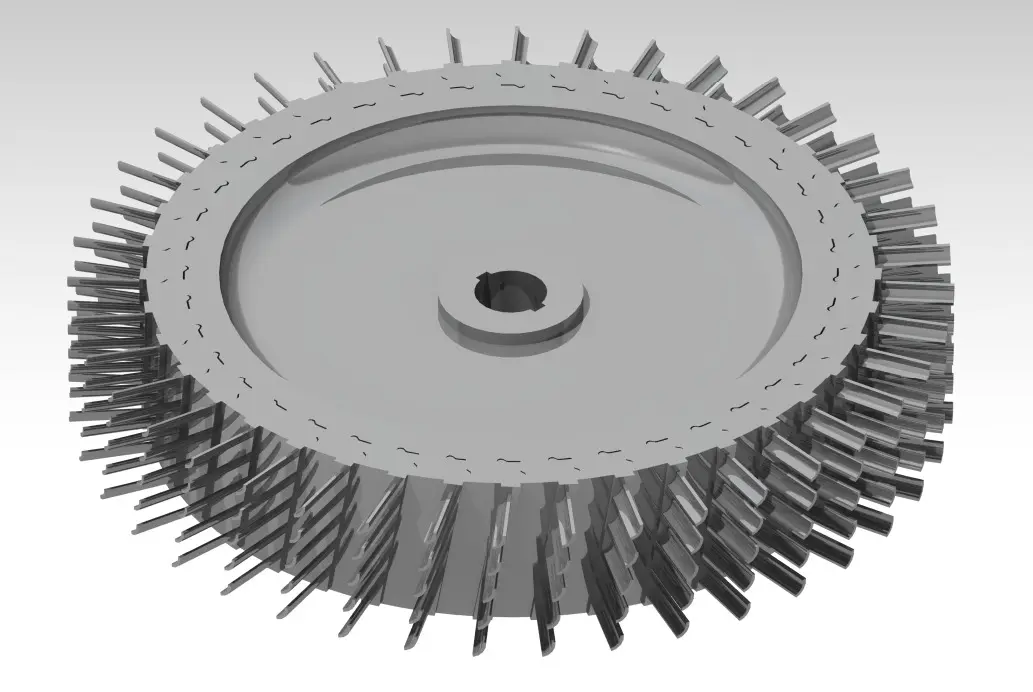

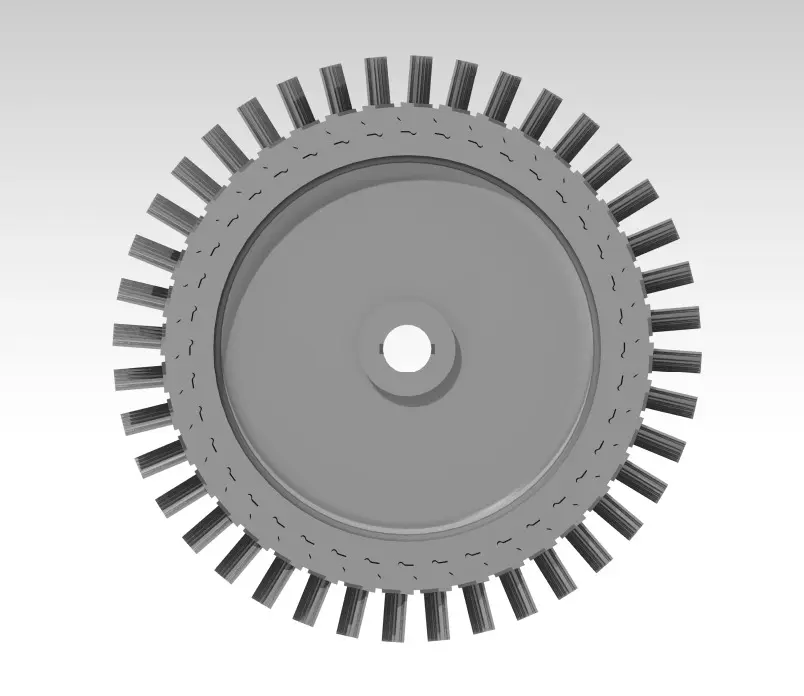

This is a 3D CAD model of a generic turbine rotor, suitable for use in mechanical simulations, turbomachinery design, and engineering education. The rotor features a set of evenly distributed blades mounted on a central hub, replicating the basic geometry of axial flow turbines used in power generation, aerospace, and industrial applications.

Designed in CATIA V5, the model is clean and simplified — ideal for CFD or FEA analysis, conceptual layout, or integration in rotating machinery assemblies. It does not include internal shaft features or blade fillets, making it adaptable for various simulation scenarios.

Features:

Generic turbine rotor with axial blade layout
Designed in CATIA V5
Suitable for CFD (fluid flow) and FEA (structural) simulations
Ideal for educational use, turbine design studies, or mechanical assemblies
Clean and editable geometry in multiple engineering formats

Applications:

Aerospace propulsion systems
Power generation turbines (gas, steam)
Rotating machinery simulations
Mechanical engineering education and training
CAD-based product development

File formats:

CATIA .CATPart
STEP (.stp)
IGES (.igs)
STL (optional for meshing or rendering)
