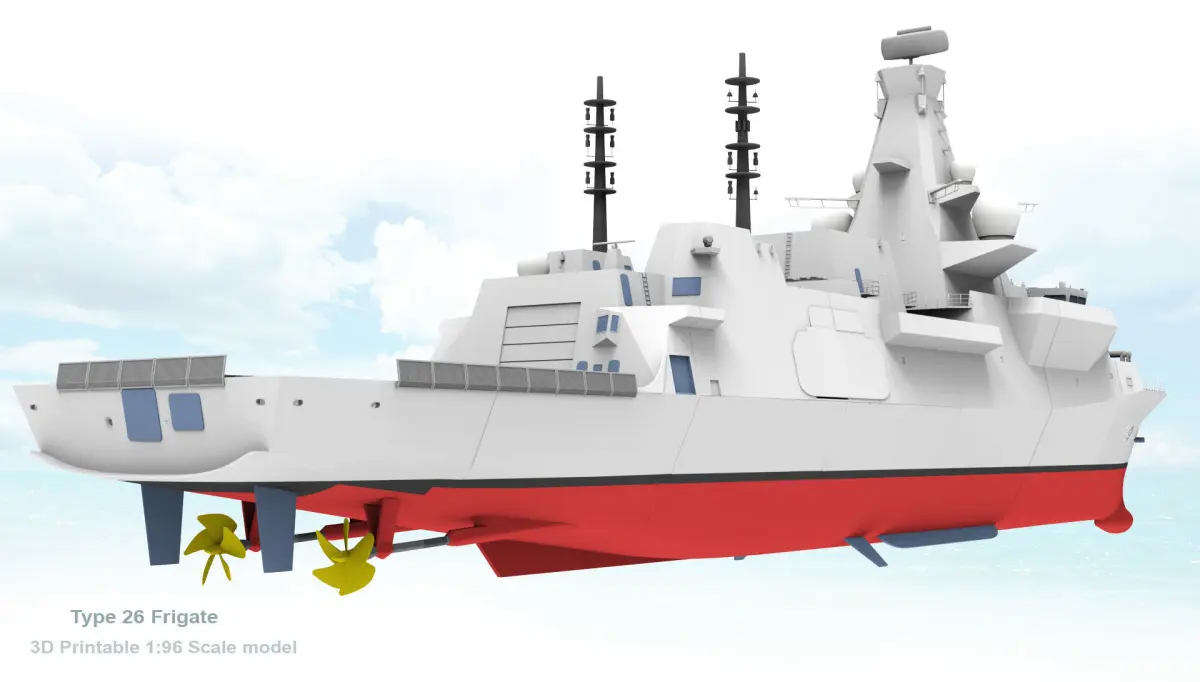

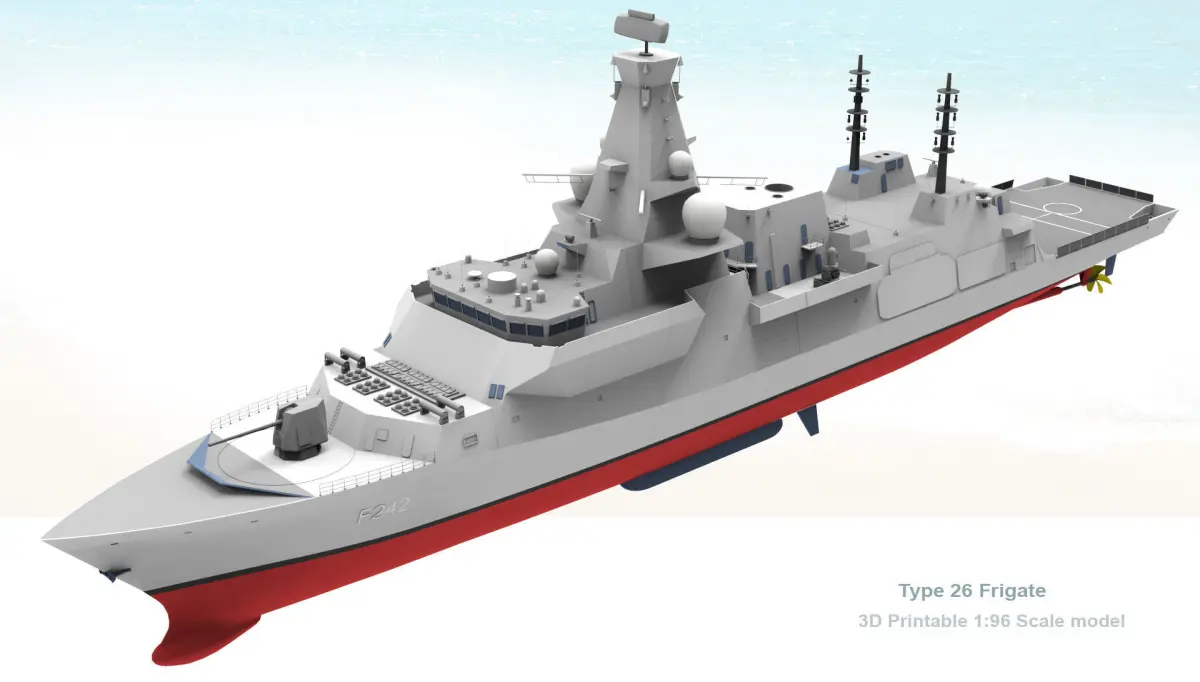

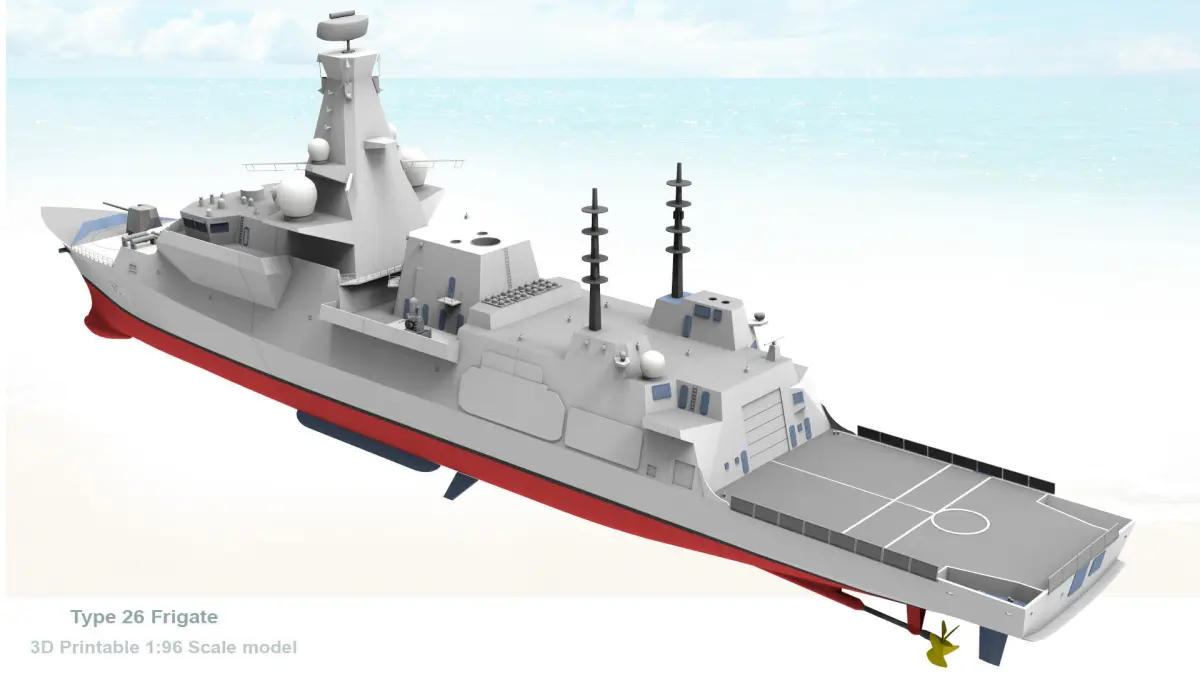

3D Printable Type 26 Frigate into 1/96 scale
The model dimensions are: Lengh 1552.5 mm x 228.0mm x H 500.0 mm
The model is cut into 8 segments so that it can be printed on a 220 mm x 220 mm printed sheet (total size of the printed sheet for hobbies)..
Segment size: 7x200=1400mm + 1x152.5mm
Assembly Progress / 8 segments body + additional
Part_1.1.BODY_01_1/segment_01 1.2.BODY_01_2 1.3.Deck_01 1.4.Anchor
Part_2.1.BODY_02_1/segment_02 2.2.BODY_02_2 2.3.Deck_02
Part_3.1.BODY_03_1/segment_03 3.2.BODY_03_2 3.3.Deck_03_1 3.4.Deck_03_2 3.5.Deckhouse_1 3.6.Deckhouse_2
Part_4.1.BODY_04_1/segment_04 4.2.BODY_04_2 4.3.Deck_04_1 4.4.Deck_04_2 4.5.Deck_04_3 4.6.Deck_04_4 4.7.Obj_04_1 4.8.Obj_04_2 4.9.Handrail_3
Part_5.1.BODY_05_1/segment_05 5.2.BODY_05_2 5.3.Deck_05_1 5.4.Deck_05_2 5.5.Figure_05Tower 5.6.Handrail_1 5.7.Handrail_2 (X2) 5.8.Door_left 5.9.Door_right
Part_6.1.BODY_06_1/segment_06 6.2.BODY_06_2 6.3.Deck_06_1 6.4.Deck_06_2
Part_7.1.BODY_07_1/segment_07 BODY_07_2 Deck_07_1 Deck_07_2 Wings (X2) Screws (X2)

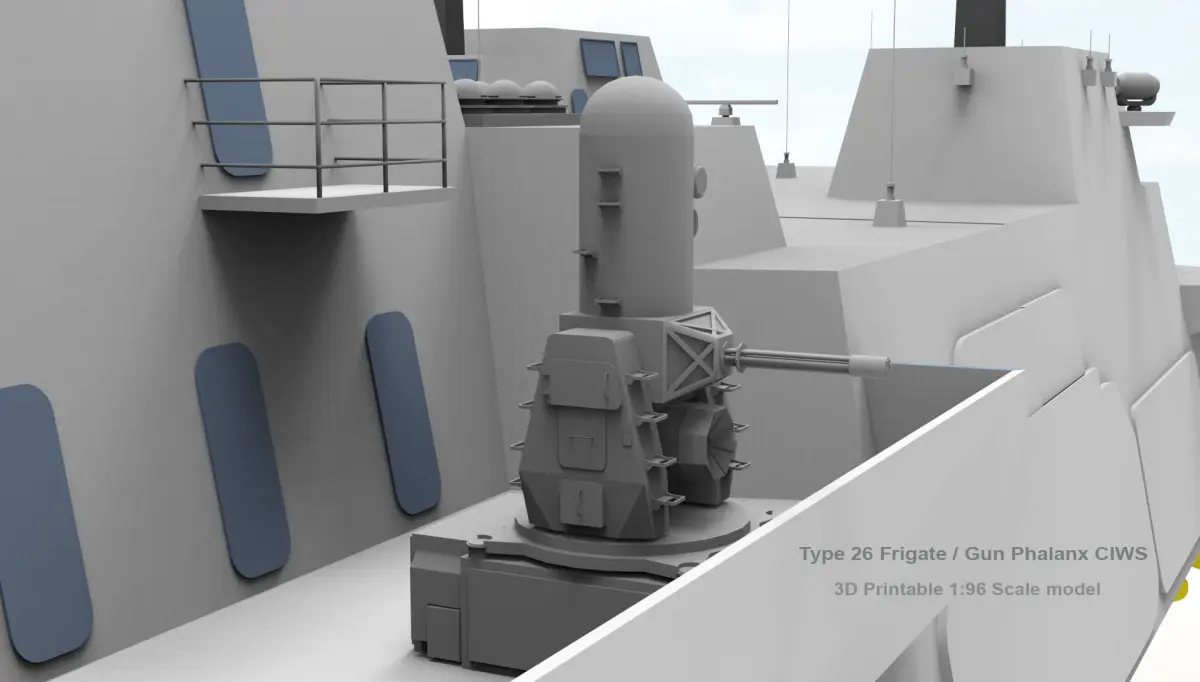

Part_8.1 BODY_08_1/segment_08 Body_08_2 Deck_08_1 Deck_08_2 bollard (X6) wings underwater(X2) Lattice_side (X16) Latticebox_back (X5) Back_plateAdditionals:1.Cannon frontal (6 objects)2.Figure_Fence (2 objects)3.Figure_03 (8 obj.)4.Figure_04 (4 obj.)5.Figure_05Tower(3 obj.)in part_56.Figure_06 7.Figure_07 (6 obj.)8.Figure_08 (15 objects)9.Figure_09 (3 obj.)10.Figure_10_Pillar (2 obj.)11.Figure_11SLQ12.Gun_Phalanx CIWS - (12 objects) X 2
For any problems please feel free to contact me. Thanks.
MAX (Autodesk 3ds Max, filesize: 6.22 MB), OBJ (OBJ, filesize: 10.3 MB), FBX (Autodesk FBX, filesize: 3.76 MB), MAX (Autodesk 3ds Max, filesize: 6.22 MB), STL (Stereolithography, filesize: 4.01 MB)
