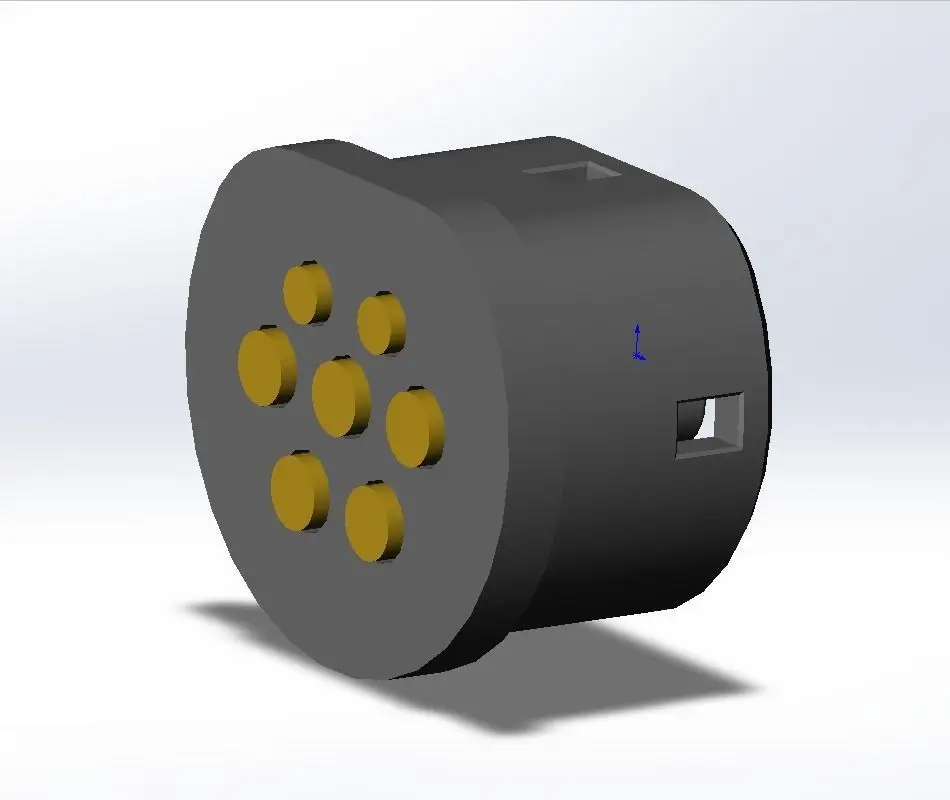

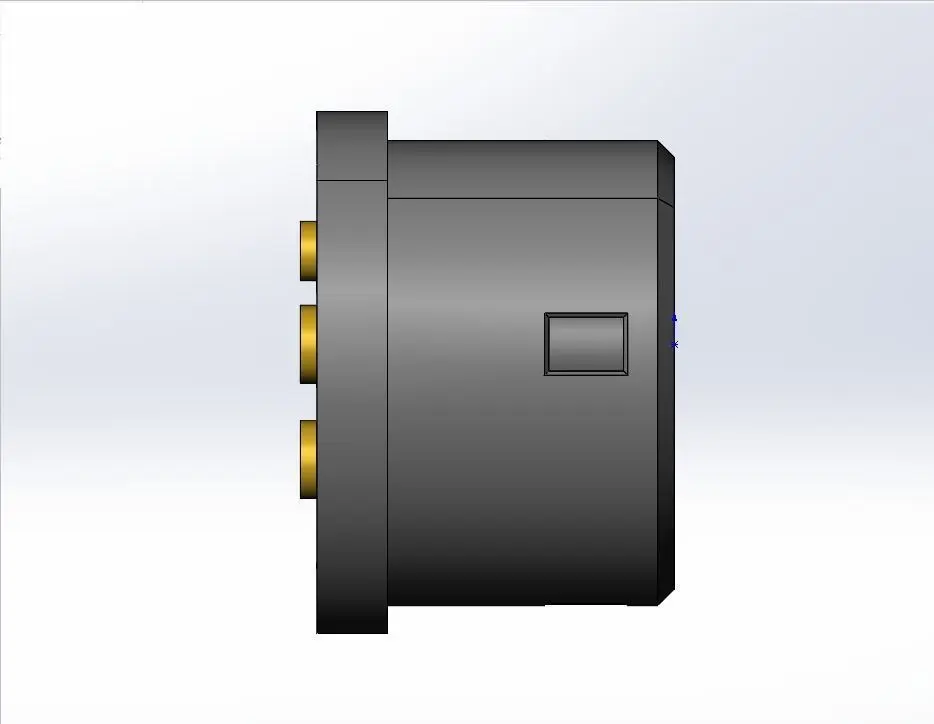

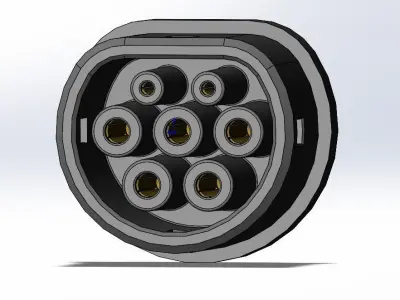

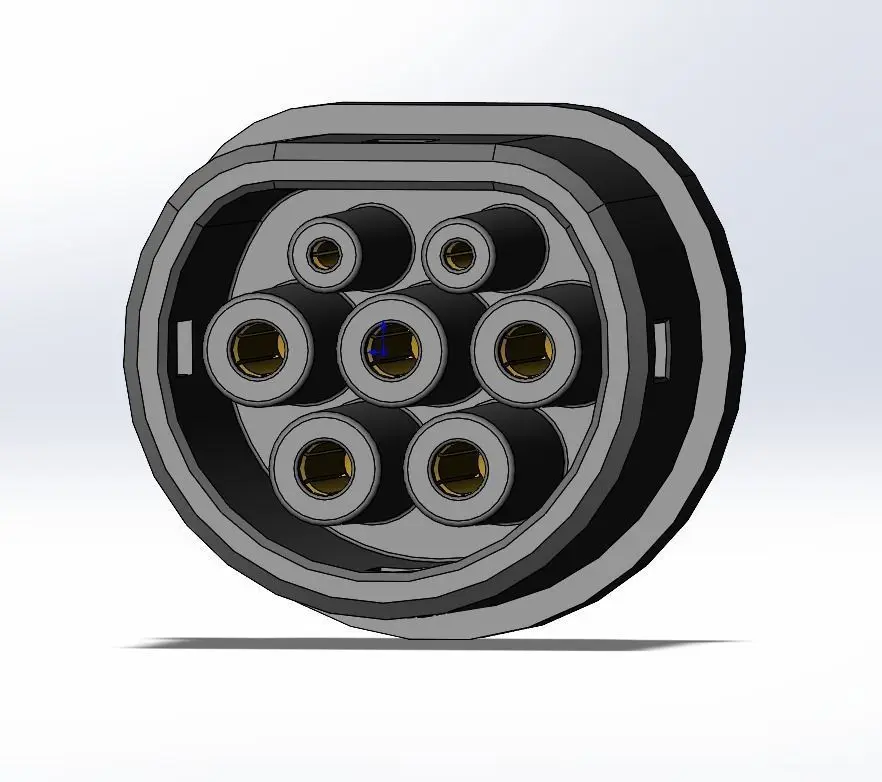

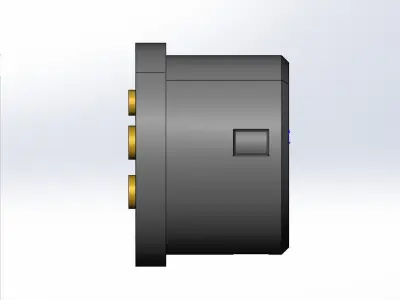

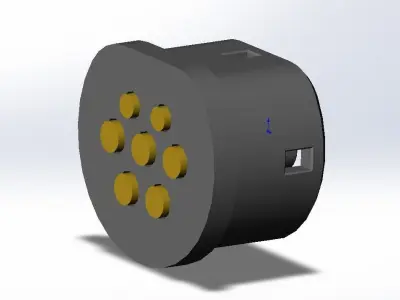

Type2 MENNEKES vehicle connector up to 480V 63A 3ph or 70A 1ph 3D print model

License: Royalty Free

author:

FedirM

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «FedirM». CGhub does not claim copyright ownership over the content used.

3d model full size matching to IEC 62196-2-2011, SHEET 2-IIe configuration. Each metal contact of this model is designed as a separate solid body that you can conveniently and easily cancel in your software if you do not need them. You can use it for manufacturing, projecting your custom thigs or just render. Project contains files PDF 3d\IGES(igs)\STEP(stp)\STL\3MF\AMF. Check my other EV connectors 3d models. Any questions. Open for work.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Type2 Ev Charging Electric Adapter Vehicle Hobby Diy Automotive Type2mennekes Evplug Socketoutlet Gost62196 Iec62196 Connector Gost62196 2 Iec62196 2 2011 Electrical outlet Hobby diy Car Parts
