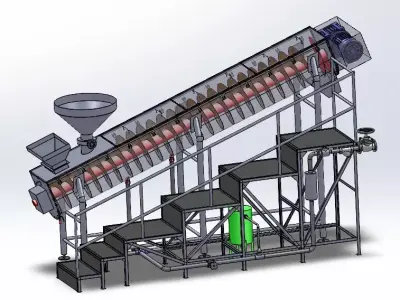

- General OverviewThis design is a U-shaped trough inclined screw conveyor, a specialized industrial equipment for continuous conveying of bulk materials. It adopts an integrated inclined layout, integrating material conveying, structural support and supporting auxiliary systems. Suitable for industries such as grain, chemical, building materials and mining, it can efficiently complete the closed inclined lifting conveying of powdery, granular and small block materials. The equipment features compact structure, strong sealing performance and high conveying efficiency, which can effectively avoid dust overflow and flexibly adapt to material conveying requirements under different working conditions.
- Core Structure and Functional Breakdown2.1 Main Conveying MechanismU-Type Trough Body: The U-shaped cross-section closed trough is used as the material conveying channel, with high structural strength and excellent sealing performance. It can completely prevent material leakage and dust emission, while providing a stable installation reference for the screw assembly, perfectly adapting to the working conditions of inclined conveying.Screw Conveying Assembly: The core working component is a continuous screw blade welded to the central transmission shaft. Driven by the motor to rotate, it pushes the material upward along the U-shaped trough through spiral thrust. The blade is made of wear-resistant material, which can adapt to materials with different characteristics and ensure conveying stability and equipment service life.Drive Unit: The top of the equipment integrates a motor and reduction mechanism, providing stable and adjustable power output for the screw shaft. The material conveying capacity can be adjusted by controlling the rotating speed to meet different production capacity requirements.2.2 Feeding and Discharging SystemFeeding Mechanism: The lower end of the equipment is equipped with dual feeding ports, including a large-diameter conical hopper and a side square feeding port, which can adapt to different feeding methods (such as manual feeding, equipment docking feeding) to meet diversified feeding needs.Discharging and Pipeline System: The equipment is equipped with a complete set of discharging pipelines, valves and collection structures, which can accurately control the discharge and shunting of materials. At the same time, it integrates auxiliary pipelines, which can adapt to process requirements such as cleaning and ventilation, expanding the equipment's application scenarios.2.3 Support and Auxiliary StructureSteel Structure Support Platform: An integrated steel structure frame is adopted to provide stable support for the inclined trough. It also integrates an operation platform, protective railings and stairs to ensure the safety and convenience of equipment installation, operation and maintenance.Auxiliary Supporting Components: Auxiliary components such as storage barrels and pipeline valve groups are integrated under the platform, which can realize functions such as material caching and process supporting, improving the integration and practicability of the equipment.
- Core Technical FeaturesHigh Sealing Design: The U-shaped closed trough structure completely eliminates dust overflow, meeting environmental protection and clean production requirements.Inclined Conveying Adaptability: The inclined layout can complete material lifting and conveying in a limited space, saving site space.Efficient and Stable Conveying: The screw conveying structure has high transmission efficiency and stable operation, supporting continuous operation and adapting to large-flow material conveying.Multi-Scenario Adaptability: It can adapt to a variety of bulk materials such as powder, granules and small blocks, and is widely used in material conveying scenarios in multiple industries.Safe and Convenient Maintenance: Integrated operation platform and protective structure make equipment inspection and maintenance convenient, with high operational safety.
- Typical Application ScenariosConveying of grain and powder in grain and feed industryConveying of powder and granular raw materials in chemical industryConveying of sand, cement and other materials in building materials industryConveying of mineral powder and small block materials in mining and metallurgy industryClosed conveying of bulk materials in environmental protection, food and other industries
SLDPRT (SolidWorks, filesize: 5.41 MB), X_T (Parasolid, filesize: 6.29 MB), IGE (IGES, filesize: 47.1 MB), STP (STEP, filesize: 16.8 MB)
