Description
Air ducts modular system with 60 elements 3D model
Air ducts game ready PBR asset
GENERAL

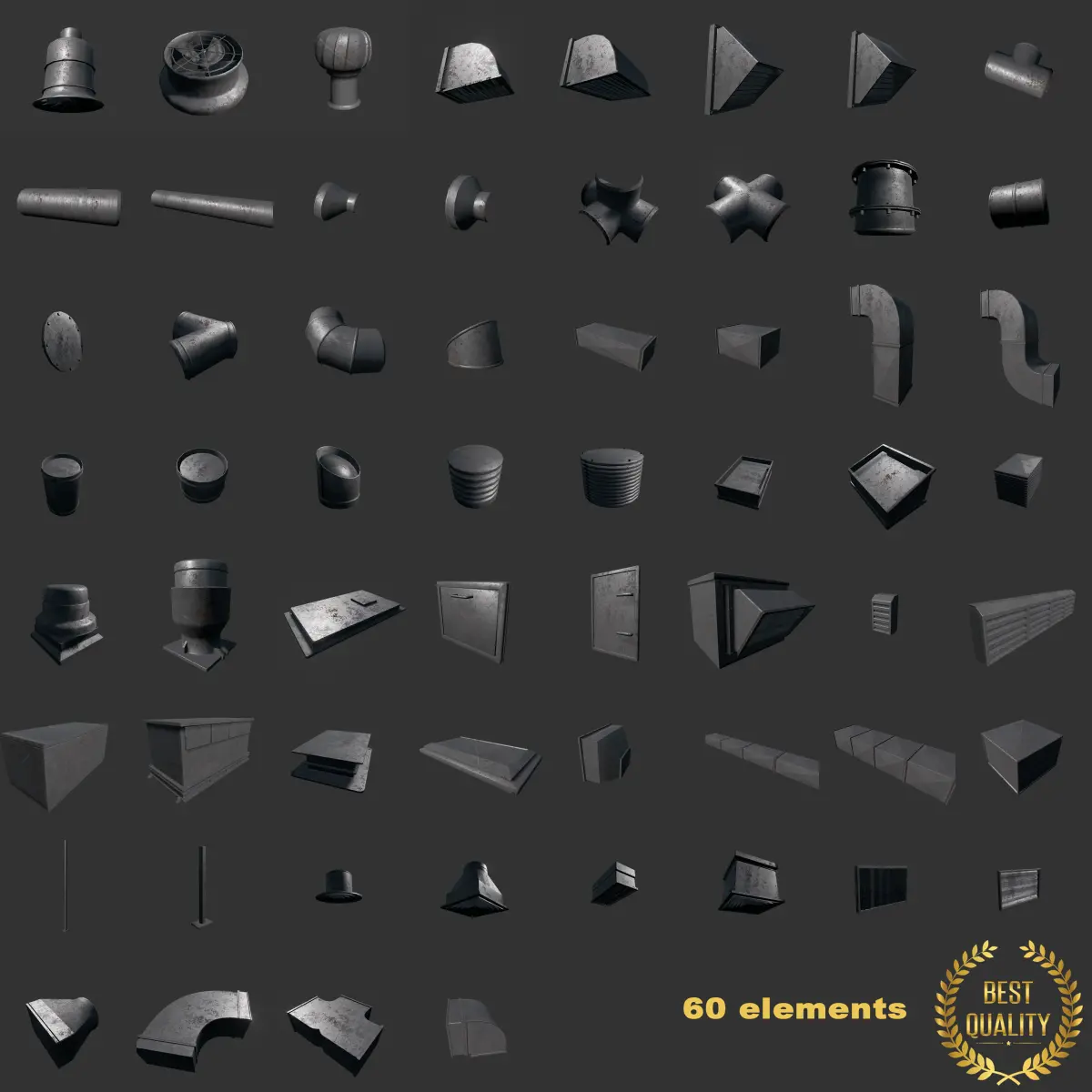

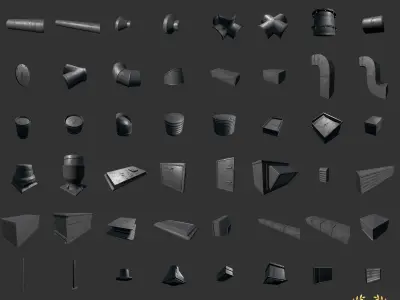

-High detailed air duct modular system with photo-realistic presentation. -Modular system have 60 individual objects -Game ready asset for every engine. -3ds Max file contain 60 individual named objects-Preview images rendered in real time with game engine Unreal 4-Objects has real-world scale-You can build any vision of your project with air mashines, roof ends, air ducts and vents included in this pack.
INVENTORY LIST
.max (3ds Max 2012 or later) .objanimated meshes are in .fbx
TECHNICAL SPECIFICATIONS
Polygon Count: 3606 Vertices Count: 2105 Number of textures versions: 3 all textures are in .png
Tris Count: air_duct_single_a - 84air_duct_quadro_a - 300air_duct_single_slim_a - 84air_duct_quadro_slim_a - 300air_duct_a - 188air_duct_b - 460air_duct_c - 348air_duct_bifur_a - 252air_duct_cross_a - 112air_duct_shaft_a - 316air_duct_qubic_reducer_a - 92air_duct_end_a - 98air_duct_end_b - 130air_duct_end_c - 240air_duct_end_d - 130air_duct_handle_a - 42air_duct_handle_b - 42air_duct_connector_tube_qubic_a - 182air_duct_tube_long_a - 124air_duct_tube_short_a - 124air_duct_tube_triple_a - 336air_duct_tube_quadro_a - 492air_duct_tube_quadro_b - 488air_duct_tube_connector_a - 320air_duct_tube_connector_b - 252air_duct_tube_connector_c - 748air_duct_tube_30d - 180air_duct_tube_90d - 432air_duct_tube_reductor_a - 252air_duct_tube_reductor_b - 252air_duct_tube_bifur_a - 556air_duct_end_tube_b - 312air_duct_end_tube_c - 432air_duct_roof_top_a - 174air_duct_roof_top_b - 114air_duct_roof_top_c - 114air_duct_roof_top_d - 1404air_duct_roof_top_e - 708air_duct_roof_top_f - 410air_duct_roof_top_g - 518air_duct_roof_top_h - 518air_duct_roof_top_big_a - 972air_duct_roof_top_big_b - 914air_duct_wall_end_a - 224air_duct_wall_end_b - 224air_duct_wall_end_c - 288air_duct_wall_end_big - 288air_duct_roof_box_small_a - 354air_duct_roof_box_a - 1136air_duct_roof_box_b - 130air_duct_roof_base_small_a - 306air_duct_roof_base_big_a - 118air_duct_roof_enter_a - 380air_duct_roof_door_a - 258air_duct_roof_door_b - 194air_duct_roof_box_end_big - 542air_duct_roof_box_end_small - 182
animated meshes:air_duct_end_tube_a - 848air_duct_roof_top_i - 720air_duct_roof_top_vent - 1198
TEXTURE SPECIFICATION
All texture maps are 2048x2048 in resolution and divided into 4 versions:
-painted metal -clear steel -dirt steel-rust steel
for PBR are: -Base Color -Metallic -Roughness-normal
TIP: Texture is fully reusable for other models and for maximum performance you can pack all maps into one texture in different channel.
