Professional high-precision modular system for fence design, created in SolidWorks. This kit allows you to mix and match different wooden sections with various pillar styles to create a custom fence of any length and configuration. Perfect for ArchViz, landscape design, and engineering projects.
Technical Specifications:Scale: 1:1 metric scale (millimeters).
Assembly: All components are provided as multibody parts for ease of use and maximum flexibility.
Unit System: Designed in millimeters. For meter-based software (like Blender), please scale by 0.001.
Orientation: All models are oriented vertically (Up-axis) for instant placement.
What’s Included:
- Wooden Fence Modules (H: 1500 mm):Variations: 3, 5, 7, 9, and 10-board sections.
Board dimensions: 20 mm (thickness) x 80 mm (width).
Hardware: Detailed M10 metal screws/bolts included.
Compatibility: Sections are designed to be tileable and can be easily combined or shortened.

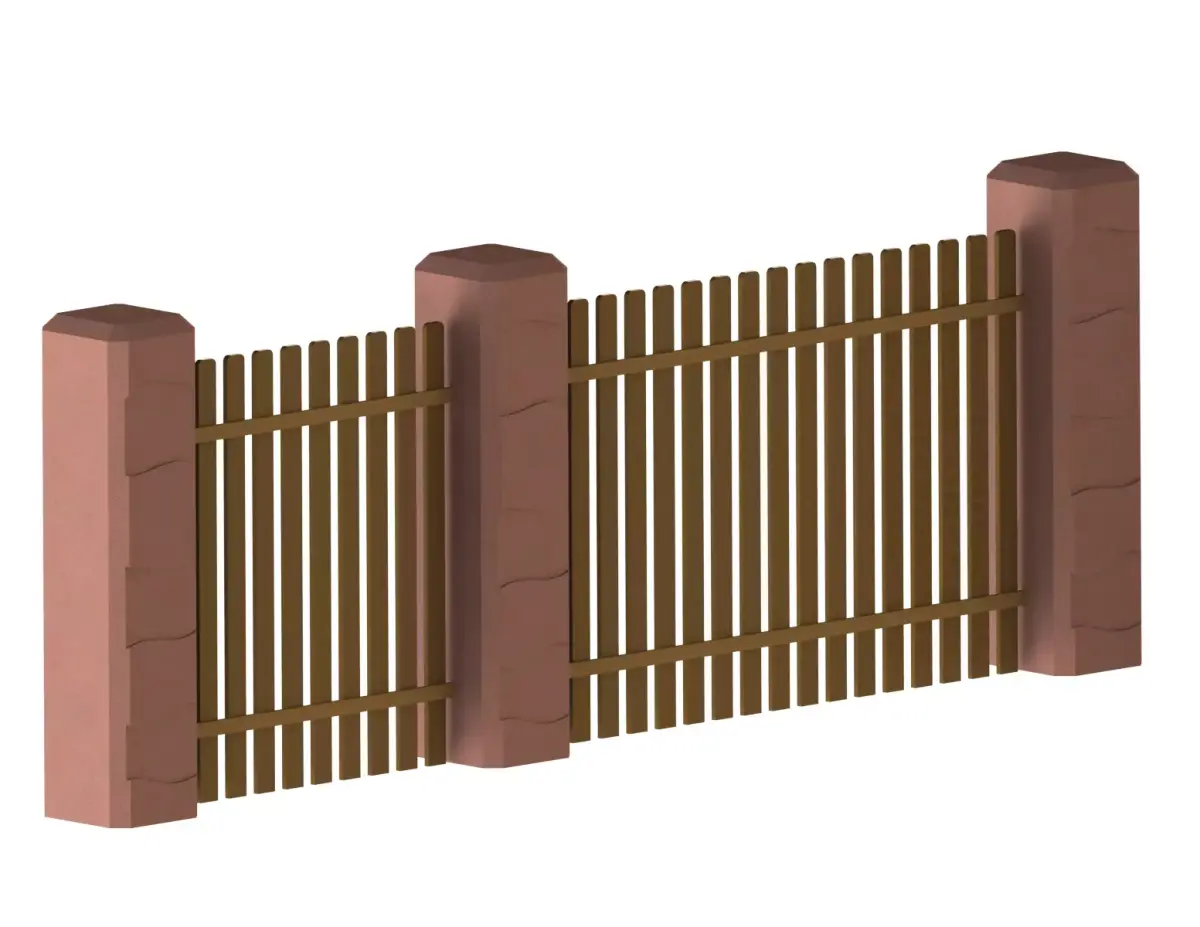

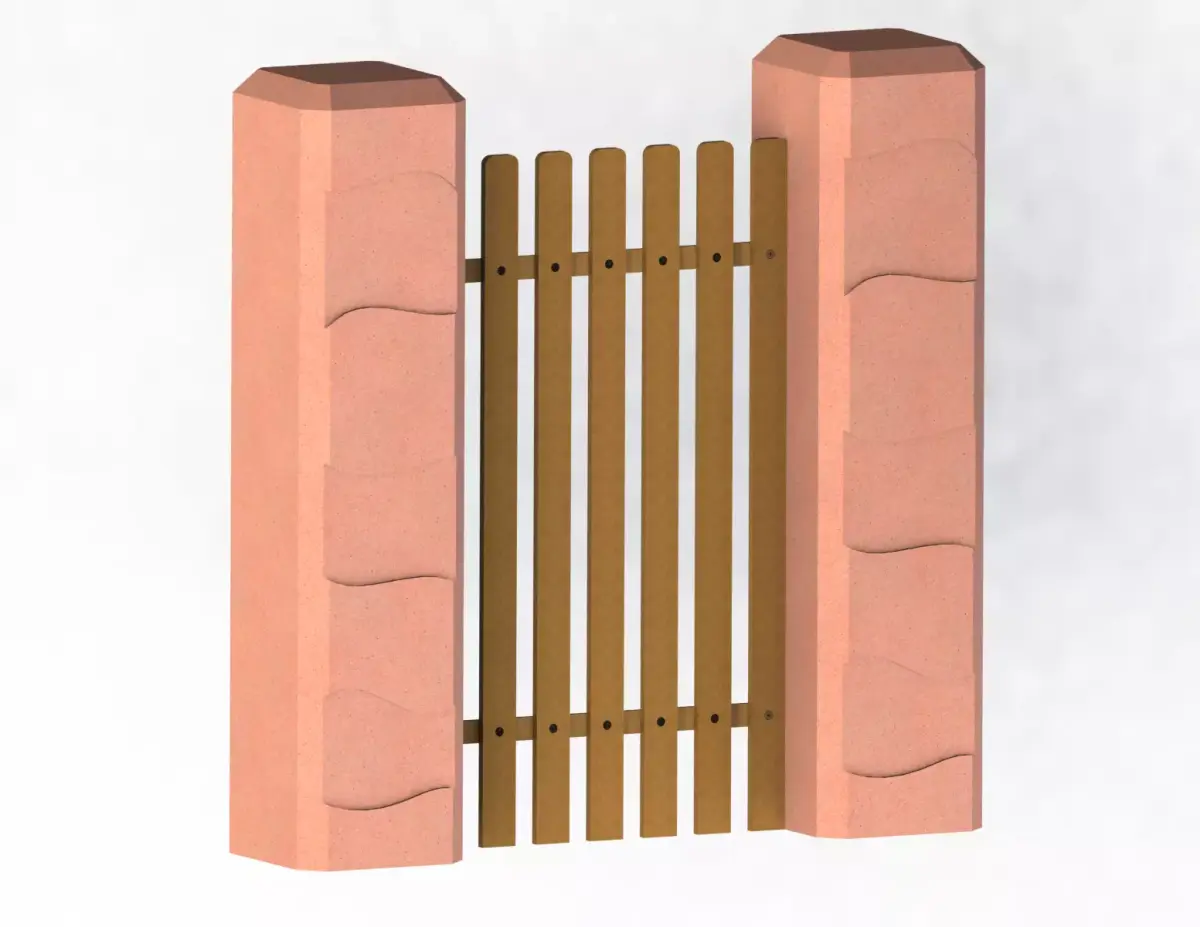

- Interchangeable Pillars:Stone/Concrete Style: 440 x 440 mm, Height 1600 mm.

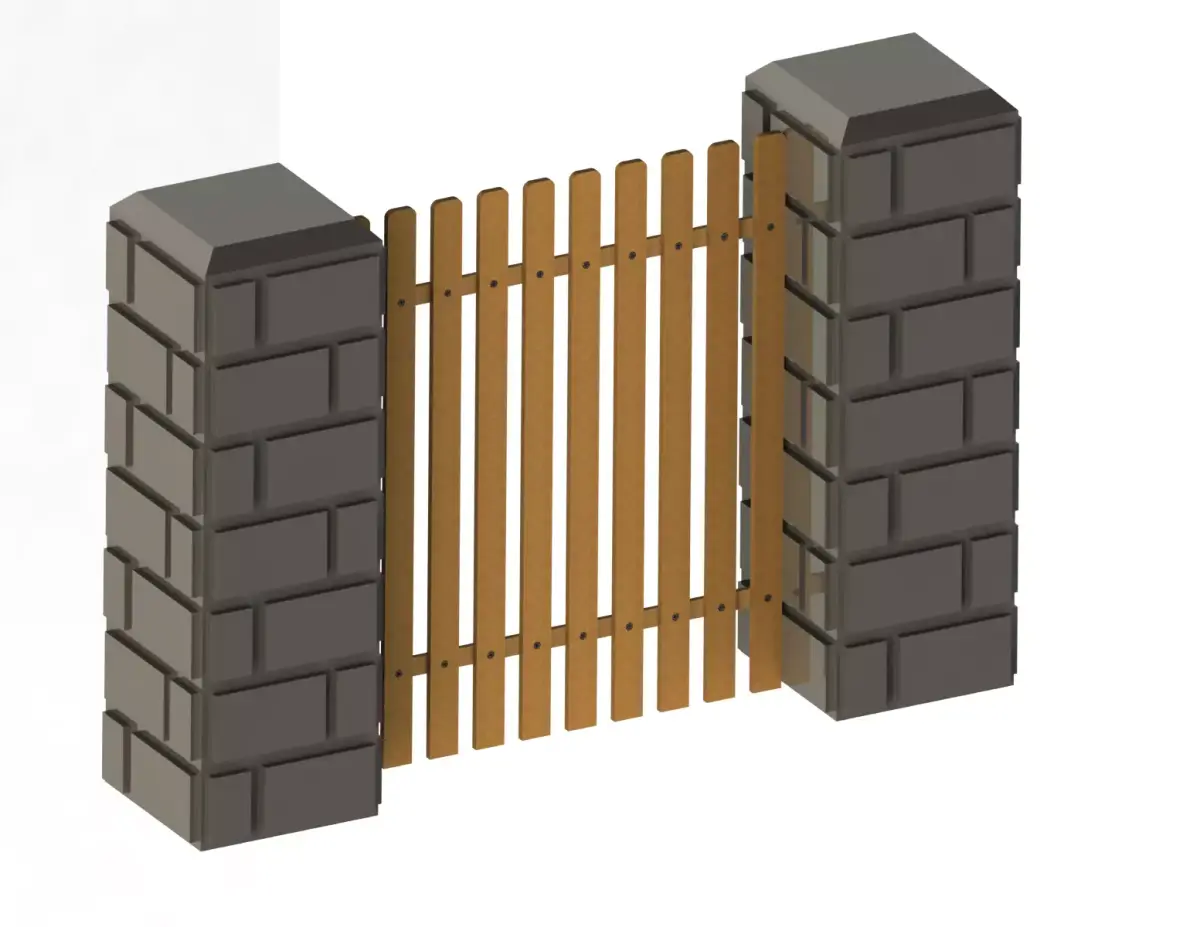

Modern Square Profile: 400 x 400 mm, Height 1700 mm.

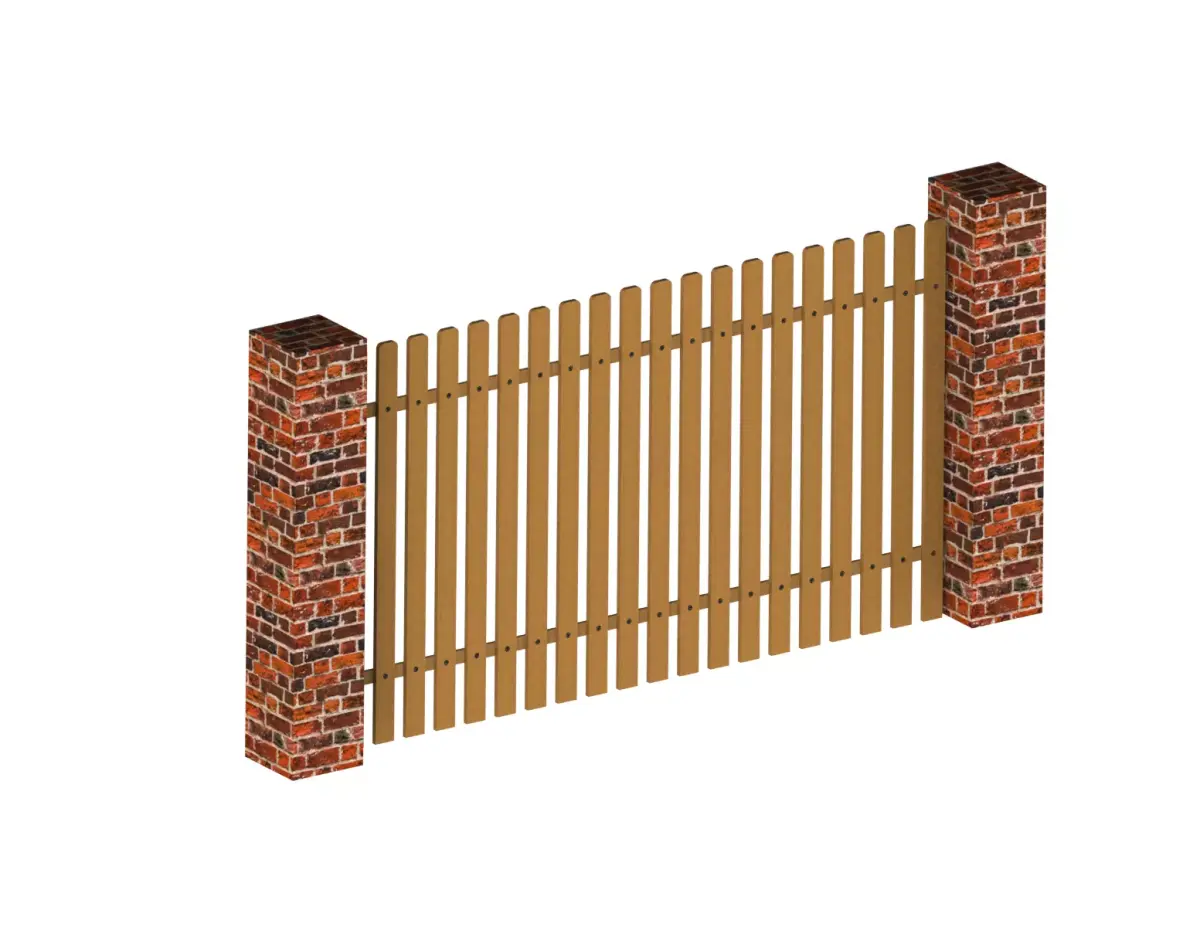

Classic Brick Pillar: 300 x 300 mm, Height 1600 mm.
Key Features:Fully Modular: Wooden sections and pillars are designed to be perfectly compatible. You can combine any section with any pillar type.
CAD & Engineering Ready: High-resolution geometry (0.1 mm deviation) with precise engineering details.
Visualization Friendly: Materials and colors are basic for reference. Textures and UV mapping are not included, allowing you to apply your own professional PBR materials.
SLDPRT (SolidWorks, filesize: 4.64 MB), OBJ (OBJ, filesize: 782 KB), 3MF (3D Manufacturing File, filesize: 1000 KB), STL (Stereolithography, filesize: 1.51 MB), STP (STEP, filesize: 1.34 MB), X_T (Parasolid, filesize: 896 KB), AMF (amf, filesize: 919 KB)
