Buy Universal Coupling 3D print model

Name: Universal Coupling 3D print model
Brand: Furqan03
SKU: 879923
Price: 6.00 USD
Availability: InStock

License: Royalty Free No Ai

author:

Furqan03

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Furqan03». CGhub does not claim copyright ownership over the content used.

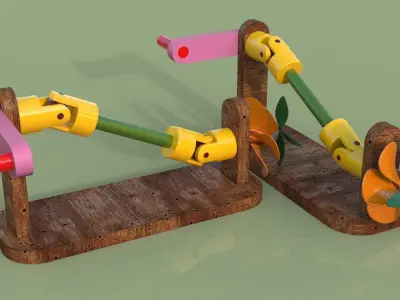

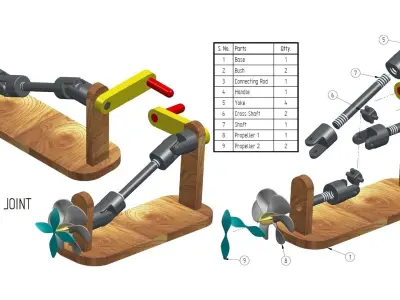

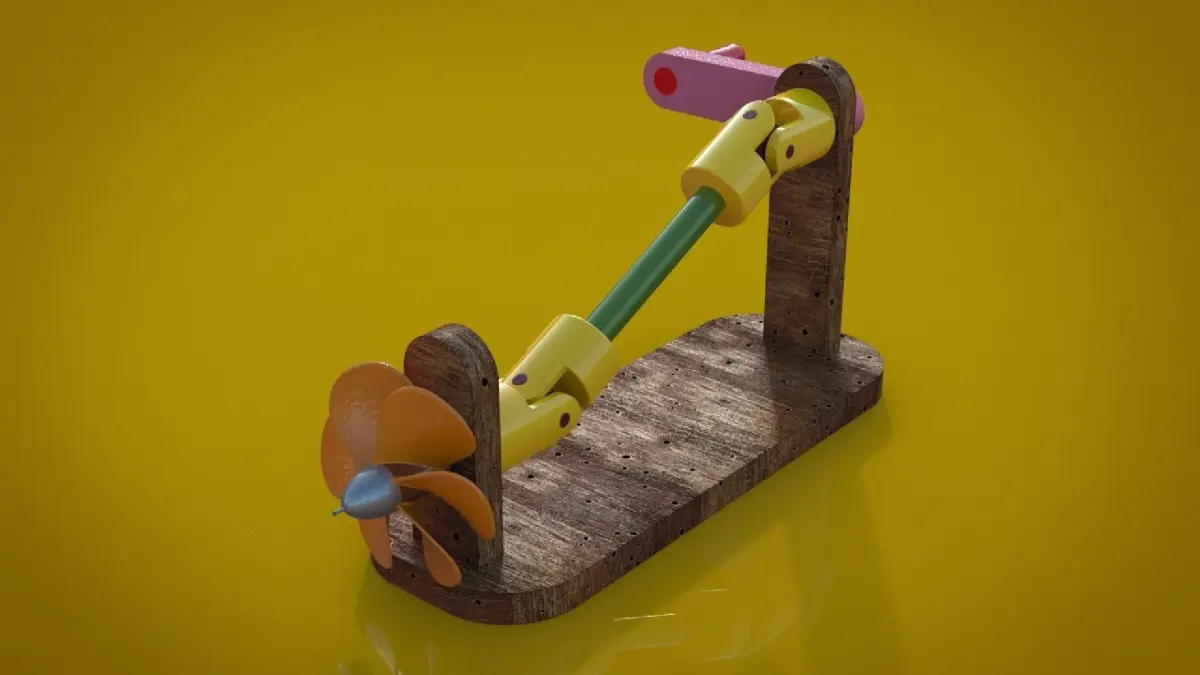

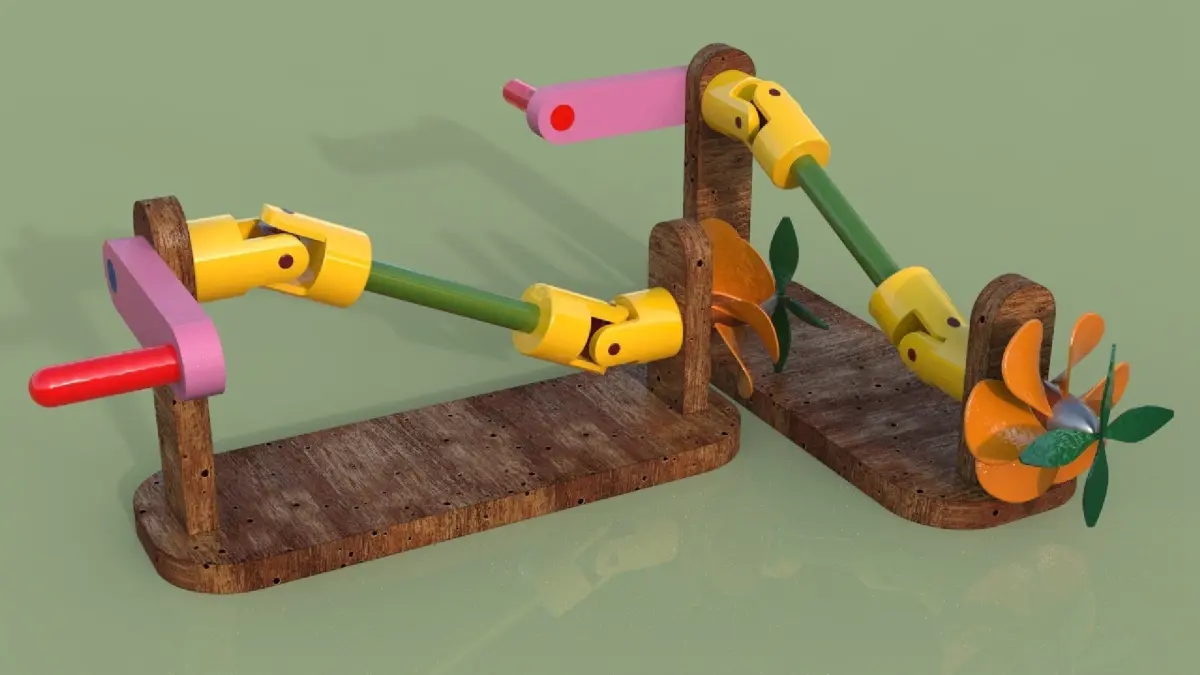

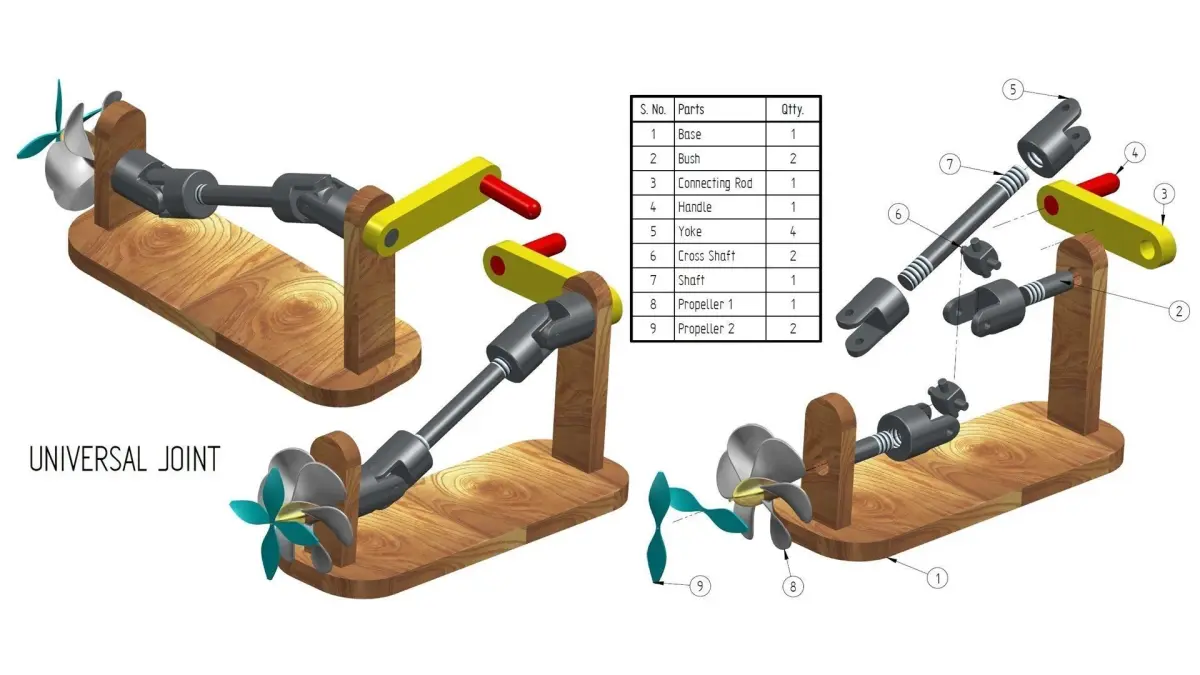

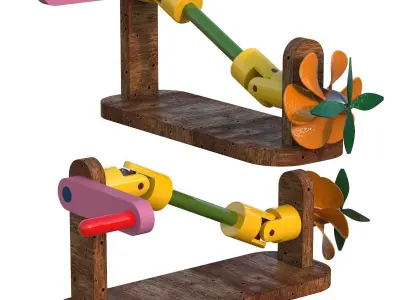

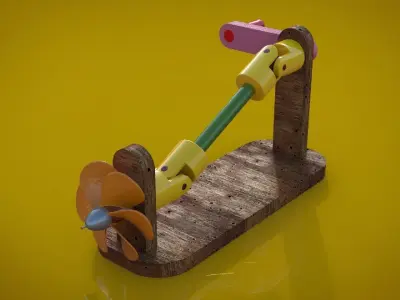

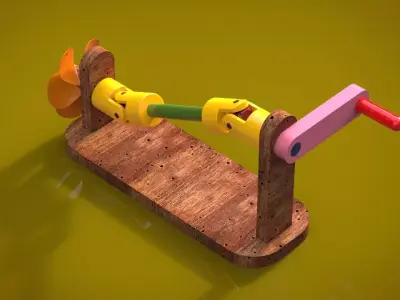

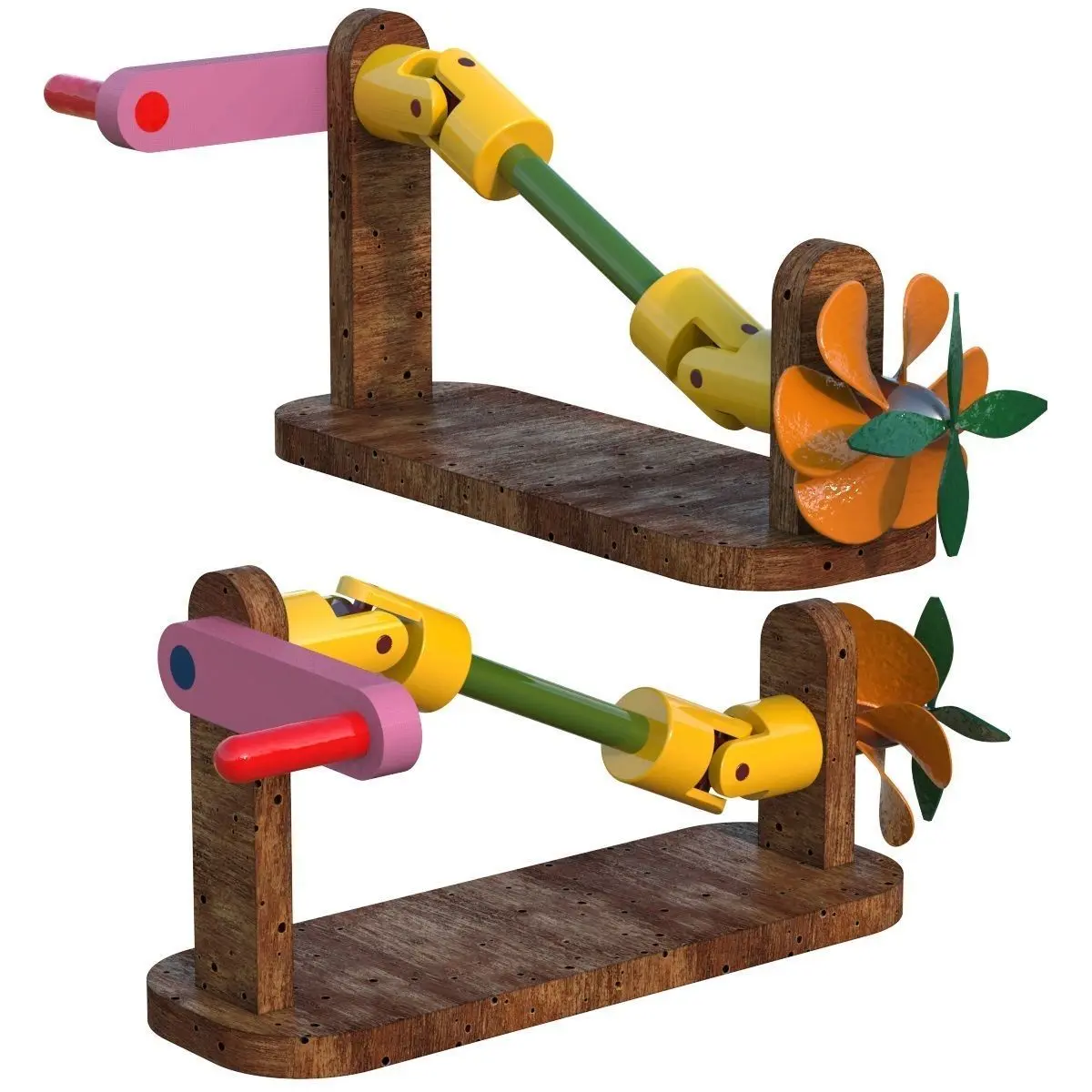

Universal Coupling / Joint. Used for connecting moving shafts whose axis are inclined to each other. The model was made using Solid Edge and rendered in KeyShot.

Includes Solid Edge Part files (.par), Solid Edge Assembly file (.asm) and Solid Edge Draft file (.dft). SolidWorks Part files (.sldprt), SolidWorks Assembly file (.sldasm), Autodesk Inventor Part files (.ipt) and Autodesk Inventor Assembly file (.iam) of the model are added as well.

Other converted file formats are also included. File formats (.step, .iges, .sat, .x_t, .3mf) were exported using SolidWorks 2022. File formats (.obj, .stl) were exported using Autodesk Inventor 2023. File formats (.fbx, .glb) were exported using Marmoset Toolbag 4. Also included are the KeyShot 11 Package files (.ksp) which include the used materials, textures and HDRI files in the KeyShot renders.

All of the above rendered images and animations of the model are included in zip files.

A 3D pdf file of the model is added as well.

ASM (Solid Edge, filesize: 21.5 MB), OBJ (OBJ, filesize: 483 KB), FBX (Autodesk FBX, filesize: 806 KB), GLTF (glTF, filesize: 1.03 MB), SLDPRT (SolidWorks, filesize: 1.23 MB), IAM (Autodesk Inventor, filesize: 2.14 MB), BIP (KeyShot, filesize: 202 MB), PDF (PDF, filesize: 1.23 MB), 3MF (3D Manufacturing File, filesize: 589 KB), STL (Stereolithography, filesize: 1.16 MB), IGE (IGES, filesize: 2.59 MB), STP (STEP, filesize: 1.55 MB), OTHER (Other, filesize: 1.55 MB), SAT (3D ACIS, filesize: 2.77 MB), X_T (Parasolid, filesize: 954 KB), HRD (High-Res Renderings, filesize: 7.82 MB), JPG (JPG, filesize: 2.38 MB), MP4 (MP4, filesize: 5.44 MB)

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 24274
Vertices: 19042
Geometry: Polygon mesh
