UPC 201 type 12mm Pillow Block Bearing 3D model

$15

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

vimalgeorge

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «vimalgeorge». CGhub does not claim copyright ownership over the content used.

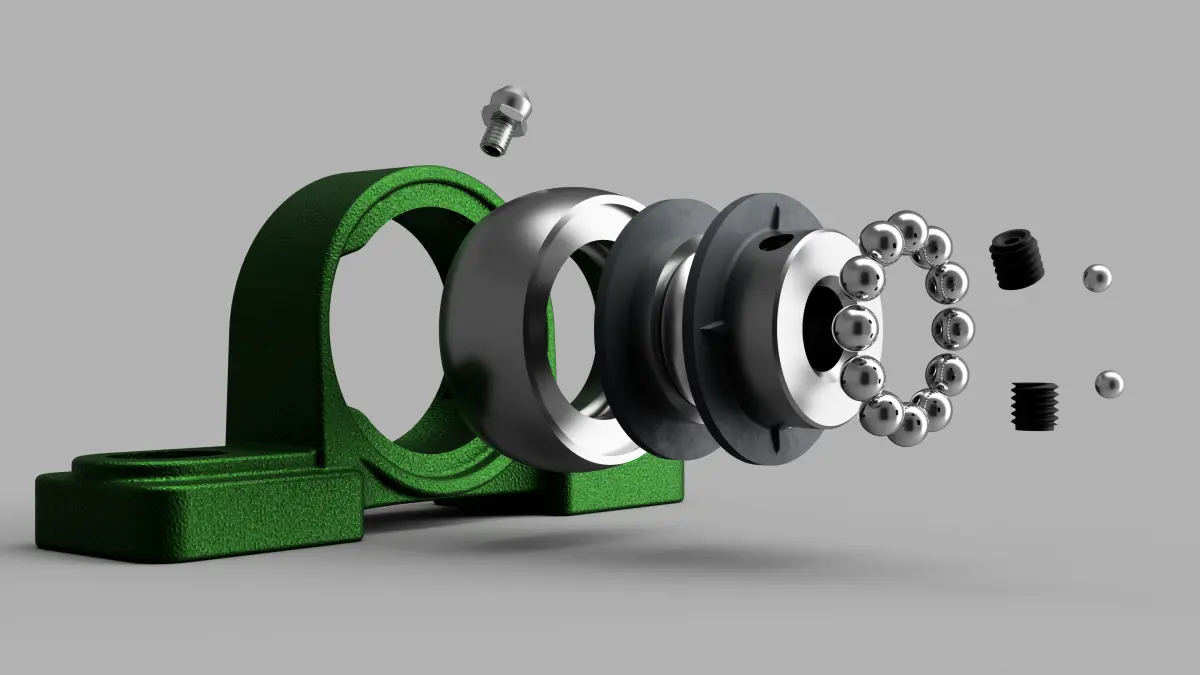

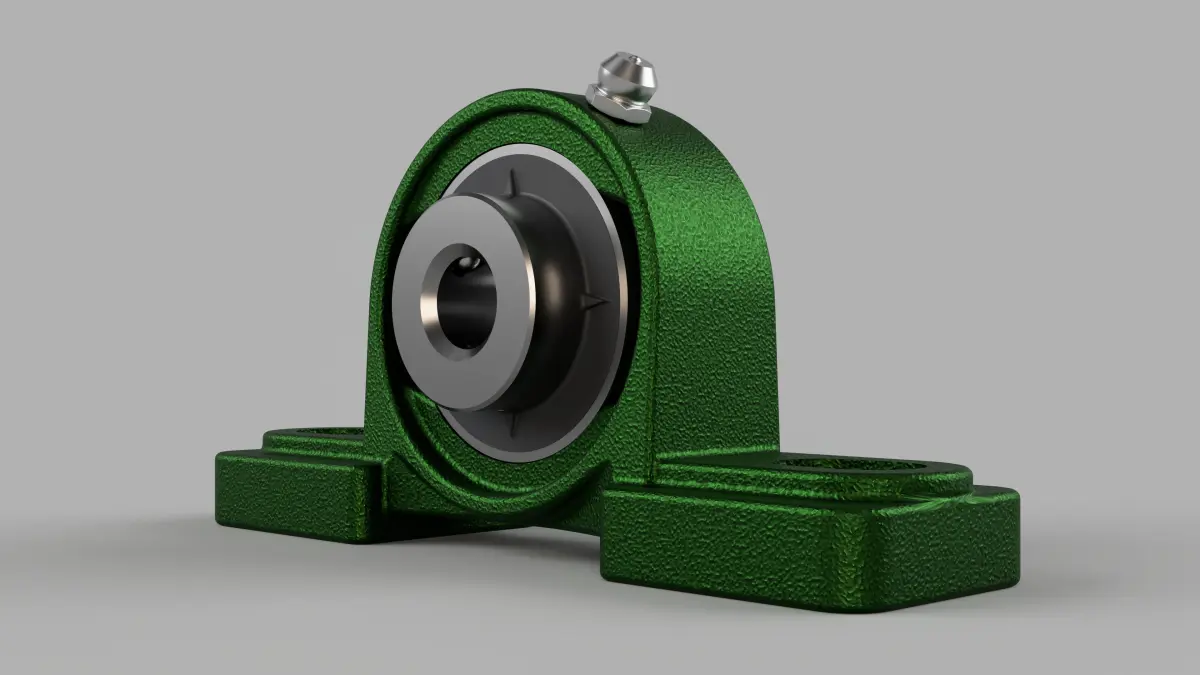

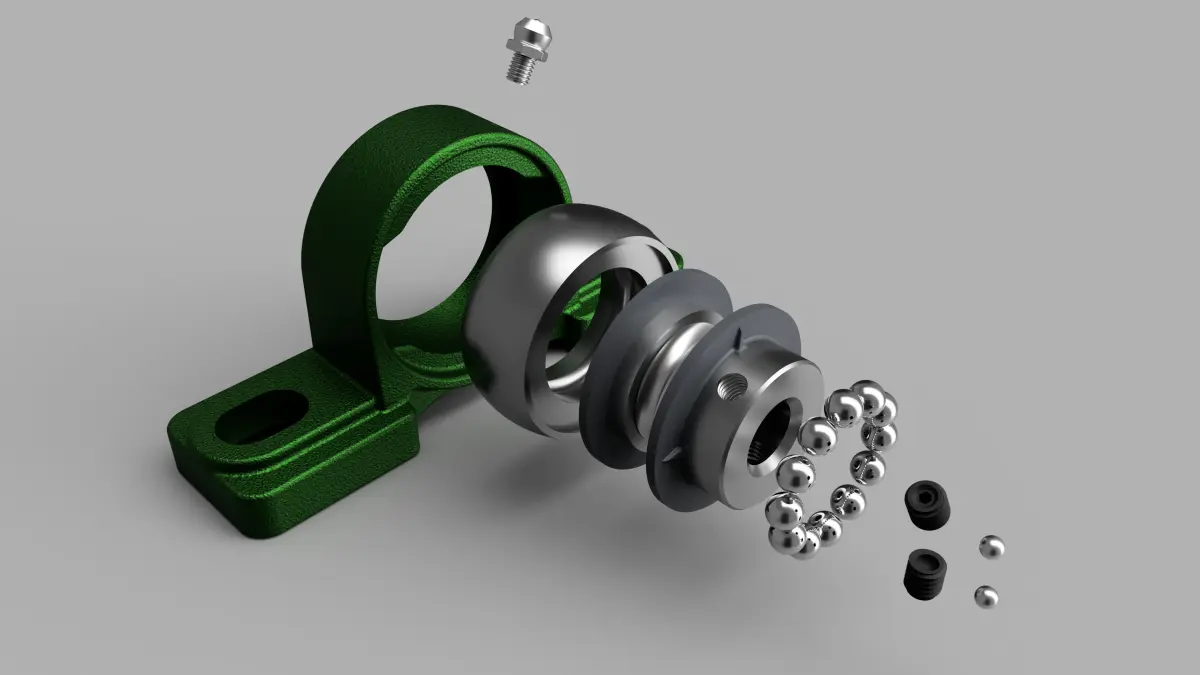

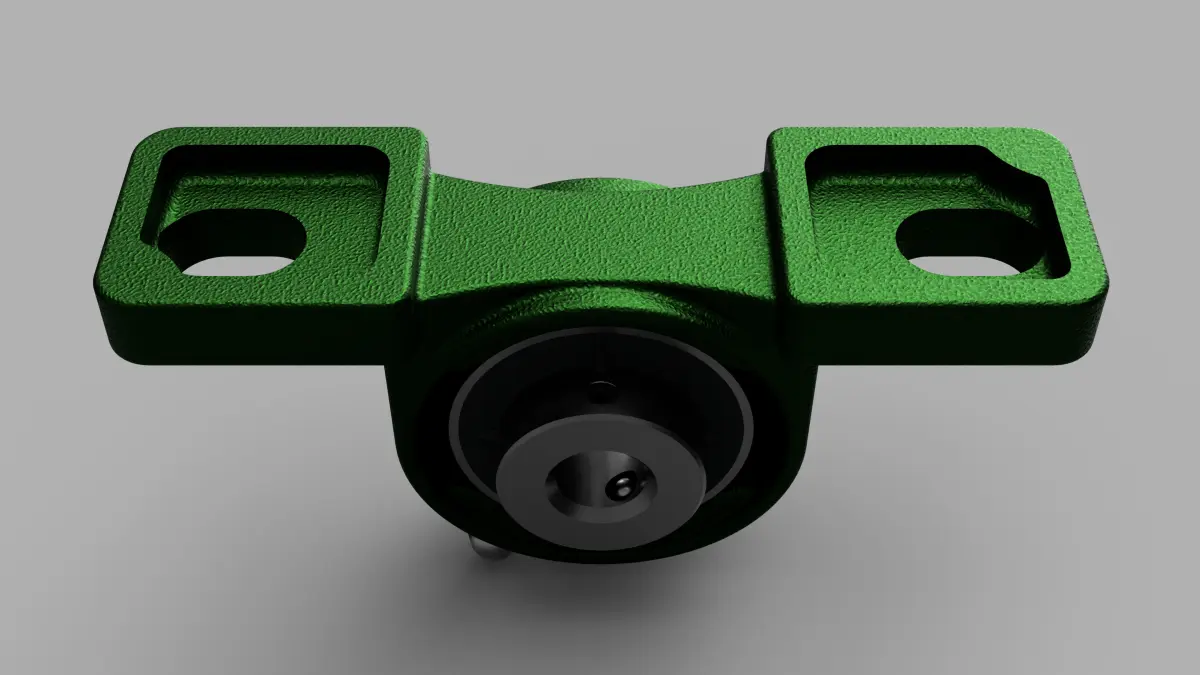

Reverse-engineered CAD model of Actual UPC 201 type of Pillow Block Bearing. Specification: Bore=12mm Housing Length= 124mm Housing Width= 35mm Bearing OD=46mm Hub Length=30 and so on. This is a self-aligning bearing and housing assembly and so the bearing can adjust itself within the housing depending on the axis of the shaft connected to it. 2 Hexagon Socket Ball End Grub Screw is provided to lock the shaft firmly inside the bore of the bearing. Also, a Lubrication lid is provided to lubricate the bearing hub’s outer and housing’s inner contact surfaces.
