Publication date: 2025-07-16

Buy V-Belt Pulley Pack - 8 Pulleys for Z A B C Belt Profiles 3D print model

$7

License: Royalty Free

author:

Denis88

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Denis88». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $7 Add to Wishlist
  • Description
  • Formats

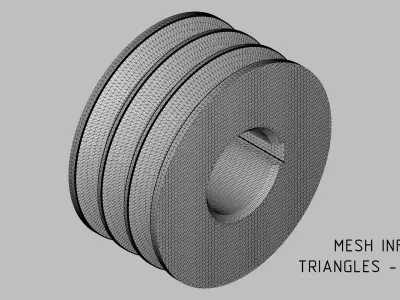

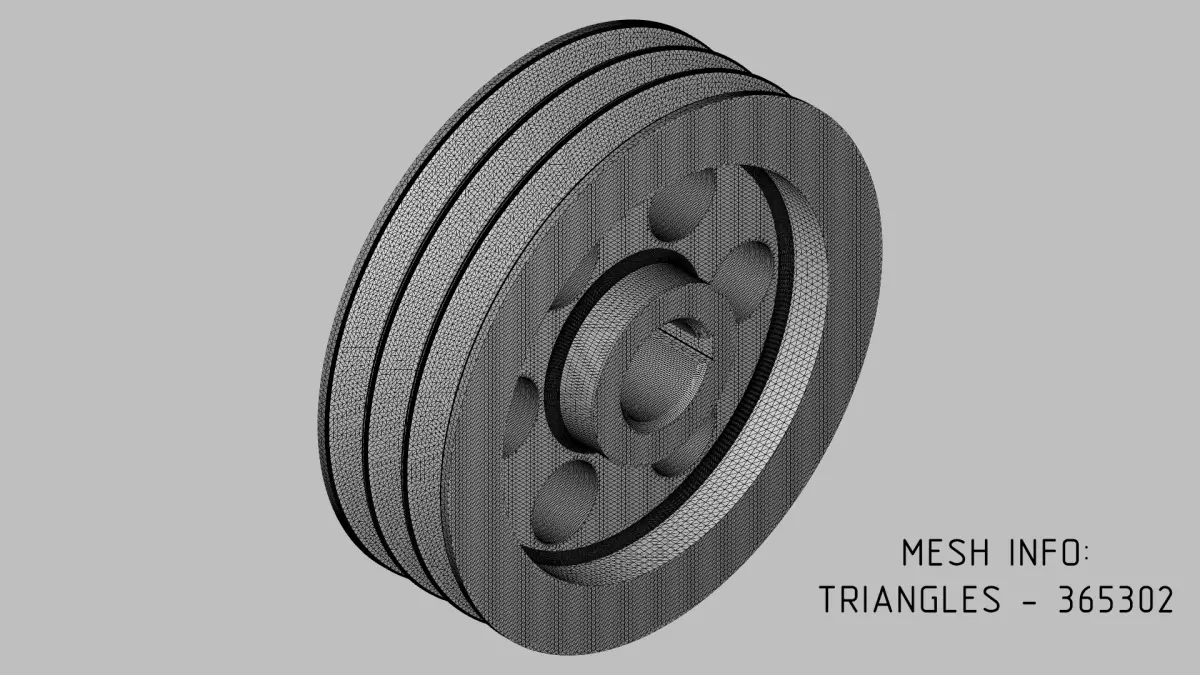

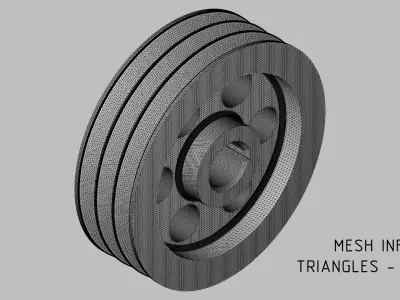

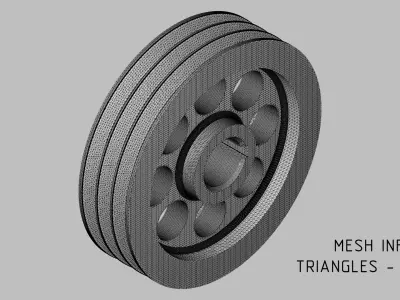

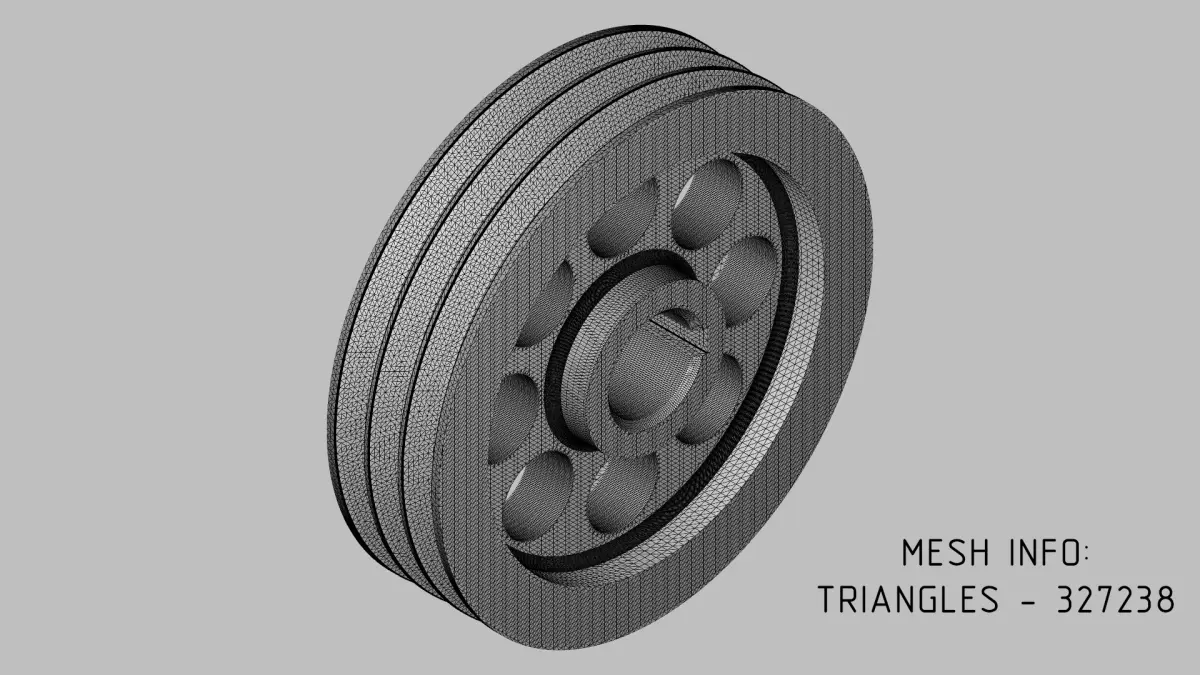

This collection includes 8 high-quality V-belt pulleys for Z, A, B, and C belt profiles. Each profile contains two pulleys — one small and one large — with the larger pulley having twice the diameter of the smaller.

  • Accurate geometry modeled in Kompas-3D
  • Clean topology, ready for CAD, CAM, rendering or 3D printing
  • Includes STL, STEP and OBJ formats
  • Suitable for technical visualization and mechanical design

Pulley sizes:

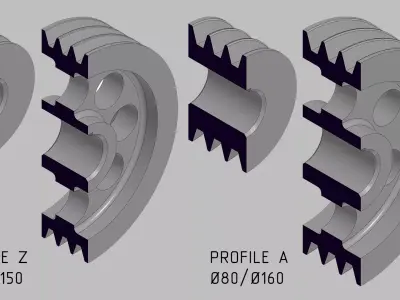

  • Profile Z: Ø75 mm / Ø150 mm
  • Profile A: Ø80 mm / Ø160 mm

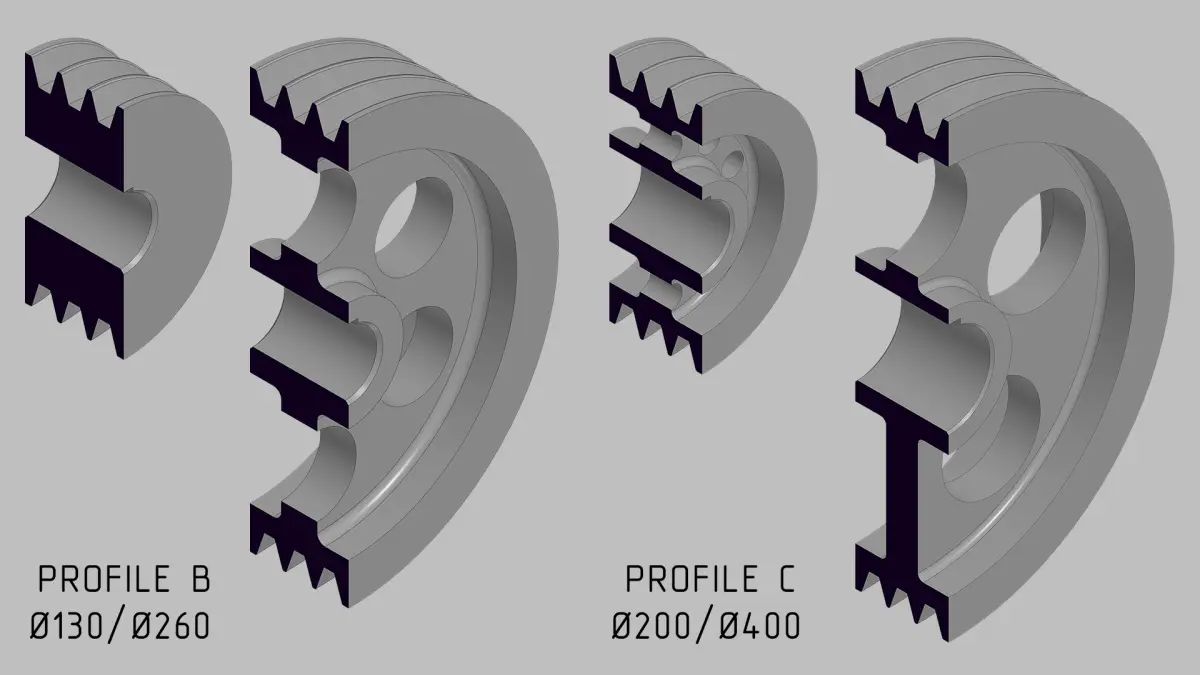

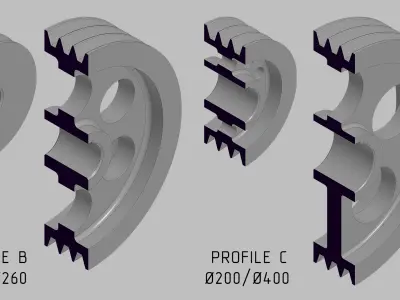

  • Profile B: Ø130 mm / Ø260 mm
  • Profile C: Ø200 mm / Ø400 mm

Models are provided in real-world scale and can be used in mechanical design, student projects, or 3D printing mockups.

Need models with other parameters? Contact me.

STL (Stereolithography, filesize: 24.9 MB), OBJ (OBJ, filesize: 90.6 MB), STP (STEP, filesize: 95.7 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Manifold geometry | No N-gons |

Tags

Pulley Belt Profile Transmission Cad Mechanical Part Cnc Print Power Engineering Mechanical parts Hobby Diy Hobby diy Parts
