[¯`·..·[ V5 JLB CHEETAH RC CAR TRUGGY 1:8 ]·..·´¯]

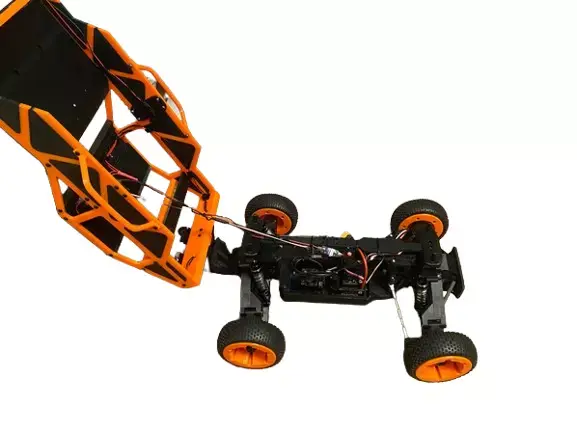

Ultra-high-performance 1/8 scale RC car, 3D printable, using standard JLB CHEETAH J3 parts.The design is improved, and much more durable than the original. Easy Fix, Strong, Modulable, Big battery place, Speed 100Km/h in 4S.
- Ender 3 compatible,
- STL Pré-oriented (ready to print),
- Full Metal transmission,
- 4 arms = 1 arm (Lowers and Uppers),
- Modulable,
- Only M3 Screws / Washers / Nuts
- 17mm Wheel Hub

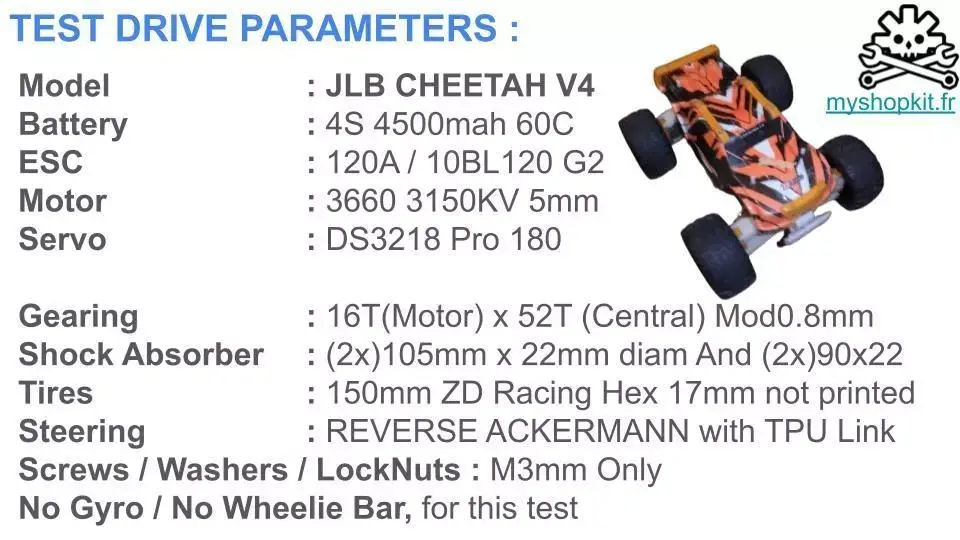

Recommended Electronic hardware :
- D3660 3150KV 5mm
- 4S 4500mah 60C
- ESC 10BL120
- Servo DS3218 PRO 180deg

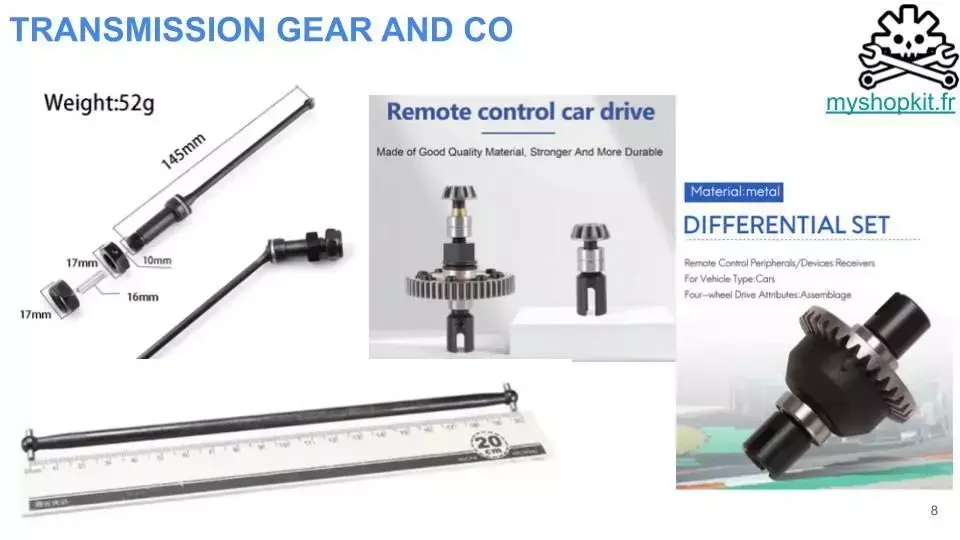

Recommended Mechanical hardware : (with REF code for search Aliexpress)
- 32DP Steel Pinions Gears 15T - 20T
- Rear Gear Driver Set (REF: EA1058)
- Front Gear for Diff (REF: EA1056)
- Iron Central Shaft Dogbone (REF: EA1014)
- Differentials (REF: EA1057)
- CVD (REF: EA1061)
BUILD GUIDE :https://docs.google.com/presentation/d/1jabhHdwHruR_a4ibou3fMm3Z3C0JivmusydT-Vo3oH4/edit?usp=sharin
BUILDING VIDEO LINK :https://youtu.be/ltlX8YH-RXE
DriveTest 3 :https://youtu.be/SvWld79_sfc?si=aPckDDIiqrSuG55h
DriveTest 2 :https://youtu.be/yqldffKXP6s?si=bwGEYk6m8A23RRmY
DriveTest 1 :https://youtu.be/OAT00DGrQRY?si=l6gj_2wU7jys8bdF
FREE VERSION GOT :
ALL PARTS TO RUN A GOOD DEMO VERSION ;)New REVERSE ACKERMANN STEERING SYSTEM Best for max anglesNew DIRECT DRIVE STEERING SYSTEM Best for BashSlim Version of the ChassisPLA Motor Mount D36 D42Metal Motor Mount CapabilityMono Motor Transmission Cover For PLA+ and Metal (but dual motors D36 D42 capability :)RIMS Hexa 17mm Standard ESC Place CapabilityNo additional Battery Side Mount
PREMIUM LINKS :
Official website
https://myshopkit.fr/
HARDWARE STORE :
32DP steel pinions gears 15T-20TRolling 6800ZZ ABEC 7 ( X 8)Metal Steering Linkages 105mm( X 2)Washers M3 ( X 100)Lock Nuts M3 ( X 100)ScrewsM3 x 5mm Hexa ( X 8) (Motor Mount)M3 x 14mm Hexa ( X 10) (Steering Cup Hub)M3 x 20mm Hexa ( X 60) (ALL THE REST)M3 x 30mm Hexa ( X 2) (Shocks Absorbers / Reverse Ackermann Steering)M3 x 40mm Hexa ( X 24) (ARMS / Reverse Ackermann Steering)
TAGS :
- JLB CHEETAH
- Ender 3 compatible
- PreOriented STL PARTS
- 3D Printed RC Car
- Reverse Ackermann Steering Compact System or direct drive steering
- Full Metal transmission
- Metal Steering Linkages Compatible 105mm
- Brushless Motor 3660 3150KV 5mm Recommended up to 4268 (3650 min recommended 2500KV max)
- 3S -4S - 6S
- DUAL3S = 6S / DUAL4S = 8S / DUAL6S = 12S
- ESP Front Gyroscope
- Pinion and Gearing 0.8 Module (32 Diametral Pitch) - No cogging issues
- Metal Differential mechanism Central axis Central drive shaft Motor-Gear
- Printed Beadlock Rims 2.2p or 3.2p
- Dogbones Hexa 17mmm
- Strong modulable design easy replace
- Standards Parts
- 4 Arms = 1 Arm (Lowers and Uppers)
- 4WD -2WD -4x4 -2x4
- With or Without Anti roll Bar
- 1:8 Hardware
- No Glue Only M3 Screws Washers and LockNuts
- LED Light System Front and Rear
- Drift
- GoPro Mount
- Body Mount + upper protection
- Wheelie Bar
- Original dogbones and Wheel Nuts and upgrades
If you like it please buy it ;)
ENJOY
