Vertical Solar Panel Tower Type-1 3D model
Home Catalog Vertical Solar Panel Tower Type-1 3D model
Vertical Solar Panel Tower Type-1 3D model
Vertical Solar Panel Tower Type-1 3D model
Vertical Solar Panel Tower Type-1 3D model
Vertical Solar Panel Tower Type-1 3D model
Vertical Solar Panel Tower Type-1 3D model

Publication date: 2023-08-02

Vertical Solar Panel Tower Type-1 3D model

$42

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $42 Add to Wishlist
  • Description
  • Formats

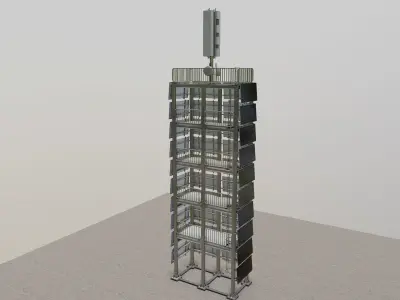

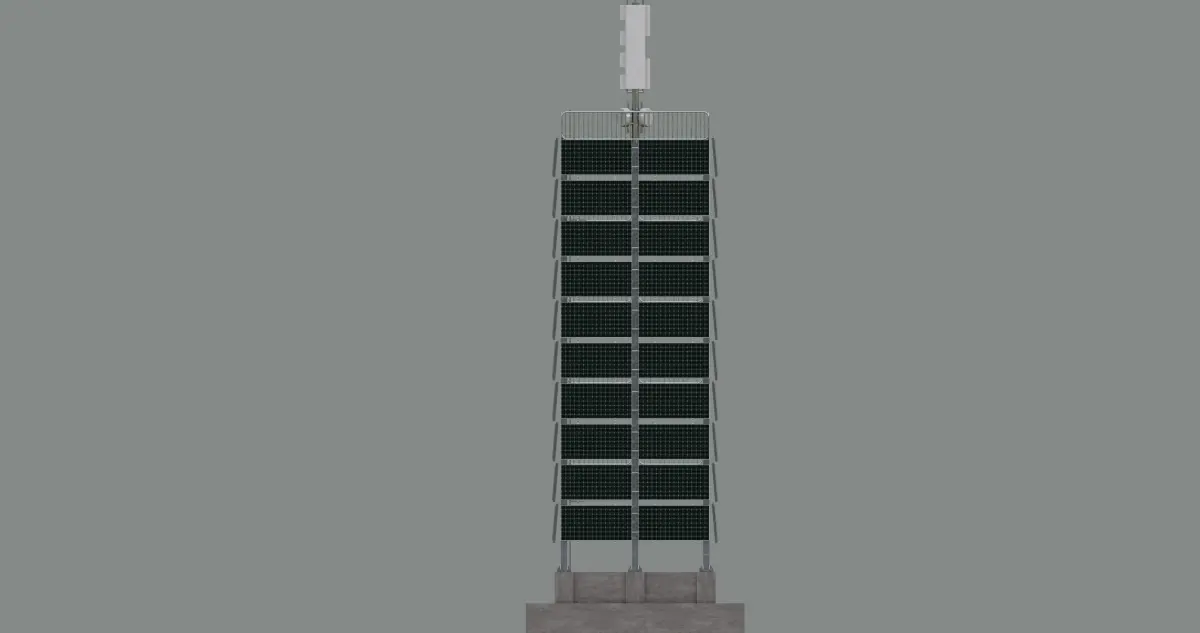

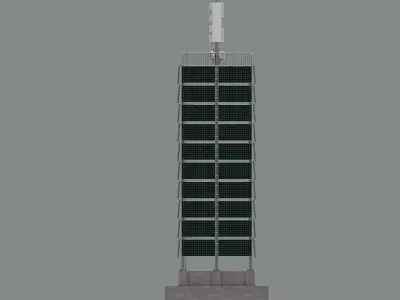

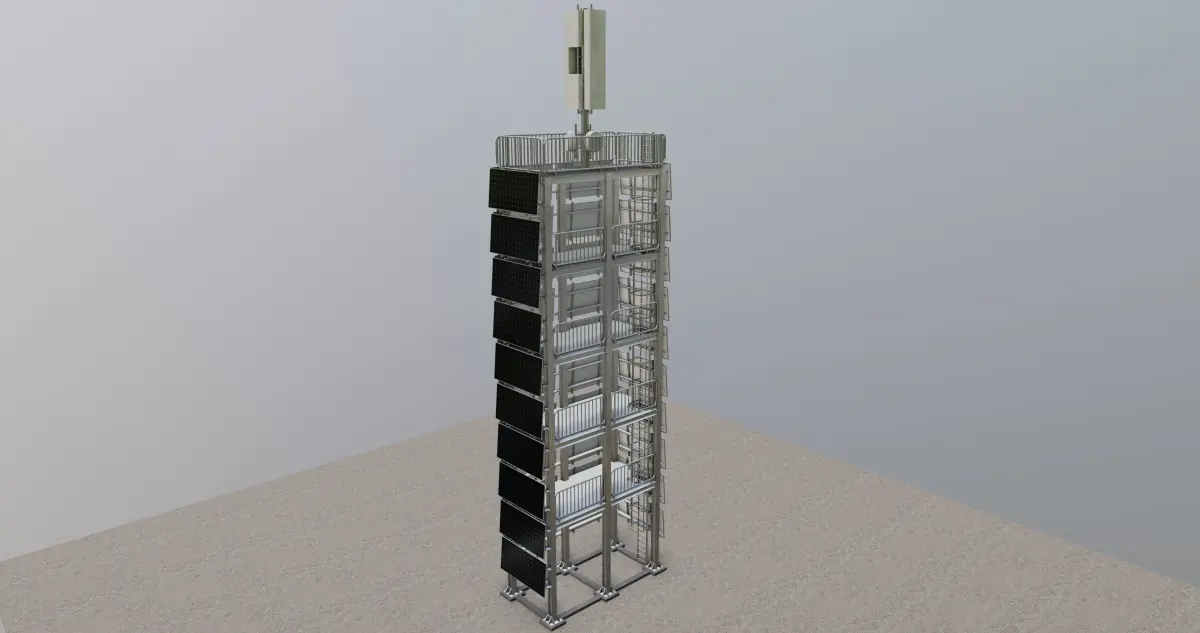

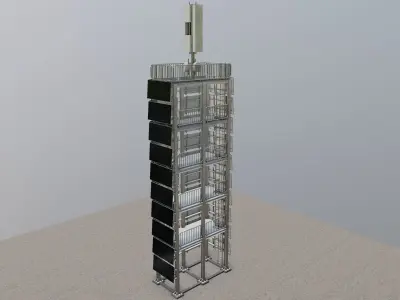

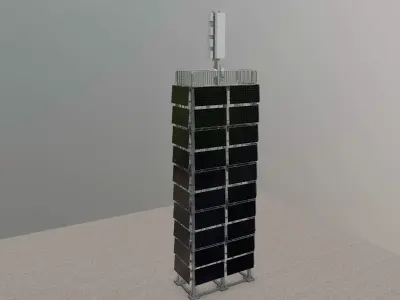

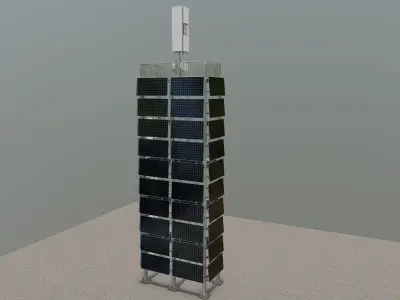

Vertical Solar Panel Tower Type-1

4x10 Vertical Tower Panel Layout

Ground Connection Type; With Anchor Plate

Foundation Dimensions : 7000mm x 3000mm x 1600mm

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 22 kWp power in 1 hour

The system consists of 3 axles and the distance between each axle is 2278 mm.

Distance between two columns 2088 mm.

Vertical angle of panel 5°

The closest distance of the panels to the floor 1000 mm.

Total tower height including antennas is 18.4 mt.

Each floor height is 2.6 mt.

5 floors in total.

Prepared With BLENDER Version 2.93.5

Values Excluding Bolts

Polygons : 199.099

Vertices : 322.434

Objects : 1086

Prepared With BLENDER Version 2.93.5

Bolts, Nuts and Washers Only

Polygons : 1.016.240

Vertices : 1.134.624

Objects : 1208

Prepared With BLENDER Version 2.93.5

All Structural Values İncluding Bolts

Polygons : 1.215.339

Vertices : 1.457.058

Objects : 2294

Native Formats: BLEND (Blender, filesize: 223 MB) Exchange Formats: BLEND (Blender, filesize: 223 MB), FBX (Autodesk FBX, filesize: 134 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 1215339
  • Vertices: 1457058
