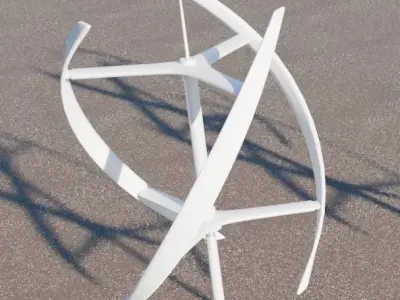

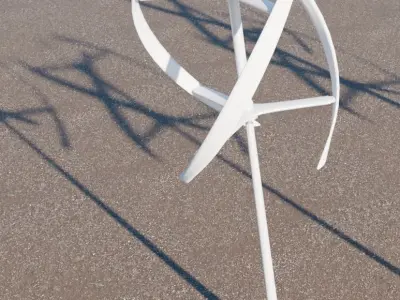

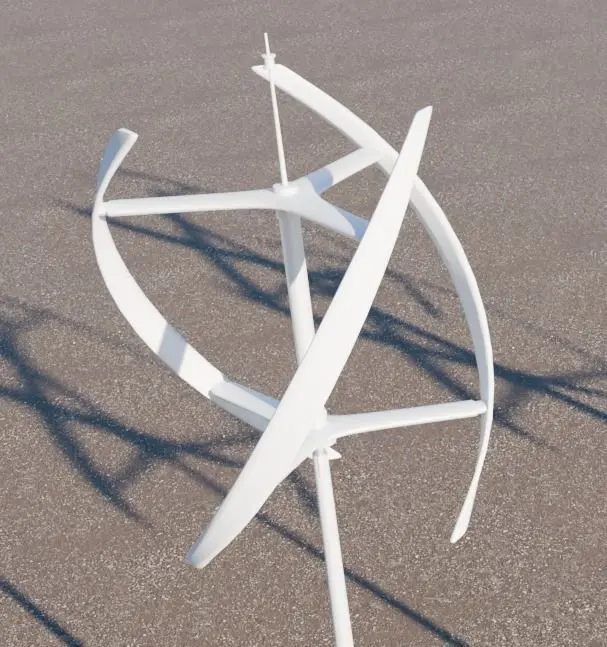

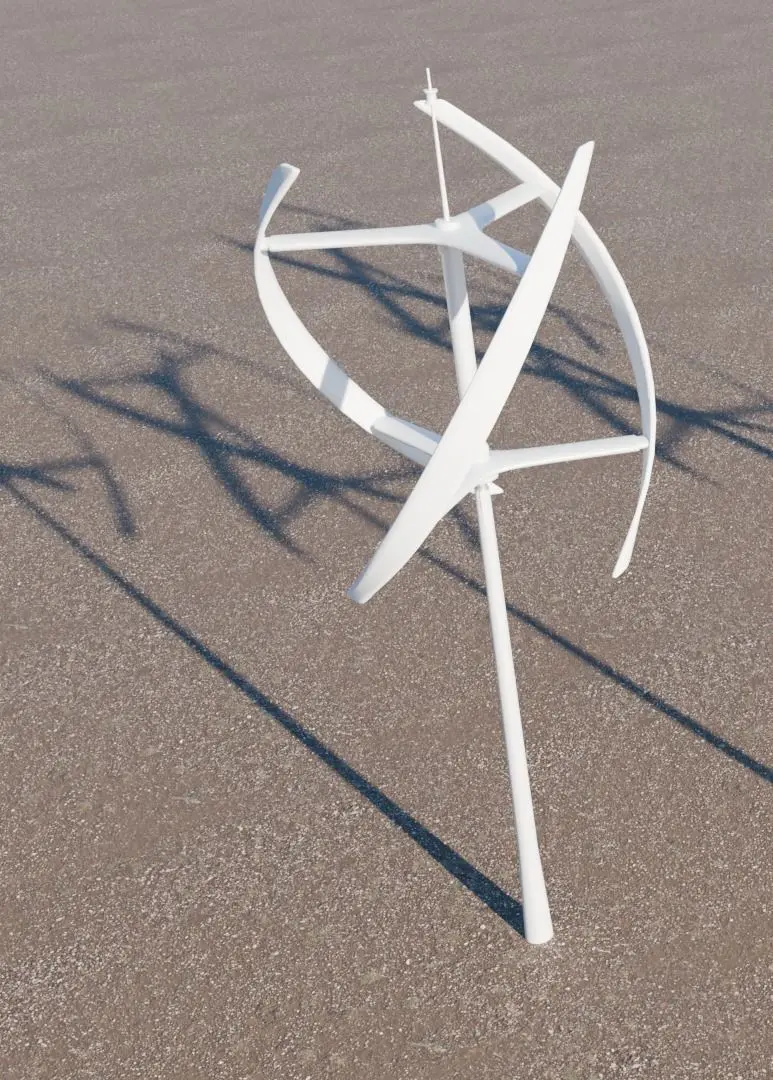

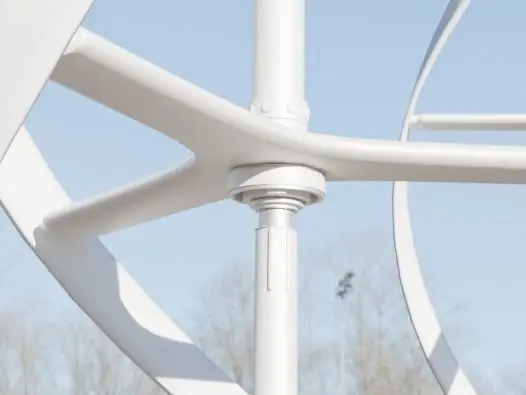

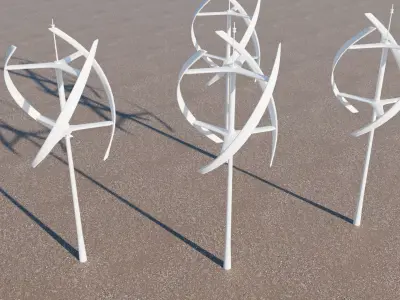

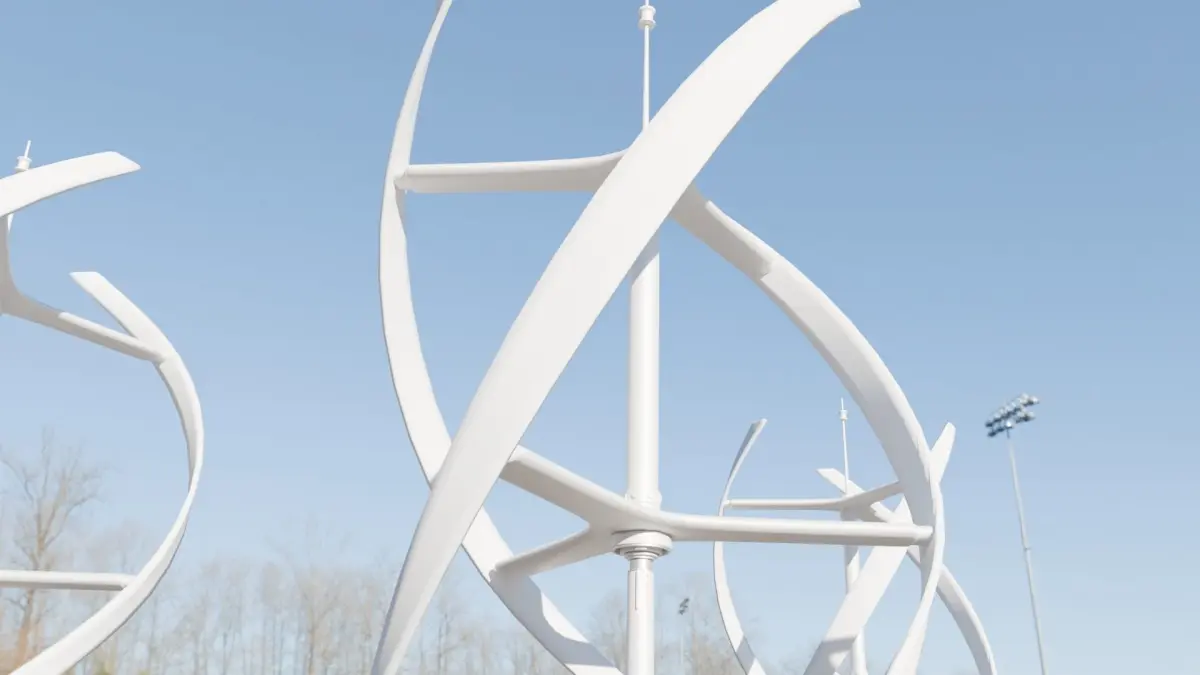

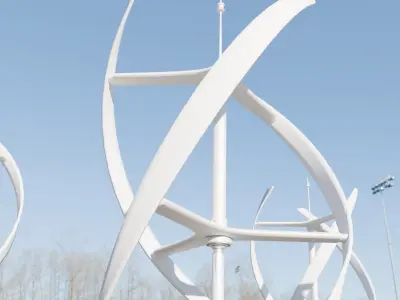

Vertical wind turbine 3D model

License: Royalty Free

author:

oztz

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «oztz». CGhub does not claim copyright ownership over the content used.

3D models of a vertical wind turbine. can be used for making electricity at home.

A vertical-axis wind turbine (VAWT) is a type of wind turbine where the main rotor shaft is set transverse to the wind while the main components are located at the base of the turbine. This arrangement allows the generator and gearbox to be located close to the ground, facilitating service and repair. VAWTs do not need to be pointed into the wind,which removes the need for wind-sensing and orientation mechanisms. Major drawbacks for the early designs (Savonius, Darrieus and giromill) included the significant torque ripple during each revolution, and the large bending moments on the blades. Later designs addressed the torque ripple by sweeping the blades helically (Gorlov type). Savonius vertical-axis wind turbines (VAWT) are not widespread, but their simplicity and better performance in disturbed flow-fields, compared to small horizontal-axis wind turbines (HAWT) make them a good alternative for distributed generation devices in an urban environment.

blend, fbx, stl, obj, mtl, x3d.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 55394
Vertices: 27828
Plugins used
Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Windmill Energy Technology Electrical Wind Sky Alternative Power Exterior Turbine Wind turbine Ecology Industrial Electrical equipment Art Silhouette Collector Industrial exterior
