Publication date: 2025-07-12

Volute Casing CAD Model Generic 3D print model

$6.99

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $6.99 Add to Wishlist
  • Description
  • Formats

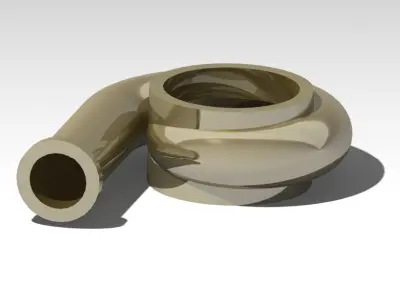

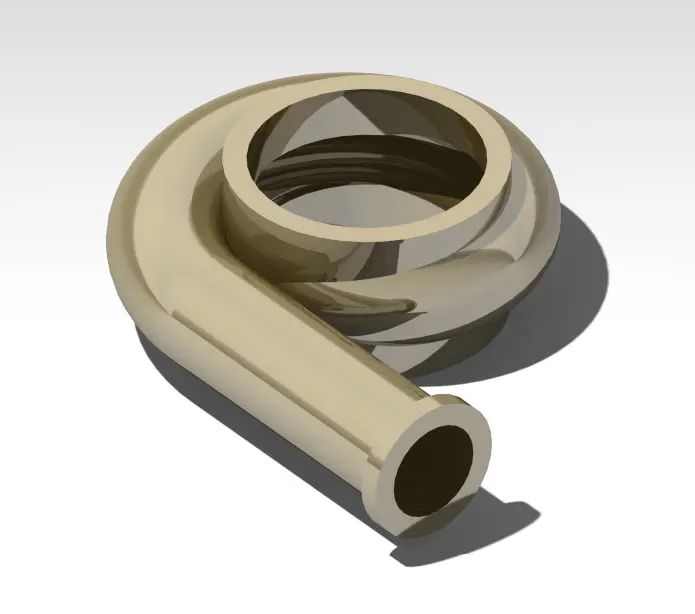

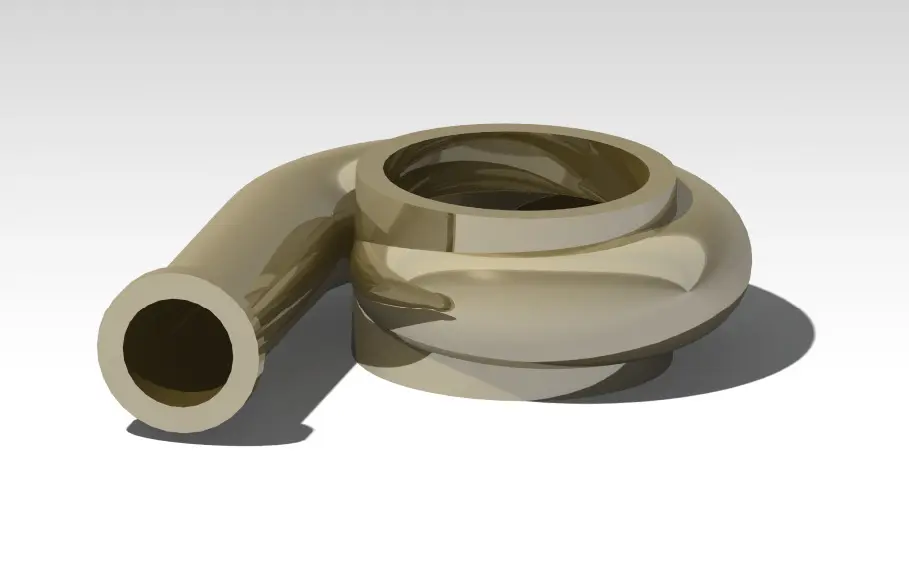

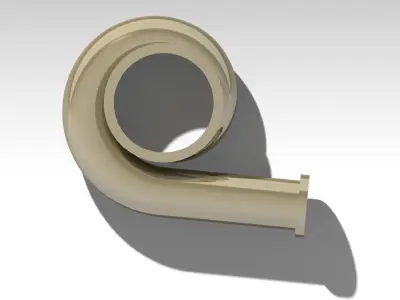

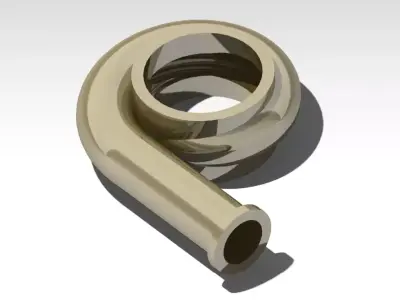

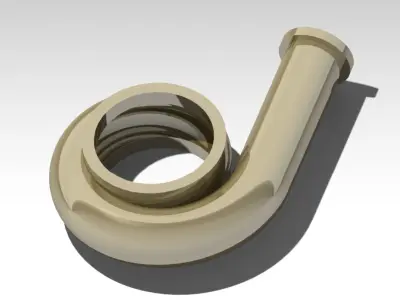

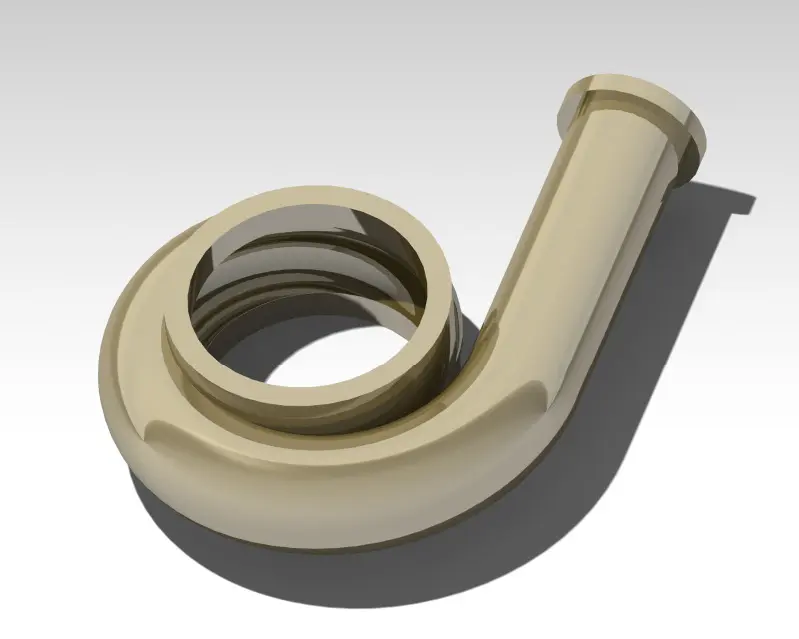

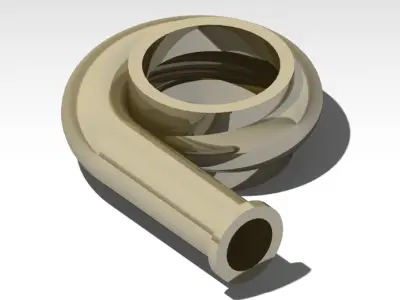

This is a 3D CAD model of a generic volute casing, designed for use in centrifugal pumps or turbomachinery applications. The volute guides fluid from the rotating impeller to the outlet while converting kinetic energy into pressure. This component is critical in fluid systems and commonly used in CFD simulation, flow analysis, and hydraulic design.

The model is created in CATIA V5 with clean geometry suitable for fluid domain meshing and integration into mechanical assemblies. Internal flow channels follow a typical spiral shape, ideal for simulation or conceptual product development.

Features:

  • Generic volute casing geometry
  • Designed in CATIA V5
  • Clean internal spiral channel for fluid flow
  • Ideal for CFD, flow analysis, and CAD integration
  • No impeller included — ready for pairing with custom rotor
  • Compatible with common engineering platforms

Applications:

  • Centrifugal pump and turbopump design
  • Fluid dynamics simulation (CFD)
  • Mechanical system integration
  • Engineering training and academic use
  • Hydraulic system concept development

File formats:

  • CATIA .CATPart
  • STEP (.stp)
  • IGES (.igs)
  • STL (optional for meshing or visualization)
Native Formats: CATPRODUCT (CATIA, filesize: 1.63 MB) Exchange Formats: IGE (IGES, filesize: 1.63 MB), STL (Stereolithography, filesize: 1.63 MB), STP (STEP, filesize: 1.63 MB), PNG (PNG, filesize: 1.63 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Volute Casing Pump Centrifugal Cfd Catia Turbomachinery Spiral Fluid Dynamics Hydraulic Cad 3d Model Housing Flow Simulation Part Science Engineering
