Volute Pump Model 3D print model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

lobodesign

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «lobodesign». CGhub does not claim copyright ownership over the content used.

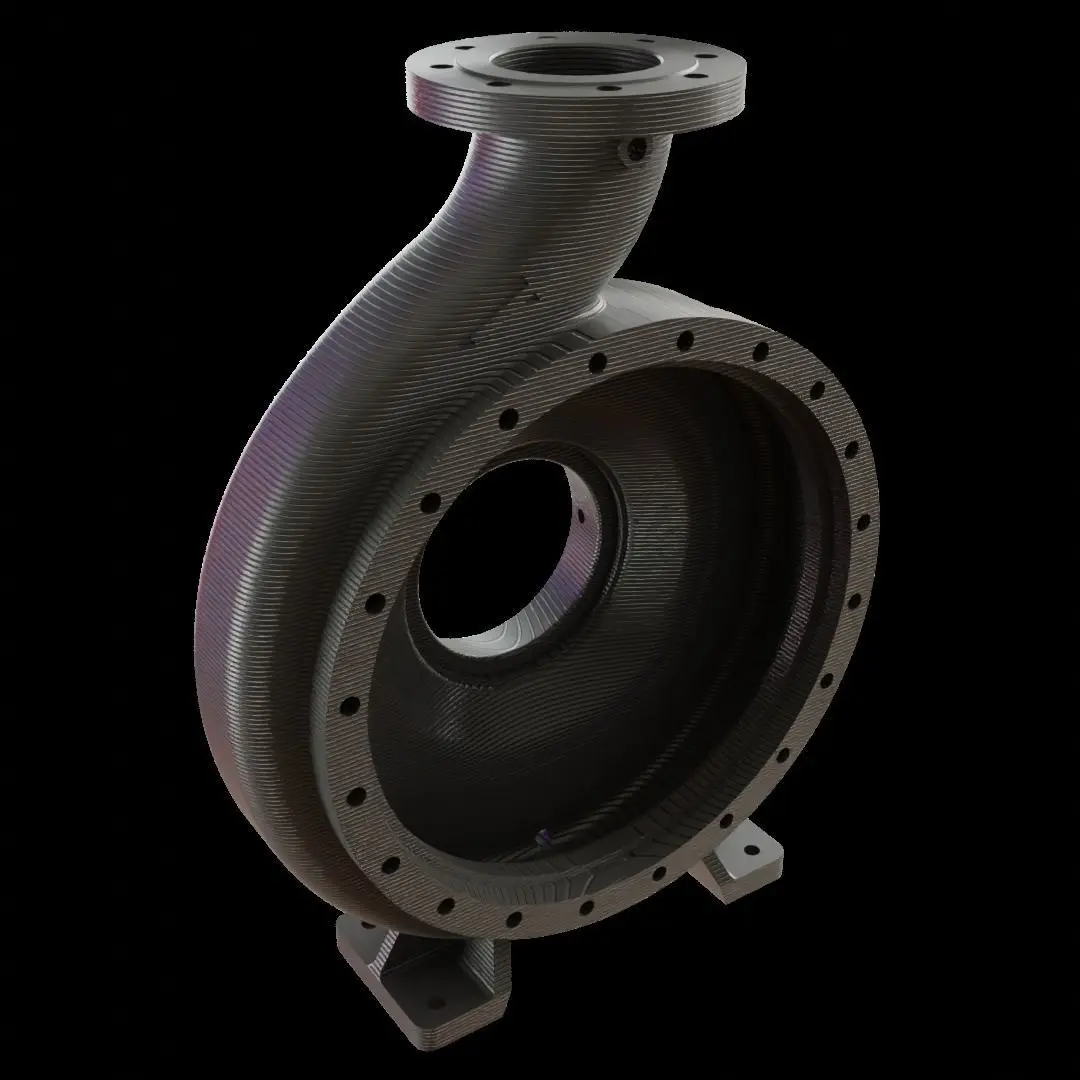

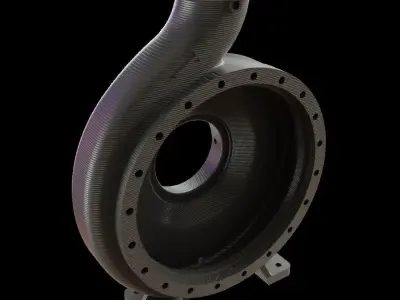

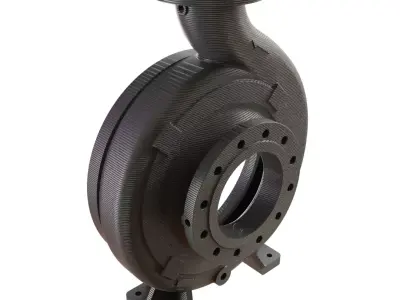

If you need to showcase a model of a volute pump but don't want to spend a lot of money on transportation and installation, then this model is perfect for you. A real volute pump can weight around 50 kg so the main idea was to develop a similar model but in 3D printing to release some weight and also avoid assistance while manipulation and installation.

Specs:

STL model of a volute pump. Divided model is available too.
The total height is around 38 cm. You can scale it if needed.
I recommend FDM for this model (PLA, PLA+, PETG, ABS, PLAT).

About printing:The most important part for quality are the supports. This can be hard to substract so that's why I decided to cut the model in two parts. I recommend printing it in two parts and use the one-single model if you want to print in SLA or using other kind of experimental support.20% of support infill is perfect for good quality but maybe you want to try 10%. I had hard times removing supports with 20% support infill. Use 5% for general infill. 2 perimeters are just fine. 0.28 mm of height.Each part (A and B) is around 2-3 days of printing with a printing velocity of 55mm/s. Consider checking your spool regulary. *Important: I recommend printing the top part upside down. *

Don't hesitate to contact me if you have more questions.
