Waffle double Waves Structure 3D model

$40

License: Royalty Free

author:

AymanIbrahim88

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «AymanIbrahim88». CGhub does not claim copyright ownership over the content used.

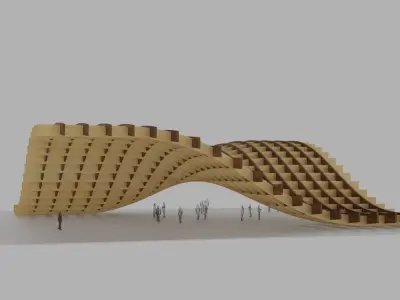

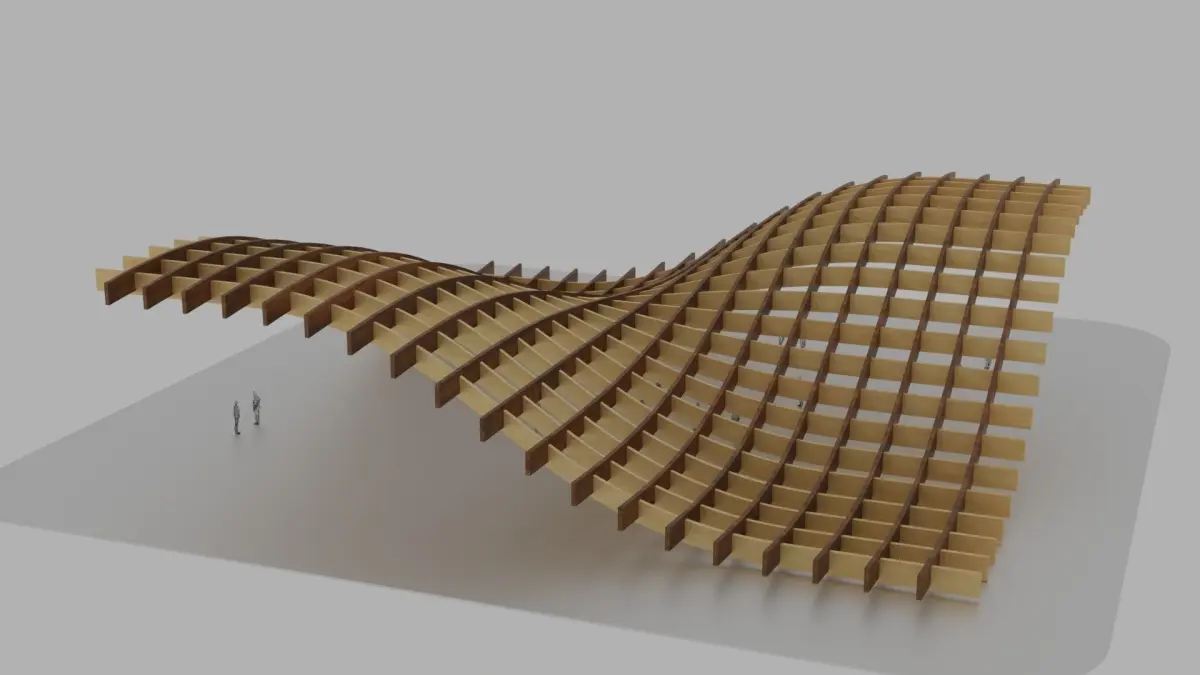

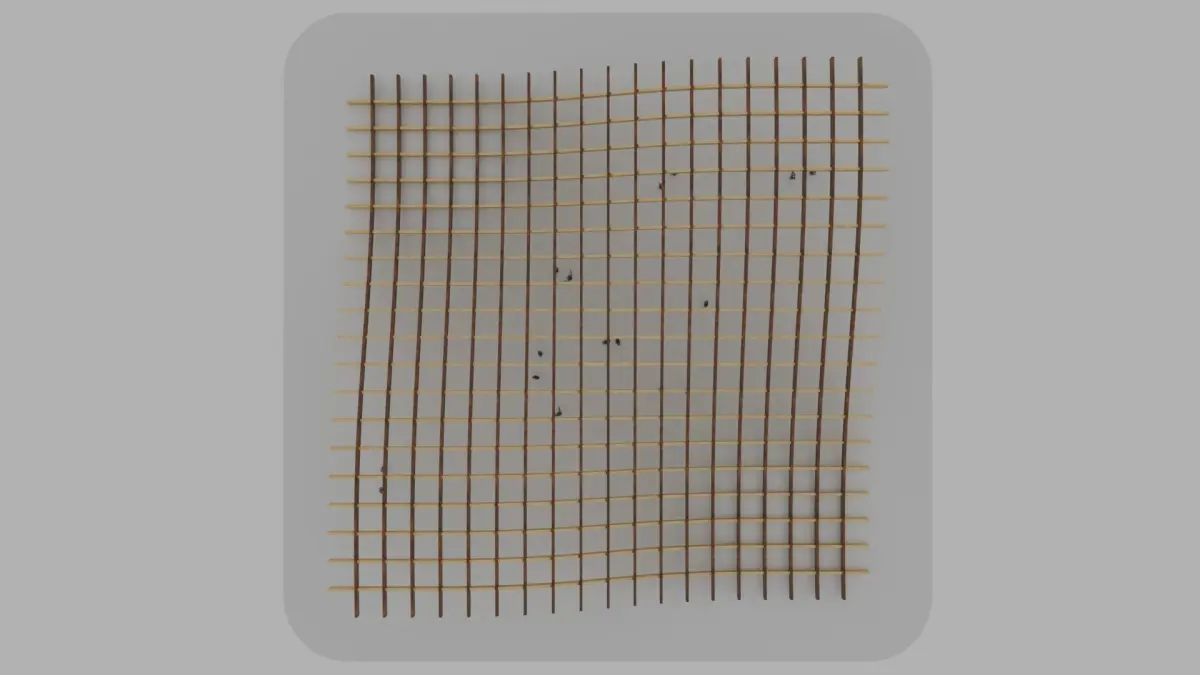

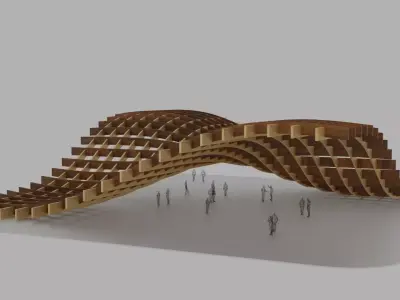

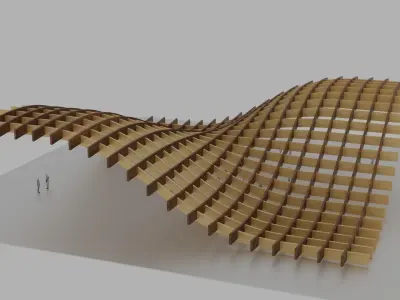

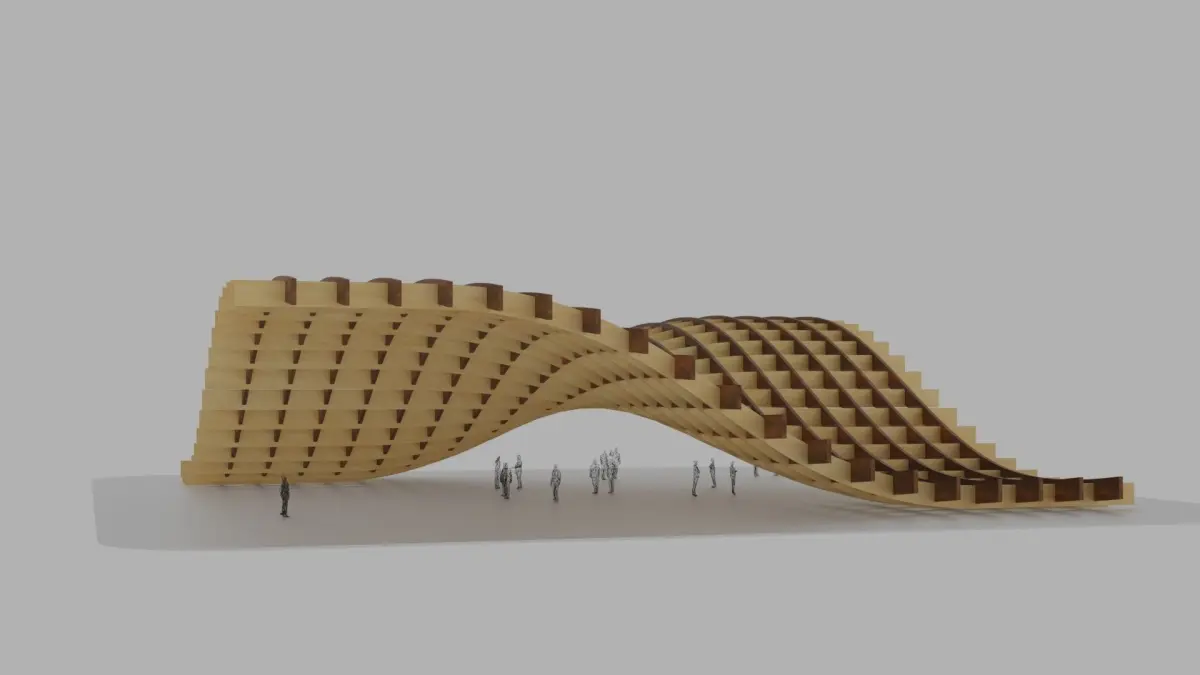

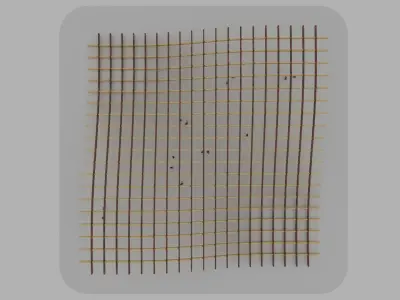

A Wavy Wooden Waffle Structure Pergola that has two opposite waves form, with two sets of perpendicular wooden beams, the wooden beams are interlocked with each other with slits and grooves in each beam section, the beams network form a wavy smooth surface with a central area with clear height under most of the structure, with two opposite anchor beams touching the ground at two locations, the model was created using computational parametric tools to achieve the most accurate geometry with clean details, it could be used for architectural render purposes outdoors, and also for Landscaping and urban landmarks.

Files Units Format are Metric:

boundary dimensions (Length X Width X Height) = (40m X 40m X 10m).

Geometry Total Count >> Polygons: (118335) & Vertices: (116394).

Textures are embedded in 3d files.

Supported files includes both Rhino-3dm and Blender-blend in addition to Format-FBX, all units are in meter and are changeable to any desired other format whether metric or Imperial.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 118335
Vertices: 116394
Plugins used

Tags

Waffle structure Architecture Parametric Decoration Landscape Pavilion Pergola Beams Urban Artistic structure Outdoor Wavy Wooden beams Wavy beams Wavy form Landmark Beams network Futuristic design Exterior
