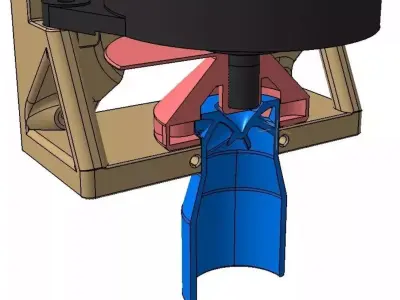

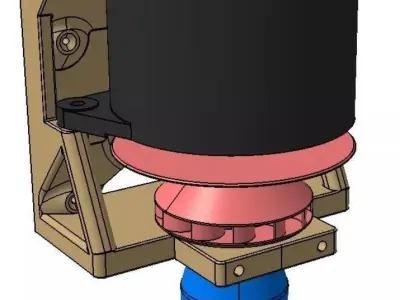

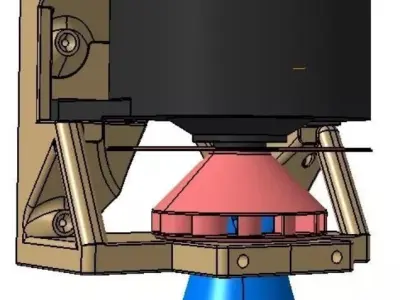

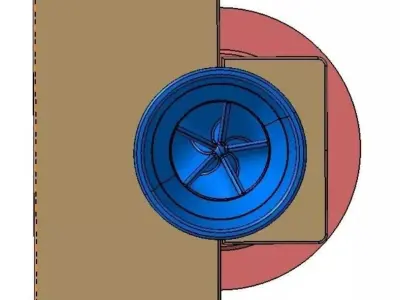

Water turbine with 12VDC Generator 230-1150 Watt 10-30 m head 3D print model

Publication date: 2021-05-30

Water turbine with 12VDC Generator 230-1150 Watt 10-30 m head 3D print model

License: Royalty Free License

author:

frankthetank

Description

This Water Turbine is designed for a water flow from 6 to10liter per second and a head from 10 to 30meters.The electrical power is 230-1150Watt dependend on head (10-30m).The generator creates 12VDC and needs to be connected to a 12V Plumbum Accumulator.

This water turbine isnt tested jet. But this will be done soon.

Attached a part list for the additional needed Parts:

1pcs. GENERATOR 55A FORD ESCORT 81 86 91 3 GAA 4 GAF AWF 5 6 GAL1pcs. 12V 44Ah Starterbatterie Autobatterie1pcs. 50mm PE Klemmverbinder Fitting Verschraubungxxmeter PE Rohr 50x3,63pcs. Screw M6 x 502pcs. Screw M6 x 805pcs. Washers for M6 screw

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Water Turbine Generator Watt Hobby Diy Hobby diy Other Water turbine Accessories
