Publication date: 2023-01-16

WC Wall Mirror Cabinet with Shelves 3D model

$5

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $5 Add to Wishlist
  • Description
  • Formats

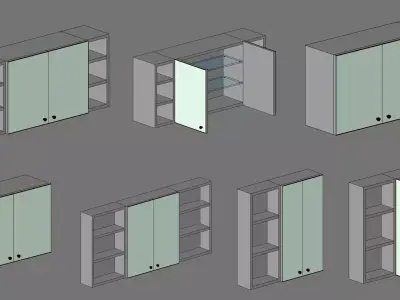

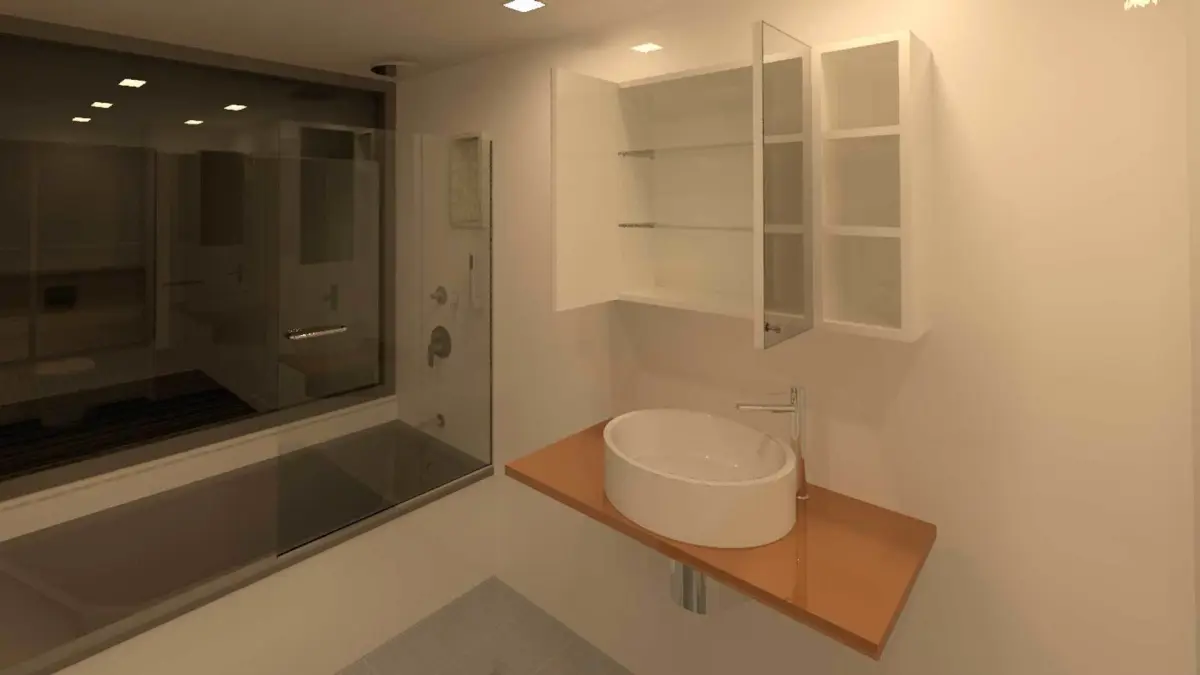

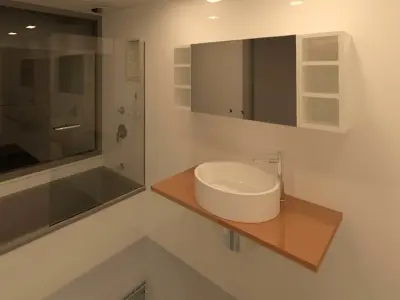

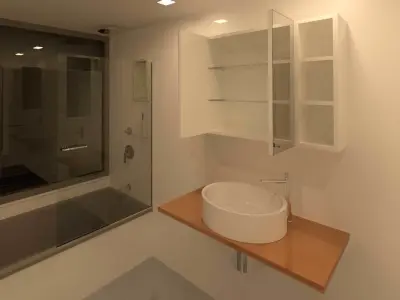

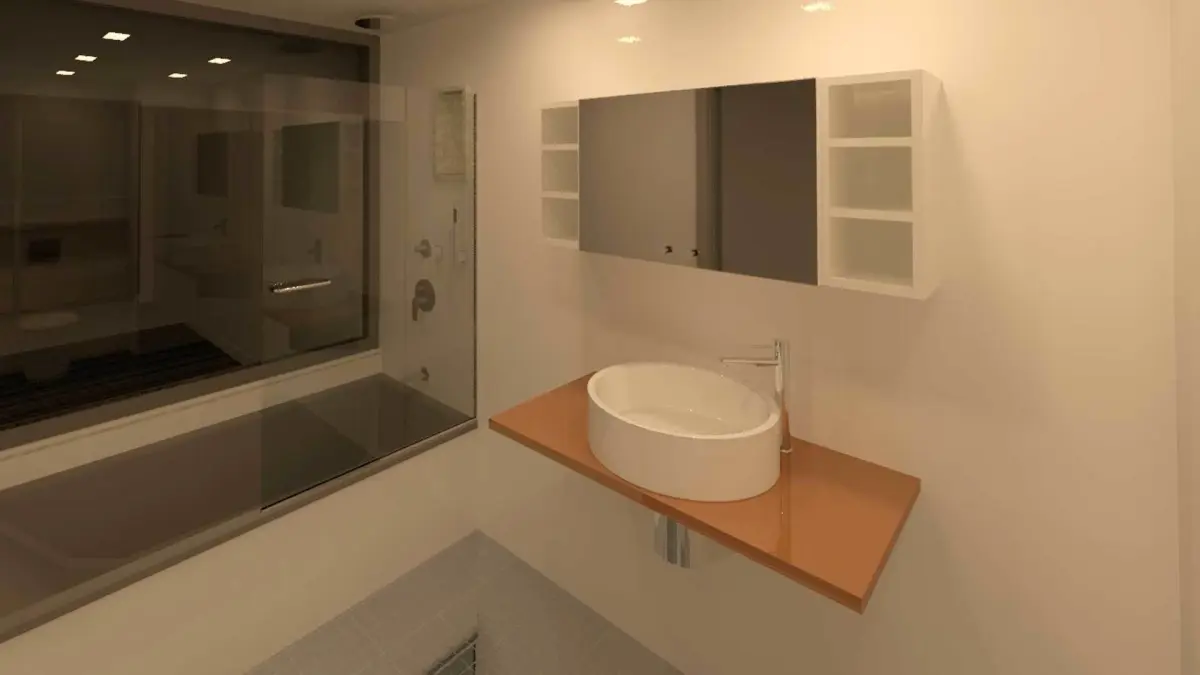

This is a fully parametric wall based revit family for a WC wall cabinet with mirror doors and side shelves. Family model can be placed on any wall controlling the overall elevation from the reference level.Fully parametric controlling the dimensions of the cabinet, options to turn on and off the side shelves and have graphical representation of open and closed cabinet doors.

ATTRIBUTES:

  • Revit Version 2022
  • Family Type : Wall Based
  • File Extension : .rfa

PARAMETERS:

  • Elevation for reference level
  • Cabinet width, height and depth
  • Side Shelves width
  • Cabinet mirror doors opened / closed
  • Left shelf ON/OFF
  • Right shelf ON/OFF
  • Materials ( frame, mirror, mirror support profile, door handle, cabinet shelves )

FAMILY TYPES:

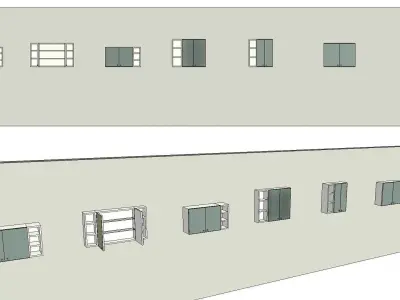

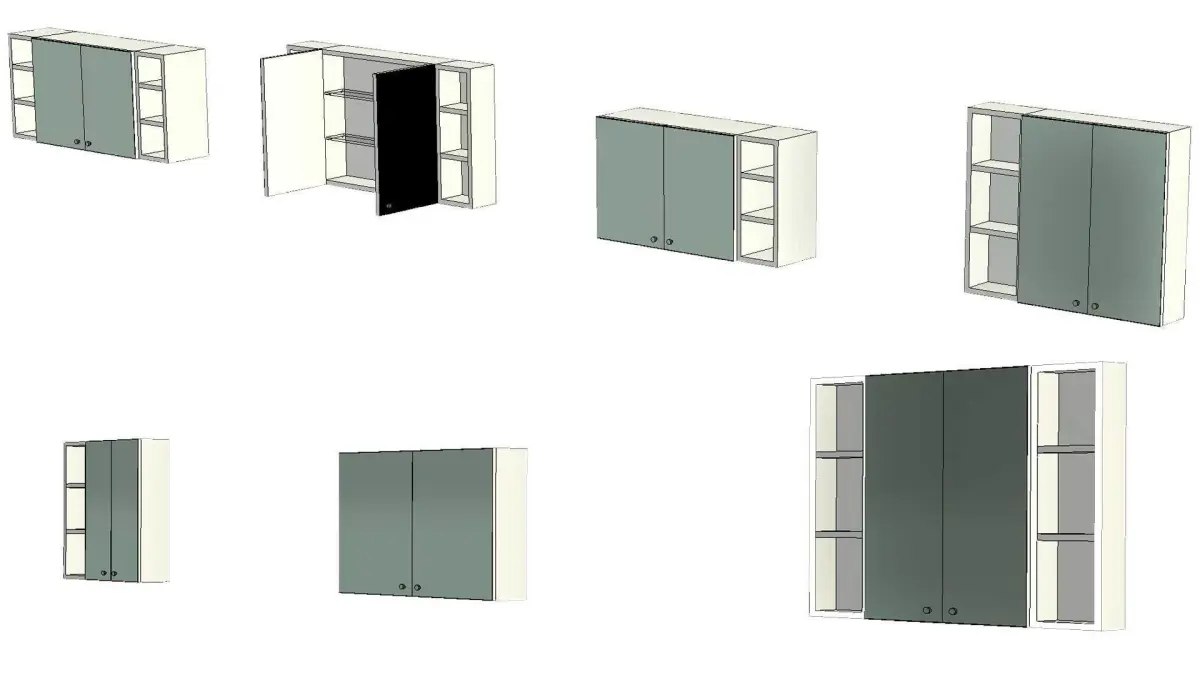

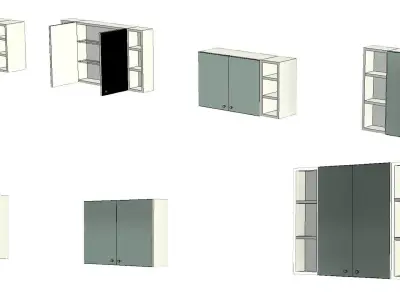

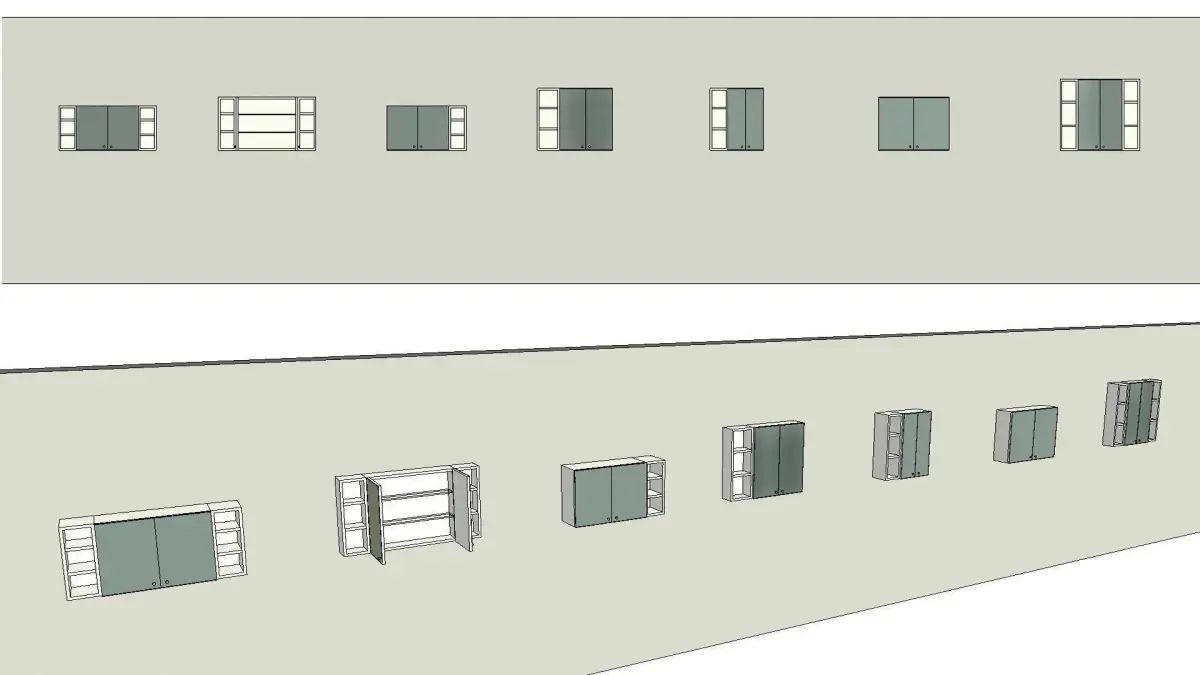

  • W600xH500xD250mm, Left and Right Shelves 250mm
  • W600xH500xD250mm, No side shelves
  • W800xH600xD150mm, Left Shelf 200mm
  • W800xH600xD150mm, Right Shelf 200mm
  • W400xH700xD200mm, Left and Right Shelves 300mm

Use can create as many family types necessary to match the design requirements of any project.

RFA (Autodesk Revit, filesize: 888 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Plugins used
  • Geometry: Unknown

Tags

Revit Family Parametric Wall based Wc Cabinet Mirror Bathroom Architectural Interior Architecture House Vanity Bath Bathroom furniture Bathroom shelf
