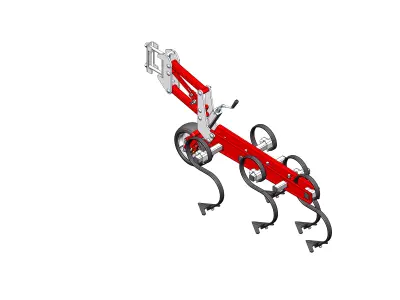

WG 0002 - Complete range of 45 inter-row cultivators 3D model

The WG 0002 Row crop cultivator is built on a rigid frame with a versatile section adaptable for various crops, including sunflower, maize, soybean, and sugar beet. Its durable tines ensure efficient inter-row soil cultivation, controlling weeds and improving aeration. Designed for medium-sized tractors, it allows precise and uniform soil preparation without damaging the crop. A reliable tool for farmers seeking flexibility and high performance in row-crop cultivation

The documentation package includes the following equipment:

1. WG0002.300 – inter-row cultivator with a fixed frame, 3.0 m working width
2. WG0002.420 – inter-row cultivator with a frame and transport device, 4.2 m working width
3. WG0002.450 – inter-row cultivator with a fixed frame, 4.5 m working width

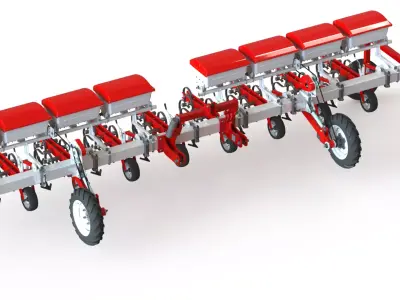

4. WG0002.452 – inter-row cultivator with a frame and transport device, 4.5 m working width + dry fertilizer application system
5. WG0002.453 – inter-row cultivator with a frame and transport device, 4.5 m working width + liquid fertilizer application system
6. WG0002.560 – inter-row cultivator with a frame and transport device, 5.6 m working width
7. WG0002.601 – inter-row cultivator with a frame and transport device, 6.0 m working width
8. WG0002.602 – inter-row cultivator with a frame and transport device, 6.0 m working width + dry fertilizer application system
9. WG0002.603 – inter-row cultivator with a frame and transport device, 6.0 m working width + liquid fertilizer application system

Each version can be equipped with five types of working sections:

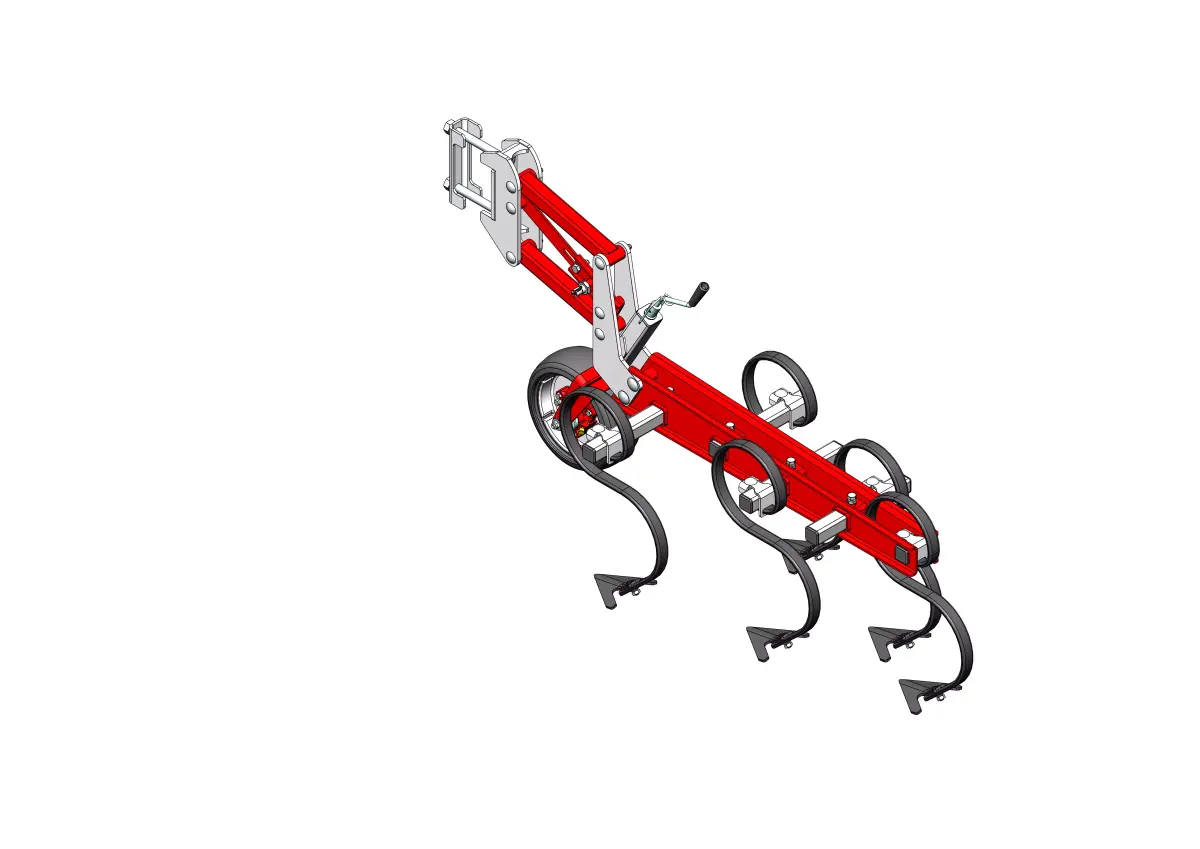

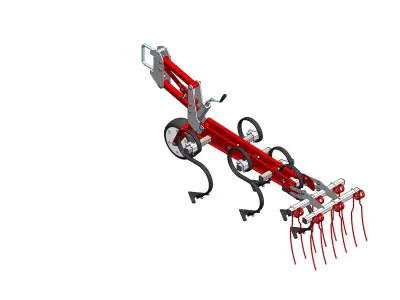

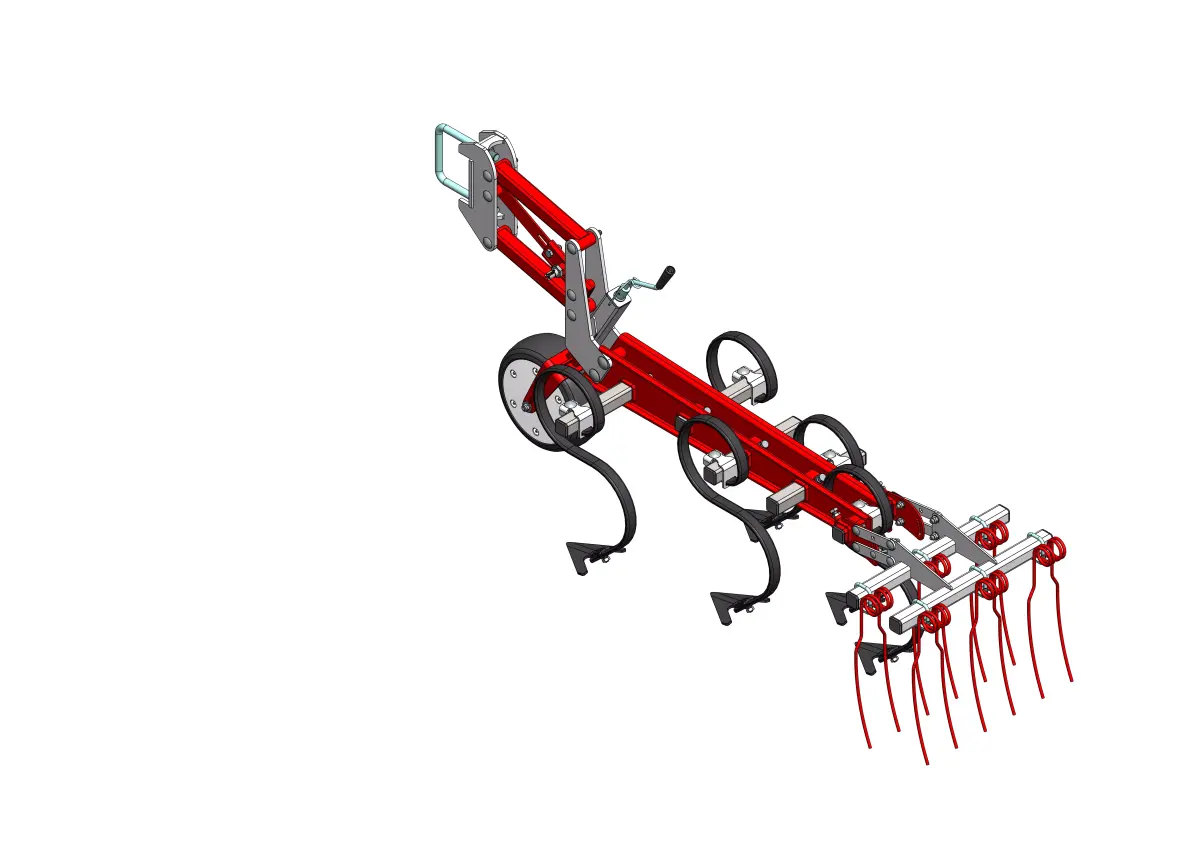

1. Universal section with 5 rows of working elements

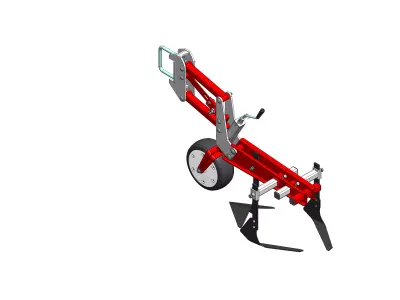

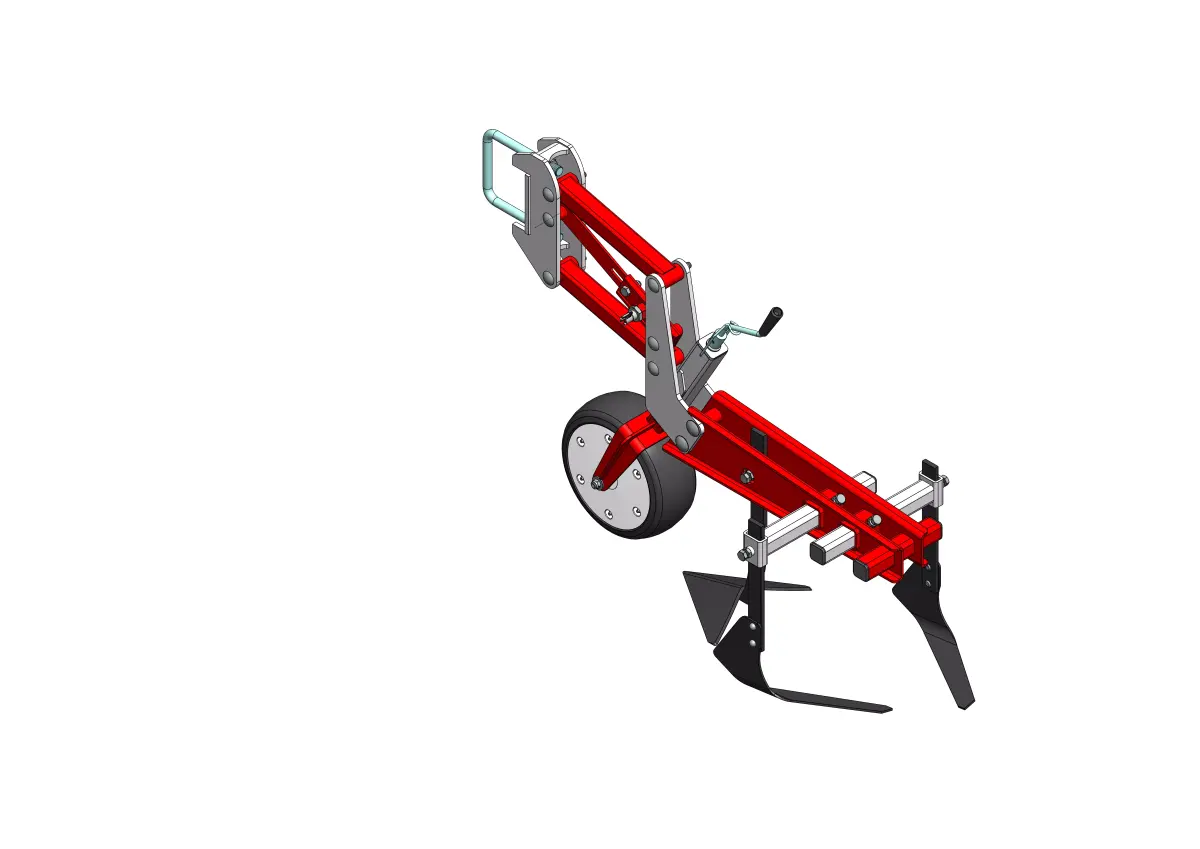

2. Classic section with 3 rows of working elements
3. Special section for sunflower cultivation (recommended row spacing – 70 cm)
4. Special section for corn cultivation (recommended row spacing – 75 cm)
5. Special section for sugar beet cultivation (recommended row spacing – 45 cm)

Thus, the documentation package includes over 45 different cultivator configurations, capable of meeting any customer’s requirements.

Full SolidWorks 3D assembly and manufacturing documentation (SLDASM + SLDPRT + STEP).Ready for modification, prototyping, or production use.

This is a high-quality, engineering-grade 3D model. Designed with precision, the model includes a complete assembly along with fully detailed 2D technical drawings of each component.It is ideal for: Product design and prototyping. Educational and demonstration purposes 3D visualizations or animations CNC manufacturing preparation 3D printing (STL included)

Contents of the package: Full 3D assembly. Separated parts.Detailed dimensions.Material indications.Assembly drawing with exploded view.High-quality STEP (.step), IGES (.iges), STL (.stl) files.

Technical Highlights:

• Modeled in SolidWorks.
• All parts are real-world scaled (millimeters).
• Accurate real-world dimensions
• High-detail components
• Ready for fabrication or simulation
• Designed for CNC manufacturing, prototyping, or educational use
• Clean parametric structure
• Compatible with major CAD software.
• Designed with manufacturing feasibility in mind.

Recommended Use:

• Technical planning
• Custom fabrication
• Educational material
• Suitable for engineers, farmers, and DIY enthusiasts.
