Buy Wheel Linkage Mechanism 3D model

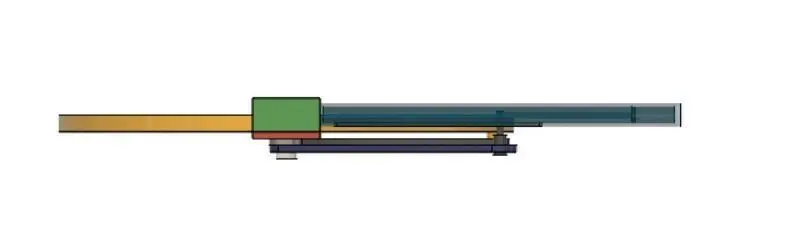

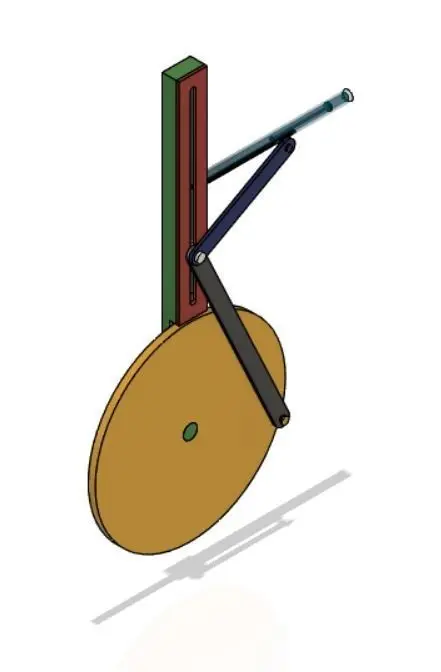

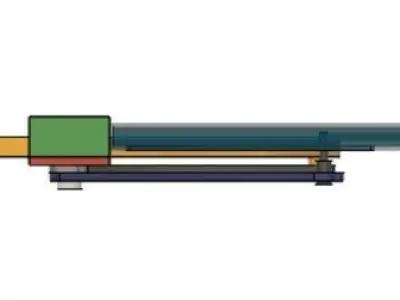

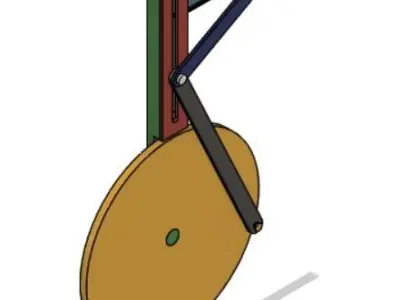

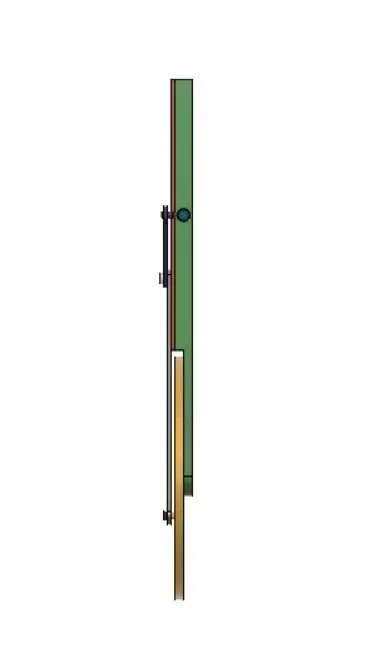

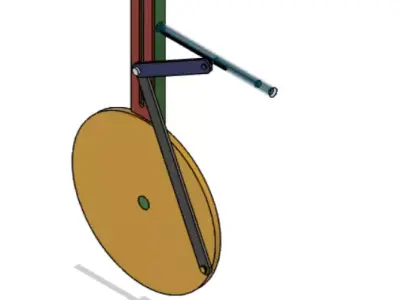

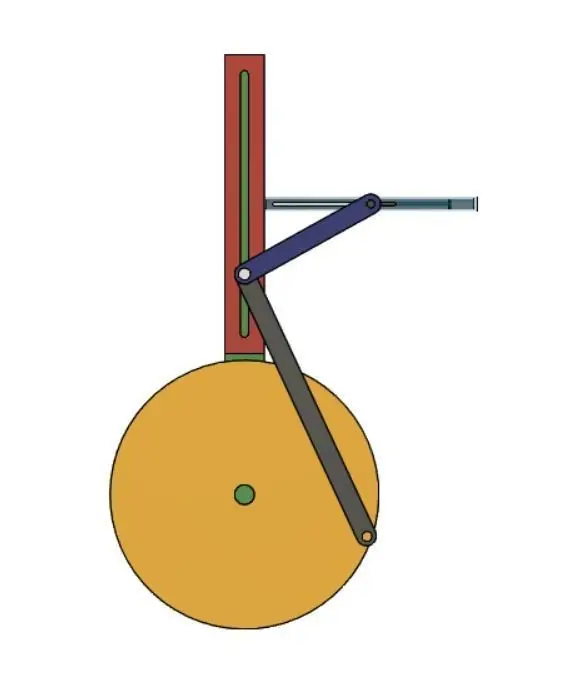

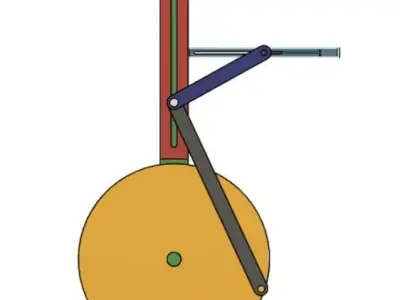

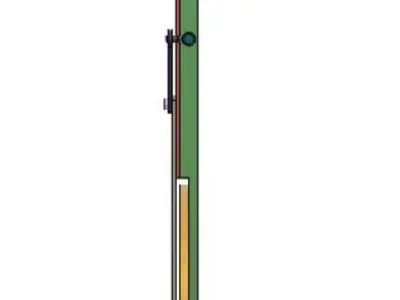

Name: Wheel Linkage Mechanism 3D model
Brand: hw-blue
SKU: 876831
Price: 5.00 USD
Availability: InStock

License: Royalty Free

author:

hw-blue

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «hw-blue». CGhub does not claim copyright ownership over the content used.

A mechanical linkage is an assembly of systems connected to manage forces and movement. The movement of a body, or link, is studied using geometry so the link is considered to be rigid. The connections between links are modeled as providing ideal movement, pure rotation or sliding for example, and are called joints. A linkage modeled as a network of rigid links and ideal joints is called a kinematic chain.

Linkages may be constructed from open chains, closed chains, or a combination of open and closed chains. Each link in a chain is connected by a joint to one or more other links. Thus, a kinematic chain can be modeled as a graph in which the links are paths and the joints are vertices, which is called a linkage graph.
