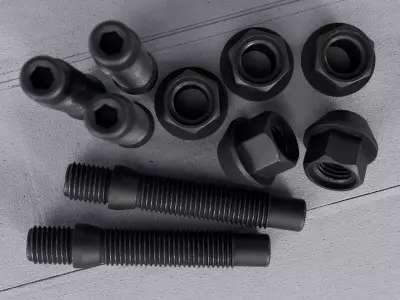

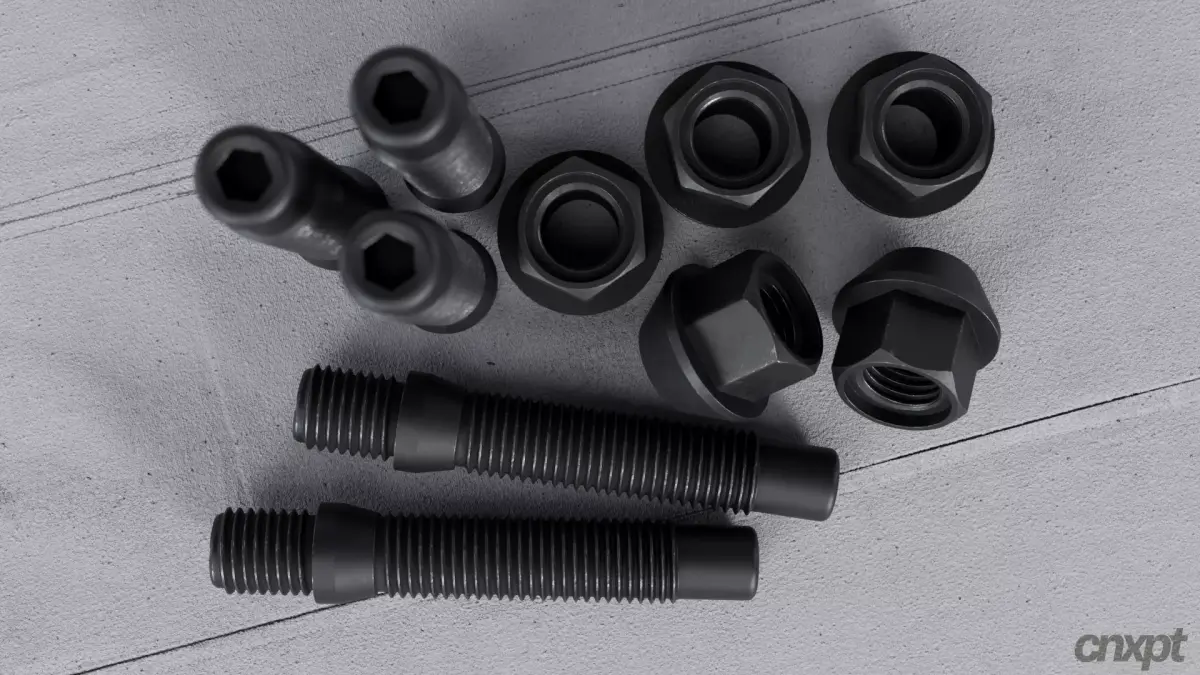

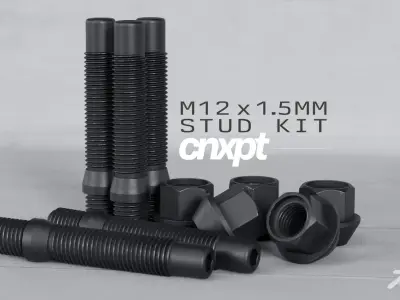

M12x1.5mm Stud bolt and wheel nut
Stud Bolt

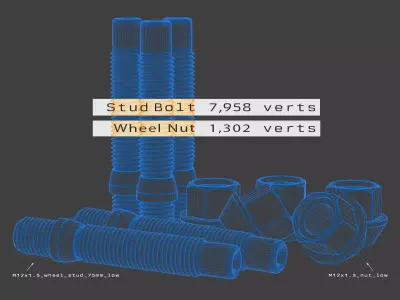

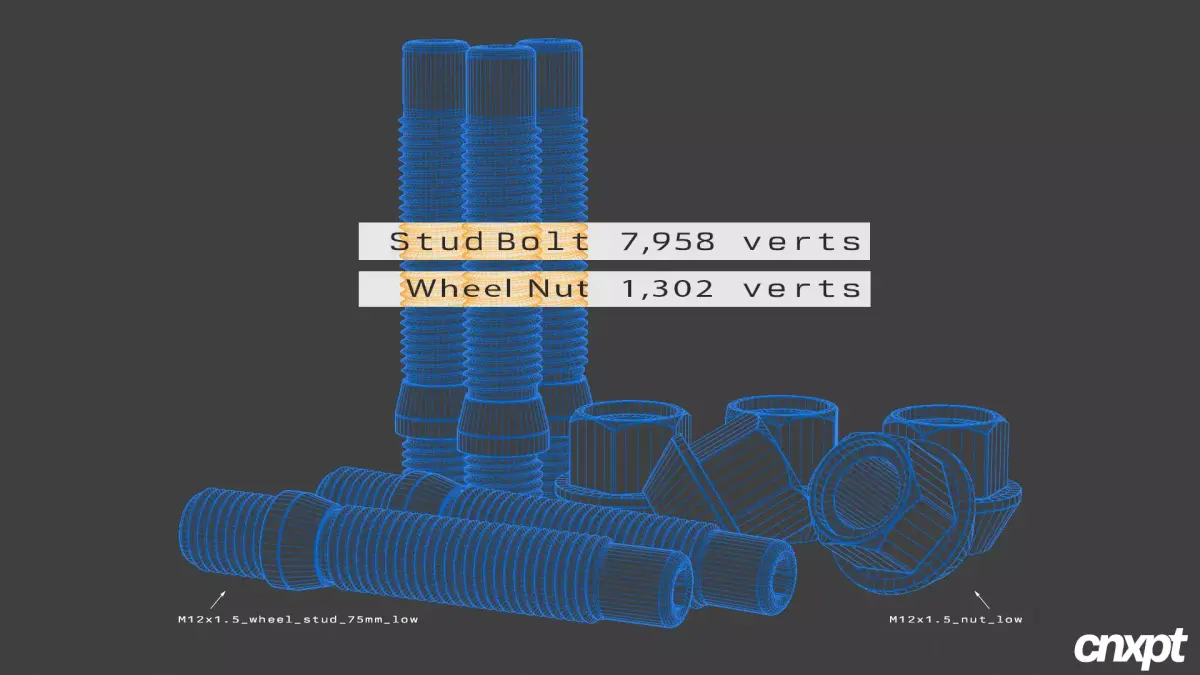

7,958 vertices

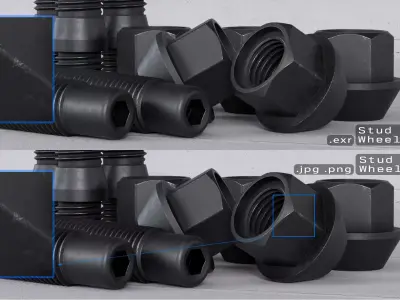

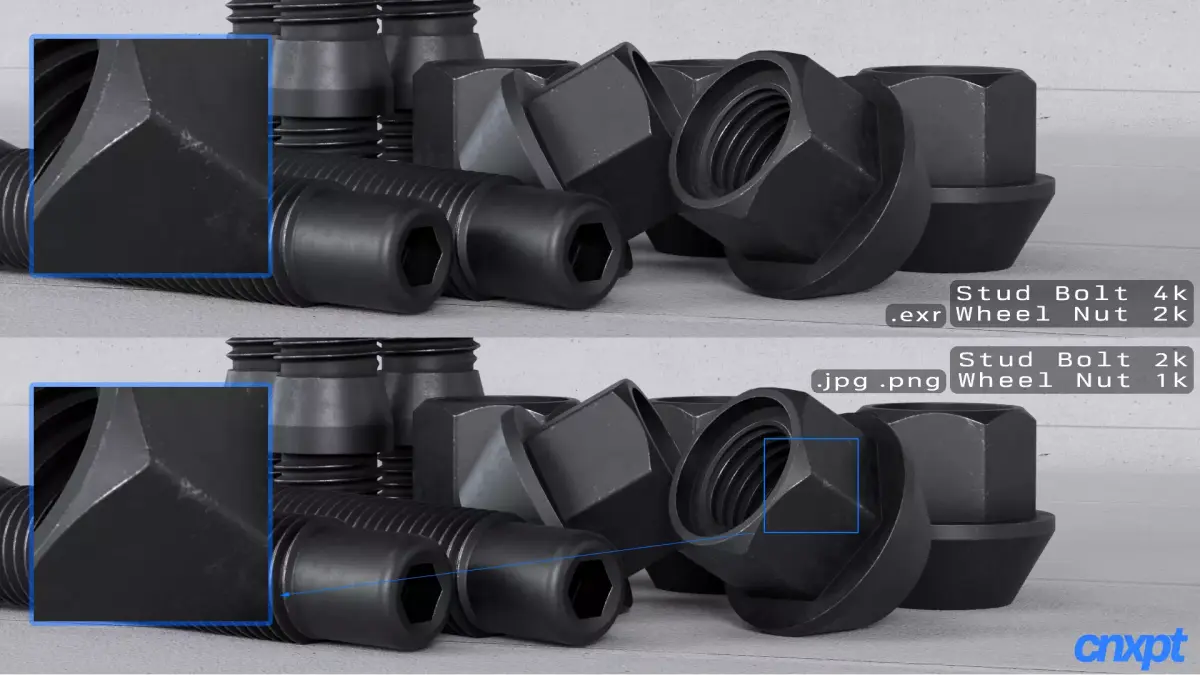

4k .exr textures
2k .jpg/.png textures
Wheel Nut
1,302 vertices
2k .exr textures
1k .jpg/.png textures

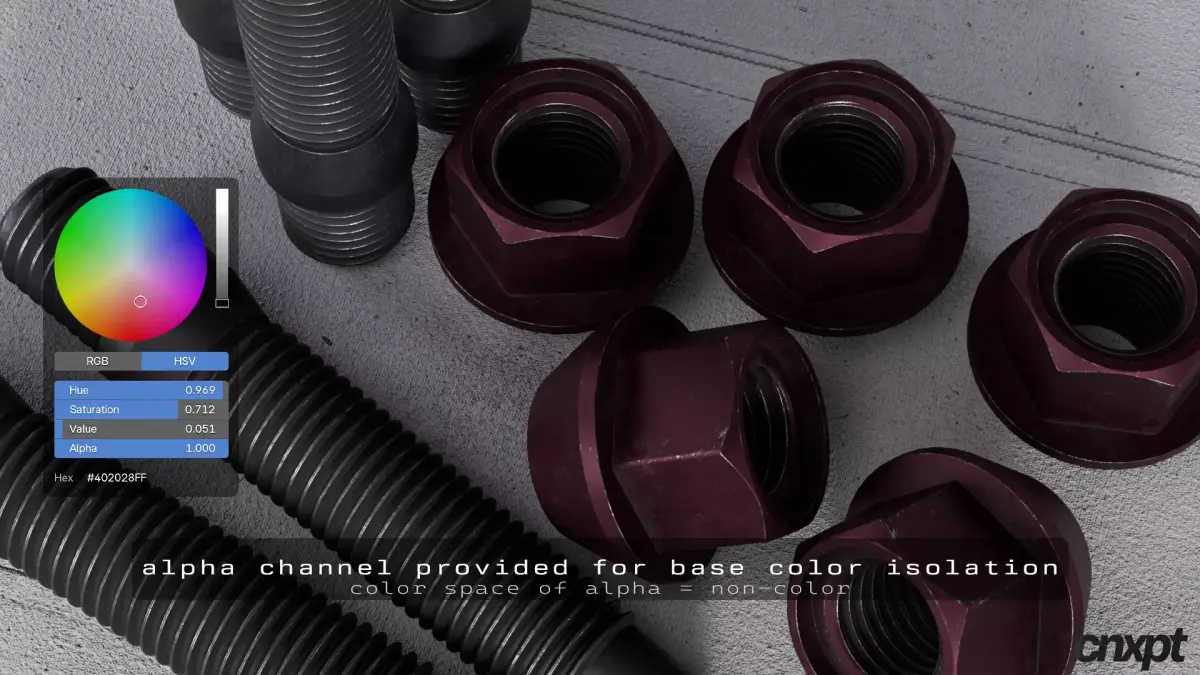

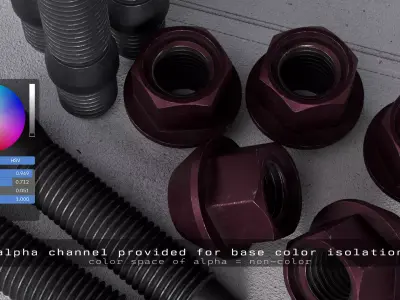

alpha channel to isolate base color(set color space to non-color)
Usage Notes
Primary Models (_low):The _low variations are the primary models intended for rendering and general use.All baked textures correspond to the _low models for accurate shading and material alignment.
Modifier Stack:Keep the modifier stack active when using the model, as all baked textures were created with modifiers applied.Disable only the Triangulate modifier when capturing wireframe renders.
High-Poly Models:_high models are included for baking high-detail textures or creating your own custom materials.These versions are also suitable for 3D printing — for example, the wheel nut _high model features physically modeled threads with a 0.1 mm clearance.
3D Printing:To 3D print, either use the provided .STL file or export your own from the included .blend file using the M12x1.5_high collection (intended for baking or printing).Be sure to remove the Subdivision Surface modifier before exporting for optimal mesh performance.
Recommended Workflow
Import _low objects as linked objects or append into your own projects.
OR
Open the .blend file and select the _low model for rendering or texturing.
Apply all modifiers (except Triangulate, if you plan to take wireframe screenshots).
Import the baked textures into your renderer or game engine using the _low mesh.
Use the _high model only if you plan to rebake your own textures or prepare geometry for 3D printing.
Export final renders or print-ready files once materials and scale have been verified.
Specifications
Major Diameter 6 mm
Minor Diameter 5.1881 mm
Pitch 1.5 mm
Thread Angle 60°
Root Depth 0.375 mm
Crest Depth 0.187 mm
Native Formats: BLEND (Blender, filesize: 27.6 MB)
Exchange Formats: FBX (Autodesk FBX, filesize: 596 KB), EXR (EXR, filesize: 212 MB), PNG (PNG, filesize: 106 MB), JPG (JPG, filesize: 106 MB), STL (Stereolithography, filesize: 1.08 MB)
