Buy Whitworths Quick Return Mechanism 3D model

Name: Whitworths Quick Return Mechanism 3D model
Brand: rupesh-8989
SKU: 879437
Price: 7.00 USD
Availability: InStock

License: Royalty Free

author:

rupesh-8989

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rupesh-8989». CGhub does not claim copyright ownership over the content used.

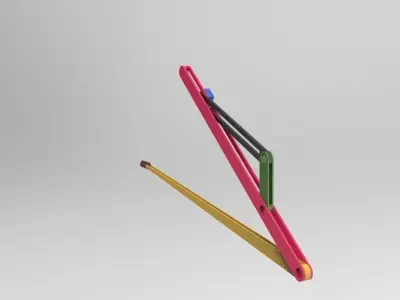

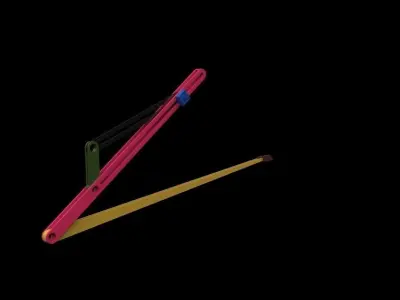

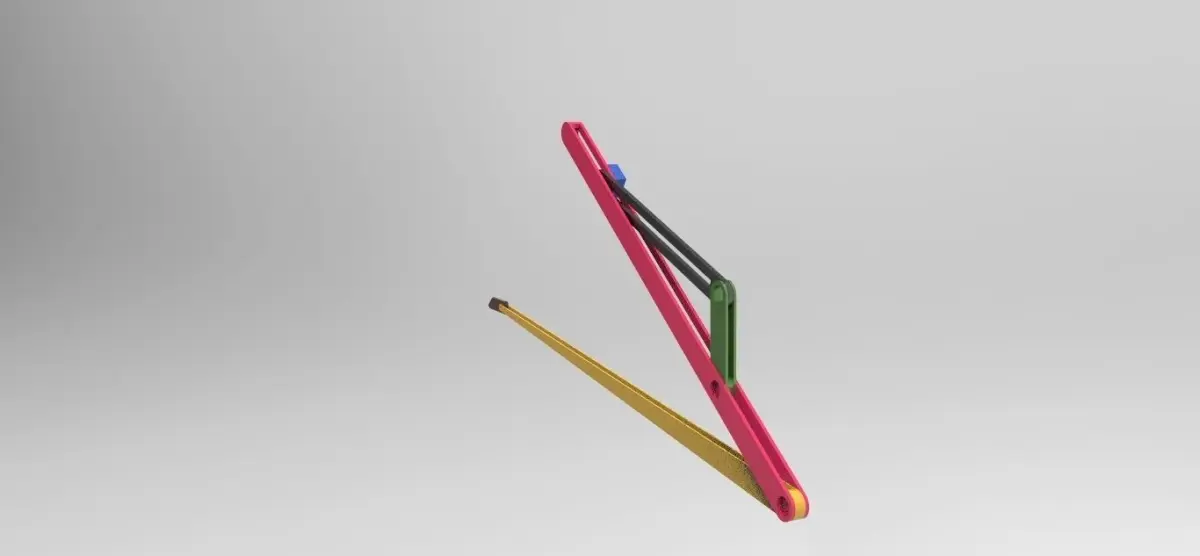

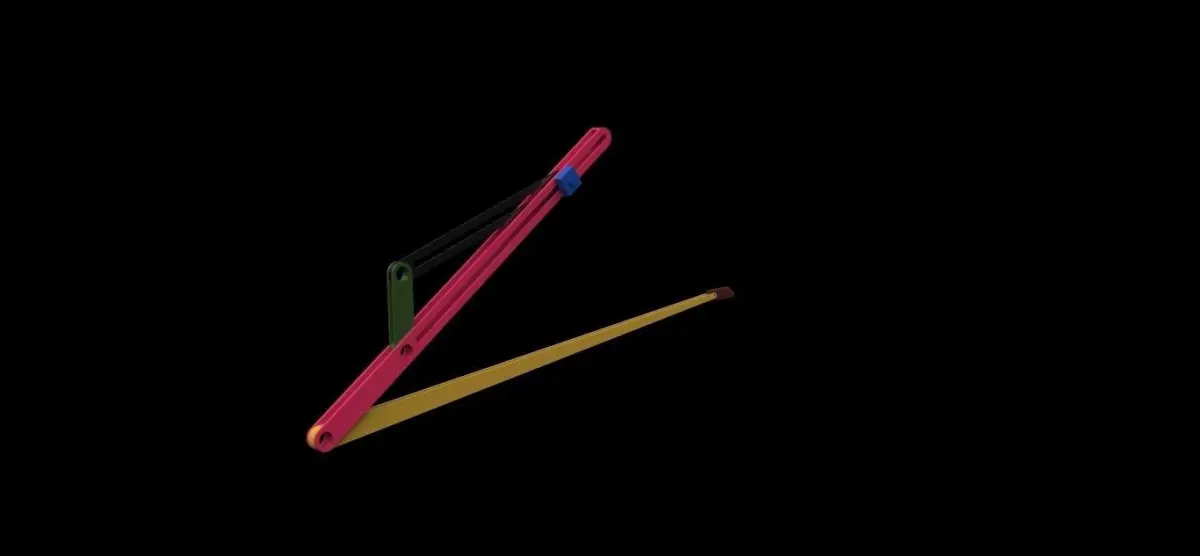

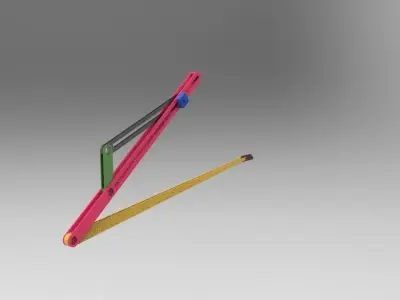

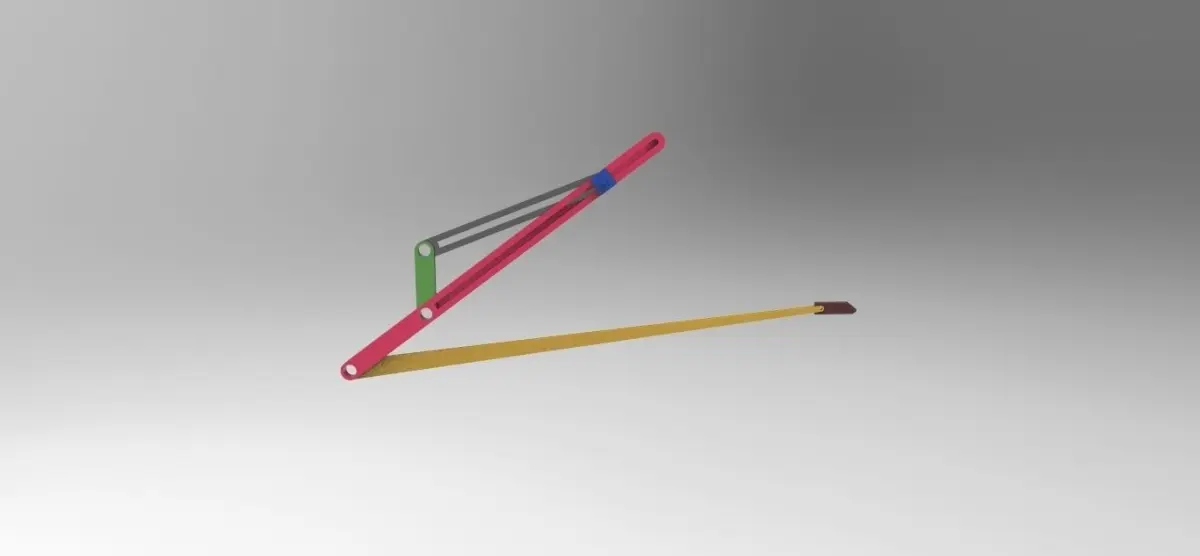

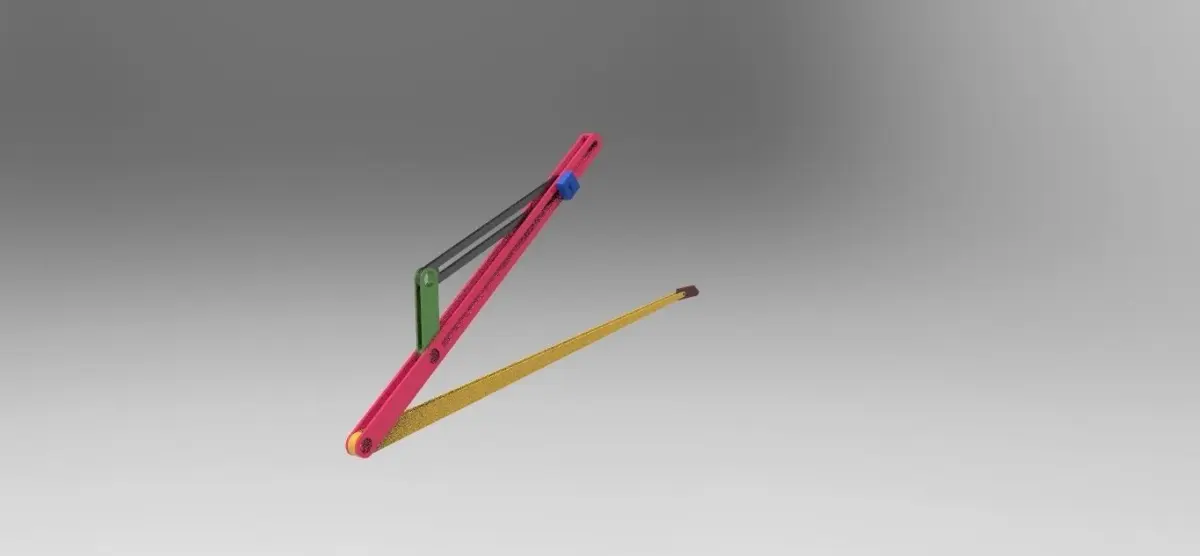

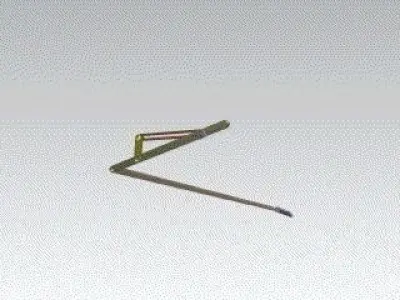

The Whitworth quick return mechanism converts rotary motion into reciprocating motion, but unlike the crank and slider, the forward reciprocating motion is at a different rate than the backward stroke. At the bottom of the drive arm, the peg only has to move through a few degrees to sweep the arm from left to right, but it takes the remainder of the revolution to bring the arm back. This mechanism is most commonly seen as the drive for a shaping machine (shaper machine).
