Publication date: 2015-10-21

Download Window cuts into 6 wall by dirvin Free 3D model

free

License: Royalty Free No Ai

author:

john-simpson

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «john-simpson». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats

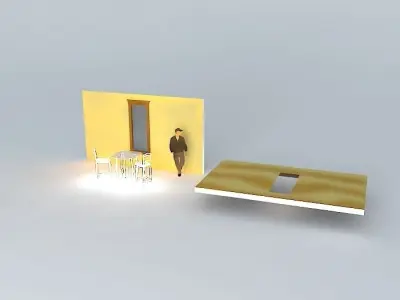

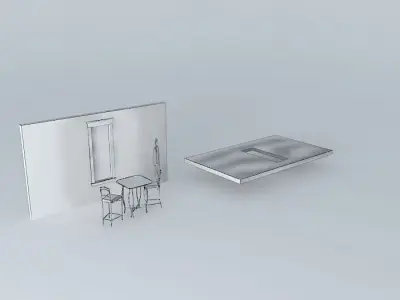

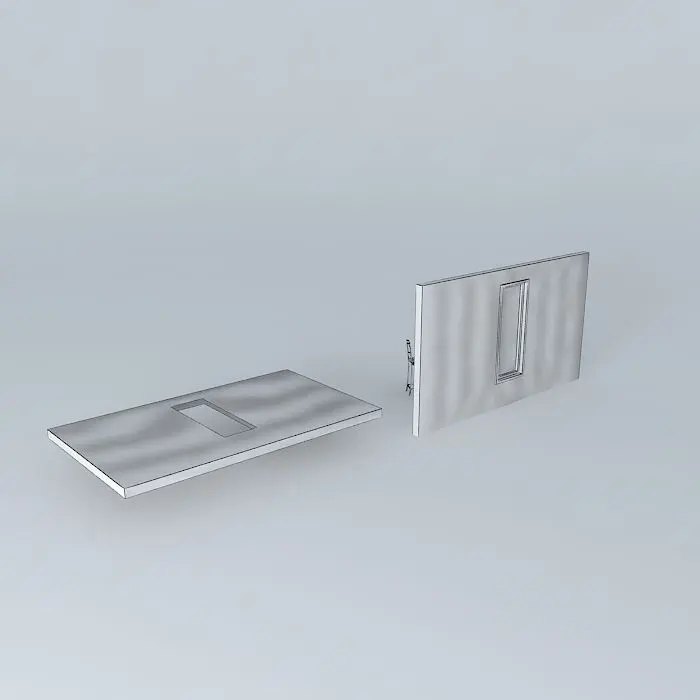

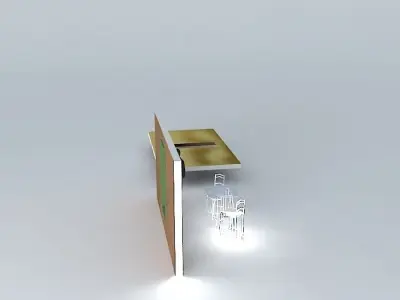

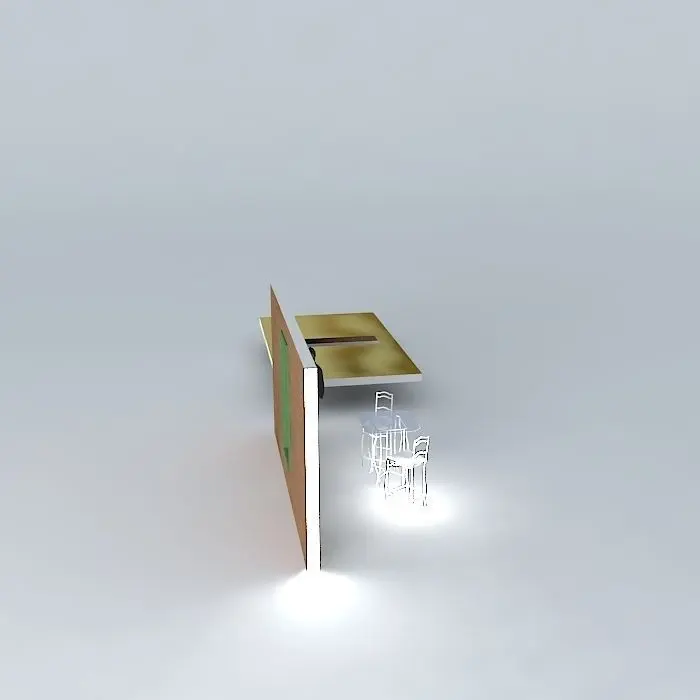

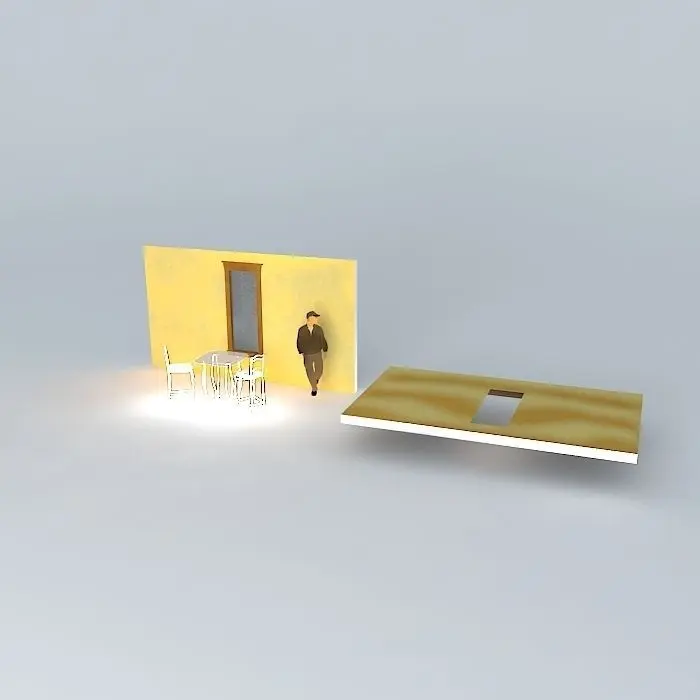

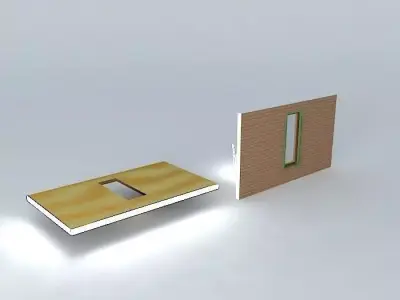

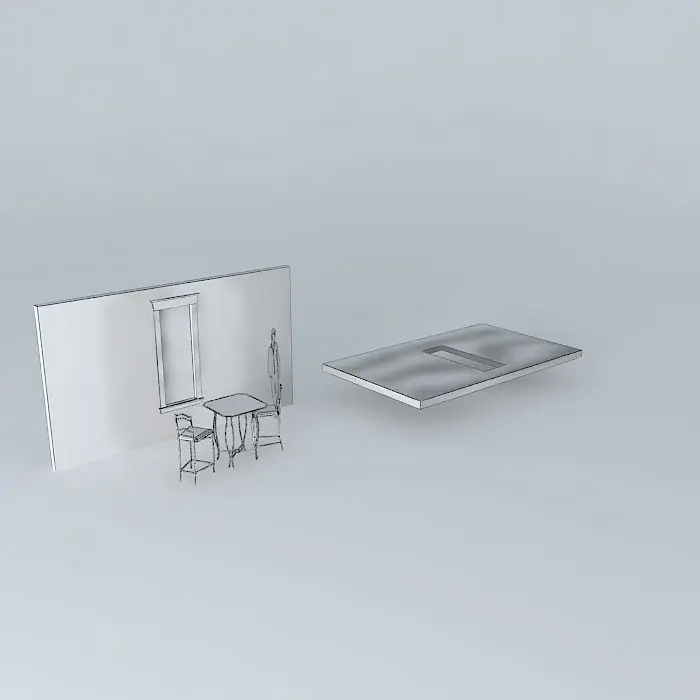

This 3D model was originally created with Sketchup 13 and then converted to all other 3D formats. Native format is .skp 3dsmax scene is 3ds Max 2016 version, rendered with Vray 3.00 Window cuts two surfaces... Insert thecasement28x72inttrimcomponent on to the exterior face , right click and explode it. The main component will cut the exterior face and an imbedded component cuts the interior face. The interior also has trim.

Copied from http://sketchup.google.com/3dwarehouse/details?mid=13e7cbaf0cca77c647862de315a7202 for testing. Selected both components, moved 4' to right. Works perfectly, no problems whatsoever! See discussion: Discussions > Using SketchUp for 3D modeling > Cutting windows into double walls http://groups.google.com/group/SketchUp3d/browse_thread/thread/c41e1081f0397792?hl=en

STL (Stereolithography, filesize: 234 KB), OBJ (OBJ, filesize: 172 KB), 3DS (3D Studio, filesize: 22.1 KB), DAE (Collada, filesize: 283 KB), FBX (Autodesk FBX, filesize: 147 KB), IGE (IGES, filesize: 299 Bytes), MAX (Autodesk 3ds Max, filesize: 58.5 KB), SKP (Sketchup, filesize: 237 KB), OTHER (Other, filesize: 30.7 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Casement Cut Dirvin Double Window Swajime Architectural
