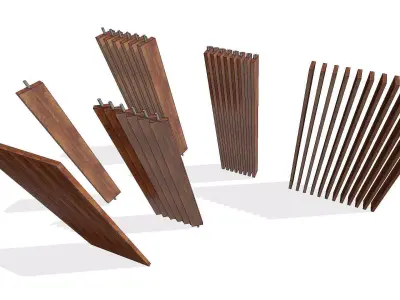

Wooden Column Decor Screens Room Divider 3D model

$11

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

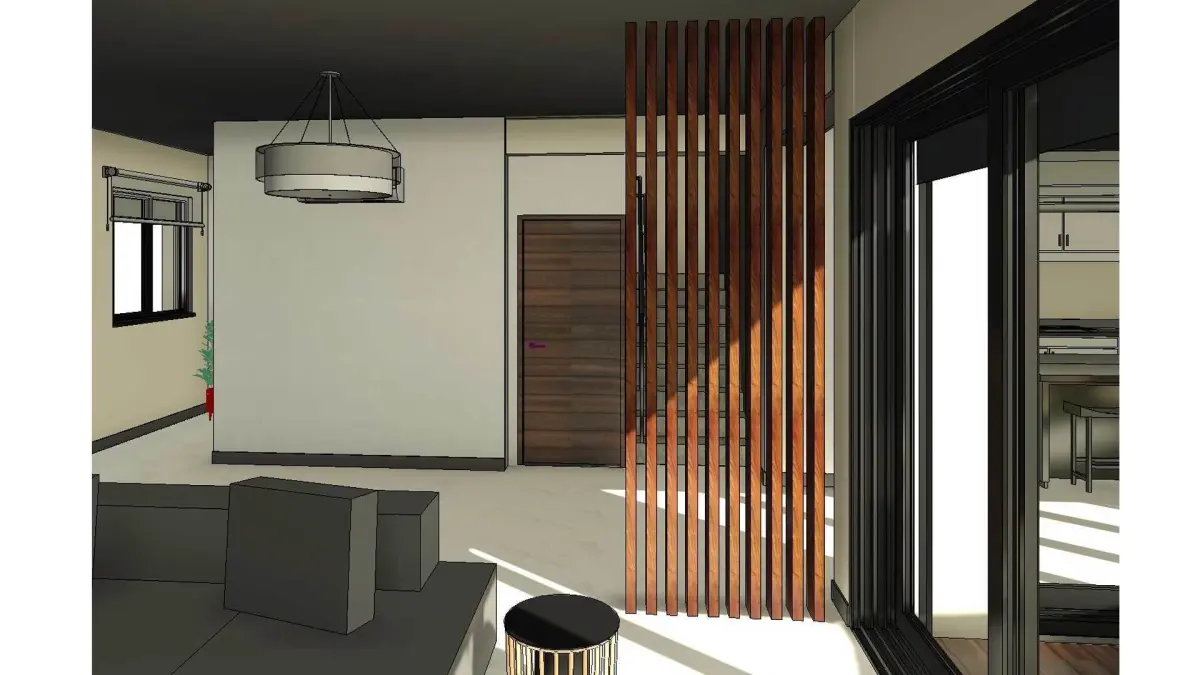

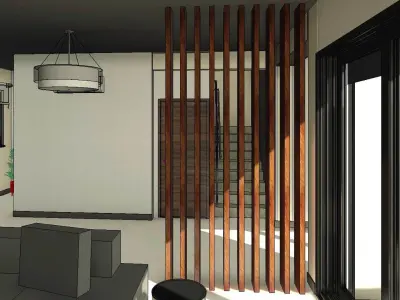

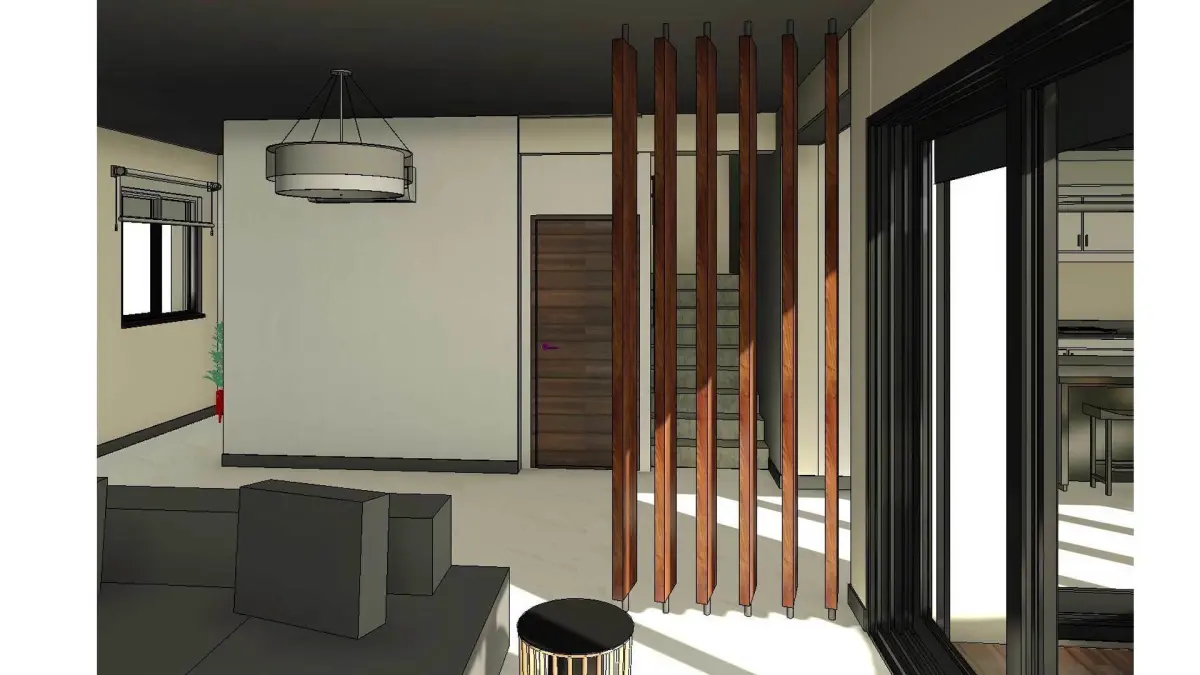

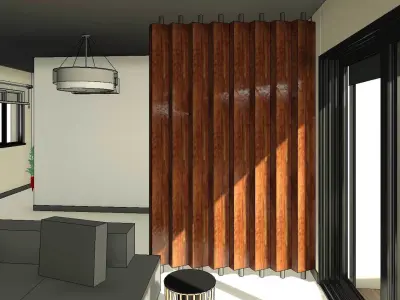

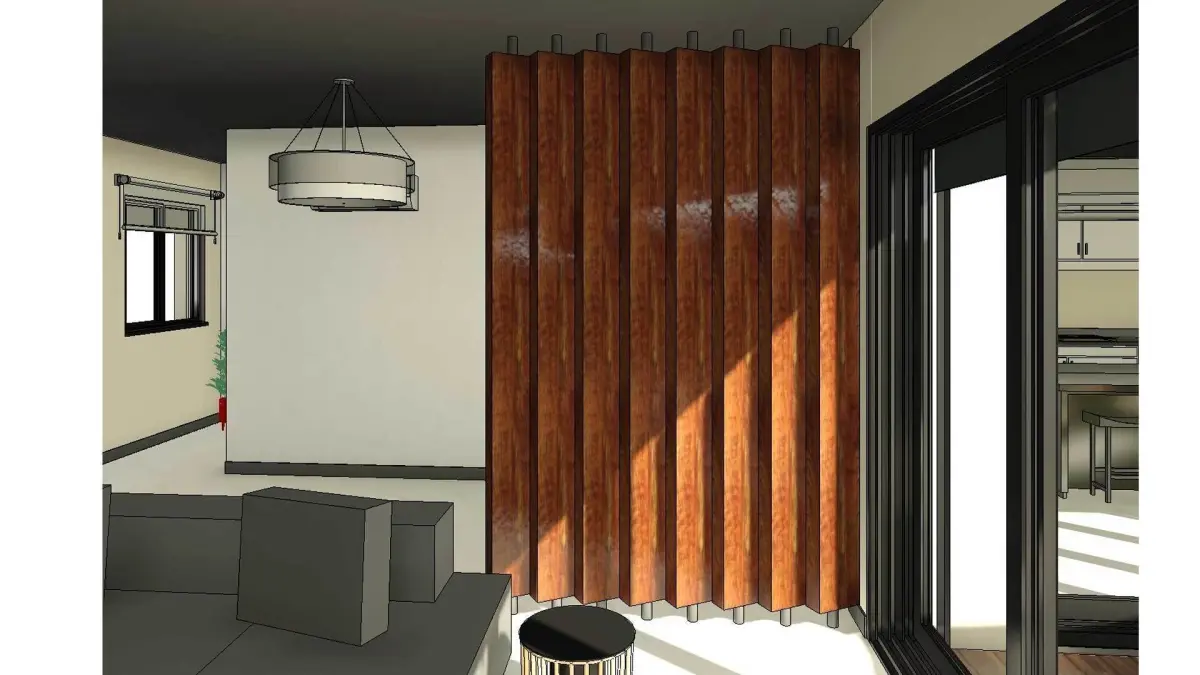

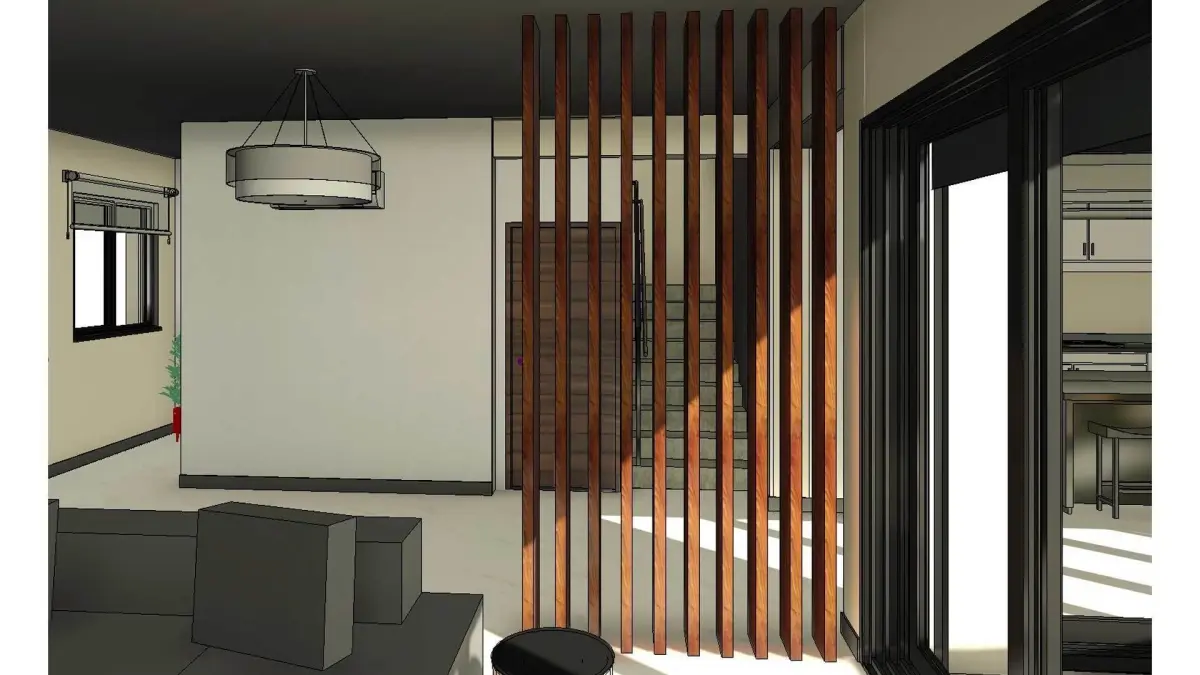

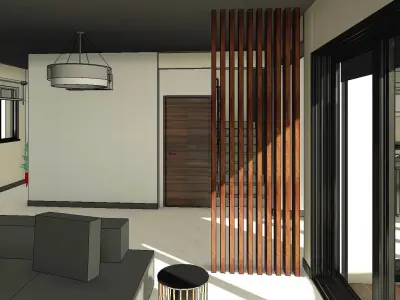

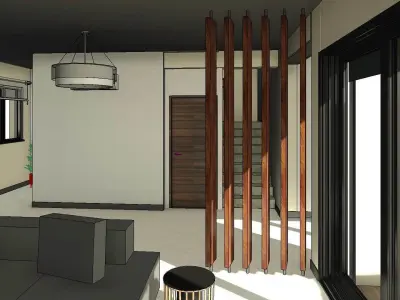

This is a Revit Family for Wooden Column Decor Screens that can also be used as a room divider. Wooden columns can either have top and bottom support pivot legs or fixed directly on the floor and ceiling.

Wooden columns can be rotated at any angle using available parameter and have their size and distance between them adjusted and changed to match any required design. User can also change the number of columns from 1 to any number. Materials are also parametric allowing the user to choose any material needed.

ATTRIBUTES:

Revit Version 2022
Family Type : Generic Model
File Extension : .rfa

PARAMETERS:

Column Width and Depth
Columns Spacing center-to-center distance
Pivot/rotation angle
Support Legs Option ON/OFF
Support Legs Height & Diameter
Total Height
Number of columns
Materials ( column, support legs )

FAMILY TYPES:

1 Column – 50x200mm, Support Legs, 0 degrees, H=2700mm
5 Columns – 50x200mm, Spacing 150mm, Support Legs, 15 degrees, H=2900mm
8 Columns – 75x250mm, Spacing 150mm, No Legs, 0 degrees, H=3000mm
6 Columns – 50x150mm, Spacing 150mm, Support Legs, 45 degrees, H=3000mm
10 Columns – 25x100mm, Spacing 75mm, No Legs, 0 Degrees, H=1500mm

User can create unlimited number of family types.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Plugins used
Geometry: Unknown

Tags

Revit Family Parametric Wooden Column Decor Screens Room Divider Room divider Interior Architectural Architecture Building Fixture Separator Wooden screens
