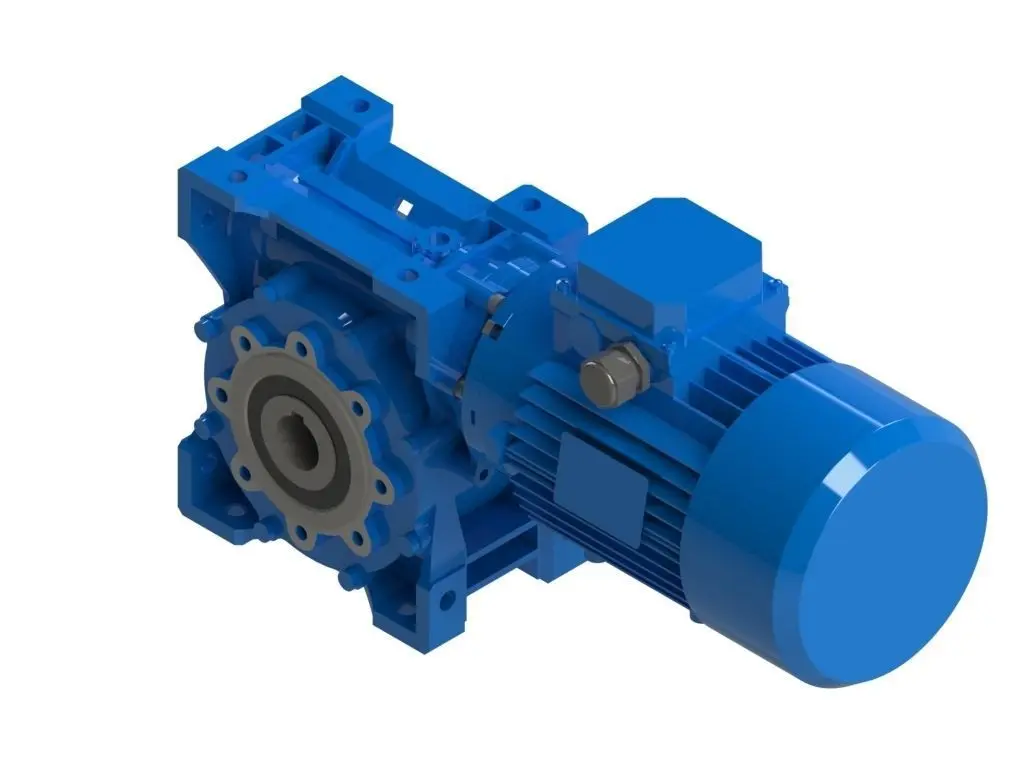

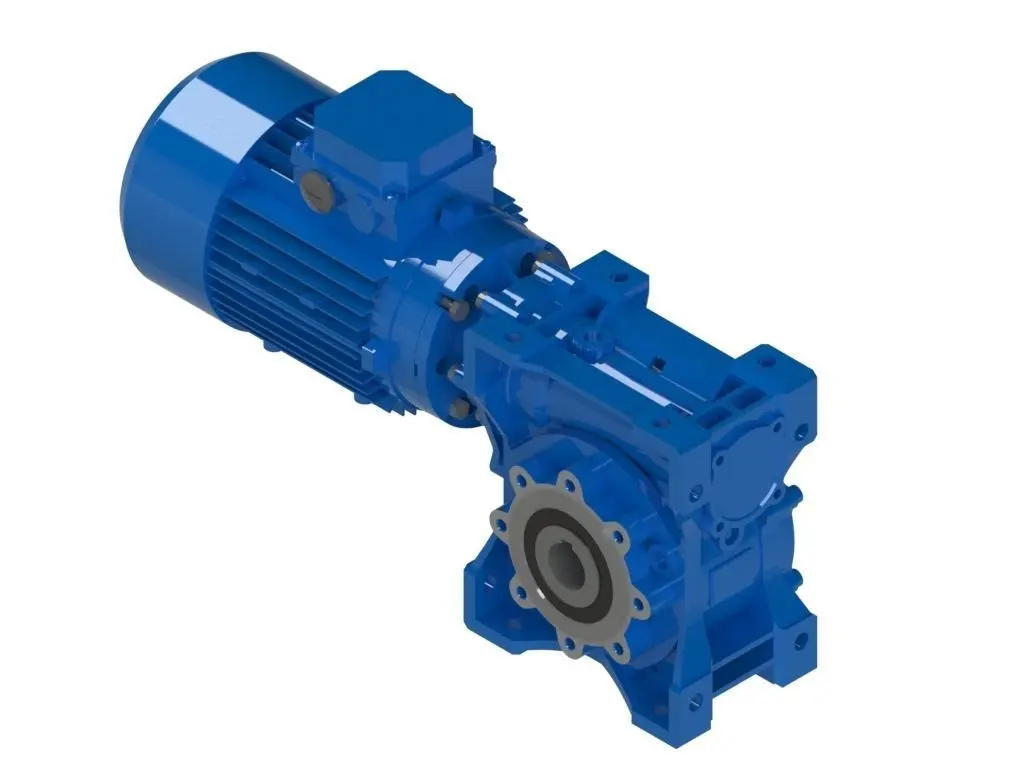

Worm gear motor NMRV 090 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

suxrob1994

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «suxrob1994». CGhub does not claim copyright ownership over the content used.

The NMRV 090 worm gear motor is an angular drive in which the input and output shafts are located at right angles to each other. A gearbox with one gear stage provides gear ratios of 7.5 - 100. Electric motor power: 0.37 - 4 kW. The drive can be installed in any spatial position. Mounting options: paws/flange/combo.

NMRV - 090 - 30 - 93.3 - 2.2 - B7

NMRV - worm gear motor
090 - standard size (center distance, mm)
30 - gear ratio
93.3 - output shaft rotation speed, rpm
2.2 - electric motor power, kW
B7 - installation position
