XYZ eddy current inspection mechanism module 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

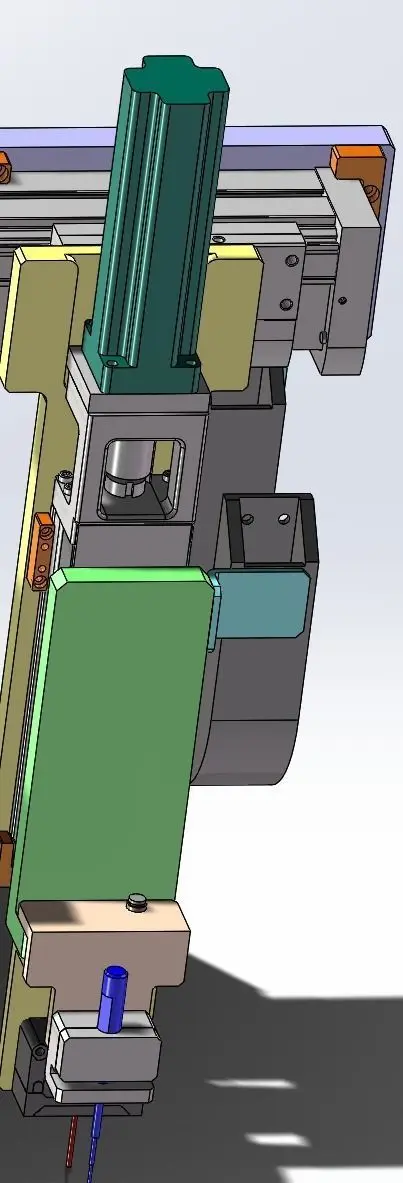

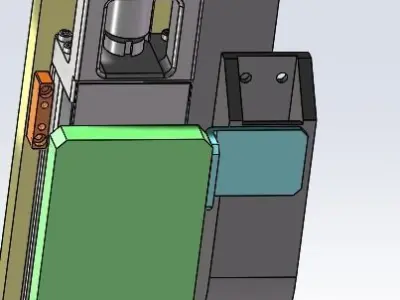

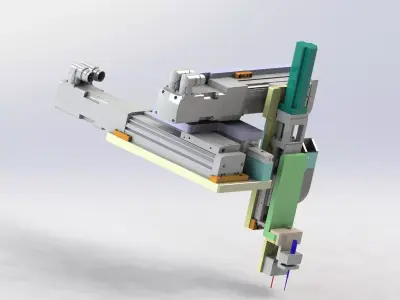

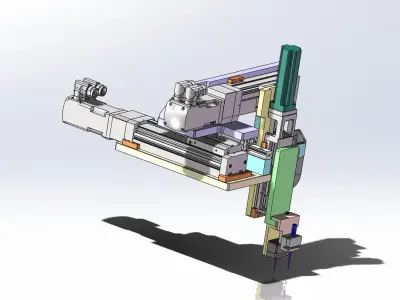

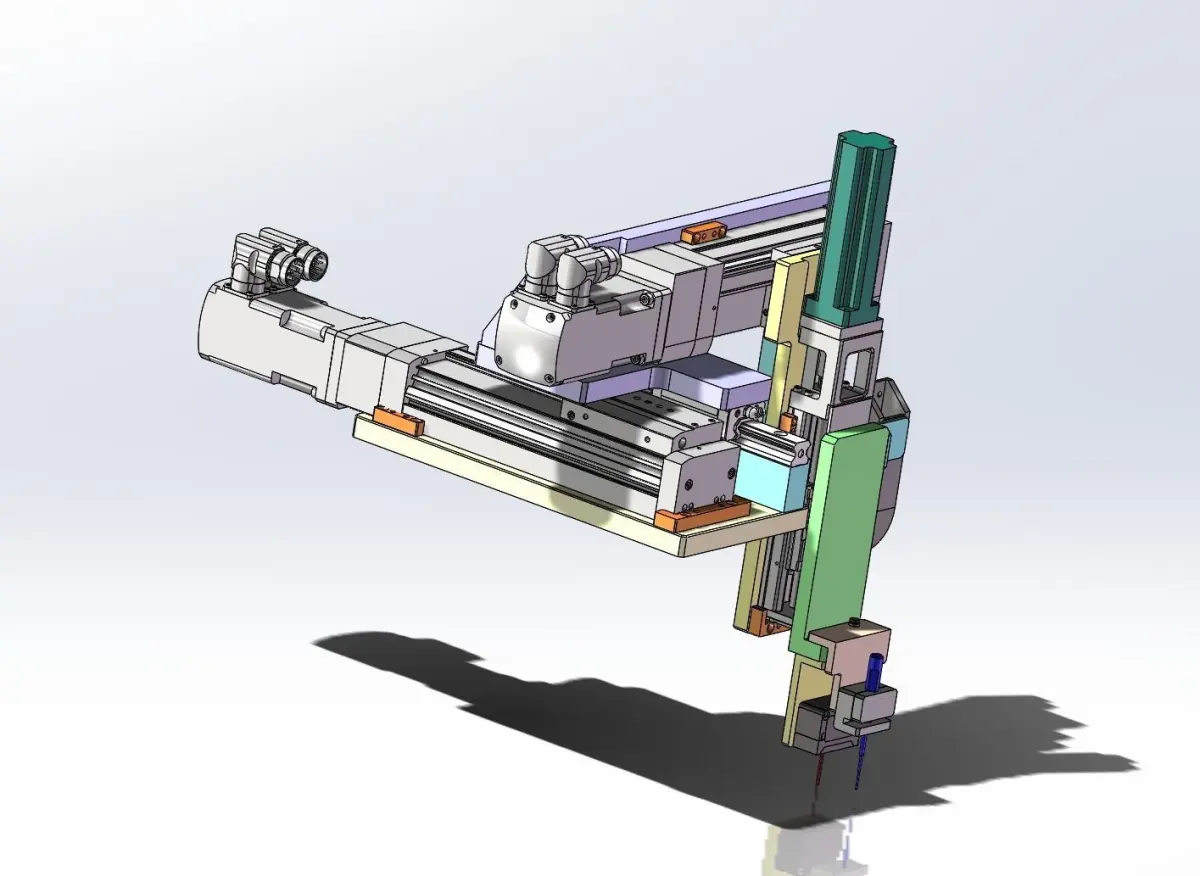

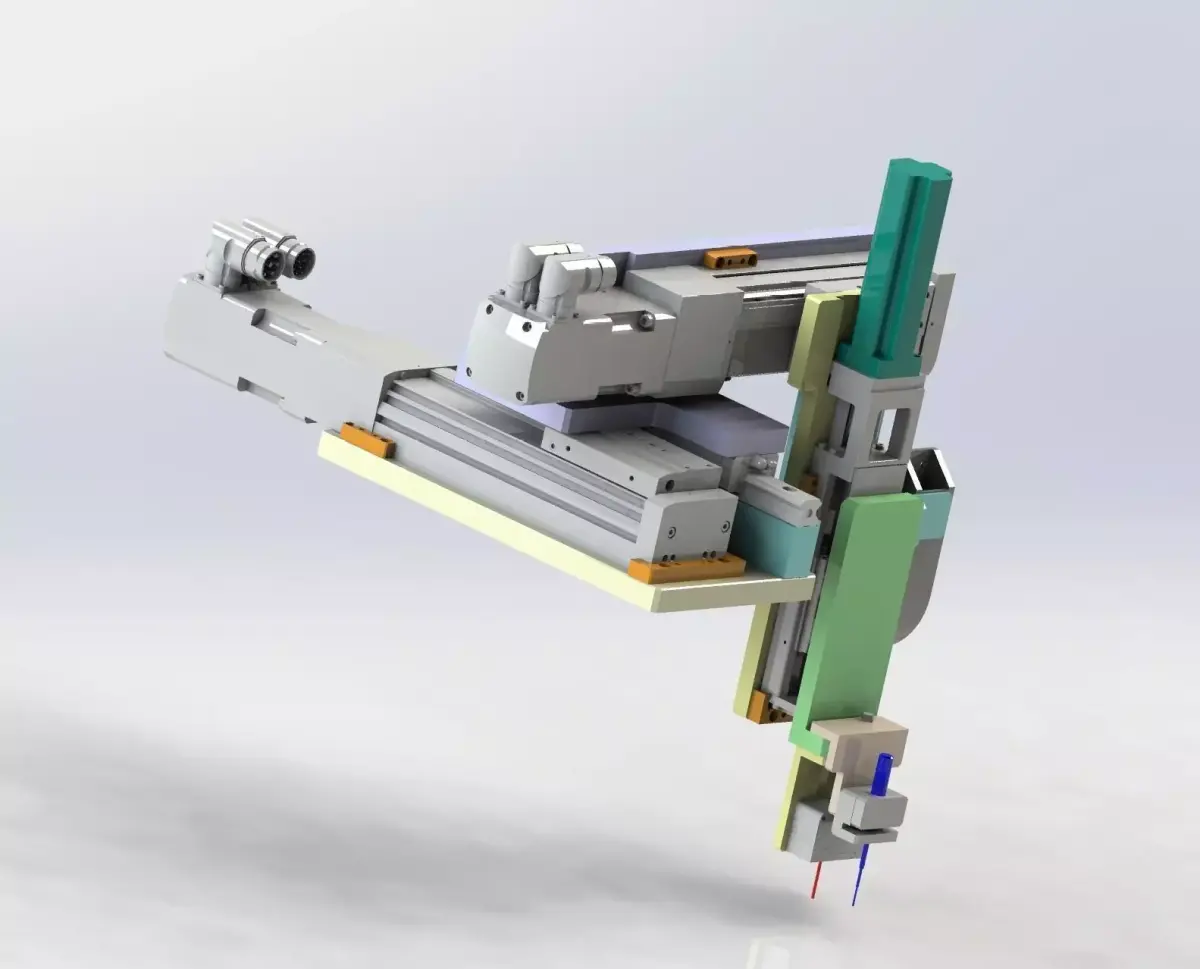

XYZ eddy current inspection mechanism module, which forms XYZ three-axis mechanism through sliding rail mechanism, is combined with eddy current inspection mechanism in the z axis module, including laser sensor head and turbine inspection head, to carry out inspection of products, which can be widely used in non-destructive testing.Mechanism include

Xyz triaxial shifting module

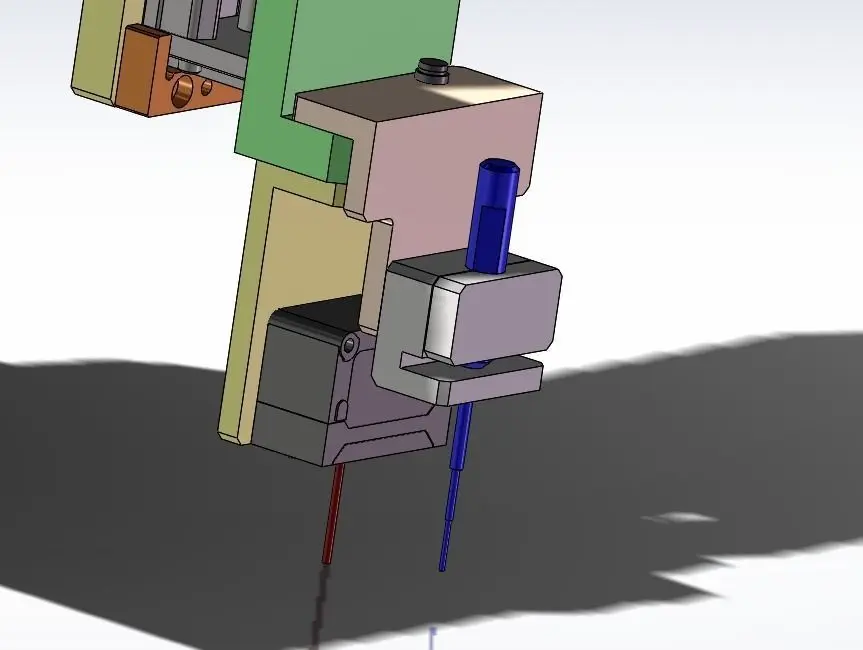

Turbine inspection mechanism
Laser sensor mechanism************************************** Files format contains-solidworks 2017-step-iges-stl-obj-3ds

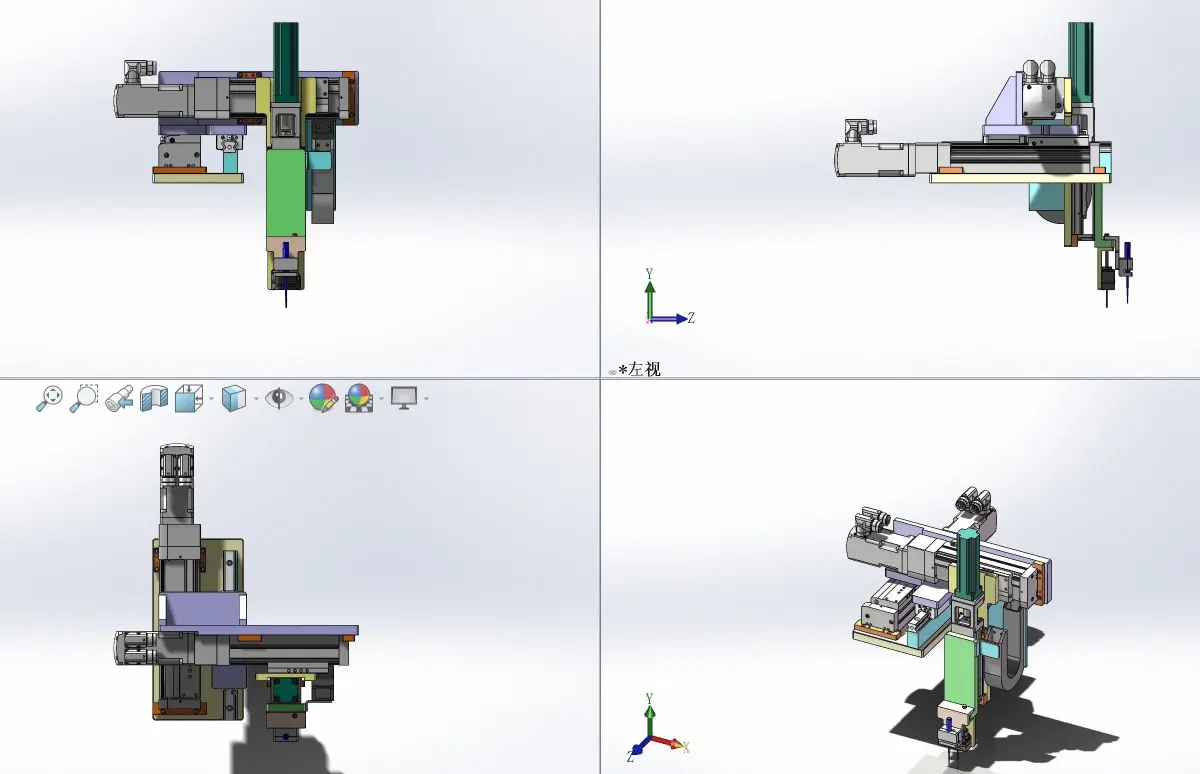

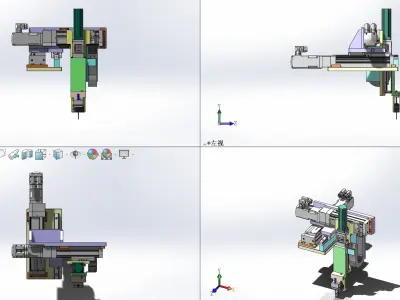

and other formats************************************** If you like,you can paypal for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with PhotoView 360**************************************

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs:
Geometry: Polygon mesh
Polygons: 115266
Vertices: 230895

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Turbine Testing Laser Platform Industrial machine Industrial part Industrial factory
