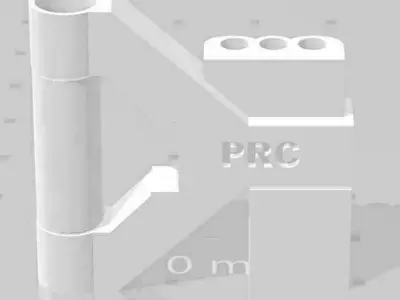

Yokomo YD 2 Short Front Arm Ball Bearing 3D print model

License: Custom

author:

jipanmail

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jipanmail». CGhub does not claim copyright ownership over the content used.

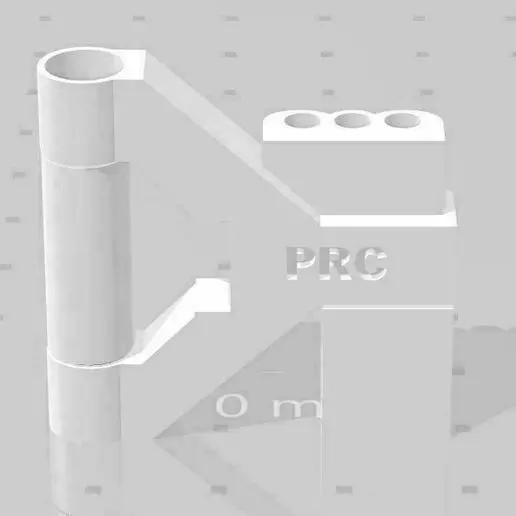

It is front short arm only for Yokomo YD2 Chassis Series

To complete the assembly you need additional item :

Mini Ball Bearings 3x6x2.6 @4 for each arm end (see picture ex2)
M3 Bolt 40 mm or more @2
M3 Nut/Locknut @2

For the rod to the suspension block I make my own 3 mm aluminium rod and not using the yd2 stock rod, it doesn't fit the 3x6x2,6 bearing although the stock yokomo YD-2 arm rod for what I know is 3mm.

Printing Duration about 45 minute, no need brim, skirt is suffice, i use 100% infill

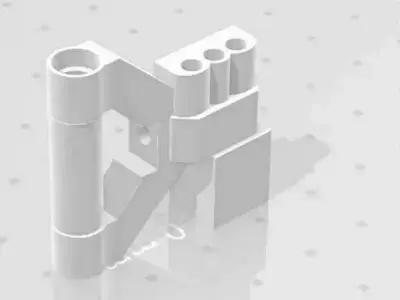

The supporting block is easily remove after printing done
