Z-Shaped Mounting Bracket 3D print model

$4.99

License: Royalty Free No Ai Html

author:

Lasty3D

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lasty3D». CGhub does not claim copyright ownership over the content used.

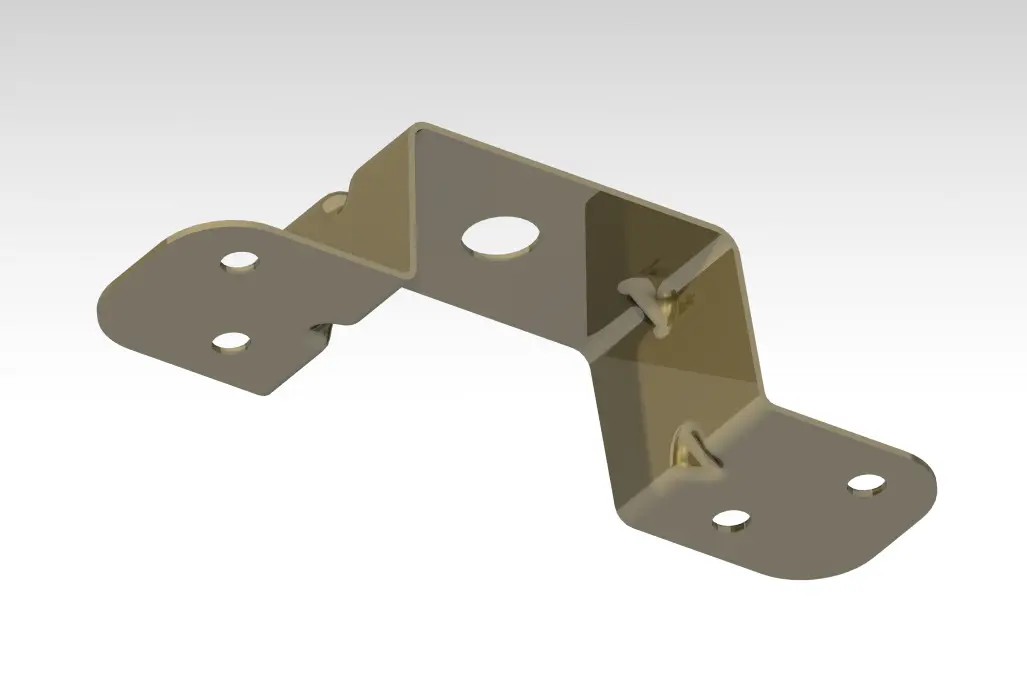

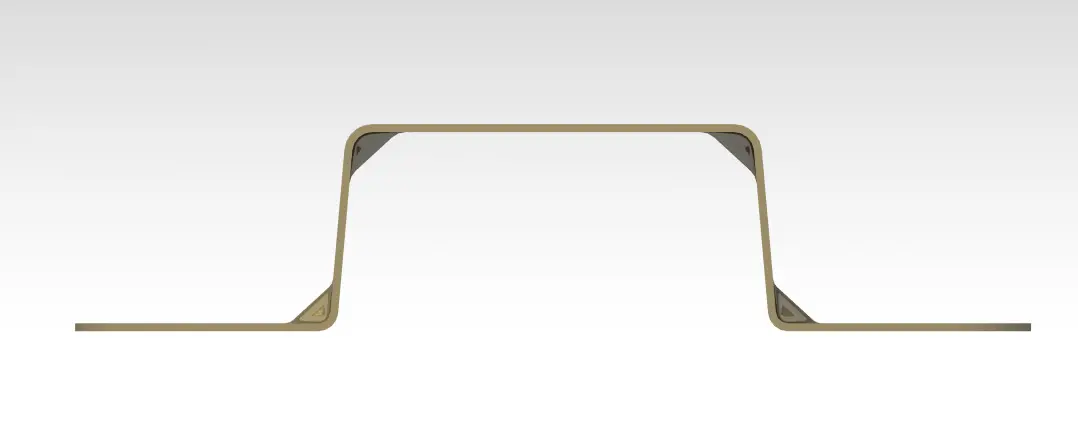

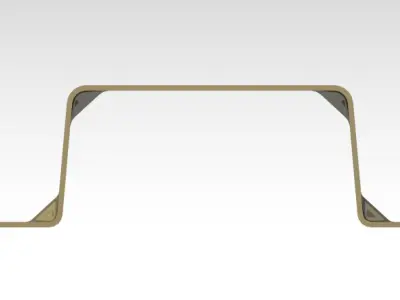

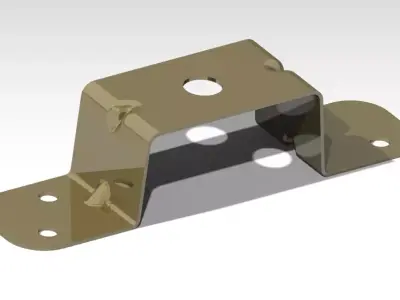

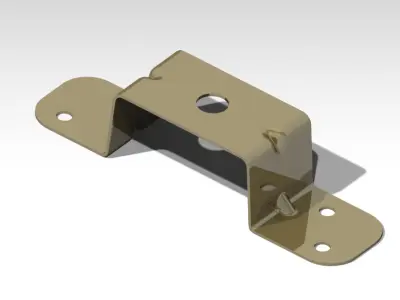

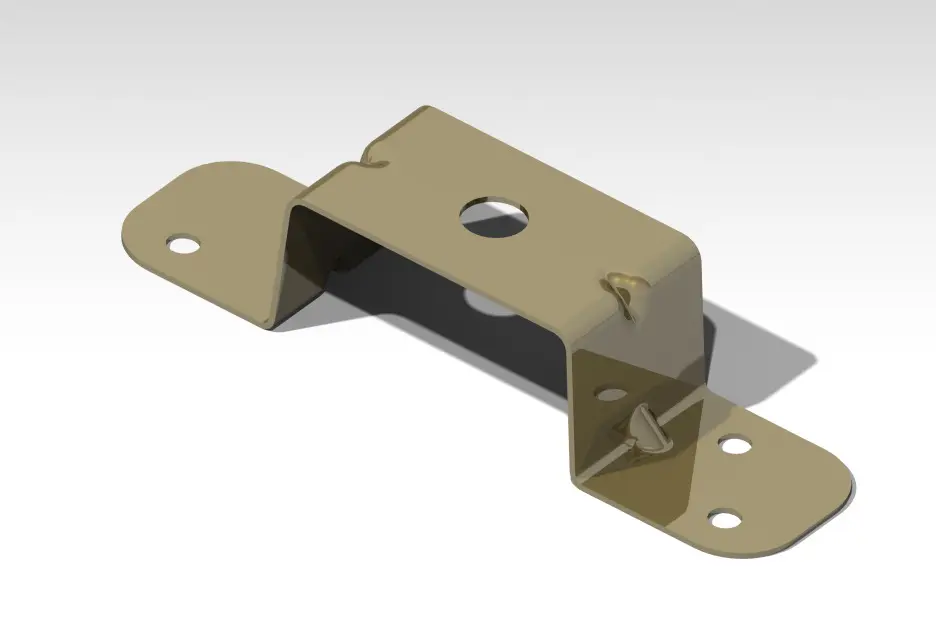

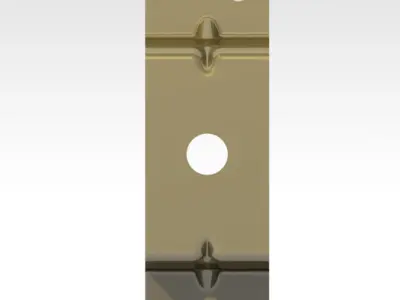

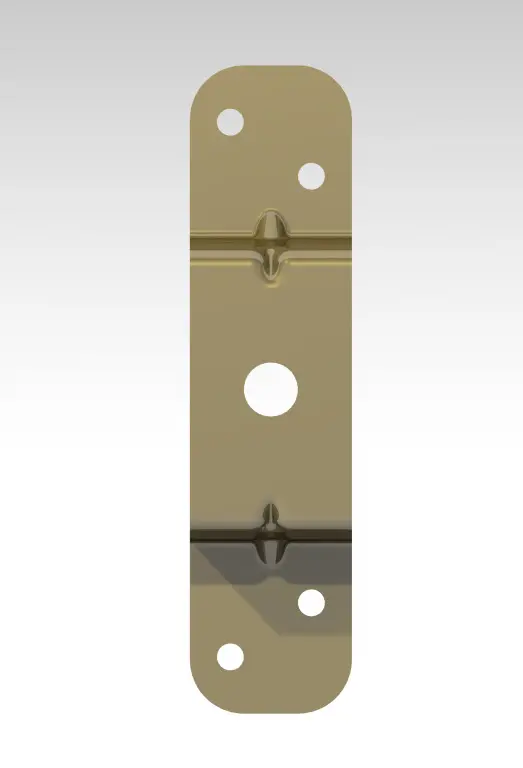

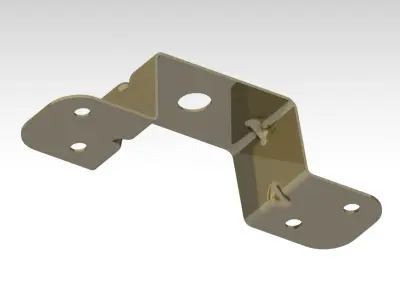

This is a 3D CAD model of a generic Z-type mounting bracket, designed for structural support in mechanical assemblies, industrial setups, or electronic enclosures. The bracket follows a standard Z-profile, offering two offset mounting planes suitable for connecting perpendicular surfaces.

The model is designed in CATIA with clean geometry and is provided in multiple CAD formats for compatibility with various engineering workflows. Ideal for use in simulation, product development, or hardware integration.

Features:

Z-profile mounting bracket geometry
Designed in CATIA
Suitable for structural support and component mounting
Ideal for use in assemblies, enclosures, or electronic devices
Compatible with simulation and CAD integration

Applications:

Mechanical structure support
Electronic component mounting
Industrial and automation assemblies
FEA simulation (bracket loading or stress analysis)
Educational projects in mechanical design

File formats:

CATIA .CATPart
STEP (.stp)
IGES (.igs)
STL (optional for visualization or meshing)

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Z Bracket Type Mounting Metal Cad Part Catia Mechanical Support 3d Structural Profile Mount For Electronics Generic Step Iges Model Science Engineering
