ZF 8HP70 Jaguar Land Rover 3D model 3D model

Publication date: 2023-04-15

ZF 8HP70 Jaguar Land Rover 3D model 3D model

$50

License: Royalty Free License

author:

880dynamics

Description

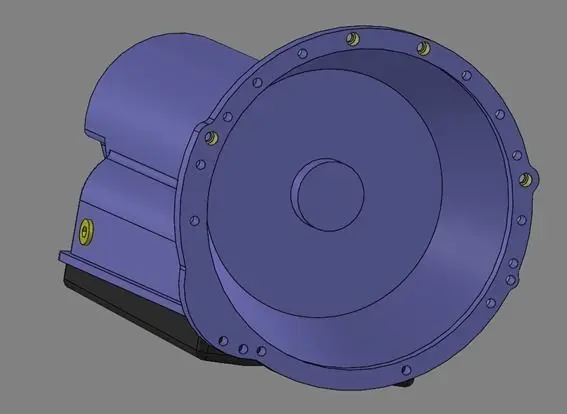

This a 3D model from a ZF 8HP70 gearbox from a SDV6 Land Rover, but the engine bolt pattern is the same for the Jaguar gearbox. The hole coordinates have been measured on a CMM in an ISO certified measuring workshoop with extremely good accuracy. The overal dimensions of the gearbox have been measured with conventional methods. The output shaft is the same as in the BMW 8 speed gearboxes, with 34,75mm OD and 43 spline count.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: -
Polygons: 0
Vertices: 0

Tags

Equipment Gearbox Jaguar Landrover Bmw Vehicle Part Vehicle part

All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «880dynamics». CGhub does not claim copyright ownership over the content used.
