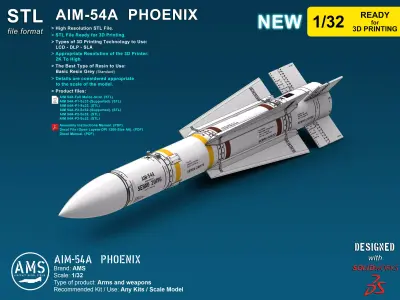

Buy AIM-54A Phoenix - Scale 1-32 NEW 3D print model
$7
License: Royalty Free No Ai
Rigged
PBR
Realtime
Animated
Free
author:
AMS-Object
Renders and source materials belong to the author AMS-Object.
Specifications
- Platform
- cgtrader
- Animated
- Rigged
- 3D Print ready
- VR / AR / Low-poly
- PBR
- Textures
- Materials
- UV Mapping
- Polygons
- 0
- Vertices
- 0
- Geometry
- Manifold geometry | No N-gons |
Usage recommendations
Realtime rendering
✕
PC Game development
✕
Mobile Game Development
✕
VR/AR applications
✕
Visualisation
✓
Cinema
✓
Advertising
✓
3D Printing
✓
CAD Engineering
✕
E-Commerce & Interactive 3D Web
✕
FAQ
Is this a free 3D model?
No, this model costs $7.
How do I download this 3D model?
To purchase this model, click the "Go to purchase" button.
What license applies to this model?
The Royalty Free No Ai license applies to this model. More details are available via the "Go to purchase" button.
Does it include rigging and animation?
This model has no rig or animation. It is a static 3D object.
Does this model have UV mapping?
No, this model does not have UV mapping.
What textures and materials does this 3D model include?
This model has no textures or materials.
Can I use it for 3D printing?
Yes, this model is ready for 3D printing. Detailed specs are listed in the Specifications block.
Additional information
Specification:
Brand: AMS
Scale: 1/32
Type of product: Arms and weapons
Recommended kit / Use: Any Kits / Scale Model

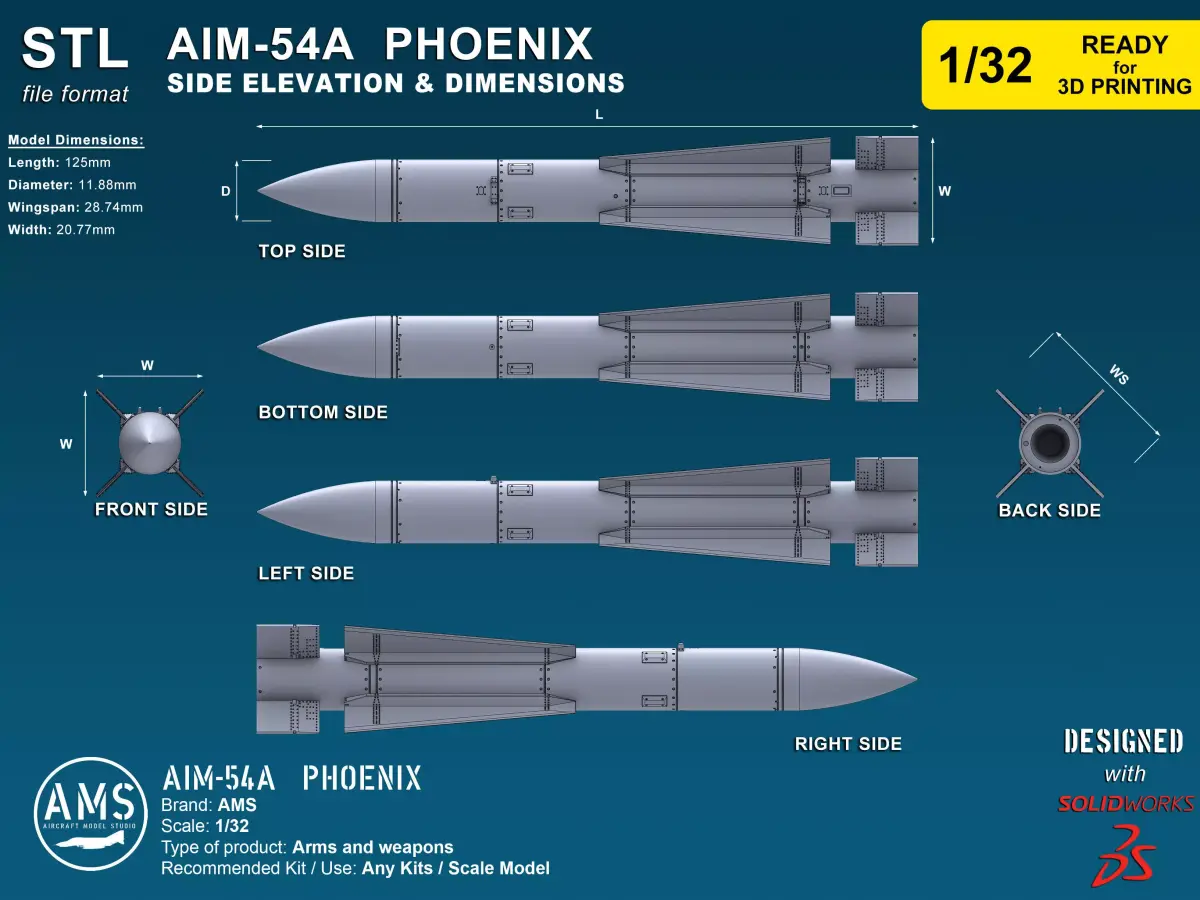

Missile Model Dimension :
Length 125 mm
Diameter 11.87 mm
Wingspan 28.75 mm
Width: 20.77mm
Note:

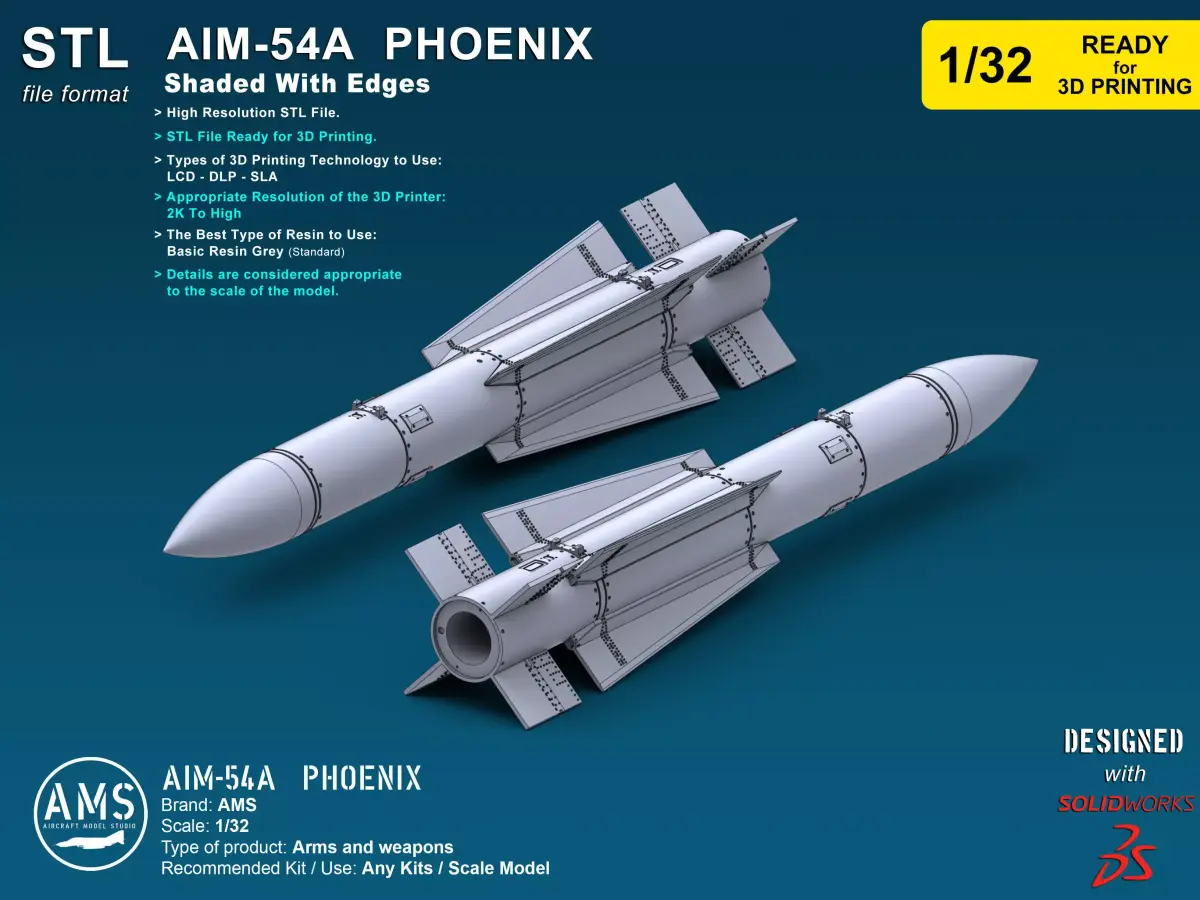

High Resolution STL File.
STL File Ready for 3D Printing.
Types of 3D Printing Technology to Use: LCD - DLP - SLA
Appropriate Resolution of the 3D Printer: 2K To High
The Best Type of Resin to Use: Basic Resin Grey (Standard)
Details are considered appropriate to the scale of the model.

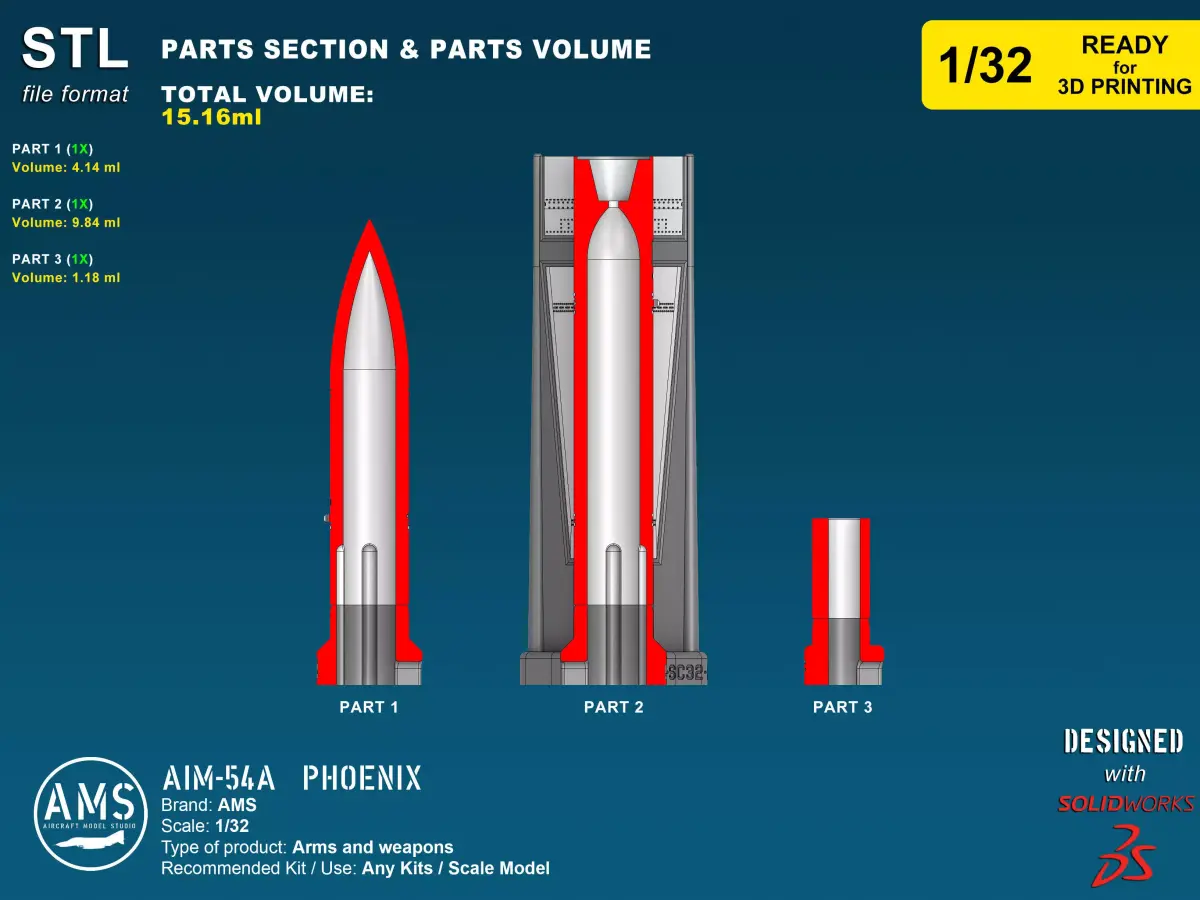

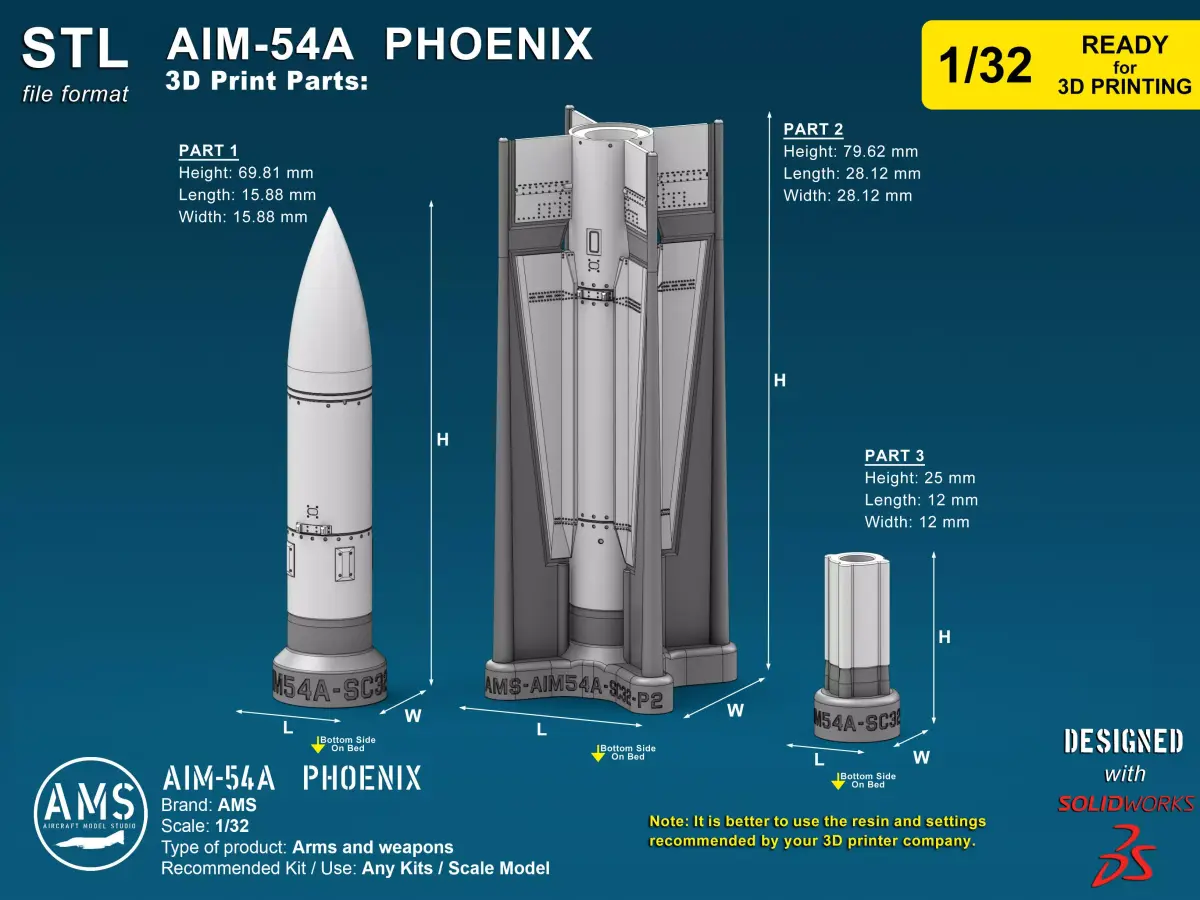

Product files:
AIM 54A-Full Model-Sc32. (STL)
AIM 54A-P1-Sc32-(Supported). (STL)
AIM 54A-P1-Sc32. (STL)
AIM 54A-P2-Sc32-(Supported). (STL)
AIM 54A-P2-Sc32. (STL)
AIM 54A-P3-Sc32. (STL)
Assembly Instructions Manual. (PDF)
Decal File (Open Layers-DPI 1200-Size A6). (PDF)
Decal Manual. (PDF)
Description:
The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.
The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code Fox Threewas used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.
Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.
They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.
The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.
Instagram:
https://www.instagram.com/aircraft_model_studio
https://www.instagram.com/ams.object
3D printing settings:
Types of 3D Printing Technology: LCD
Layer Height: 0.05 mm
Bottom layer Count: 4
Exposure Time: 2s
Bottom Exp Time: 30s
Light-Off Delay: 2s
Bottom Light-Off Delay: 2s
Lifting Distance: 6mm
Bottom Lift Distance: 6mm
Lifting Speed: 180 mm/min
Bottom Lift Speed: 180 mm/min
Retract Speed: 240 m/min
Bottom Retract Speed: 240 m/min
Anti-aliasing: on - Level 4
Note:It is better to use the resin and settings recommended by your 3D printer company.
Brand: AMS
Scale: 1/32
Type of product: Arms and weapons
Recommended kit / Use: Any Kits / Scale Model
Missile Model Dimension :
Length 125 mm
Diameter 11.87 mm
Wingspan 28.75 mm
Width: 20.77mm
Note:
High Resolution STL File.
STL File Ready for 3D Printing.
Types of 3D Printing Technology to Use: LCD - DLP - SLA
Appropriate Resolution of the 3D Printer: 2K To High
The Best Type of Resin to Use: Basic Resin Grey (Standard)
Details are considered appropriate to the scale of the model.
Product files:
AIM 54A-Full Model-Sc32. (STL)
AIM 54A-P1-Sc32-(Supported). (STL)
AIM 54A-P1-Sc32. (STL)
AIM 54A-P2-Sc32-(Supported). (STL)
AIM 54A-P2-Sc32. (STL)
AIM 54A-P3-Sc32. (STL)
Assembly Instructions Manual. (PDF)
Decal File (Open Layers-DPI 1200-Size A6). (PDF)
Decal Manual. (PDF)
Description:
The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.
The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code Fox Threewas used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.
Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.
They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.
The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.
Instagram:
https://www.instagram.com/aircraft_model_studio
https://www.instagram.com/ams.object
3D printing settings:
Types of 3D Printing Technology: LCD
Layer Height: 0.05 mm
Bottom layer Count: 4
Exposure Time: 2s
Bottom Exp Time: 30s
Light-Off Delay: 2s
Bottom Light-Off Delay: 2s
Lifting Distance: 6mm
Bottom Lift Distance: 6mm
Lifting Speed: 180 mm/min
Bottom Lift Speed: 180 mm/min
Retract Speed: 240 m/min
Bottom Retract Speed: 240 m/min
Anti-aliasing: on - Level 4
Note:It is better to use the resin and settings recommended by your 3D printer company.
