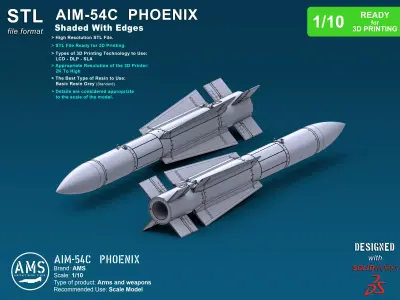

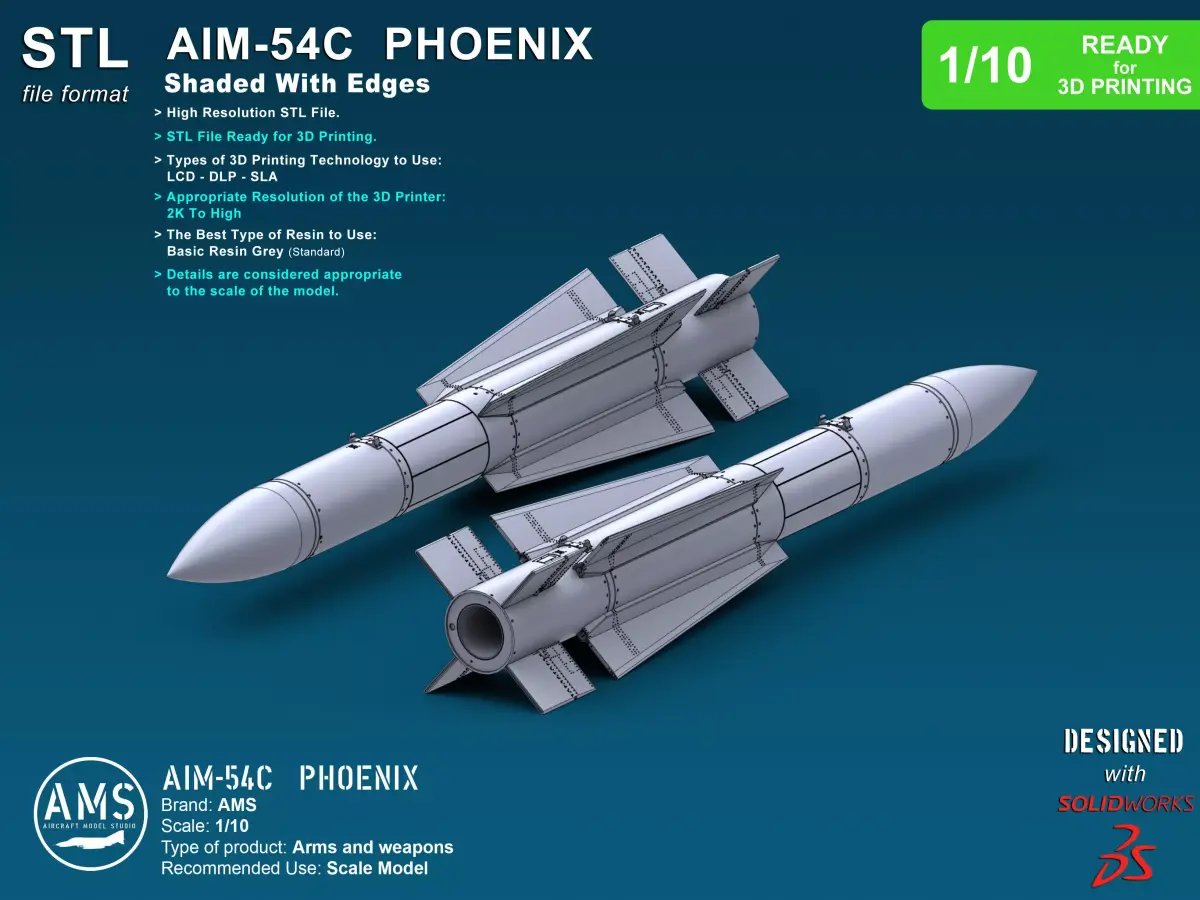

Buy AIM-54C Phoenix - Scale 1-10 3D print model
$19
License: Royalty Free No Ai
Rigged
PBR
Realtime
Animated
Free
author:
AMS-Object
Renders and source materials belong to the author AMS-Object.
Specifications
- Platform
- cgtrader
- Animated
- Rigged
- 3D Print ready
- VR / AR / Low-poly
- PBR
- Textures
- Materials
- UV Mapping
- Polygons
- 0
- Vertices
- 0
- Geometry
- Manifold geometry | No N-gons |
Usage recommendations
Realtime rendering
✕
PC Game development
✕
Mobile Game Development
✕
VR/AR applications
✕
Visualisation
✓
Cinema
✓
Advertising
✓
3D Printing
✓
CAD Engineering
✕
E-Commerce & Interactive 3D Web
✕
FAQ
Is this a free 3D model?
No, this model costs $19.
How do I download this 3D model?
Click the "Go to purchase" button to buy and download this model.
What license applies to this model?
This model is distributed under the Royalty Free No Ai license. Click "Go to purchase" for full license details.
Does it include rigging and animation?
This model has no rig or animation. It is a static 3D object.
Does this model have UV mapping?
No, this model does not have UV mapping.
What textures and materials does this 3D model include?
This model has no textures or materials.
Can I use it for 3D printing?
Yes, this model is ready for 3D printing. Complete specs can be found in the Specifications block.
Additional information
Specification:
Brand: AMS
Scale: 1/10
Type of product: Arms and weapons
Recommended Use: Scale Model

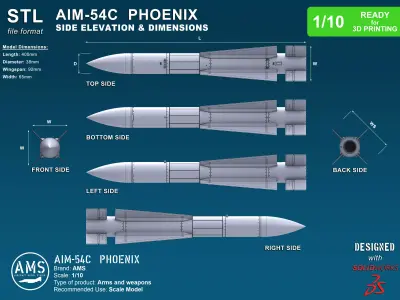

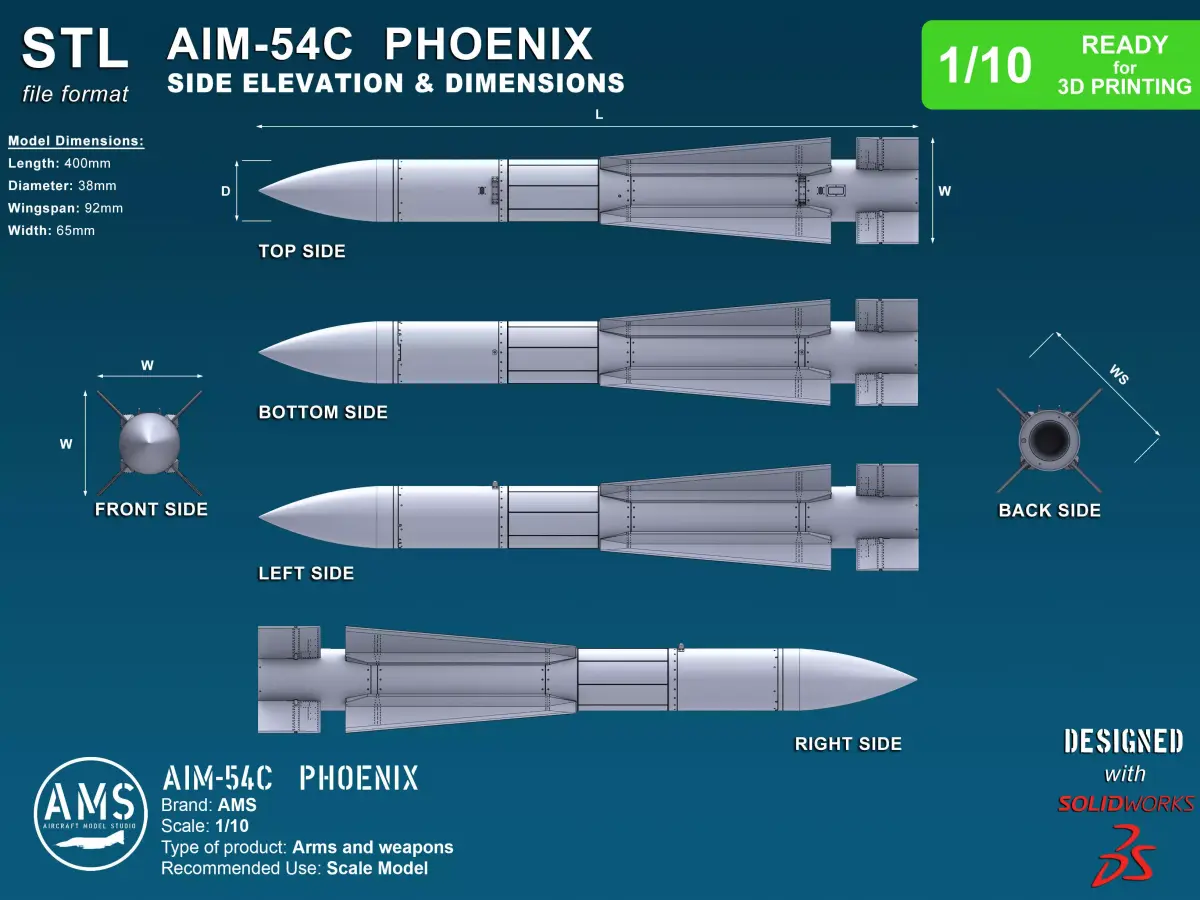

Missile Model Dimension :
Length: 400mm
Diameter: 38mm
Wingspan: 92mm
Width: 65mm
Rack Model Dimension :
Length: 60mm
Width: 20mm
Height: 42.7mm
Note:
High Resolution STL File.
STL File Ready for 3D Printing.
Types of 3D Printing Technology to Use: LCD - DLP - SLA
Appropriate Resolution of the 3D Printer: 2K To High
The Best Type of Resin to Use: Basic Resin Grey (Standard)
Details are considered appropriate to the scale of the model.

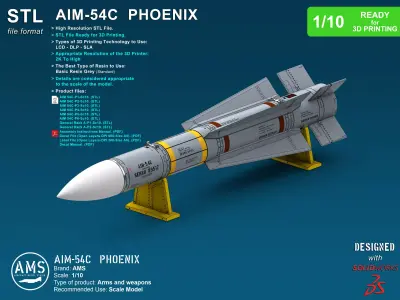

Product files:
AIM 54C-P1-Sc10. (STL)
AIM 54C-P2-Sc10. (STL)
AIM 54C-P3-Sc10. (STL)
AIM 54C-P4-Sc10. (STL)
AIM 54C-P5-Sc10. (STL)
AIM 54C-P6-Sc10. (STL)
General Rack A-P1-Sc10. (STL)
General Rack A-P2-Sc10. (STL)
Assembly Instructions Manual. (PDF)
Decal File (Open Layers-DPI 600-Size A5). (PDF)
Label File (Open Layers-DPI 300-Size A6). (PDF)
Decal Manual. (PDF)
Cutting File. (CAD)
Description:The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.
The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code Fox Threewas used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.
Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.
They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.
The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.
Instagram:
https://www.instagram.com/aircraft_model_studio
https://www.instagram.com/ams.object

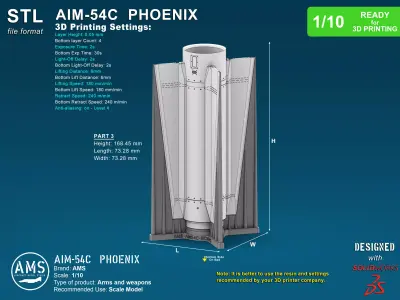

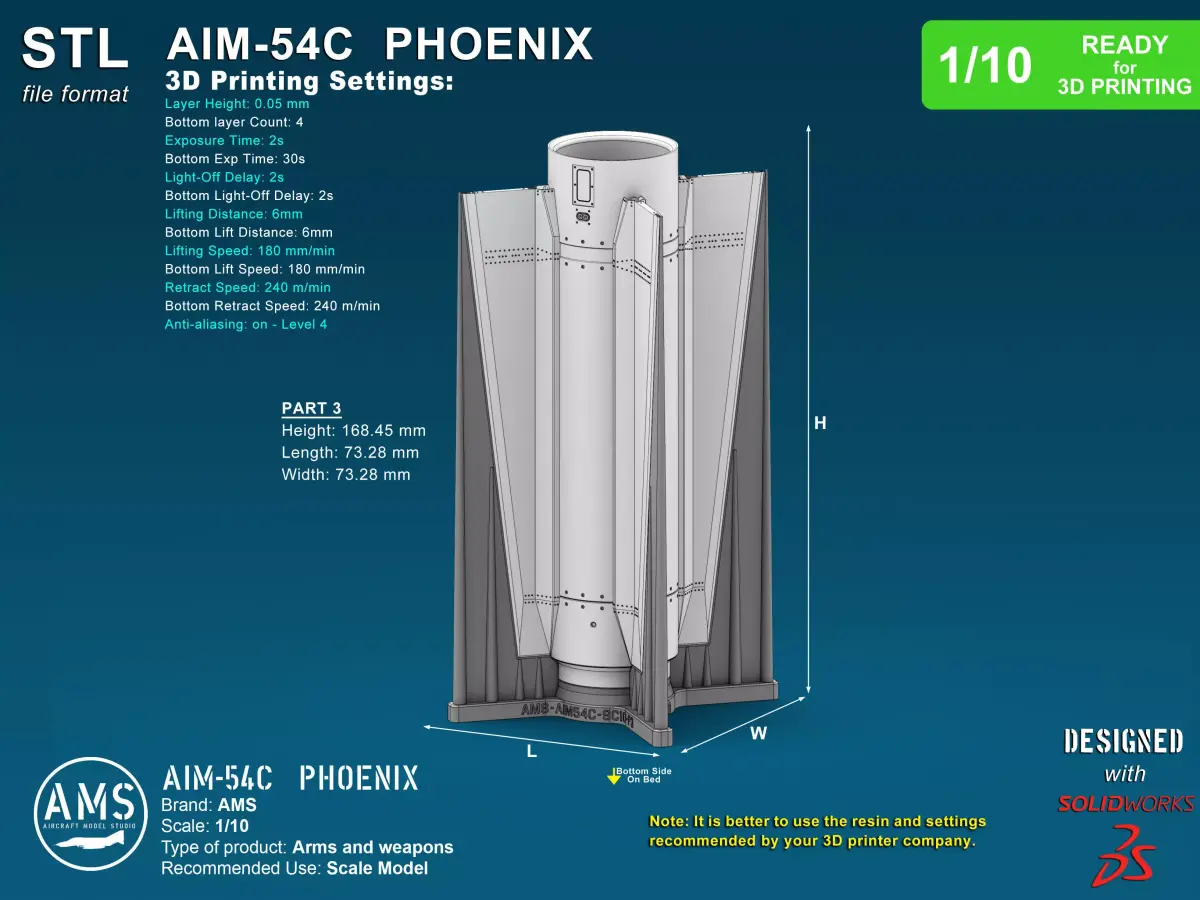

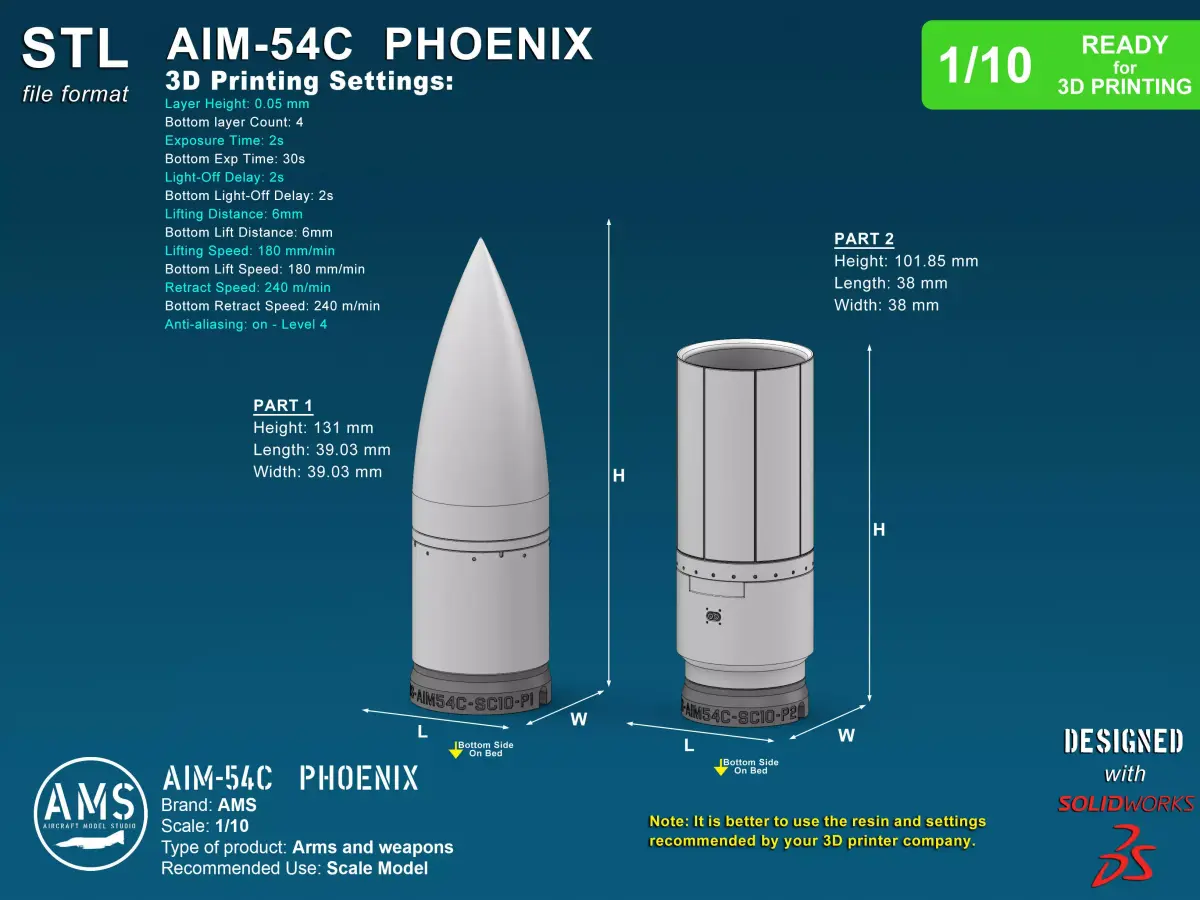

3D printing settings:
Types of 3D Printing Technology: LCD
Layer Height: 0.05 mm
Bottom layer Count: 4
Exposure Time: 2s
Bottom Exp Time: 30s
Light-Off Delay: 2s
Bottom Light-Off Delay: 2s
Lifting Distance: 6mm
Bottom Lift Distance: 6mm
Lifting Speed: 180 mm/min
Bottom Lift Speed: 180 mm/min
Retract Speed: 240 m/min
Bottom Retract Speed: 240 m/min
Anti-aliasing: on - Level 4
Note:It is better to use the resin and settings recommended by your 3D printer company.
Brand: AMS
Scale: 1/10
Type of product: Arms and weapons
Recommended Use: Scale Model
Missile Model Dimension :
Length: 400mm
Diameter: 38mm
Wingspan: 92mm
Width: 65mm
Rack Model Dimension :
Length: 60mm
Width: 20mm
Height: 42.7mm
Note:
High Resolution STL File.
STL File Ready for 3D Printing.
Types of 3D Printing Technology to Use: LCD - DLP - SLA
Appropriate Resolution of the 3D Printer: 2K To High
The Best Type of Resin to Use: Basic Resin Grey (Standard)
Details are considered appropriate to the scale of the model.
Product files:
AIM 54C-P1-Sc10. (STL)
AIM 54C-P2-Sc10. (STL)
AIM 54C-P3-Sc10. (STL)
AIM 54C-P4-Sc10. (STL)
AIM 54C-P5-Sc10. (STL)
AIM 54C-P6-Sc10. (STL)
General Rack A-P1-Sc10. (STL)
General Rack A-P2-Sc10. (STL)
Assembly Instructions Manual. (PDF)
Decal File (Open Layers-DPI 600-Size A5). (PDF)
Label File (Open Layers-DPI 300-Size A6). (PDF)
Decal Manual. (PDF)
Cutting File. (CAD)
Description:The AIM-54 Phoenix is an American radar-guided, long-range air-to-air missile (AAM), carried in clusters of up to six missiles on the Grumman F-14 Tomcat,its only operational launch platform.
The Phoenix was the United States' only long-range air-to-air missile. The combination of Phoenix missile and the Tomcat's AN/AWG-9 guidance radar meantthat it was the first aerial weapons system that could simultaneously engage multiple targets. Due to its active radar tracking, the brevity code Fox Threewas used when firing the AIM-54.The act of the missile achieving a radar lock with its own radar is known under brevity as 'Going Pitbull'.
Both the missile and the aircraft were used by Iran and the United States Navy. In US service both are now retired, the AIM-54 Phoenix in 2004 and the F-14 in 2006.
They were replaced by the shorter-range AIM-120 AMRAAM, employed on the F/A-18 Hornet and F/A-18E/F Super Hornet—in its AIM-120D version,thelatest version of the AMRAAM just matches the Phoenix's maximum range.
The AIM-54 has been used in 62 air-to-air strikes, all by Iran during the eight-year Iran–Iraq War.Following the retirement of the F-14 by the U.S. Navy, theweapon's only current operator is the Islamic Republic of Iran Air Force.
Instagram:
https://www.instagram.com/aircraft_model_studio
https://www.instagram.com/ams.object
3D printing settings:
Types of 3D Printing Technology: LCD
Layer Height: 0.05 mm
Bottom layer Count: 4
Exposure Time: 2s
Bottom Exp Time: 30s
Light-Off Delay: 2s
Bottom Light-Off Delay: 2s
Lifting Distance: 6mm
Bottom Lift Distance: 6mm
Lifting Speed: 180 mm/min
Bottom Lift Speed: 180 mm/min
Retract Speed: 240 m/min
Bottom Retract Speed: 240 m/min
Anti-aliasing: on - Level 4
Note:It is better to use the resin and settings recommended by your 3D printer company.
