Automatic Booster Impeller Assembly and Pressing Line 3D model

$289

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

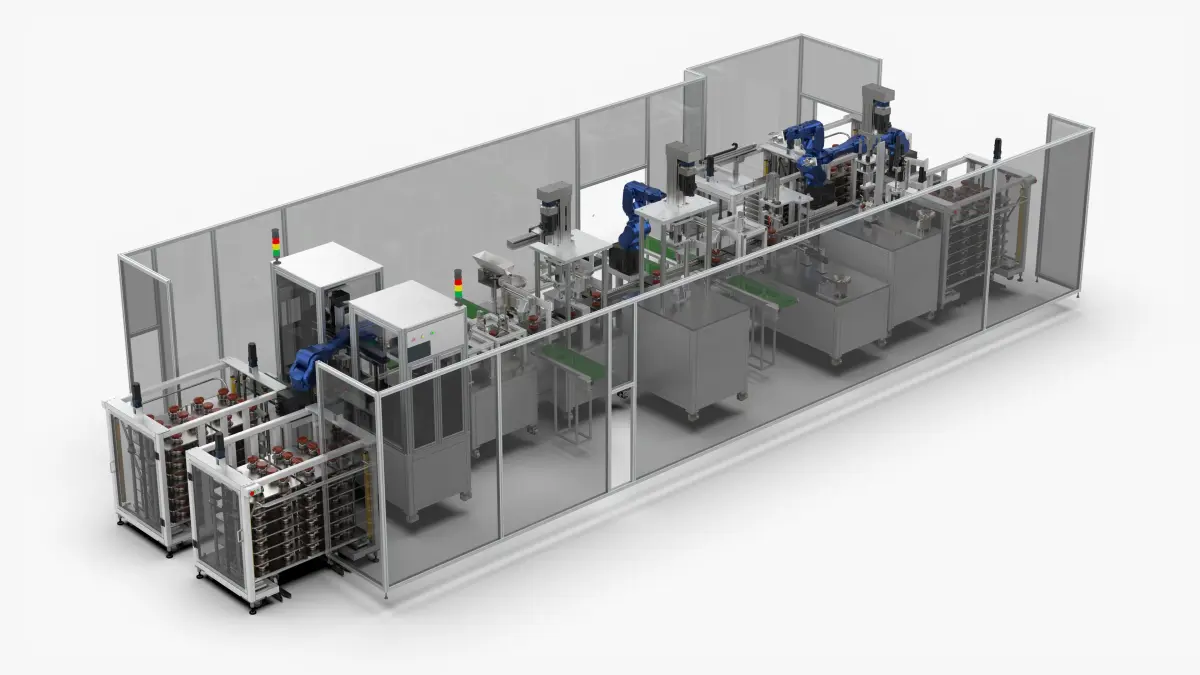

Automatic Booster Impeller Assembly and Pressing Integrated Assembly Line

Introduction

Non-standard automatic pressurized impeller assembly and pressing line body includes timing analysis diagram description

This production line is composed of multiple assembly machines + various types of conveyor lines, so as to realize full-line automation Brand, so as to ensure the stability and service life of the equipment;
Equipment performance: beat: about 38s/1PCS
Equipment shape parameters and required number of operators:

3.1. The length of the line body is 9 meters, the width is 4.5 meters, and the working height is 0.9 meters .

3.2. A total of one person is required for the line body to operate the feeding, loading and unloading tray, and NG unloading:
