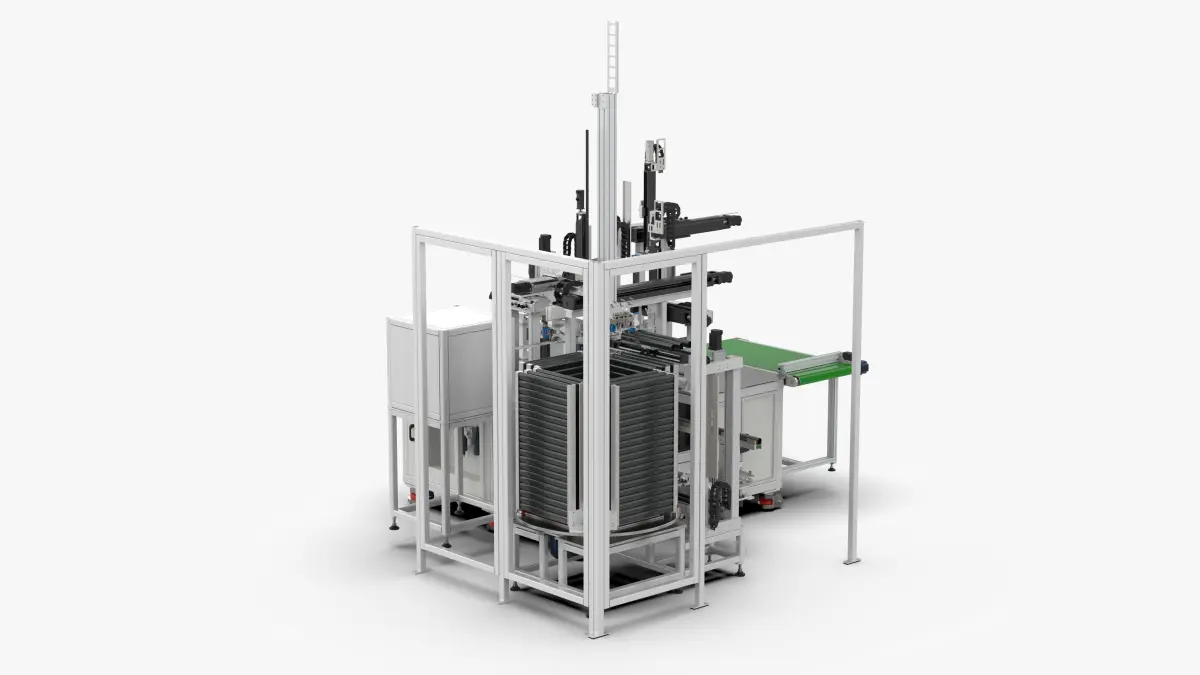

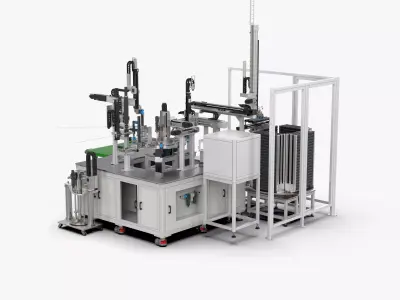

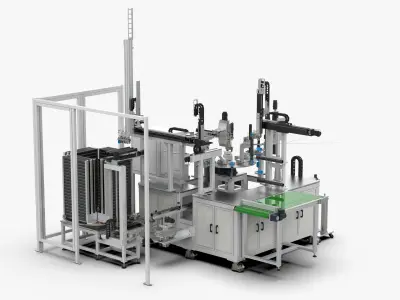

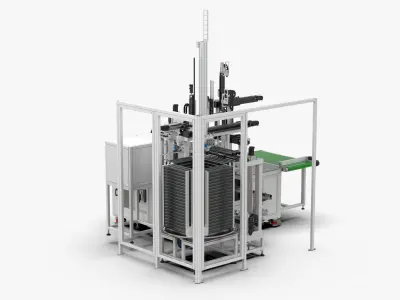

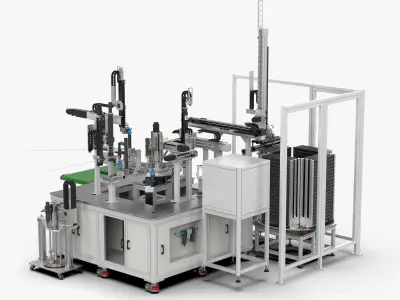

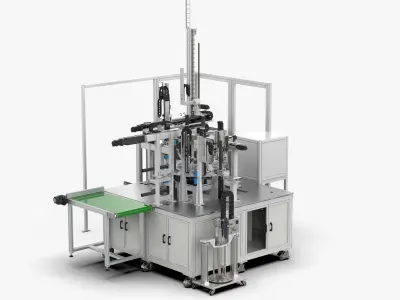

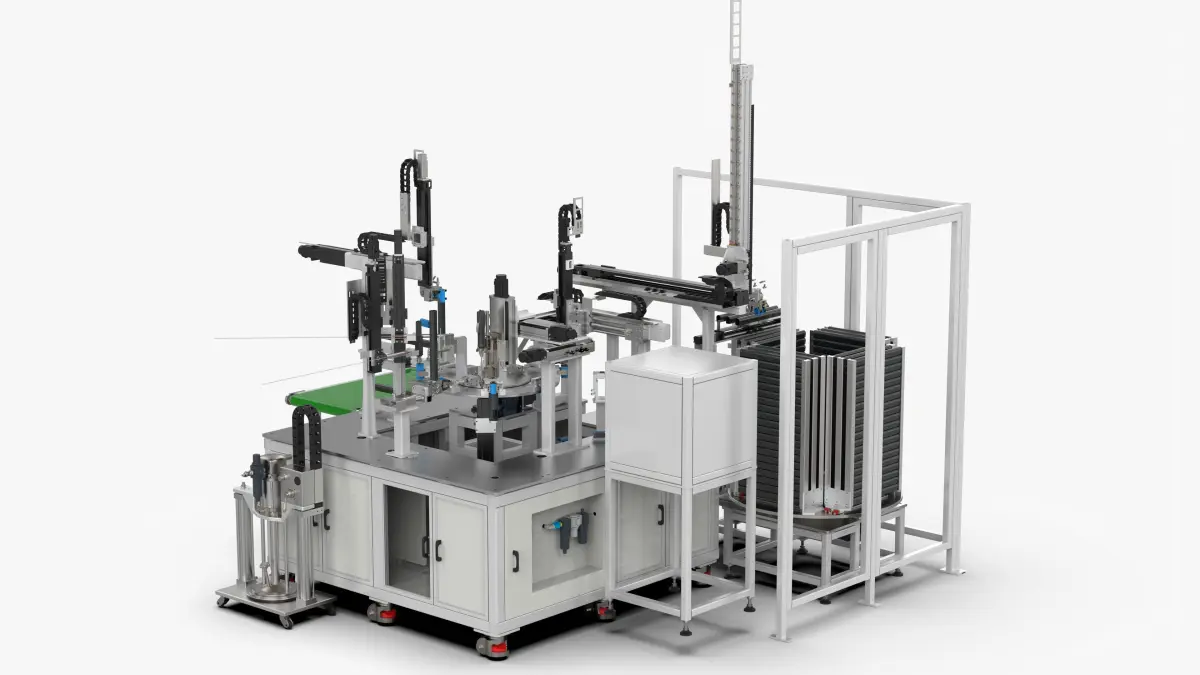

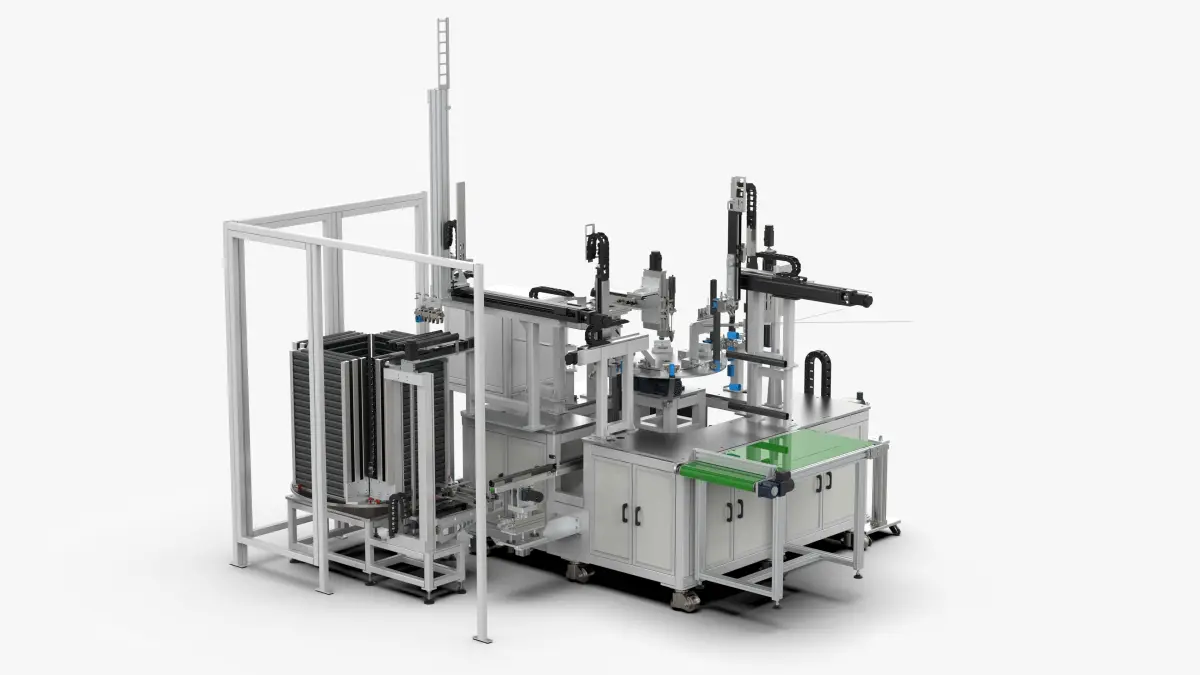

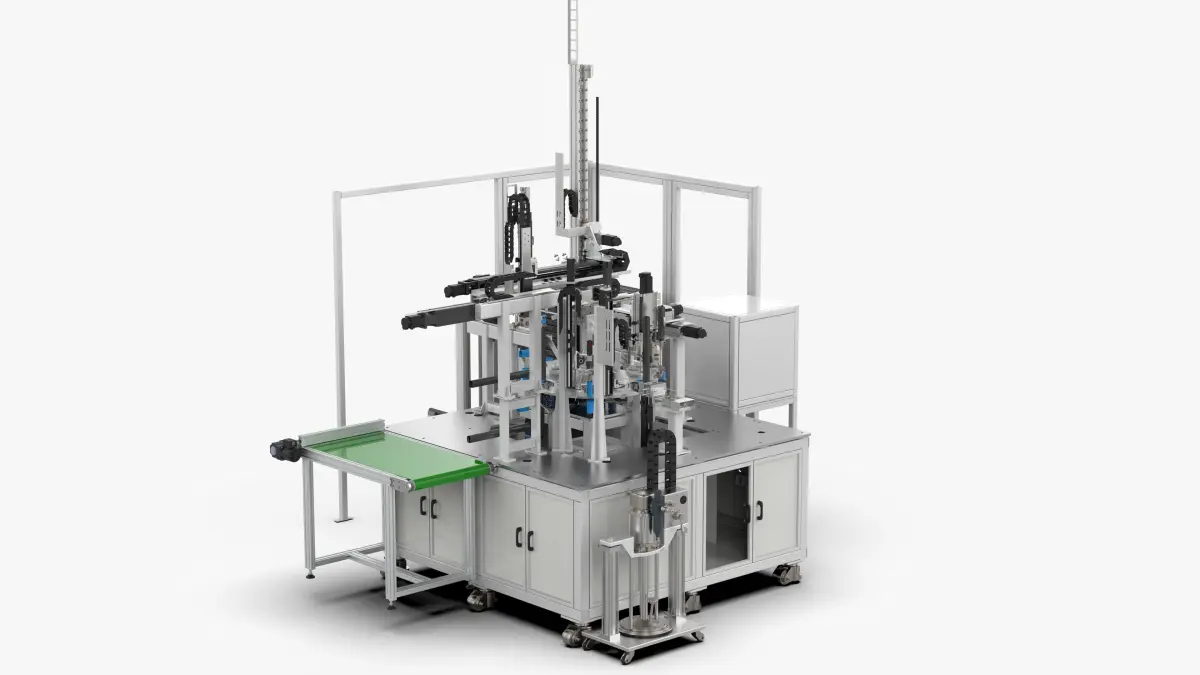

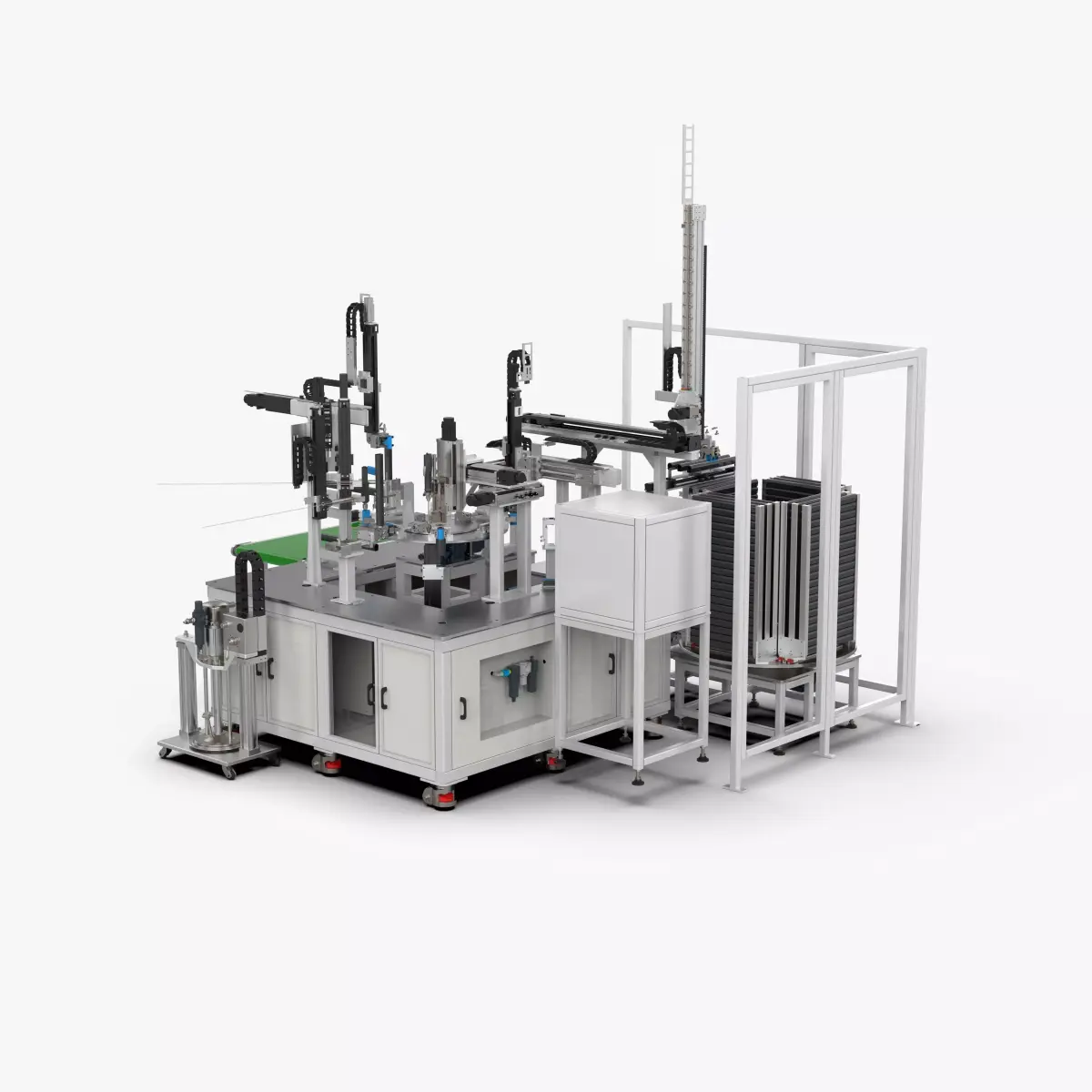

Automatic Electric Push Rod Shell Assembly Machine

Introduction

The special-shaped tube assembly equipment can meet the automatic feeding of special-shaped aluminum tubes of different lengths and specifications. The special clamping claw can clamp three outer tubes at the same time. The clamping force is large, ensuring that the aluminum tubes clamped by the cantilever will not fall off. Will not pinch product. The end cover is fed by a vibrating plate, and after the end cover is installed, the screw is automatically screwed; after the screw is screwed, the product is turned around and the inner wall is oiled, which can meet the oiling of the inner wall of the outer tube of different lengths.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 6,100,237
  • Vertice: 18,300,711

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 6,100,237
  • Vertices: 18,300,711
  • Plugins used

Tags

Automatic Push Rod Shell Assembly Machine Solidwork Design Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()241 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • STEP ()118 MB
  • Stereolithography ()291 MB
  • IGES ()412 MB
  • OBJ ()494 MB
