Automatic Mobile Phone LED Assembly Dispensing Testing Equipment 3D model

$159

License: Royalty Free

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Automatic Mobile Phone LED Assembly Dispensing Testing Equipment

Introduction

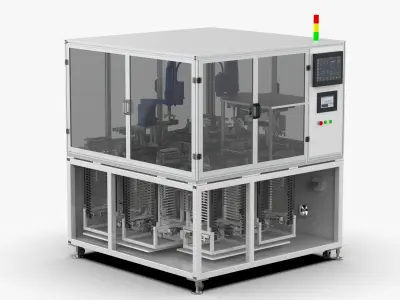

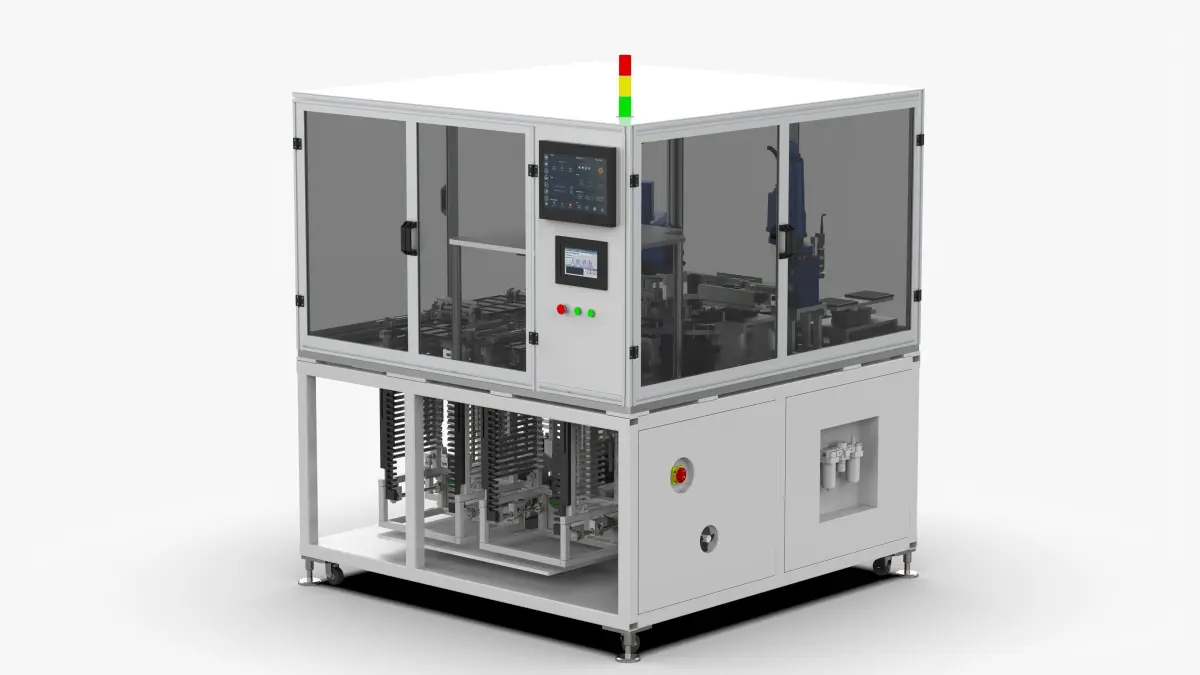

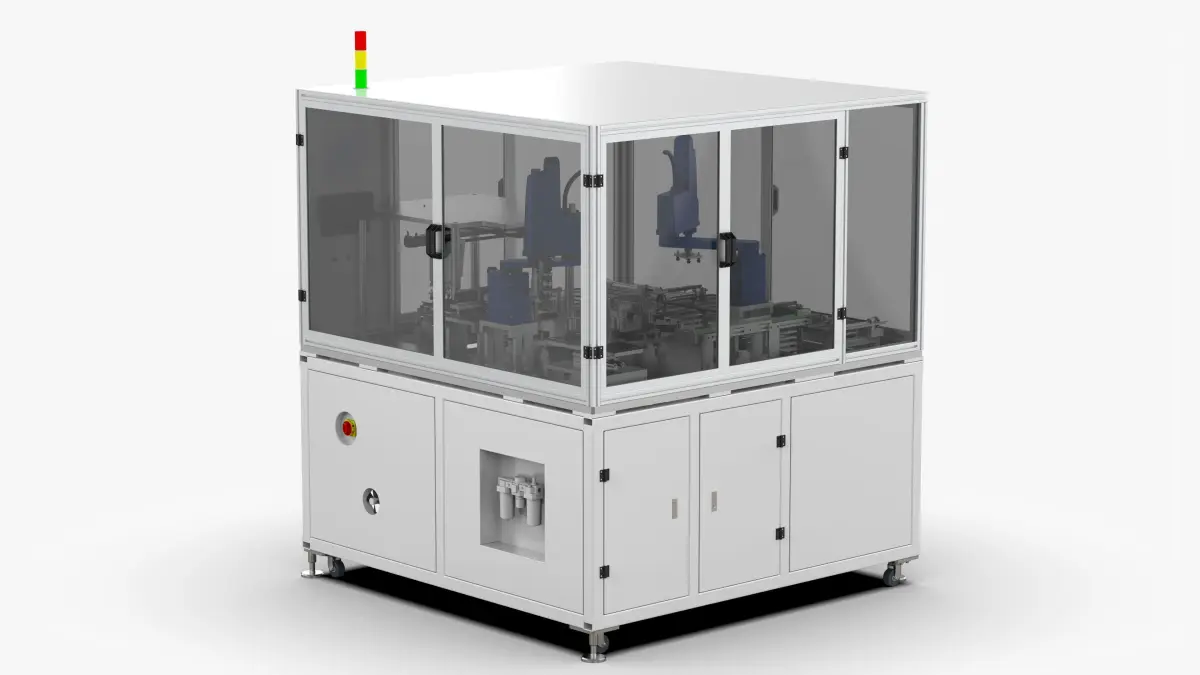

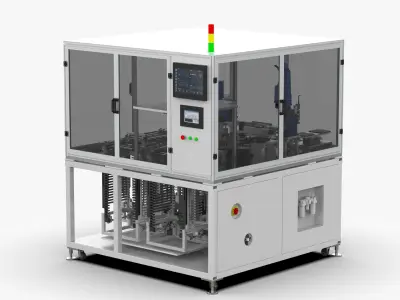

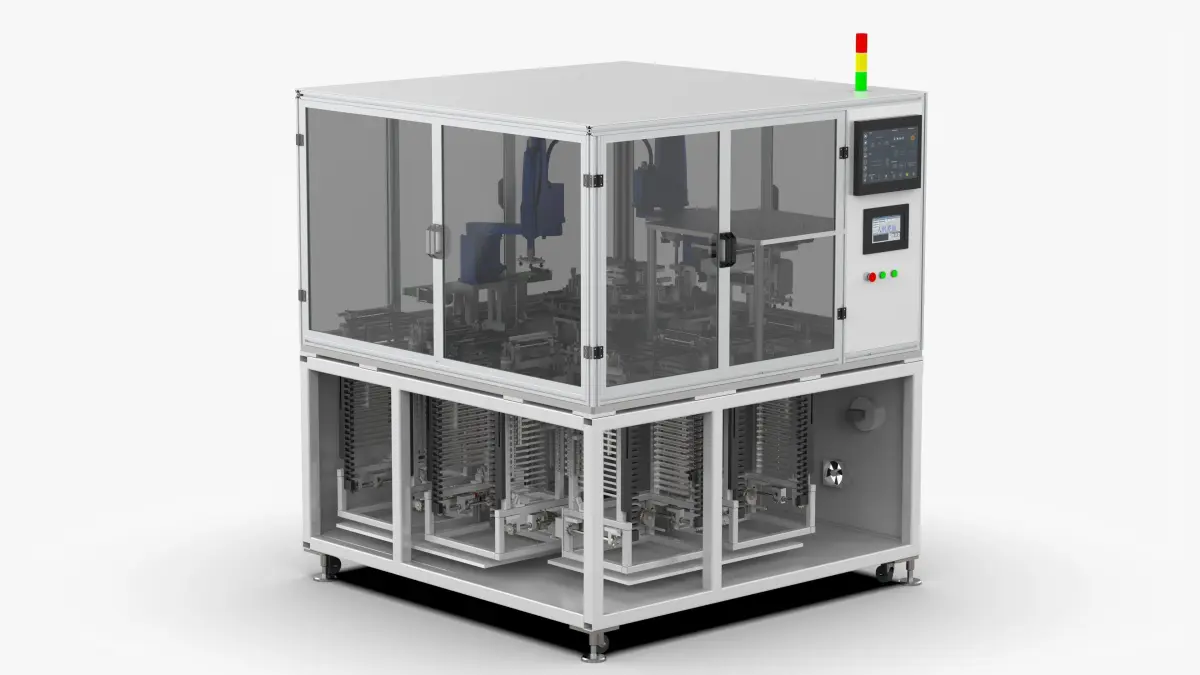

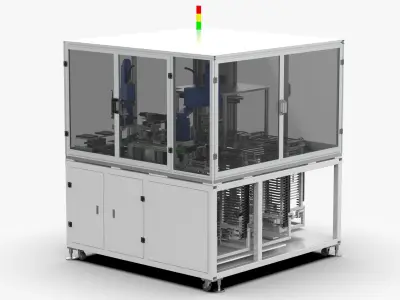

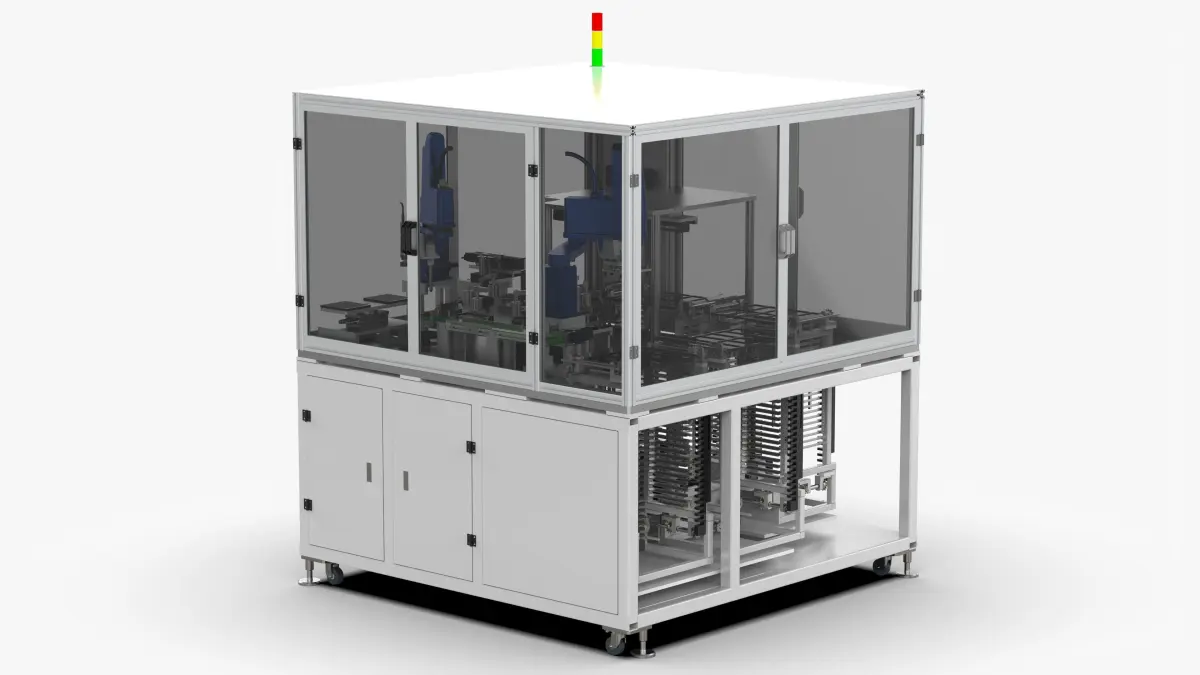

Mobile phone LED assembly dispensing testing equipment, the thickness of the table is 30mm, the lower frame is made of square tube welded door with stainless steel door, the upper frame is made of extruded aluminum frame, and the door is made of transparent acrylic. All the doors of the upper rack are equipped with sensors, and there is an alarm prompt when the door is opened. The equipment is equipped with an air storage tank, an air filter unit, etc. The turntable is driven by an 8-segment divider to complete the feeding, dispensing, fixing, testing and other stations, and the production equipment is running stably.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 3,474,408
Vertice: 10,423,224

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 3474408
Vertices: 10423224
Plugins used
Geometry: Polygon mesh

Tags

Automatic Mobile Phone Led Assembly Dispensing Testing Equipment Solidwork Design Modeling 3d Automation Machinery Part Machine Mechanism Line Production Robot Industrial Industrial machine
