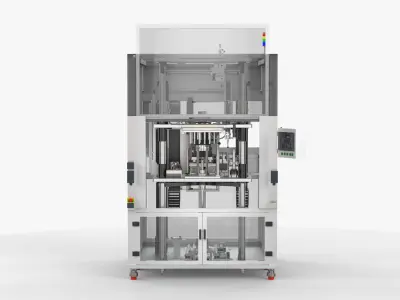

Automatic Motor Rotor and Stator Assembly Machine 3D model

$129

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

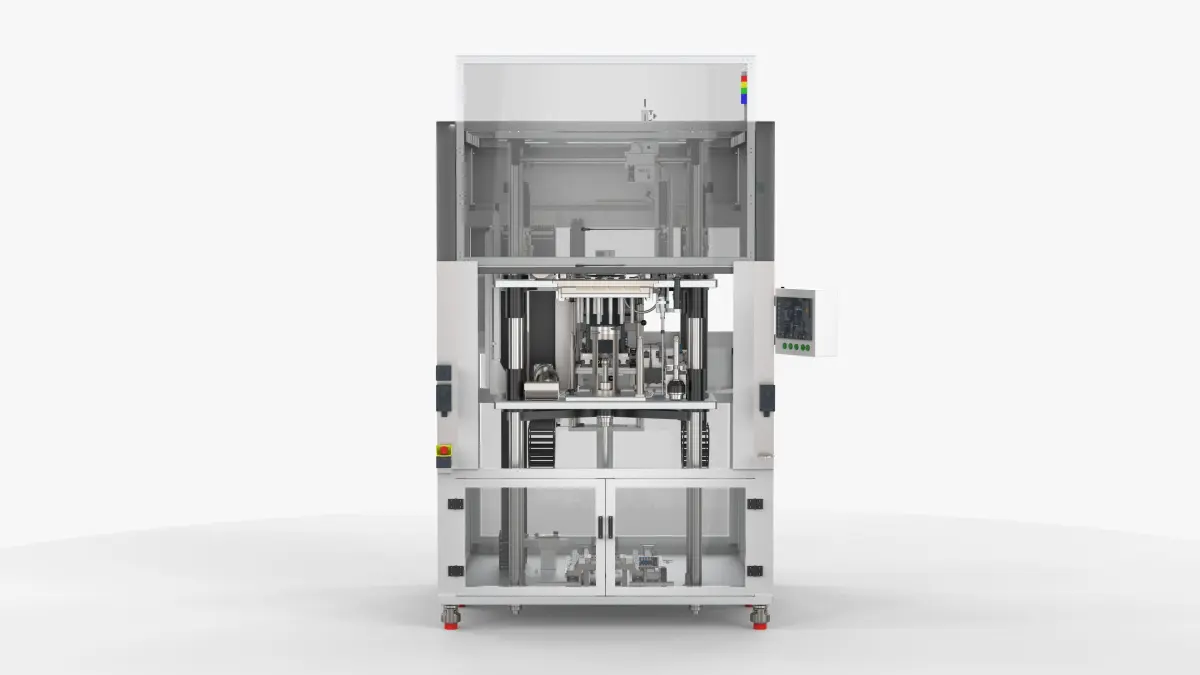

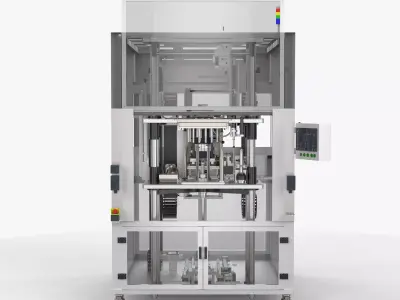

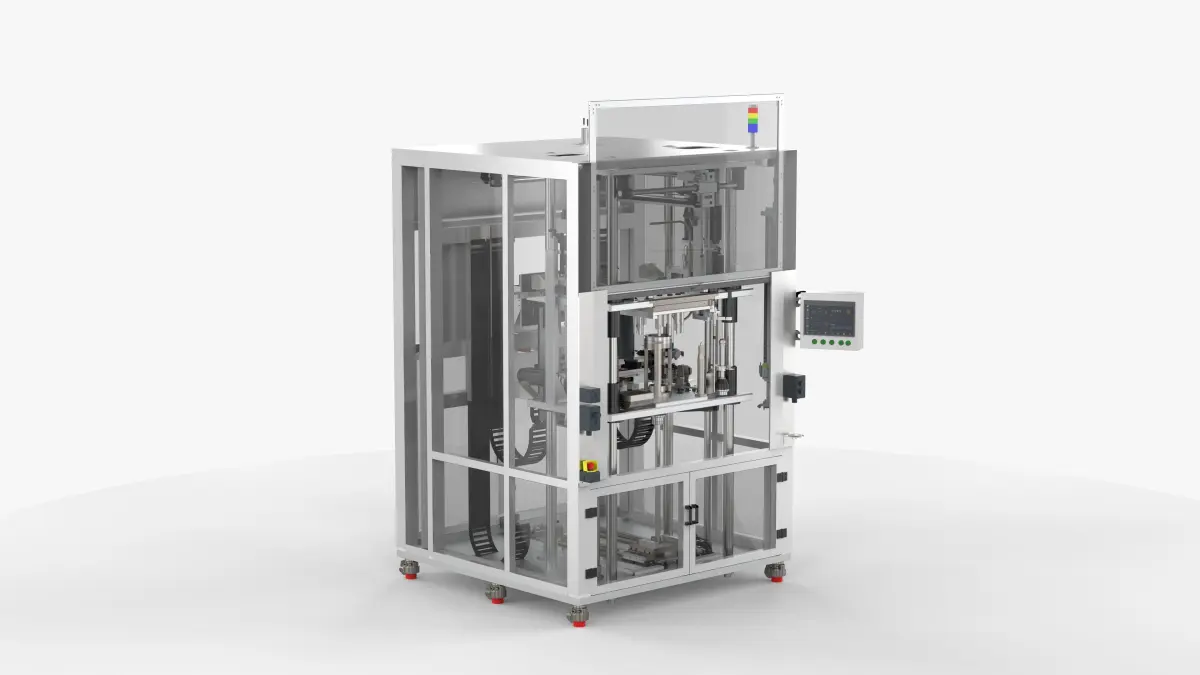

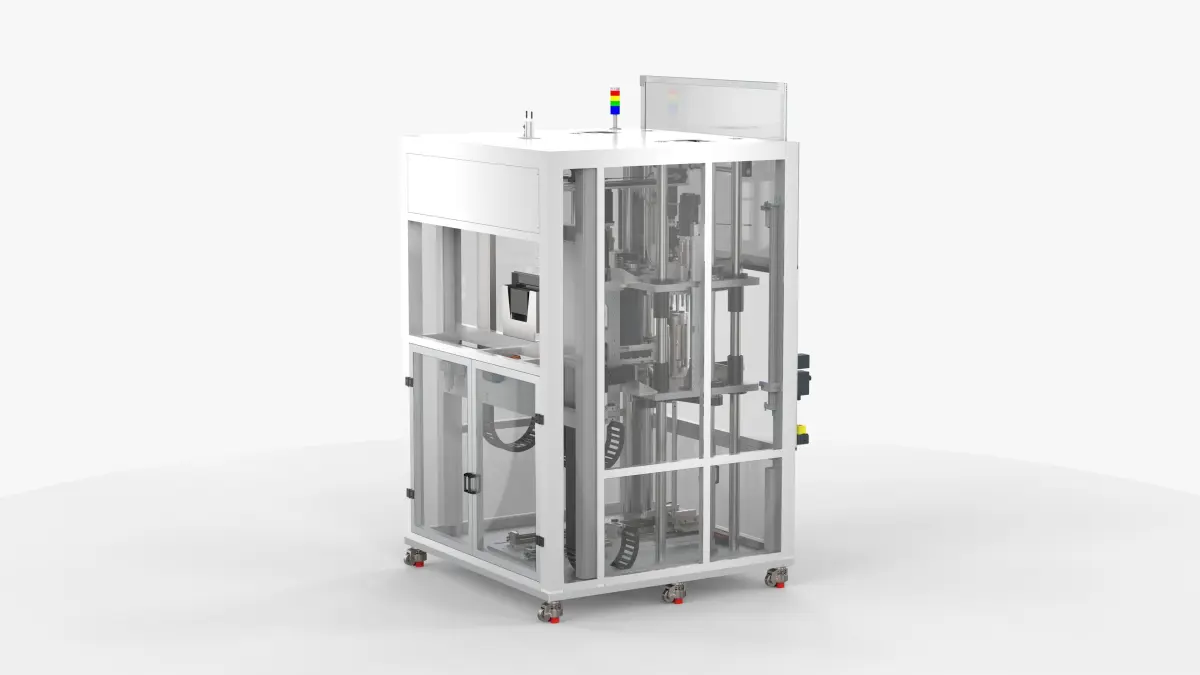

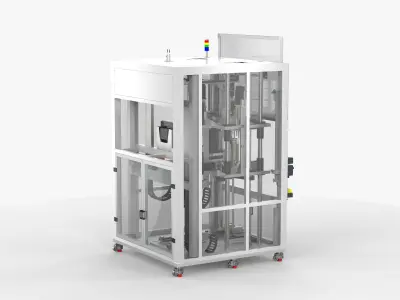

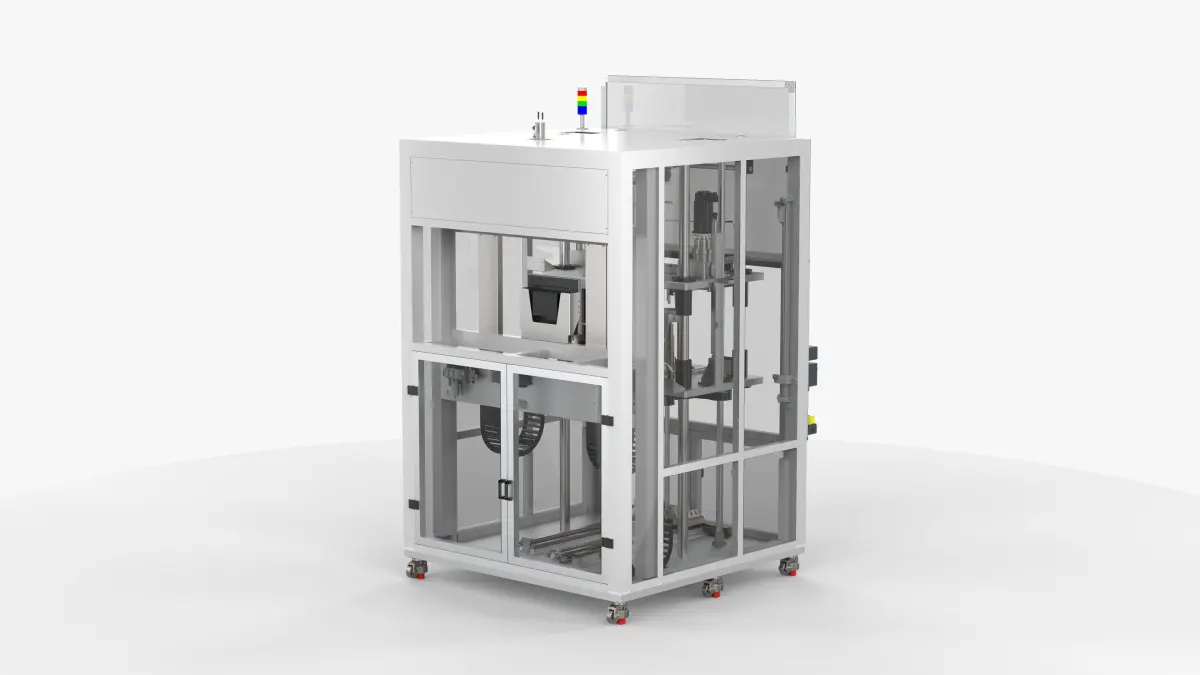

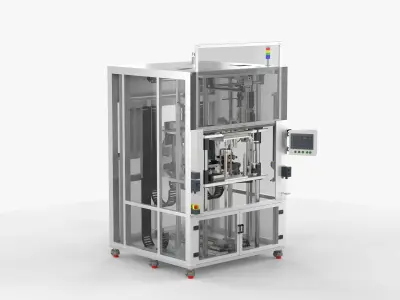

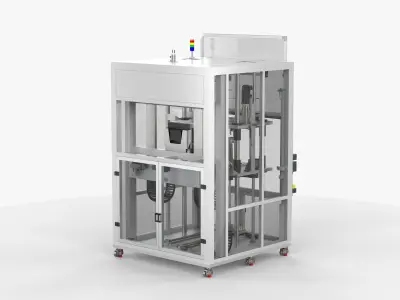

Automatic Motor Rotor and Stator Assembly Machine

Introduction

The motor stator and rotor equipment is a semi-automatic equipment with stable and reliable production and a compact and reasonable structure. The equipment includes the following processes: manual manipulator for motor stator, rotor feeding, rotor centering and positioning, rotor pressing, motor cover pressing, motor tightening, etc.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 7,284,836
Vertice: 21,854,508

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 7284836
Vertices: 21,854,508
Plugins used

Tags

Automatic Motor Rotor Stator Assembly Machine Industrial Solidwork Design Modeling Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial machine
