Automatic Pipe Bending Machine 3D model

$39

License: Royalty Free License

author:

Lovano

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.

Description

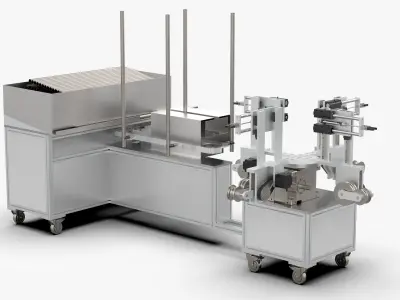

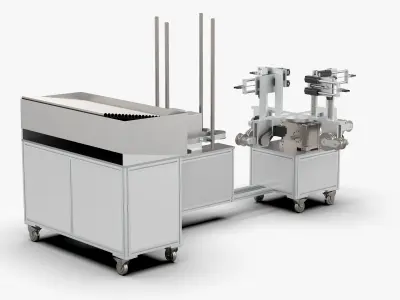

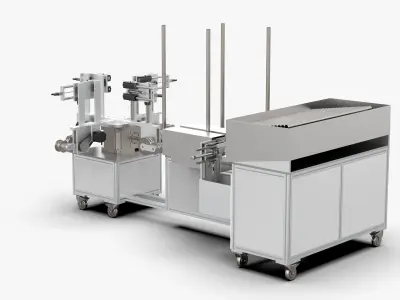

Automatic Pipe Bending Machine

Introduction

This mechanism is a special solution for bending rubber hose. A round tube is placed in the storage mechanism, the manipulator takes it out and sends it to the bent tube after heating, and uses the pressure wheel and the arc of the pressure wheel to press out the corresponding curvature to ensure that the tube does not deform.

File Formats

SolidWorks 2018 | Keyshot 10
STEP (Standard for the Exchange of Product Data)
IGES (Initial Graphics Exchange Specification)
STL (Standard Tessellation Language )
OBJ (Object Files)

Geometry

Polygons: 1,771,750
Vertice: 5,315,250

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1771750
Vertices: 5,315,250
Plugins used

Tags

Automatic Pipe Bending Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Metal Industrial Industrial machine
