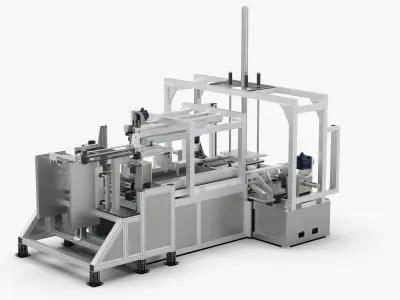

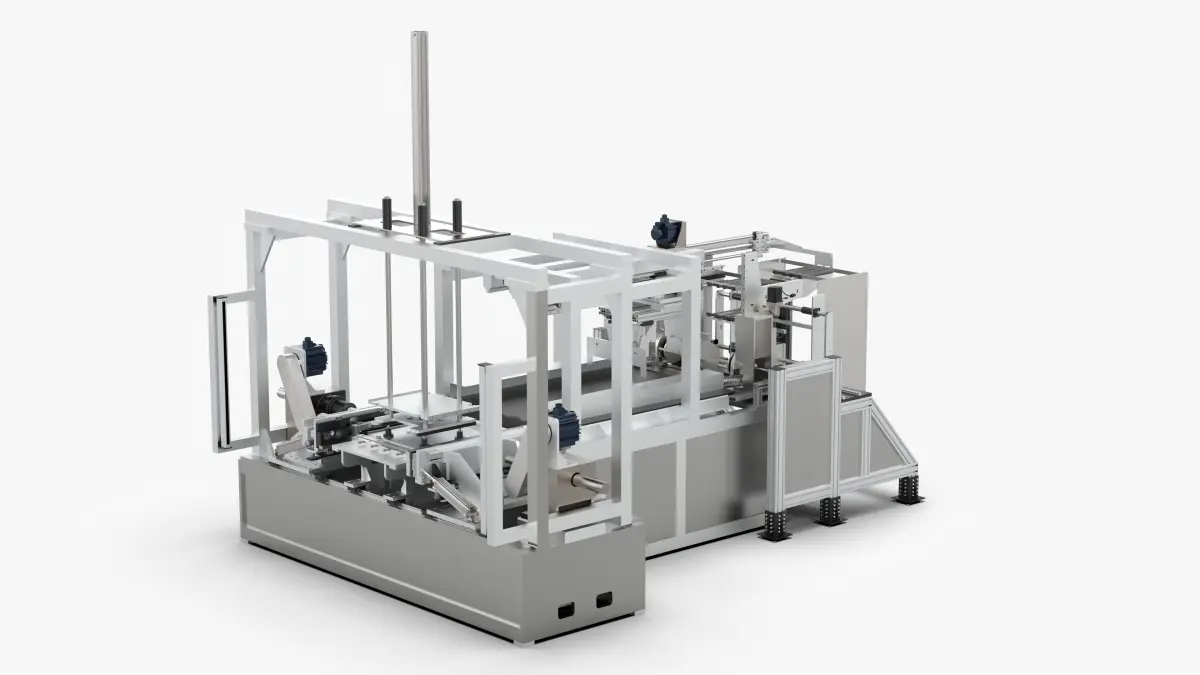

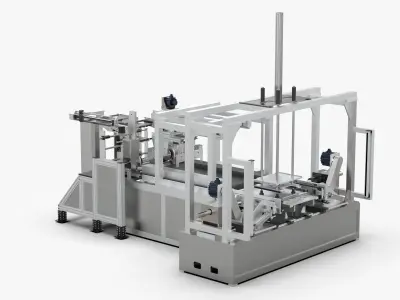

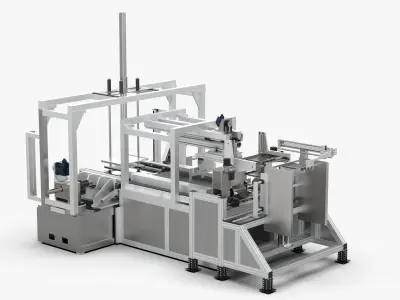

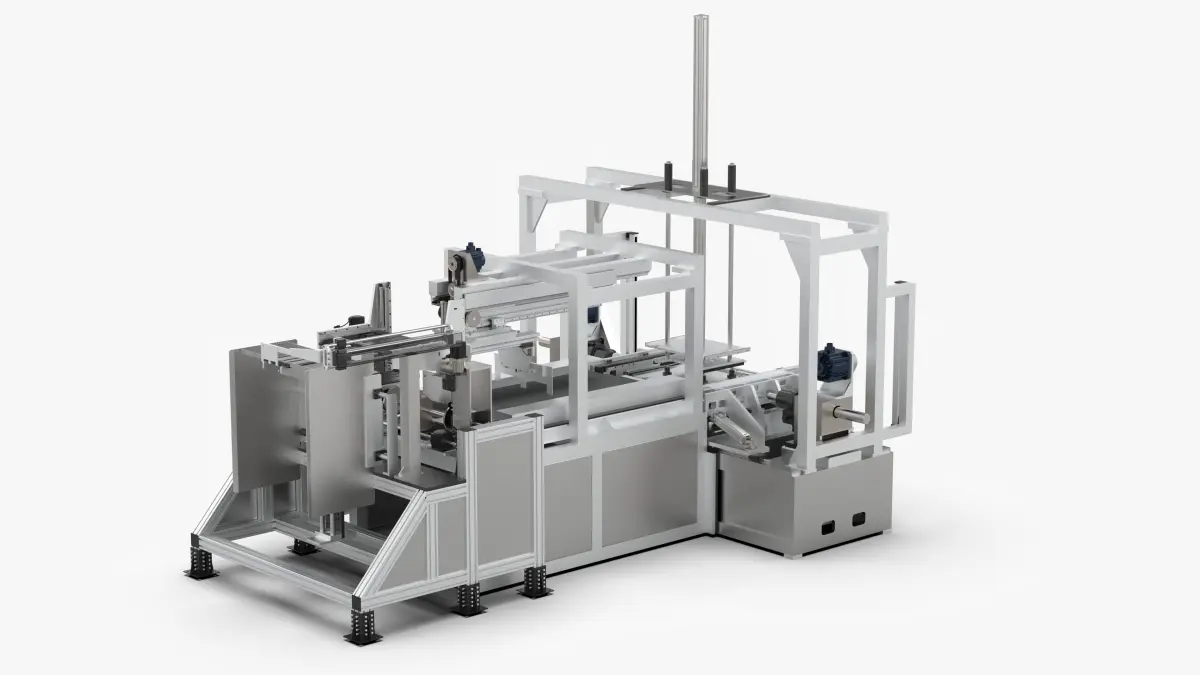

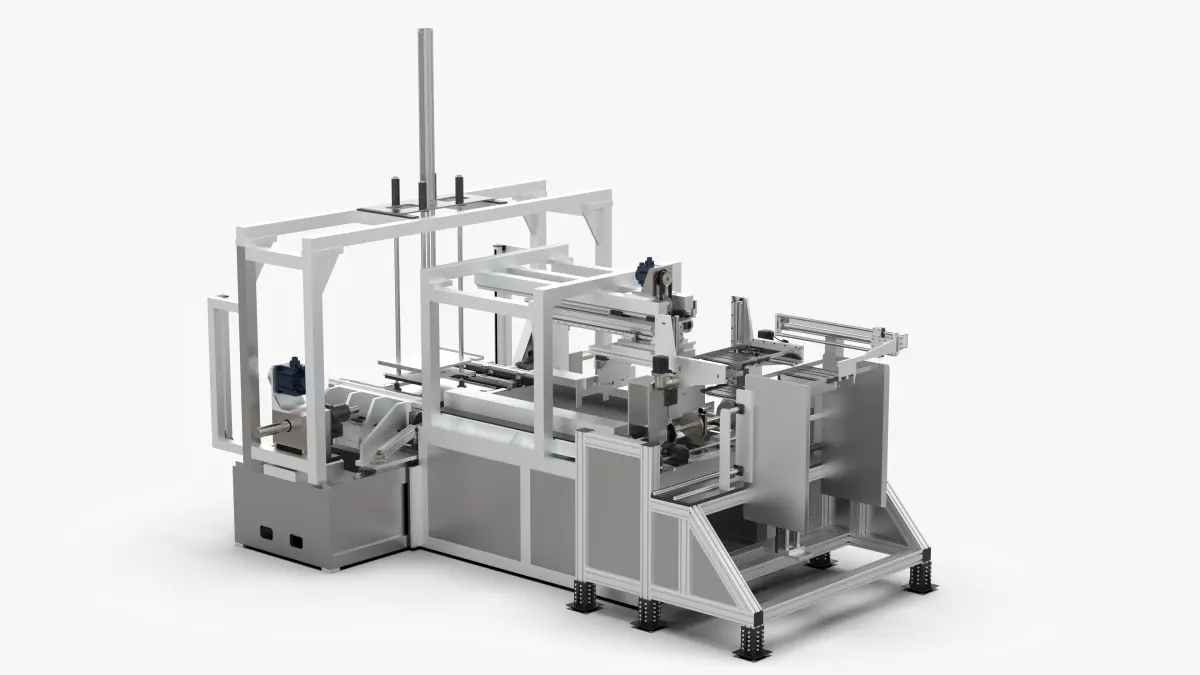

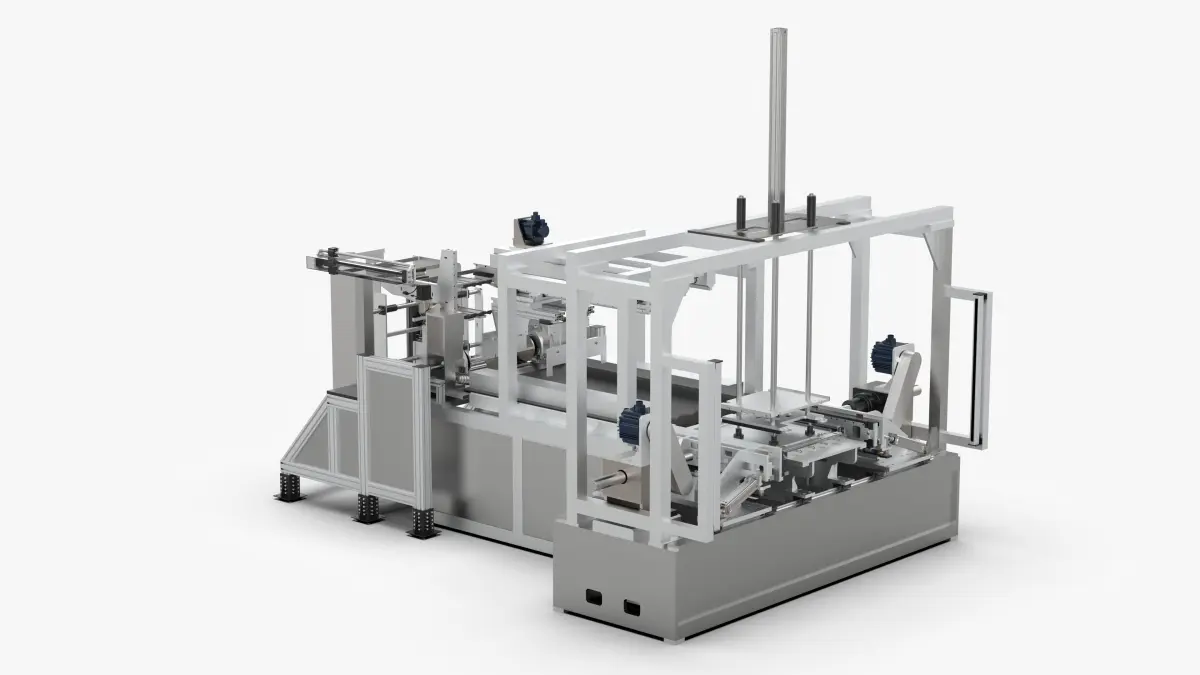

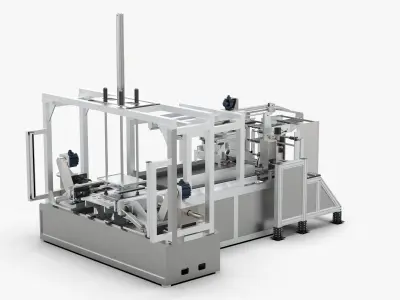

Automobile Radiator Assembly Machine 3D model
Home Catalog Aircraft part Automobile Radiator Assembly Machine 3D model
Automobile Radiator Assembly Machine 3D model
Automobile Radiator Assembly Machine 3D model
Automobile Radiator Assembly Machine 3D model
Automobile Radiator Assembly Machine 3D model
Automobile Radiator Assembly Machine 3D model

Publication date: 2023-03-10

Automobile Radiator Assembly Machine 3D model

$169

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $169 Add to Wishlist
  • Description
  • Formats
Description

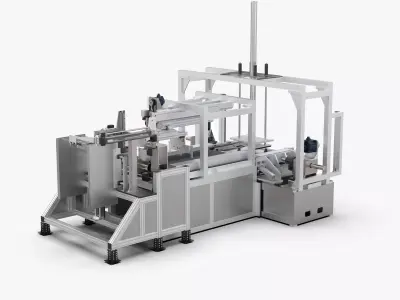

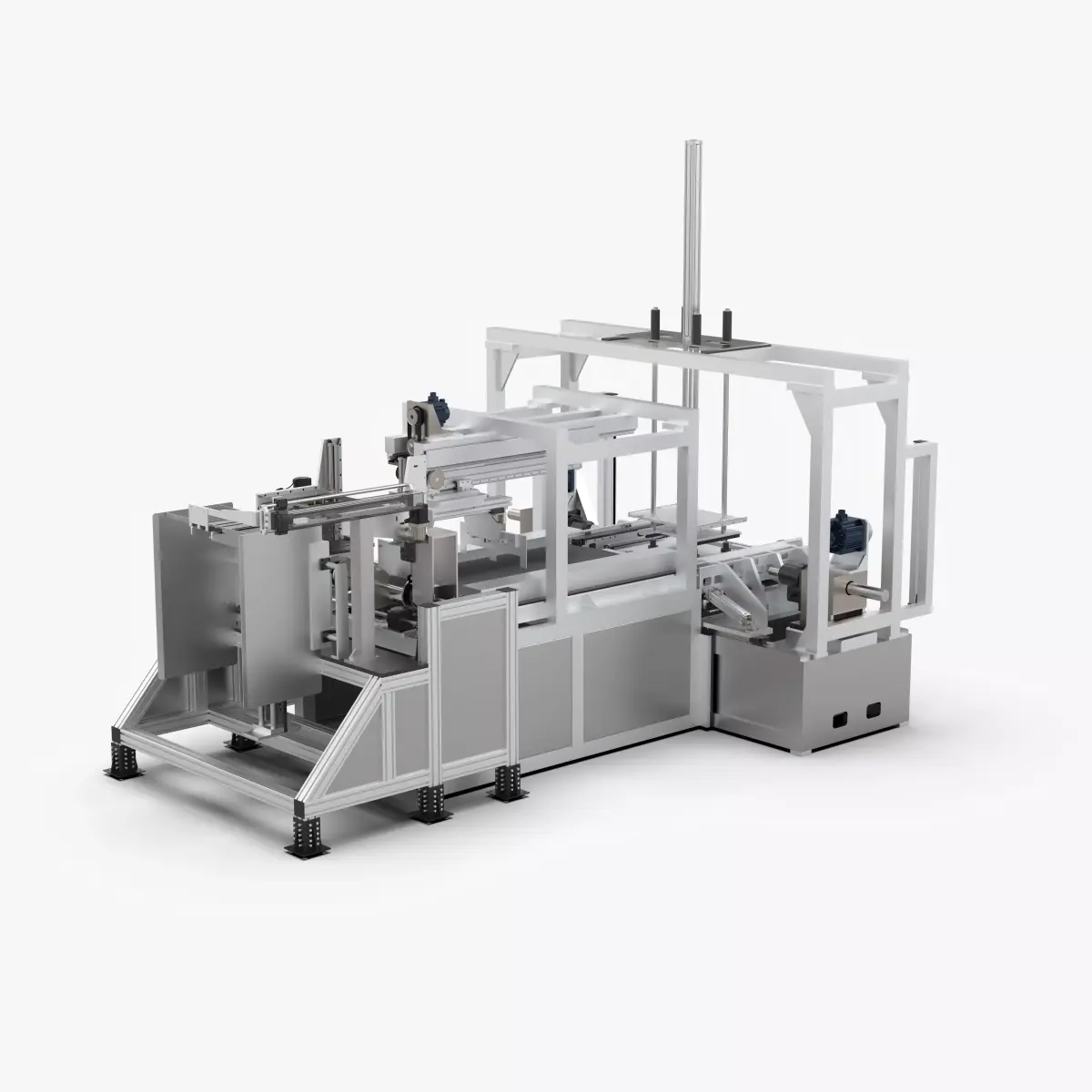

Automobile Radiator Assembly Machine

Introduction

Automobile Radiator Assembly Machine, Automobile Condenser Assembly Machine, Automobile Radiator

Production Line:

  1. Main board distance (direction of main board): 350-800mm.
  2. Core width (side direction): 350-800mm.
  3. Fin wave height: 4.9-8mm. (Specific waveform: 4.9; 5.4; 6; 7.5; 8)
  4. Fin width: 12-32mm. (Specific width: 12; 16; 18; 22; 26; 32)
  5. Thickness of flat tube (condenser): 1.0-1.8mm, length within 800mm.
  6. Flat tube width: 12-32mm. (specific width: 12; 16; 18; 22; 26; 32)

File Formats

  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 3,443,795
  • Vertice: 10,331,385

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 3,443,795
  • Vertices: 10,331,385
  • Plugins used

Tags

Automobile Radiator Assembly Machine Solidwork Design Modeling Automatic Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Radiation Heater Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
  • IGES ()484 MB
  • Stereolithography ()164 MB
  • STEP ()121 MB
  • OBJ ()262 MB
