Buy COLLECTION STANDARD PULLEY SHEAVE TRACK WHEEL DRIVE MULTI GROOVE 3D model

High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.

Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users

Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing

Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!

Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.

More Information About 3D Model :

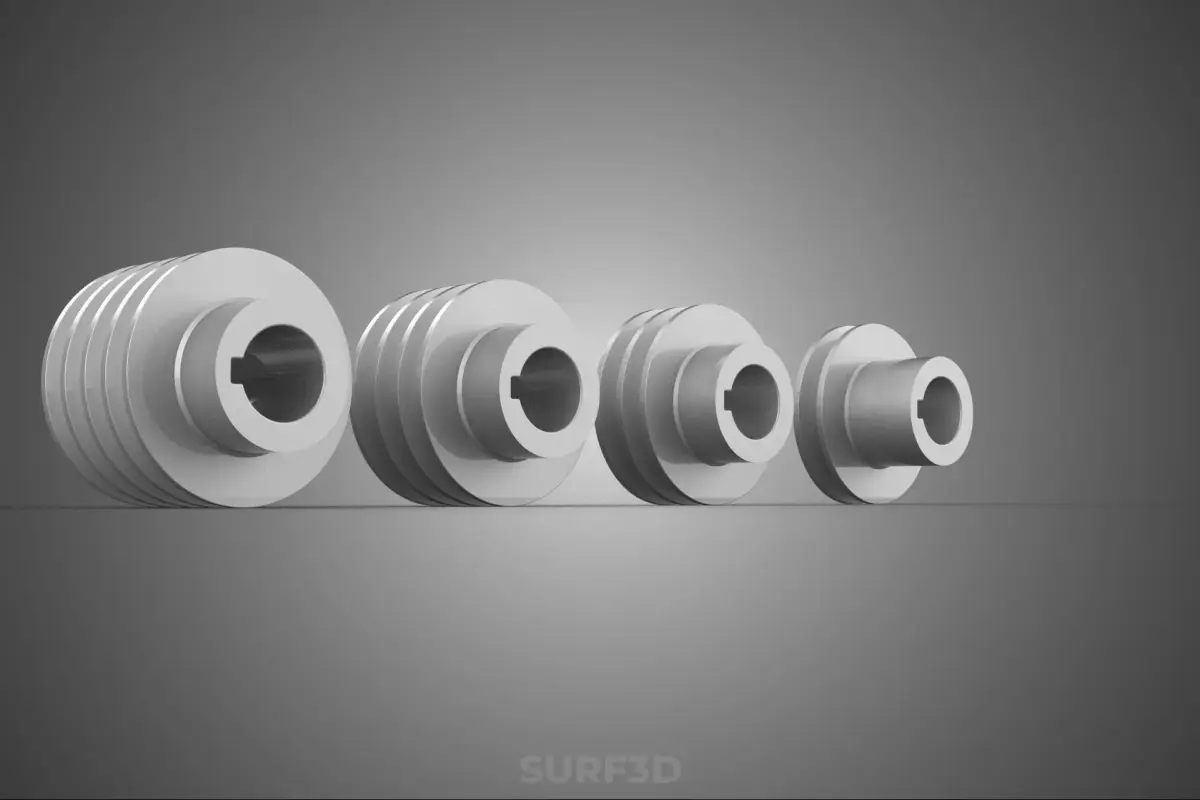

A collection of standardized mechanical components encompassing pulleys, sheaves, track wheels, and drive wheels, primarily characterized by their standardized dimensions and utilization of multi-groove profiles. This assembly serves as the fundamental interface for the reliable transfer of rotational kinetic energy, management of mechanical advantage, and the accurate guidance of linear movement within complex machinery and conveyance systems.

This collection represents a standardized inventory of passive and active mechanical elements integral to drive and motion systems. These components facilitate the redirection of flexible tension members (belts, ropes, cables) or provide rigid linear locomotion along defined pathways (tracks or rails). The common defining feature is the adherence to standardized specifications (e.g., ANSI, ISO, DIN) concerning bore size, pitch diameter, groove geometry, and material composition, ensuring interchangeability and predictable performance across diverse engineering applications.

Pulleys (typically used with flat or V-belts) and sheaves (often associated with cables or ropes) are designed to transmit torque or merely redirect the line of force. The multi-groove configuration is critical for high-power transmission applications, distributing the load across several engagement surfaces, thus reducing unit stress and minimizing slippage.

• V-Belt Pulleys: Feature trapezoidal grooves engineered to utilize the wedging action of the belt sides, increasing friction and efficiency. Multi-groove V-belt systems are commonly employed in heavy-duty machinery requiring reliable, high-torque transfer (e.g., compressors, machine tools).

• Timing Pulleys (Synchronous): While not exclusively multi-groove in the V-belt sense, synchronous pulleys feature precise teeth engagement profiles (often curvilinear or trapezoidal) across their circumference. The multi-tooth engagement acts as a multi-groove interface, ensuring positive, slip-free synchronization essential for indexing and precision timing applications.

• Materials: Standard components are typically fabricated from cast iron (high damping capacity), steel (high tensile strength), or aluminum alloys (low inertia), often coated or surface-treated for enhanced wear resistance.

  ### 3. Track Wheels and Drive Wheels (Linear Motion)

  Track wheels and drive wheels are specialized rolling elements designed to support radial and axial loads while traversing a fixed track or rail system. They are critical components in conveying, gantry systems, and rail-guided vehicles.


• Track Wheels (Guide Wheels): Primarily passive elements, track wheels provide lateral stability and vertical load bearing. They possess flanged edges or specific groove profiles (e.g., 90-degree V-groove, U-groove) that interface precisely with the track geometry, preventing derailment and ensuring controlled motion.

• Drive Wheels: These are active elements connected directly to a prime mover (motor/gearbox). They impart linear motion to the entire assembly through traction or engagement with racks/tracks. The standardization of the drive wheel profile ensures consistent rolling contact and predictable linear velocity, calculated based on the pitch diameter and track interface geometry.

• Standardization: Track and guide wheels are standardized based on their capacity to handle dynamic and static loading, and the compatibility of their groove profile with common structural standards (e.g., channel stock dimensions).

  ### 4. Standardization and Applications

  The standard designation across this collection ensures that components possess uniform metrics regarding tolerances (e.g., H7 bore tolerance), keyway dimensions, and groove pitch. This uniformity facilitates mass production, streamlines maintenance procedures through easy replacement, and allows engineers to incorporate these elements into designs with predictable performance characteristics, utilizing established calculation methods for tension, velocity ratio, and mechanical efficiency.

  Typical applications include:


• Industrial automation and robotics.

• Material handling and conveyor systems (belt conveyors, roller conveyors).

• Elevators, lifts, and hoisting apparatus.

• Gantry cranes and linear positioning stages.

  KEYWORDS: Power Transmission, Mechanical Advantage, Kinematics, Drive System, Sheave, V-Belt Pulley, Multi-Groove, Standardization, Track Wheel, Guide Wheel, Linear Motion, Torque Transfer, Pitch Diameter, Load Bearing, Conveyor Systems, Synchronization, Flange, Groove Profile, Rolling Element, Rotational Energy, ANSI Standard, ISO Standard, Component Interoperability, Traction, Gantry, Material Handling, Indexing, Mechanical Element, Tolerance, Drive Wheel.
