DC Electric Motor 2 coils 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

gustavo-belemmi

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «gustavo-belemmi». CGhub does not claim copyright ownership over the content used.

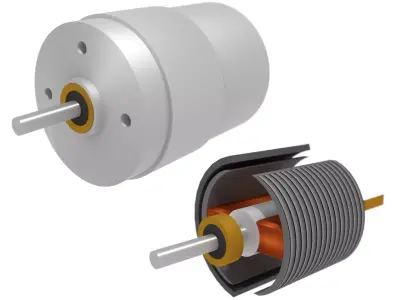

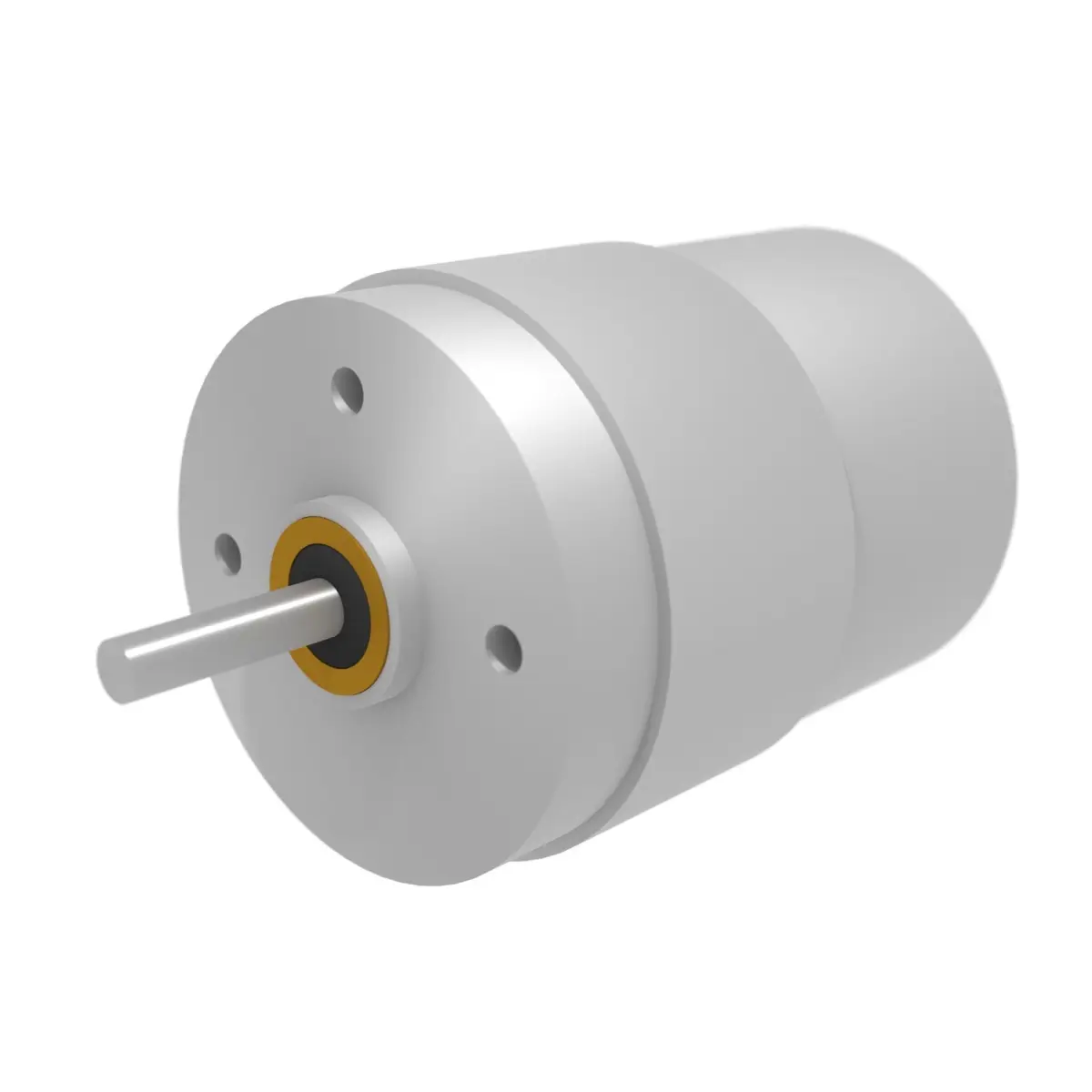

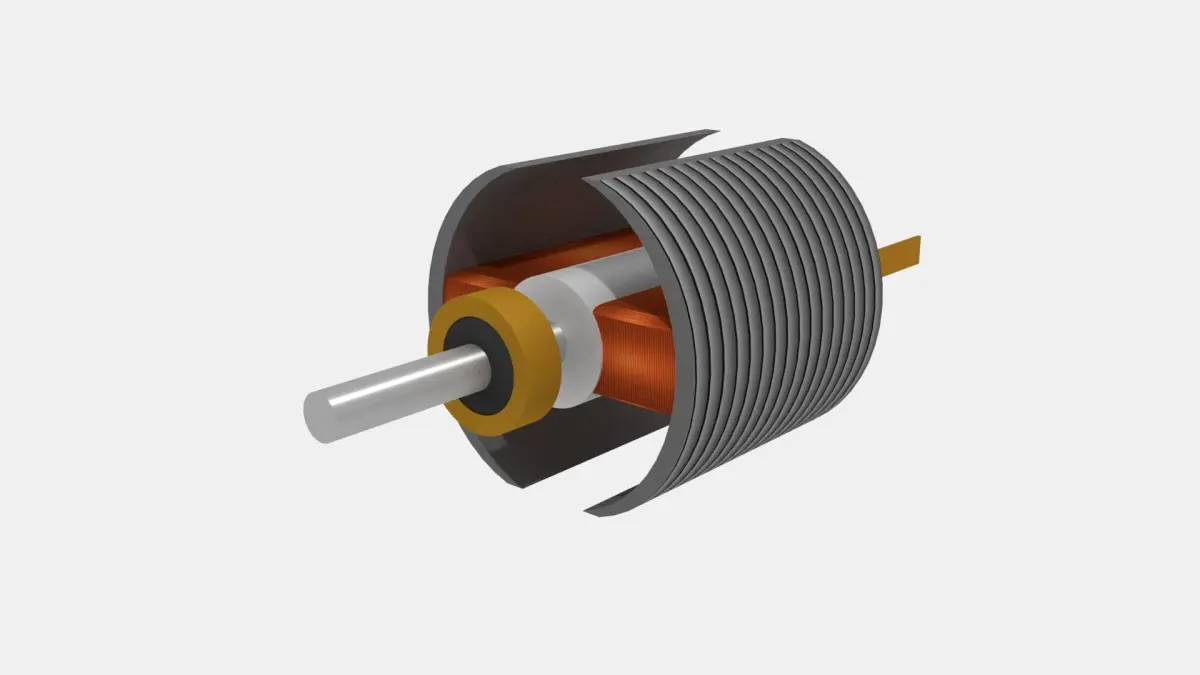

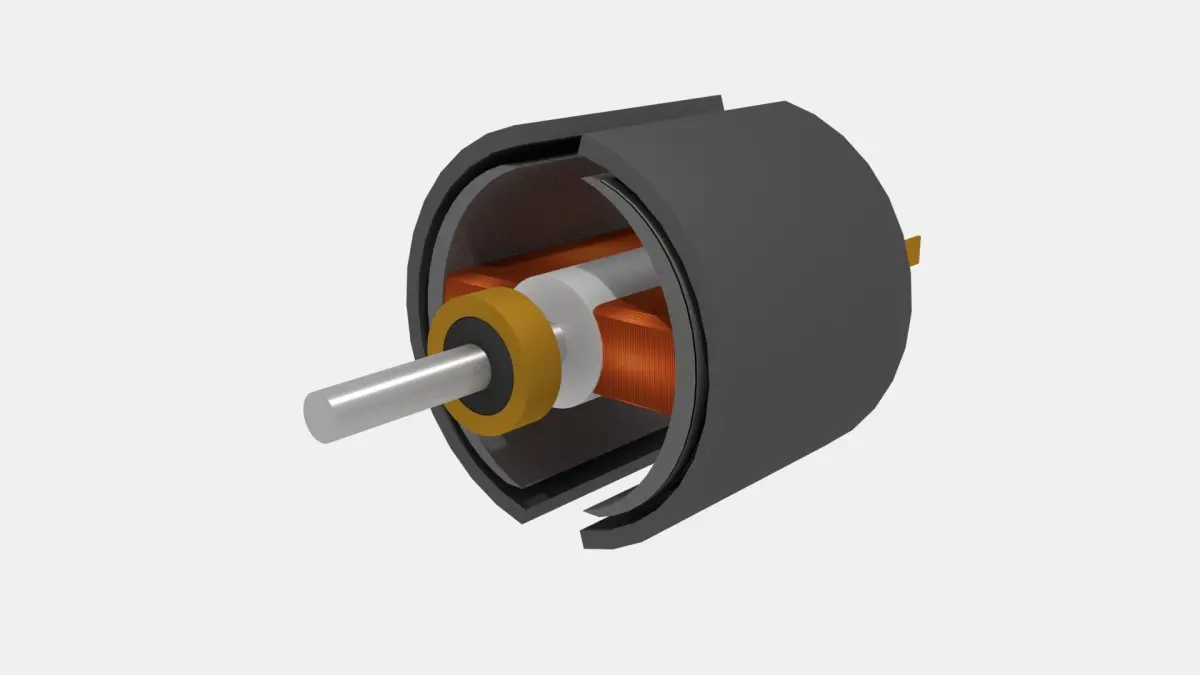

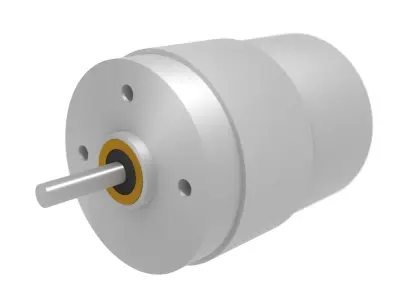

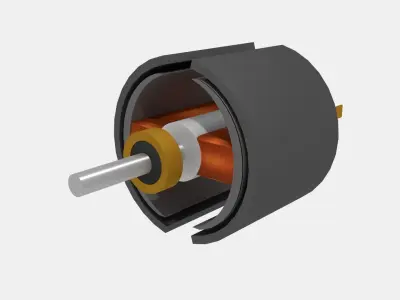

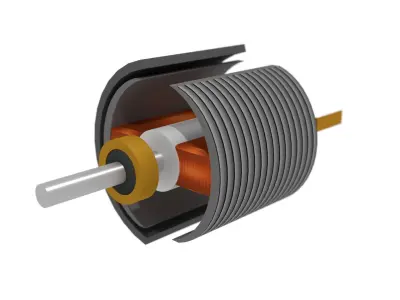

This is a very simple generic DC electric motor with two electromagnetic coils. It has internal and external parts, so this model can be used to show the parts and operation of a DC electric motor.

This model is not precise and does not have real measurements. This motor was created for educational purposes.

The parts found in the engine are:

Case
Axis
Rotor
Stator
Brushes

Natively the engine was modeled in Blender, and was exported to the following formats: blend (Blender Render and Cycles Render), obj, fbx, 3ds, dae.

Along with the model I include two very simple textures of iron plates and copper wires, to be used in the electric motor.
