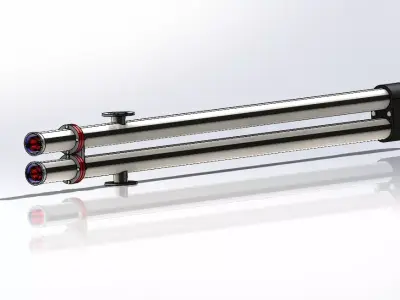

Heat exchanger Hairpin 3D print model

$10

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

merouane

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «merouane». CGhub does not claim copyright ownership over the content used.

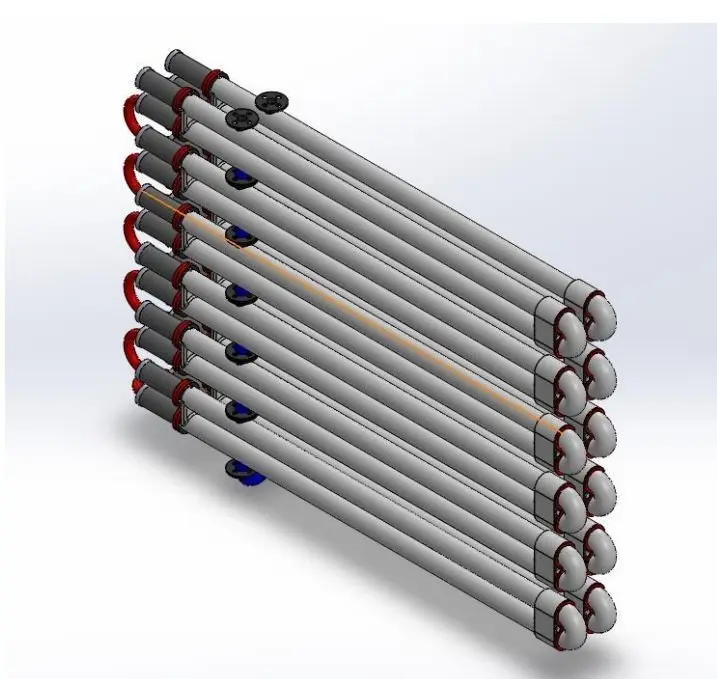

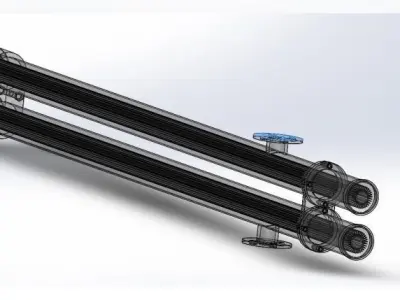

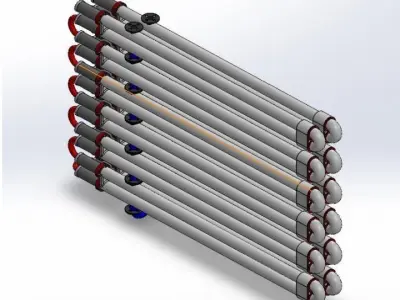

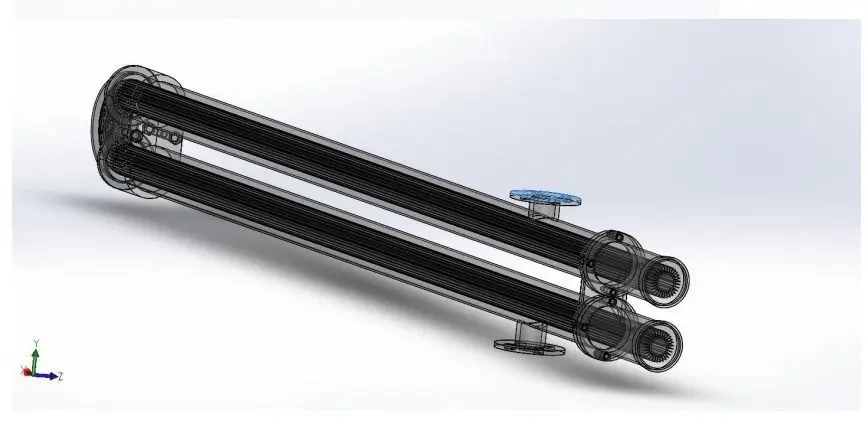

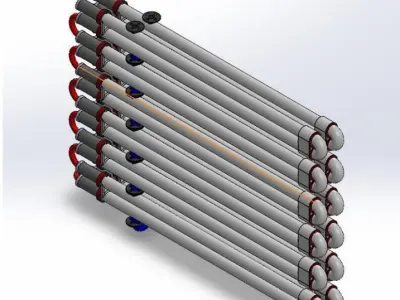

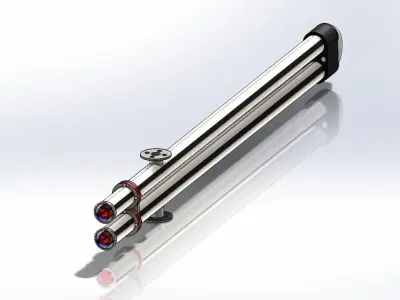

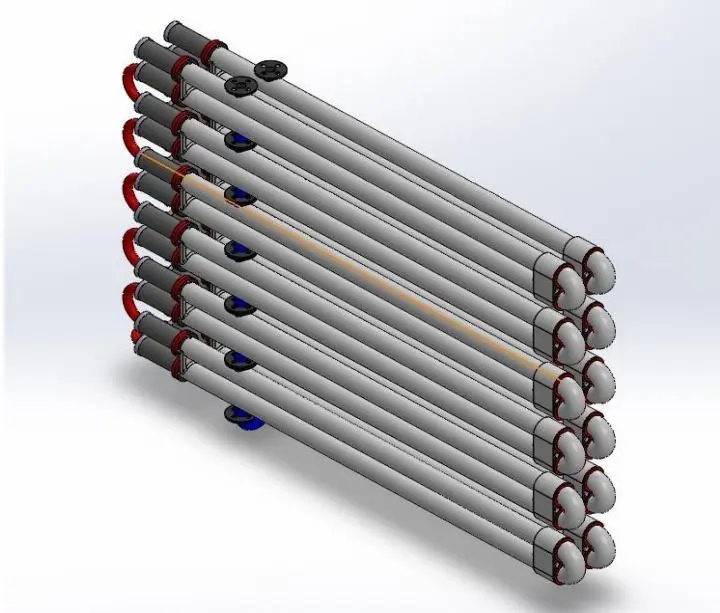

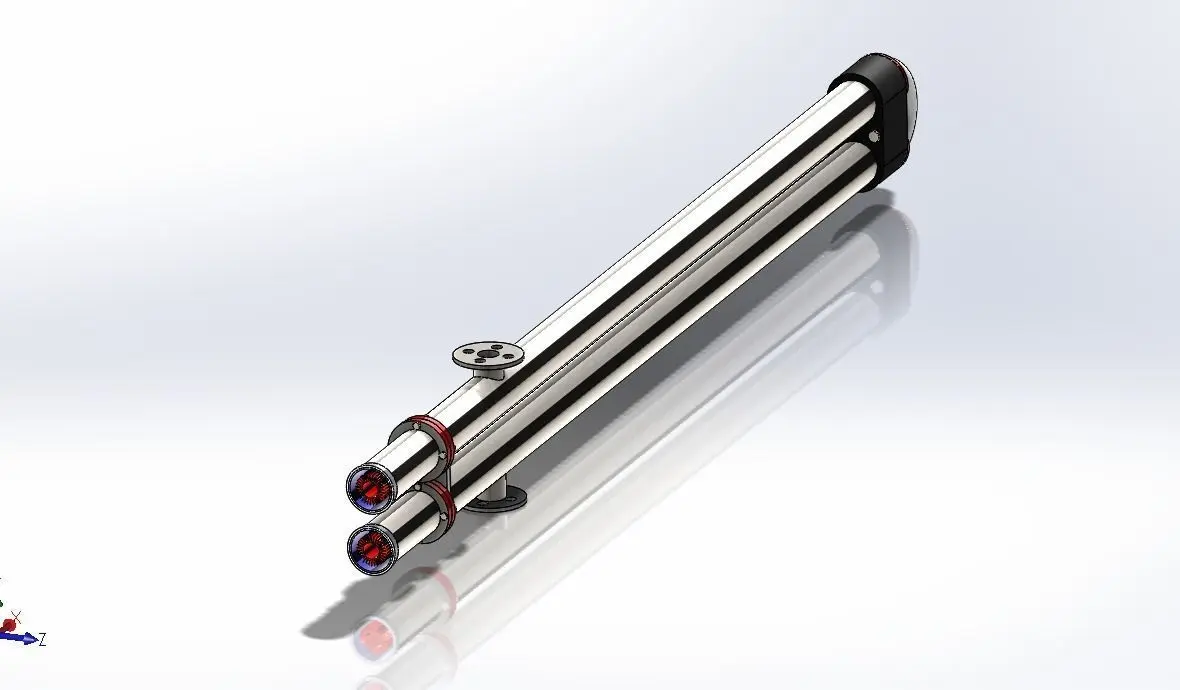

A hairpin heat exchanger can be described as a single-pass shell-and-tube unit that has been folded in half to give it a hairpin appearance. ... Hairpin heat exchanger closures allow for a removable tube bundle and accommodate thermal expansion without requiring expansion or packed joints.Hairpin exchangers are jacketed 'U' tube exchangers operating in a true countercurrent flow, allowing also temperature cross (hot fluid outlet temperature is below cold fluid outlet temperature) with a very efficient design.In this desing we have a studied model, with the solidworks drawings for every part, with the the study repport in needed.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Heat exchanger Hairpin Heat transfer Cooling Pipes Fins Industrial Machine Hvac equipment Solidworks Cad Drawings Thermal Engineering Science Heat Heater Energy Industrial machine
