If you look closely within the halls of Luthen Rael's Fondor HaulCraft ship you can see Handles mounted to the wall. Whats behind them? What happens when you pull on them? Are the fuel cells behind them? Who knows!
Luthen Rael Fuel Cell Container STL 3D Print File:
This listing includes digital files only; no physical items will be shipped.Ensure you have access to a 3D printer or 3D printing service.Due to the digital nature of the product, refunds or exchanges are not available.

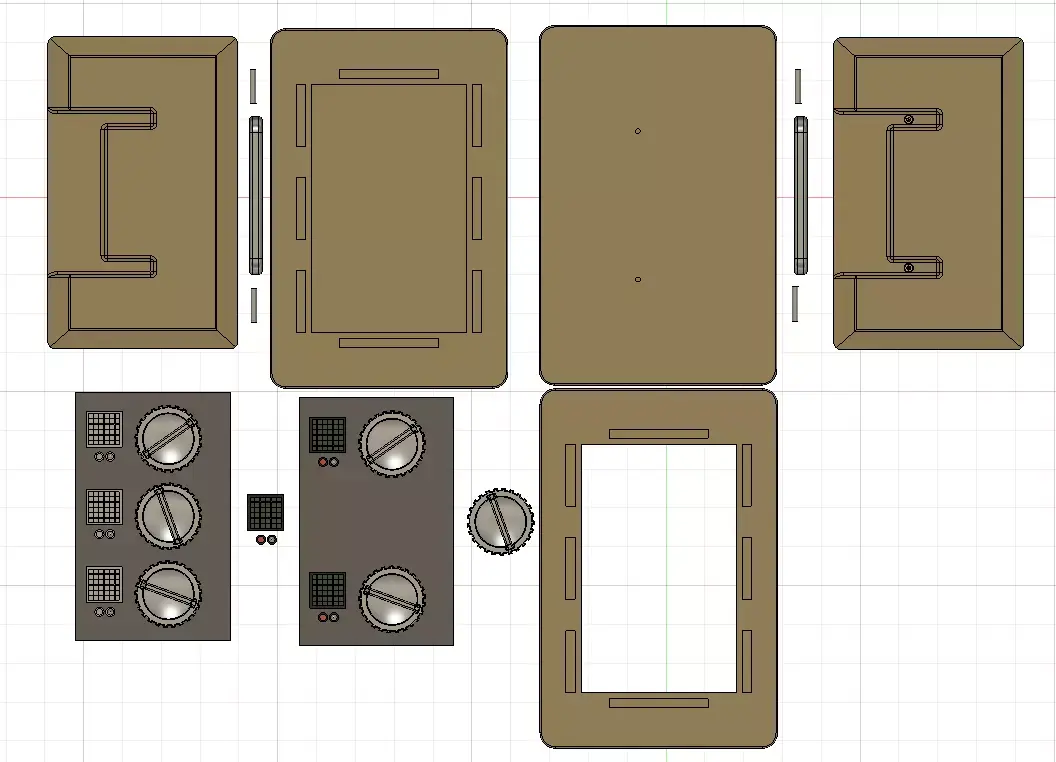

Dimensions (see pics): Scale it to your printer bed size!
Assembly:
- Print out all parts.
- Do a Dry Run / Test Fit before doing anything.There are two different types of Container:
- Static, for show
- Removeable lid which shows the fuel cells.
The Static version:
- Start with the lid
- Add the handle and use the pins from the underside
- Glue the pins to the inside of lid but do not glue the handle so it can move back and forth
- Use the SocketHeadCapscrew and glue the lid to the base or use real bolts
- If you choose to mount to a wall drill holes and fasten the base before fastening the lid
Pullout Version:
- Start with the lid
- Add the handle and use the pins from the underside
- Glue the pins to the inside of lid but do not glue the handle so it can move back and forth
- Use whichever base you choose: with or without hole
- Add the SolidInsert or print out all the pieces and glue to the InsertBase
PROTIP's:
- Paint and let dry before handling.
- Do a Dry Run / Test Fit before doing anything.
- Do not over tighten the screws
Enjoy!
Please let me know of any issues.
Whitey!
Join My Patreon for over 200 Awesome STL-DXF-SVG files and counting:Ask my Patrons and they will tell you that I am very active.$5 Tier and up get a Etsy 20% off Discount CodePatreon = WhiteysWickedWorkshop
STL (Stereolithography, filesize: 2.46 MB), PNG (PNG, filesize: 2.46 MB), OTHER (Other, filesize: 33.3 MB)
